Weldtech WT160MP 160A MIG/TIG/ARC Inverter Welder

Be the first to review this product
Free Shipping
Weldtech /
SKU: WT160MP

WT160MP Weldtech 160A MIG/TIG/ARC Inverter Welder

$ 515 .00 Excl GST
$ 592.25 Incl GST

or 4 interest-free payments of $148.06 with

afterpay-icon afterpay-icon
Overview

Product Overview

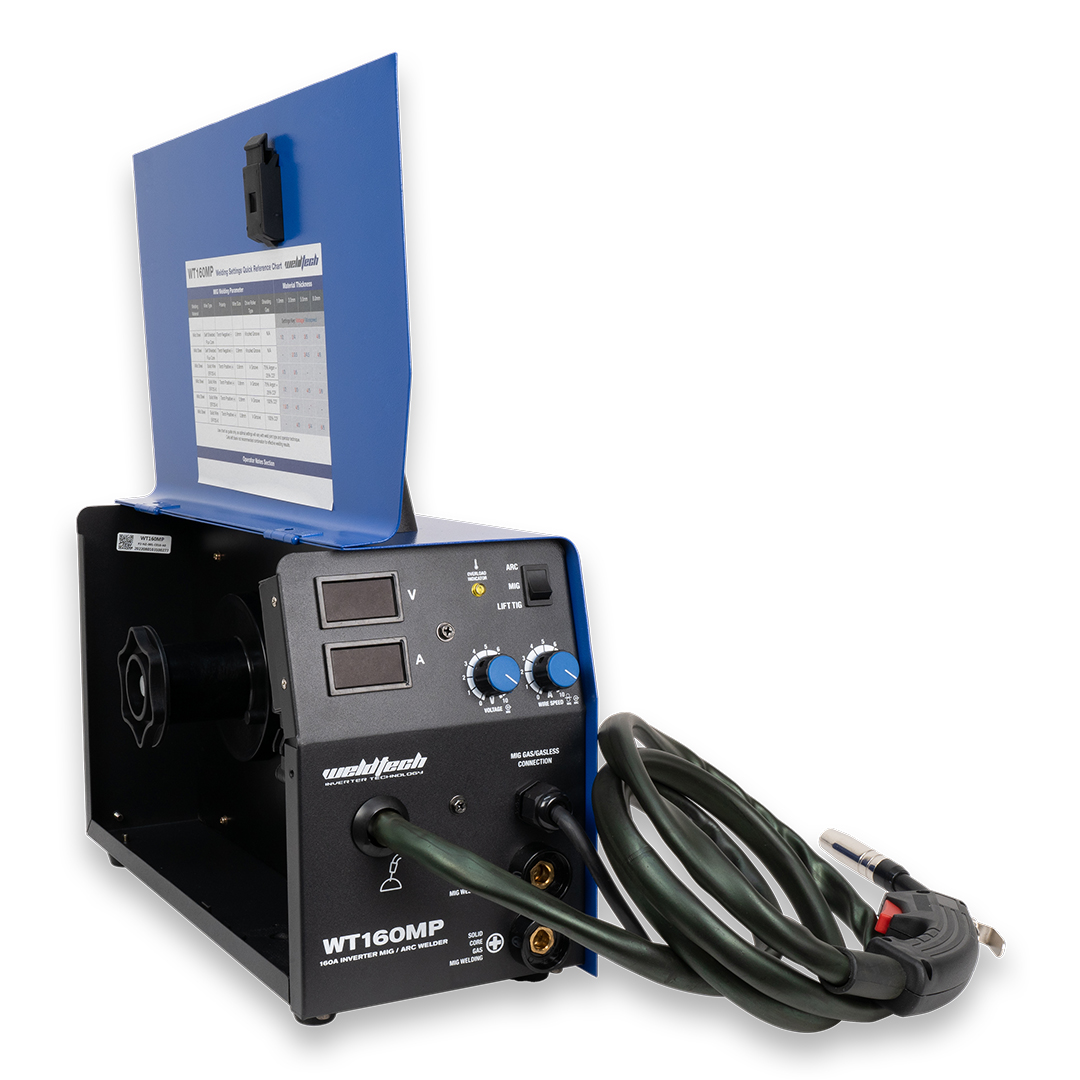

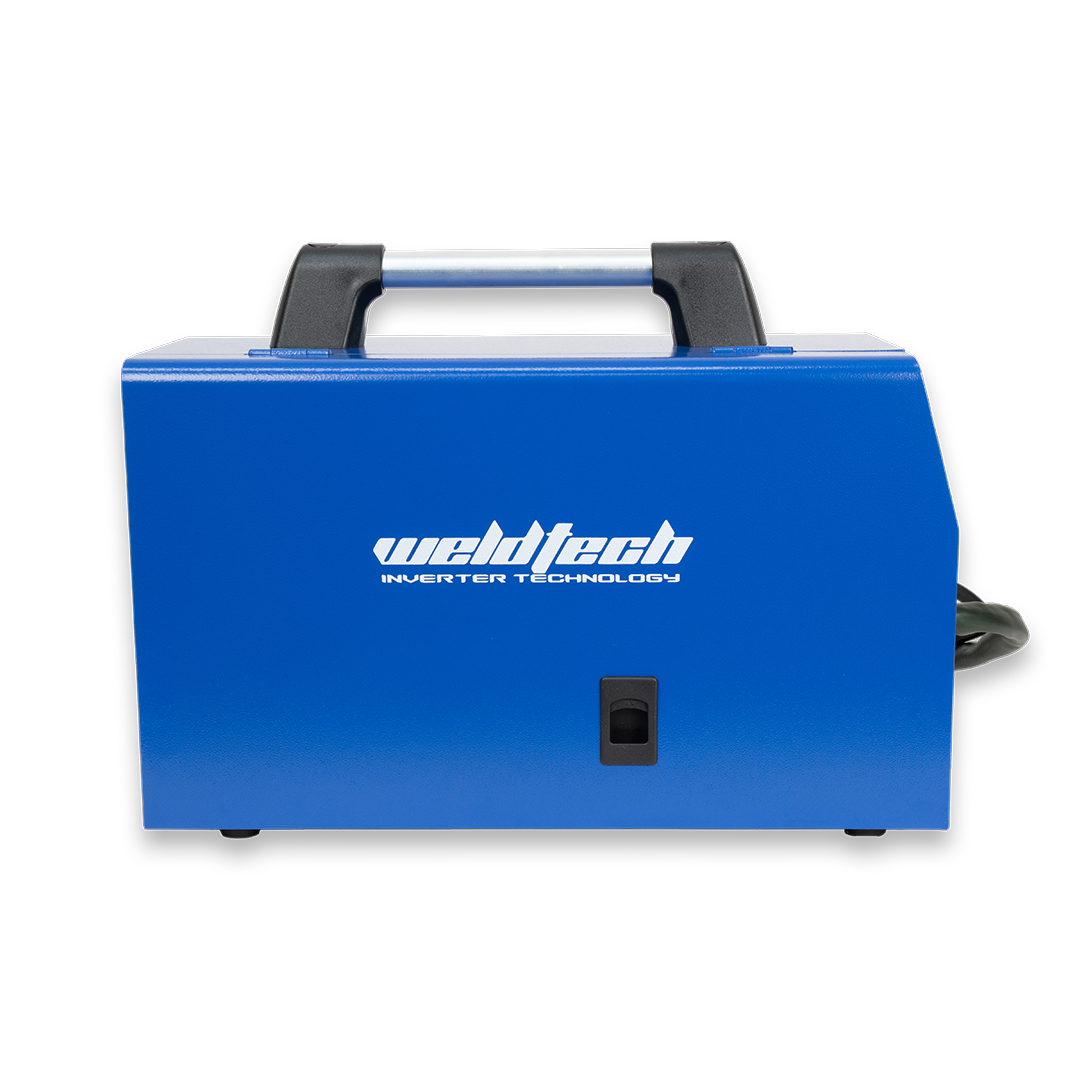

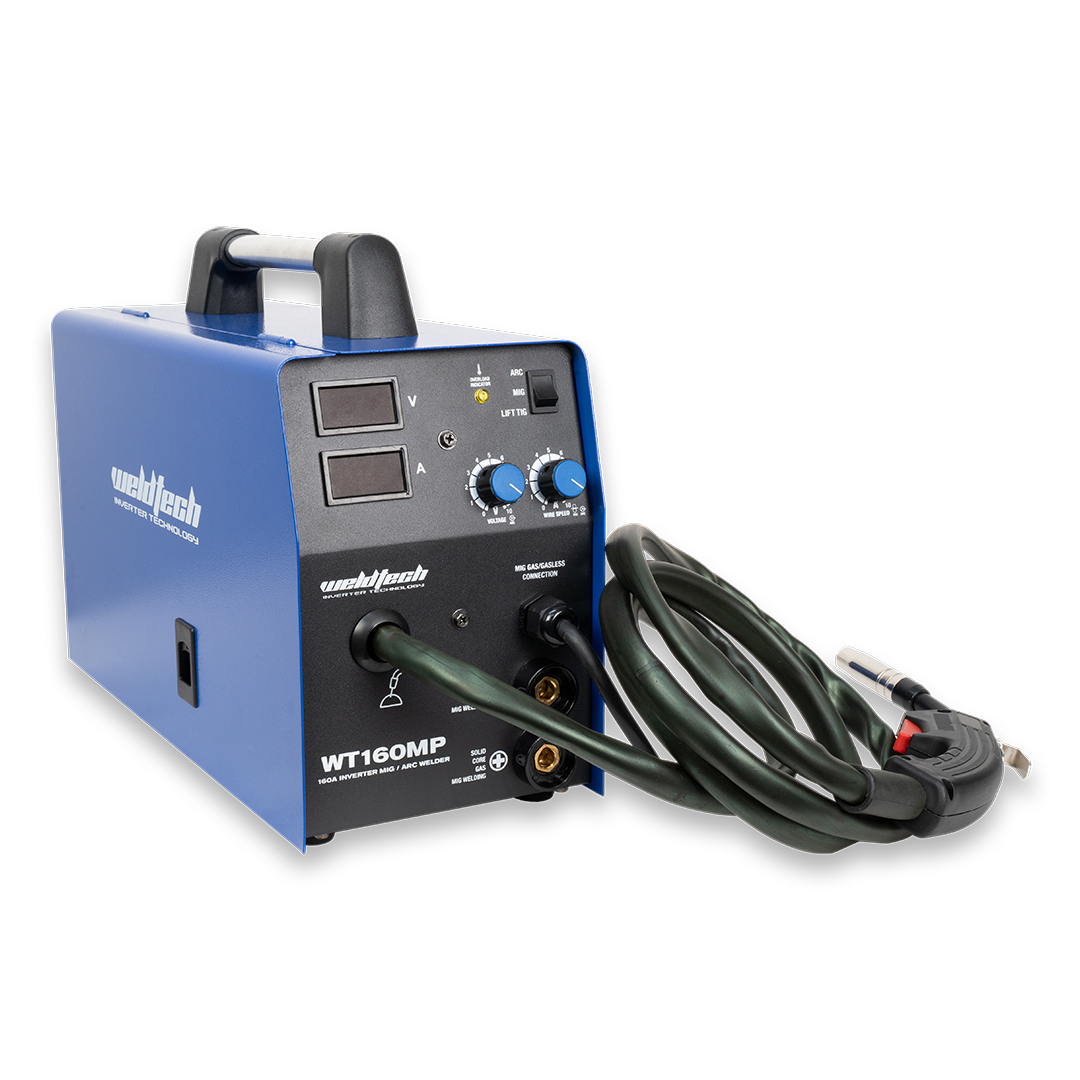

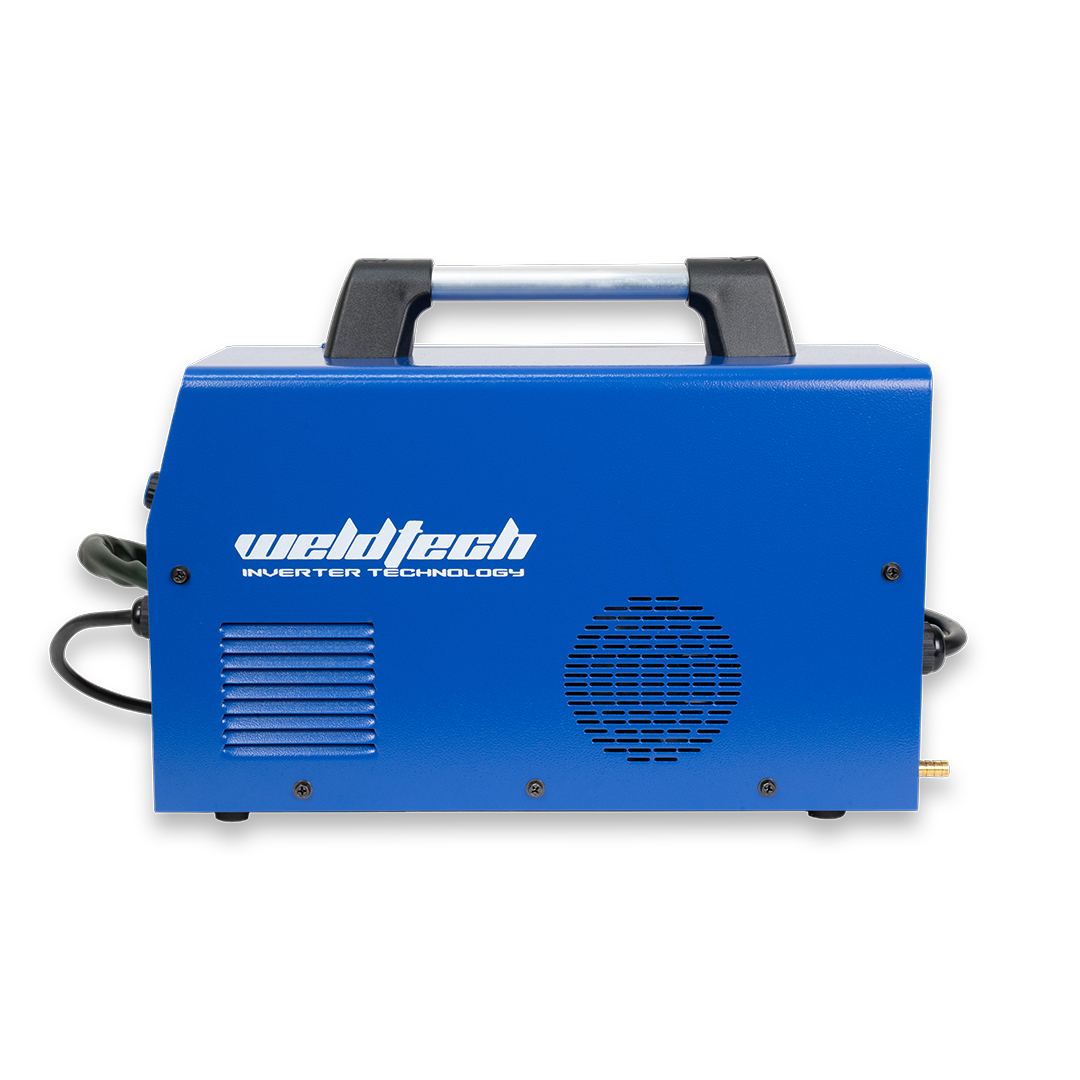

Weldtech WT160MP 160A MIG/TIG/ARC Inverter Welder

The WT160MP is an inverter welder & has far more weld pool control than the small transformer type mig welders. The stepless voltage & wire feed controls allow the operator to make very fine adjustments to run perfect welds every time.

POWERFUL - 160A welding power up to 8mm steel thickness
PORTABLE - Only 9Kg - super light weight and portable
RELIABLE - Cutting edge Inverter Technology ensures ultimate reliability


 Key Features

  • ARC and MIG function for variety of jobs (TIG Optional)

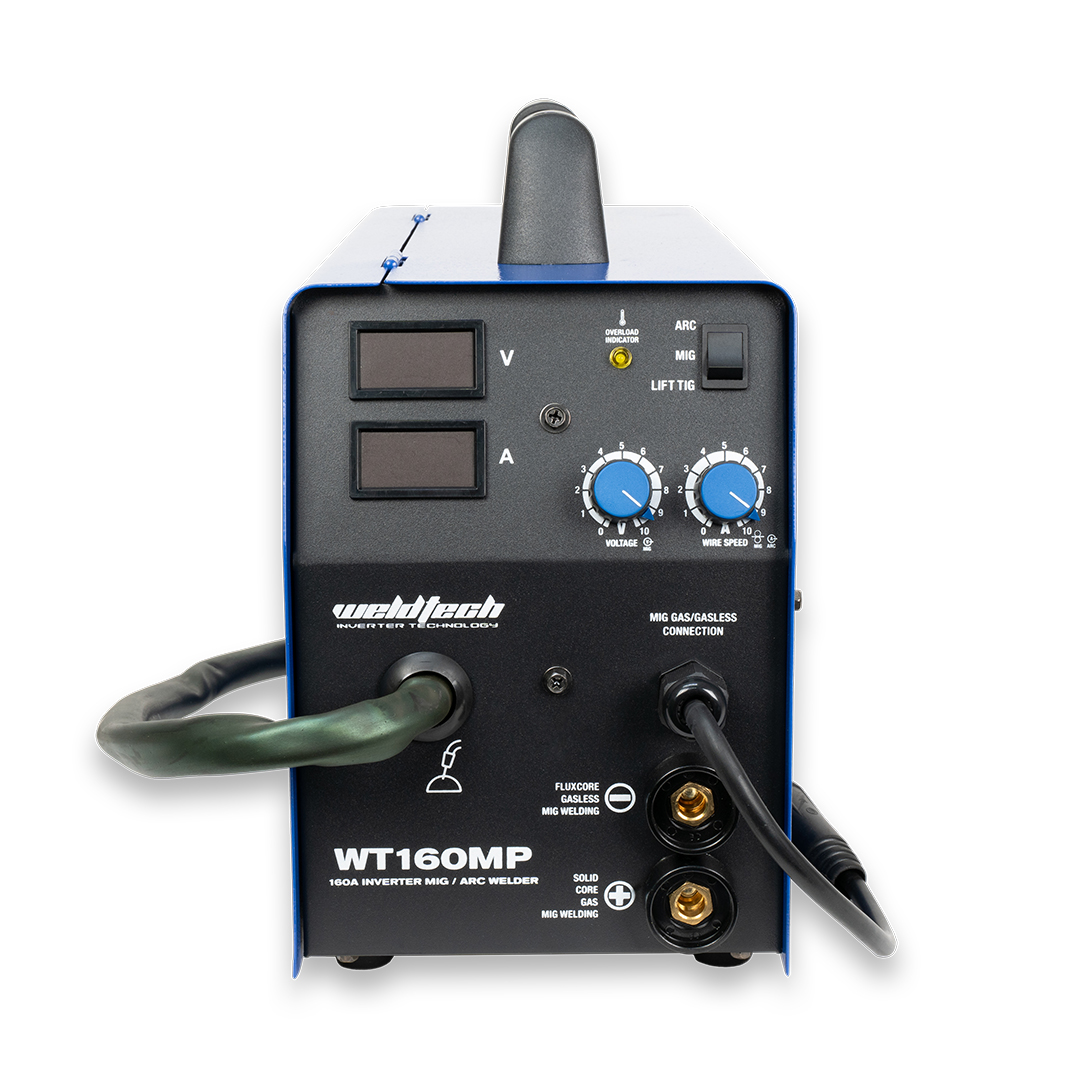

  • Stepless voltage and wire speed control
  • 60% duty cycle @ 130A
  • Lightweight and robust construction - only 9kg
  • Overload protection for increased reliability
  • 1 year commercial Warranty
  • Tig (optional) Requires torch & regulator

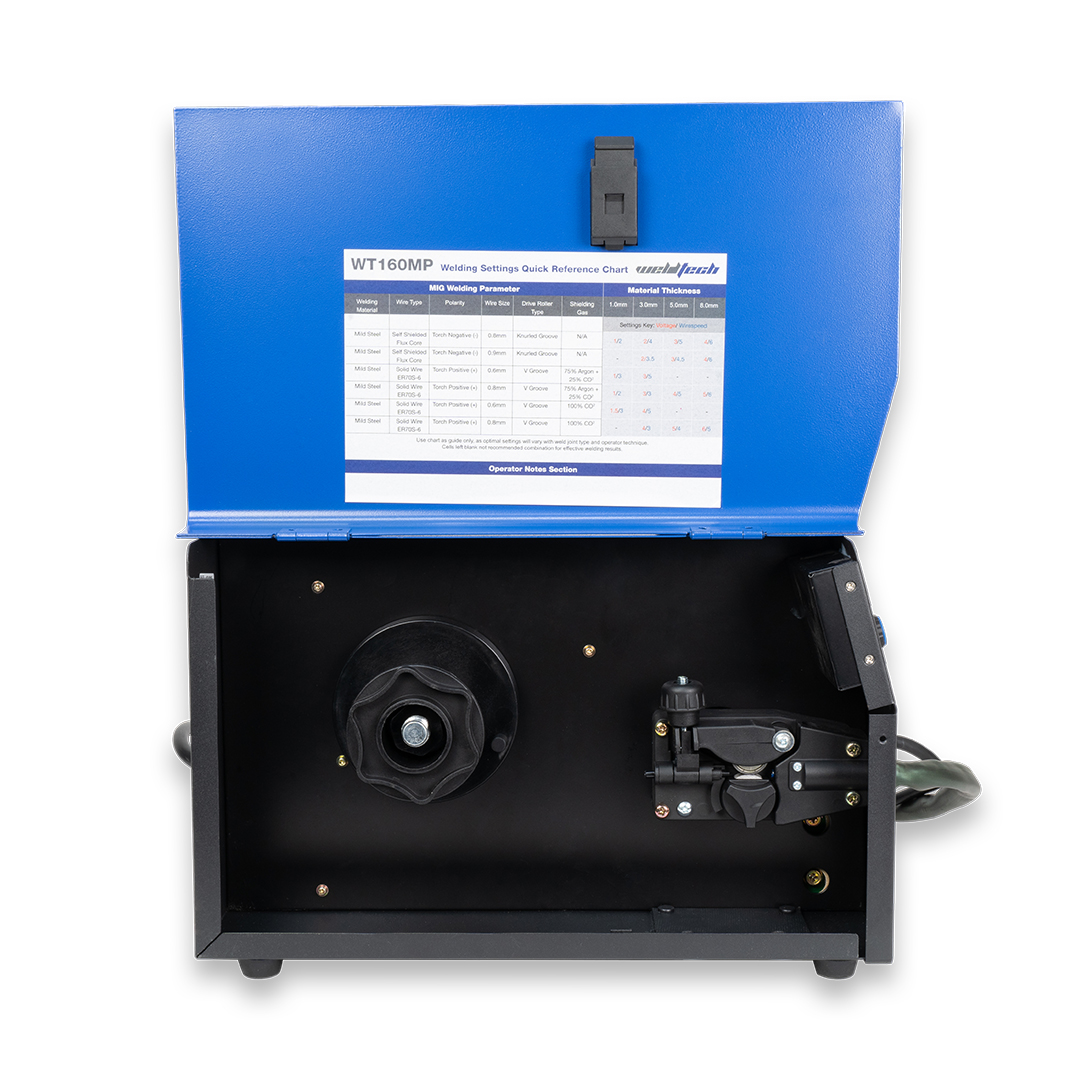

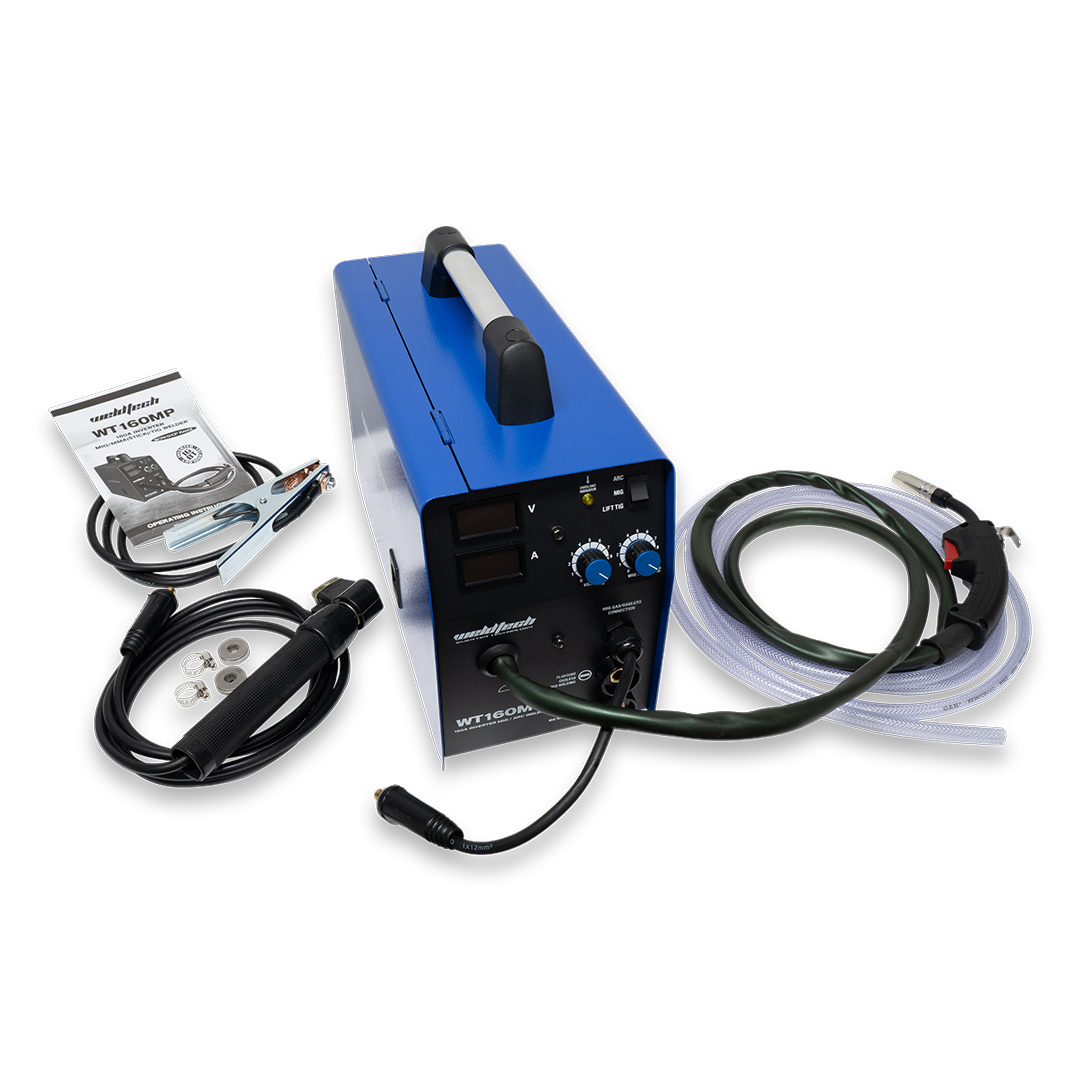

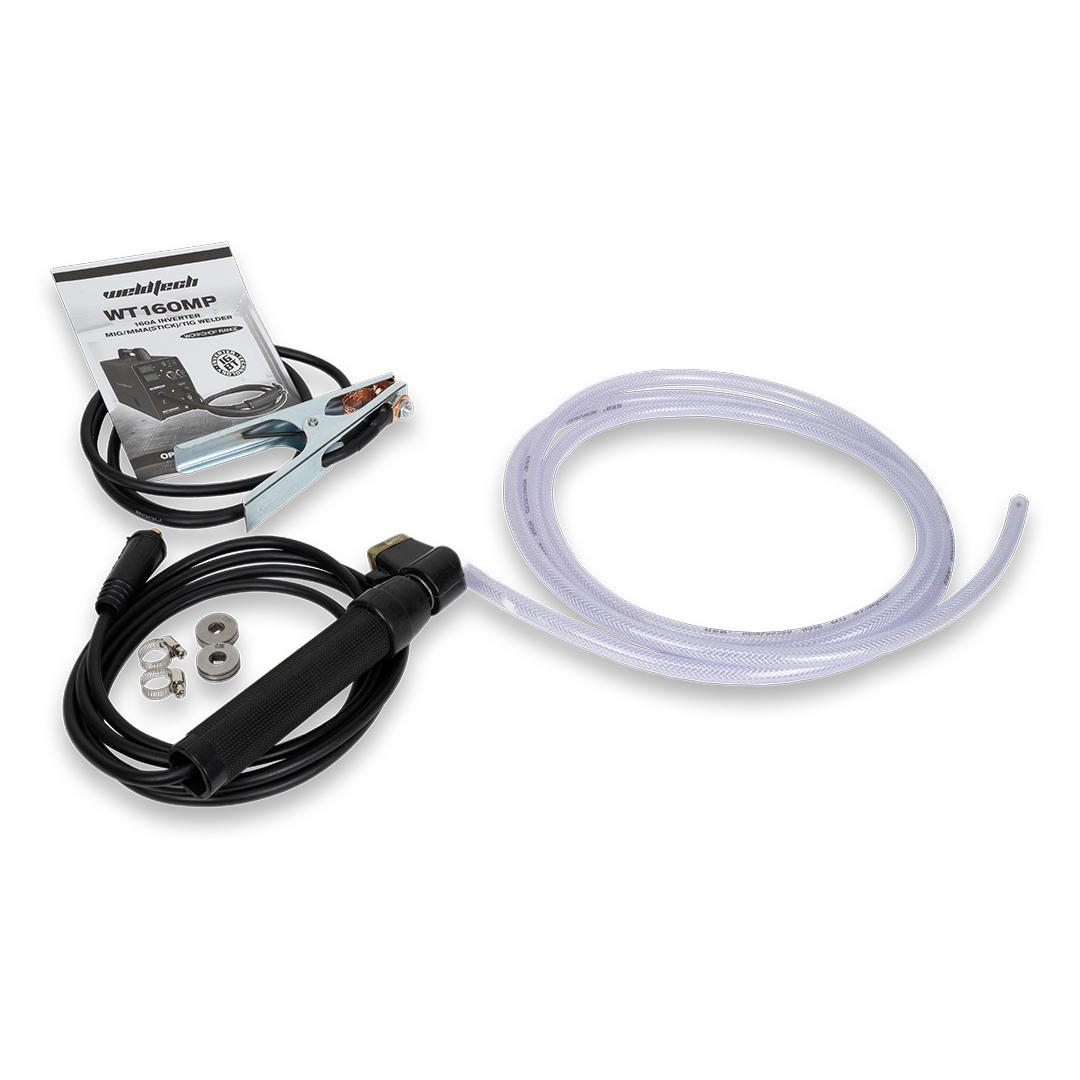

  • Comes with: MB15-2DC Mig Torch, Arc Welding Lead & Earth Lead. V Groove Drive Rollers : 0.6 & 0.8mm (For solid wires shielded with gas) and Knurled Drive Rollers: 0.8, 0.9 & 1.0mm (for flux core / gasless mig wire)



Resources

Downloads

Overview

Specifications

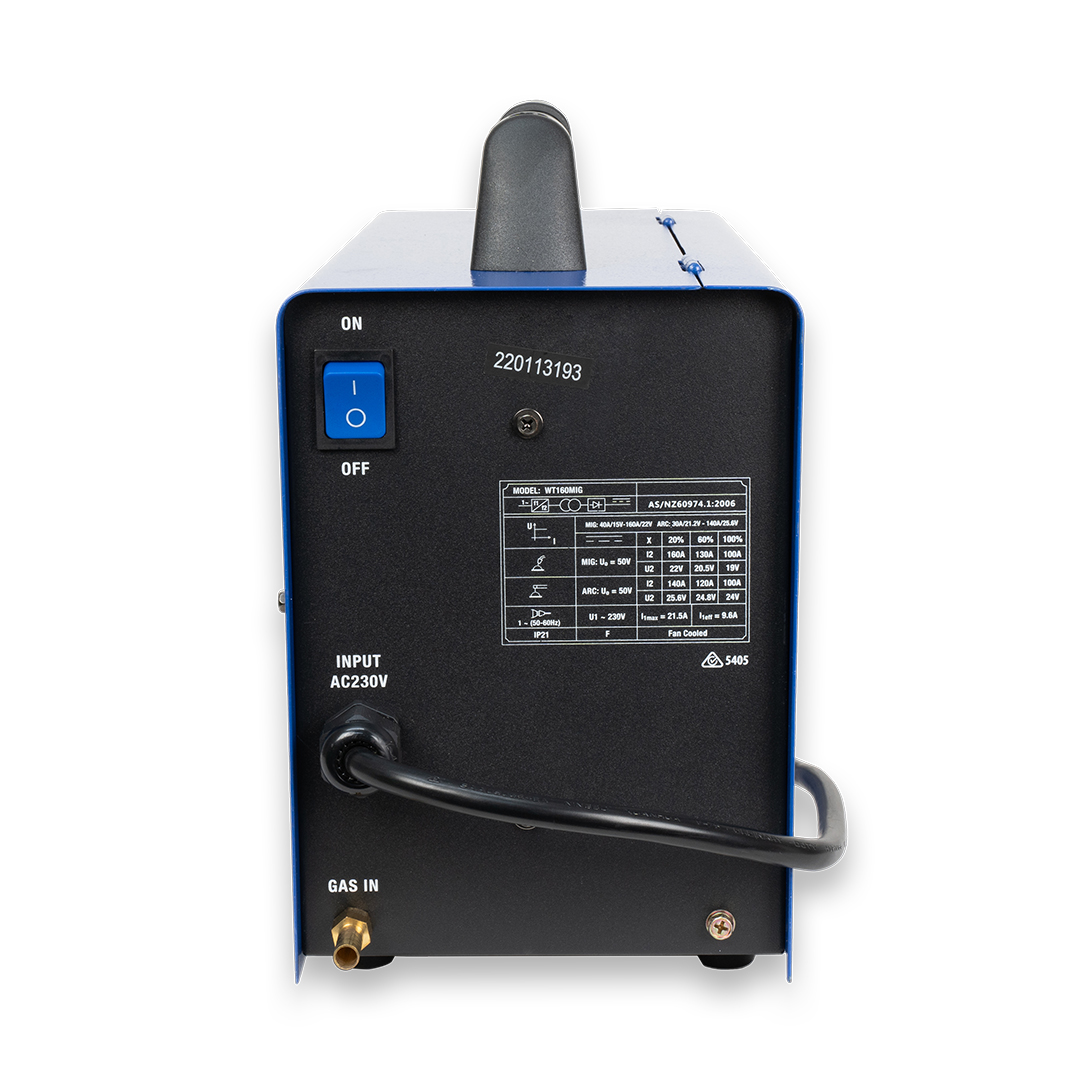

Power Input / 230V AC 10A 50/60Hz
Max Inpurt Current / 21.5A
Generator Capacity / 5 KVA
Mig Voltage Output / 15V-22 V
Mig Current output / 40A-160A
Mig Duty Circle / 160A@ 20% 130A@60%, 100A @ 100%
MMA/TIG Current Output / 30A-140A
MMA/TIG Duty Cycle / 140A@25%, 120A@60%, 100A@100%
Insulation Class / IP21
Weight / 9kg
Dimention / 395x165x290mm
Power Efficiency / 0.85
Power Factor / 0.83
Wire Feeding Speed / 2-11 m/minute
Your Questions Answered

FAQ's

What welding processes can the WT160MP perform?

What makes this welder different from small transformer MIG welders?

What duty cycle does it offer?

How powerful is this machine?

Can I fine-tune my weld settings?

Does it come with overload protection?
