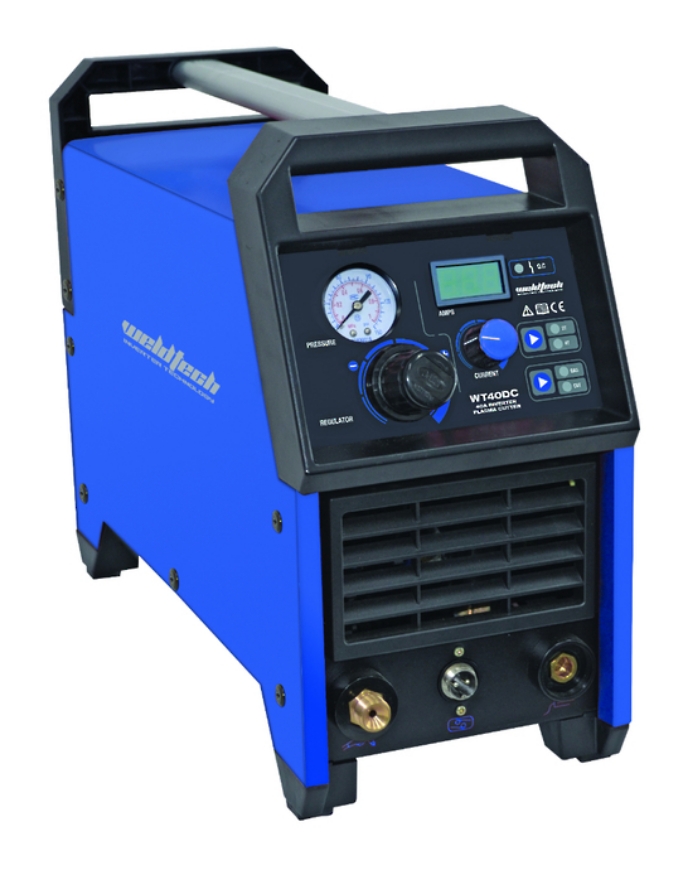

Weldtech 40A Inverter Plasma Cutter WT40DC

Brand: Weldtech
SKU: 18034
40A Inverter Plasma Cutter with 5m Torch and 3m Earth Lead. Cuts up to 8mm.
Please give us a brief description of your intended application (we may have a better solution.)
Call Us- 0800 699 353

Product Overview

The Weldtech 40A Plasma Cutter provides excellent Value! It's perfect for carbon steel stainless steel and aluminium work around the workshop and comes with a 5m Torch and 3m Earth Lead.

Powerful - 40A plasma output - Cuts up to 8mm steel
Portable - Only 9.5kg super lightweight and portable
Reliable - Cutting edge Inverter Technology

Key Features

  • Heavy Duty Casing & Front Panel Protection
  • Includes: 5m Plasma Torch and 3m Earth Lead
  • Built-in self-draining water trap creating clean dry air for added consumable life.
  • Heavy-duty case with full-length aluminium handle.
  • Common, low-cost torch PT-31 torch consumables.
  • Air hose plugs directly into rear panel with 1/4 ARO quick coupling.
  • Ideal for portable applications
  • Increased duty cycle and efficiency
  • Increased starting performance and consumable life
  • Lightweight and compact design – only 9.5kg
  • Set and test air pressure without the need to trigger the torch

Specifications

Products specifications
Input Power Supply Tolerance+/-15%
Power Input230V AC 15A 50/60Hz
Max Inpurt Current28.6A
Generator Capacity6.6 KVA
Plasma Output Current15-40A
Duty Circle40A@30%, 31A@100%
Plasma Production Cut Capacity Carbon Steel10mm
Plasma Production Cut Capacity Aluminium6mm
Insulation ClassIP21
Weight9.5kg
Dimention415x194x307mm
Power Efficiency0.8
Power Factor0.73
Compressed Air Requirement120l/min 5bar
Compressed Air Inlet FittingAro 1/4: Male

The Weldtech 40A Plasma Cutter provides excellent Value! It's perfect for carbon steel stainless steel and aluminium work around the workshop and comes with a 5m Torch and 3m Earth Lead.

Powerful - 40A plasma output - Cuts up to 8mm steel
Portable - Only 9.5kg super lightweight and portable
Reliable - Cutting edge Inverter Technology

Key Features

  • Heavy Duty Casing & Front Panel Protection
  • Includes: 5m Plasma Torch and 3m Earth Lead
  • Built-in self-draining water trap creating clean dry air for added consumable life.
  • Heavy-duty case with full-length aluminium handle.
  • Common, low-cost torch PT-31 torch consumables.
  • Air hose plugs directly into rear panel with 1/4 ARO quick coupling.
  • Ideal for portable applications
  • Increased duty cycle and efficiency
  • Increased starting performance and consumable life
  • Lightweight and compact design – only 9.5kg
  • Set and test air pressure without the need to trigger the torch
Products specifications
Input Power Supply Tolerance+/-15%
Power Input230V AC 15A 50/60Hz
Max Inpurt Current28.6A
Generator Capacity6.6 KVA
Plasma Output Current15-40A
Duty Circle40A@30%, 31A@100%
Plasma Production Cut Capacity Carbon Steel10mm
Plasma Production Cut Capacity Aluminium6mm
Insulation ClassIP21
Weight9.5kg
Dimention415x194x307mm
Power Efficiency0.8
Power Factor0.73
Compressed Air Requirement120l/min 5bar
Compressed Air Inlet FittingAro 1/4: Male
