How to Choose a Welding Positioner

Choosing a welding positioner comes down to three things: the payload capacity you need for your heaviest regular workpiece, the rotation speed and tilt range that suit your work, and whether a simple turntable will do or you need a tilting rotary positioner. Get the capacity right, and the rest usually follows.

The terminology is where most people get stuck. Turntable, rotary positioner, rotator, indexer. The words get swapped around online, and a lot of what comes up in a search is written for North American workshops buying machines that aren't sold here. This guide sorts out the terms, then gives you a way to size a positioner against the work actually going across your bench.

What Is a Welding Positioner?

A welding positioner holds a workpiece and rotates it under power, keeping the joint flat while you weld. That's the whole idea. Instead of stopping to unclamp, flip, re-tack and restart, the part comes to you.

It's worth separating this from a welding table, because buyers search both terms, and they do different jobs. A table holds a workpiece still. A positioner moves it while the arc is live. If you're welding a flange, a pipe spool, a hub or a small drum, that difference is the whole reason to buy one. A circumferential weld performed on a static bench consists of four or five separate passes, with a re-clamp between each. On a positioner, it's one continuous run.

The gain isn't only speed. Out-of-position welding is where most defects come from. Vertical-up and overhead work gives you less control of the puddle, more spatter, and a much higher chance of lack of fusion or undercut. Bring the joint back to flat, and a lot of that goes away without the welder having to do anything differently.

Welding Turntable vs Rotary Positioner vs Welding Rotator: What Is the Difference?

Three terms, three different machines.

A welding turntable spins the workpiece around a vertical axis and nothing else. The table stays flat, the part goes round. Good for ring welds, valve bodies and anything where the joint sits in one plane the whole way round.

A rotary positioner adds tilt. You can angle and rotate the table, which matters when the joint orientation changes around the part, such as a branch fitting, an angled boss, or a bracket welded onto a curved face. Most benchtop machines sold in New Zealand are this type.

A welding rotator, sometimes called turning rolls, is a different animal. The part sits on powered rollers and turns about its own long axis. No chuck, no faceplate. This is what you use for pipe, tanks, and pressure vessels: dairy pipework, irrigation mains, and small-vessel fabrication.

You'll also see headstock-tailstock setups for long components supported at both ends, as well as multi-axis units for complex assemblies. Those are production-shop machines. For most small- to medium-sized NZ workshops, the real choice is between a benchtop turntable and a compact tilting positioner, and the welding positioner range mostly falls within that bracket.

Key Factors When Choosing a Welding Positioner

Payload capacity. The single most important number, and the one most often quoted incompletely. Look for both the vertical and horizontal ratings. They are not the same figure, and the horizontal one is usually about half. More on this below.

Table diameter. This sets the size of the part you can bolt or clamp down. A 180 mm table handles flanges, fittings, brackets and small round work comfortably. Structural components need considerably more face.

Rotation speed range. Variable speed matters more than top speed. You want to match the table speed to your travel speed so the bead stays consistent all the way round. Something in the range of 2 to 16 r/min covers most small-workshop MIG and TIG work: slow for a careful TIG root, faster for a MIG fillet on a repeat batch.

Tilt range and locking. Common ranges are 0–90°, with some larger machines reaching 135°. As much as the range matters, so does whether the table self-locks at an angle. A tilt that creeps under load is worse than no tilt at all.

Drive type. A manual crank is cheaper and fine for positioning between passes. It is not suitable for welding while rotating because you can't maintain a steady speed by hand. If you want continuous rotary welds, you need a motorised table.

Workpiece holding. A 3-jaw chuck suits round work. Faceplates with slots, magnetic clamps and tack-welded tabs cover everything else. Check what's included, because chucks and extension jaws are often sold separately, and they aren't cheap.

Earthing path and HF interference. Two things people find out the hard way. Welding current returning through bearings will destroy them, and a TIG high-frequency start can scramble the speed controller on a positioner that wasn't designed for it. Both are worth asking about before you buy.

What Payload Capacity Do You Actually Need?

Weigh a typical part before you shop. Most people guess high, then buy more machines than they need.

Some real reference points from NZ workshop work:

• A 300 mm length of 100 × 100 × 6 mm SHS, fabricated with a base plate, weighing around 4–6 kg
• Small pipe spools, stainless fittings, mower brackets and trailer light plates generally sit in the 2–8 kg range
• Gusseted brackets, small structural nodes, gearbox housings and agricultural implement parts climb quickly, and 15–40 kg once fixtured is common
• Structural beams, large frames and thick plate weldments are well beyond any benchtop unit

Two things will catch you out. The first is that fixtures count. A chuck, a jig and a set of clamps can add several kilograms before the workpiece goes on. The second is the centre of gravity: a rated capacity assumes the load sits close to the centreline. A long or tall part hanging off-centre puts far more torque through the drive than its weight would suggest, and that torque is what kills gearboxes.

Allow 30–50% headroom between the rated payload and your heaviest realistic job, counting the workpiece plus everything holding it.

Which Welding Processes Benefit Most from a Positioner?

MIG/MAG. The clearest productivity gain. Fillet and butt welds stay flat or horizontal, the bead remains consistent, and spatter drops off on repeat runs, as with trailer components and bracket batches.

TIG. The clearest quality gain. TIG is unforgiving about torch angle and puddle control, and a positioner lets you hold both steady right around a stainless tube or an alloy flange. This is the process by which a positioner earns its keep in food-grade, marine, and automotive work. Check for anti-electromagnetic shielding on the drive, because HF starting on a poorly shielded unit can interfere with the speed control.

Stick (MMA). Cuts out most of the vertical-up and overhead work, which is slow, tiring and hard to keep tidy. Useful for structural tabs, posts and farm repairs.

Sub-arc and automated cells. Effectively requires a positioner or rotator for cylindrical work. Beyond most small workshops, but increasingly common among NZ manufacturers running production volumes.

Benefits of Using a Welding Positioner

• Time back on every rotational weld. No stopping to unbolt, flip, re-tack and restart. On a batch of twenty flanges, that's most of a morning.
• More consistent welds. Flat-position work gives better penetration and neater beads, which matters when the job has to pass inspection or a structural sign-off.
• Less strain on the welder. Fewer overhead and floor-level positions mean less load on backs, necks and shoulders. WorkSafe NZ treats musculoskeletal risk as a hazard to be managed like any other, and this is a straightforward way to reduce it.
• Less pressure on skilled labour. A less experienced welder produces acceptable work more often when the joint is presented flat. That counts for something with the trade shortage where it is.
• Repeatable setups. Once speed and angle are dialled in for a job, the same settings come back next time.

Limitations and Considerations

A positioner isn't right for every workshop, and it's worth being straight about where it doesn't pay.

If you weld small parts occasionally, it will sit under a cover most of the year. The case gets strong when you're doing repetitive rotary or multi-pass work weekly. That's the point where manual repositioning becomes a measurable share of job time.

It takes bench or floor space, and you need clearance around it for a part to rotate and tilt without hitting anything.

There's a learning curve. Centring and balancing a part properly, setting the right speed, and planning a weld sequence around continuous rotation all take practice. A badly balanced setup gives worse results than doing it by hand.

And large flat frames or awkward one-off structures are often still easier on a bench with jigs. Not every job belongs on a positioner.

How to Use a Welding Positioner Safely

Confirm the rated payload for the orientation you're working in, and include the chuck and fixtures in that figure. Allow margin for the loads that come from starting and stopping rotation.

Secure the workpiece properly with a chuck, t-bolts, clamps or a tack-welded tab. Check that there's nothing loose that can come off once the table is turned.

Balance the load as close to the centreline as you can. Vibration and motor strain both trace back to off-centre loads.

Attach the earth lead to the workpiece itself or to a dedicated earth lug provided for the purpose. Never to the frame, the motor housing, or anything else that causes the current path to run through a bearing.

Set direction and speed with the arc off, and do a dry run first to check clearance, cable routing and where your hands need to be.

Put the foot pedal and any remote within reach without stretching or stepping over a lead mid-weld.

Welding Positioners Available from Proline

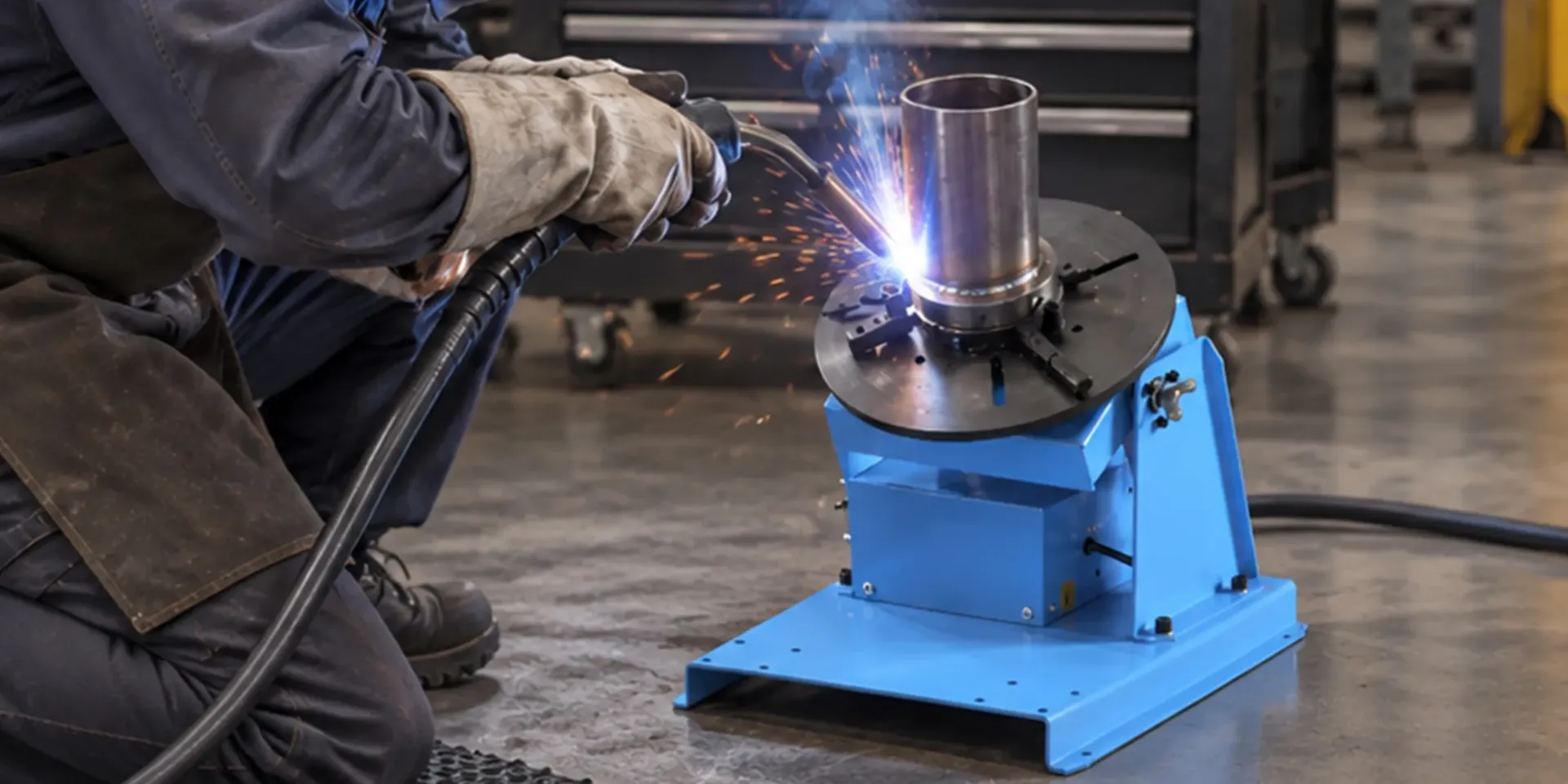

For light fabrication, automotive and hobby work, the Promax HD10 is the practical entry point in the welding positioners range.

Two features are worth calling out because they're not obvious from the numbers. The table has a centre through-hole, so pipe and round stock can be clamped straight through it rather than cantilevered off the face. That means better alignment and a lot less vibration on tube work. And the drive has an anti-electromagnetic design specifically to prevent TIG high-frequency start from interfering with the speed control, which is the failure people run into when they pair a cheap positioner with an HF TIG machine.

The honest limit: at 10 kg vertical and 5 kg horizontal, this is a light fabrication machine. Structural sections, large frames and plate weldments need a heavier unit, and dairy or irrigation pipework is rotator territory rather than positioner territory.

The torch mounting arm and extension jaw sets are sold separately, so factor them in if you're planning semi-automated runs or holding larger-diameter round work.

If you're not certain which class of machine your work calls for, weigh your heaviest regular part with its fixture and talk it through with the team on 0800 699 353. That one number settles most of the decision.
