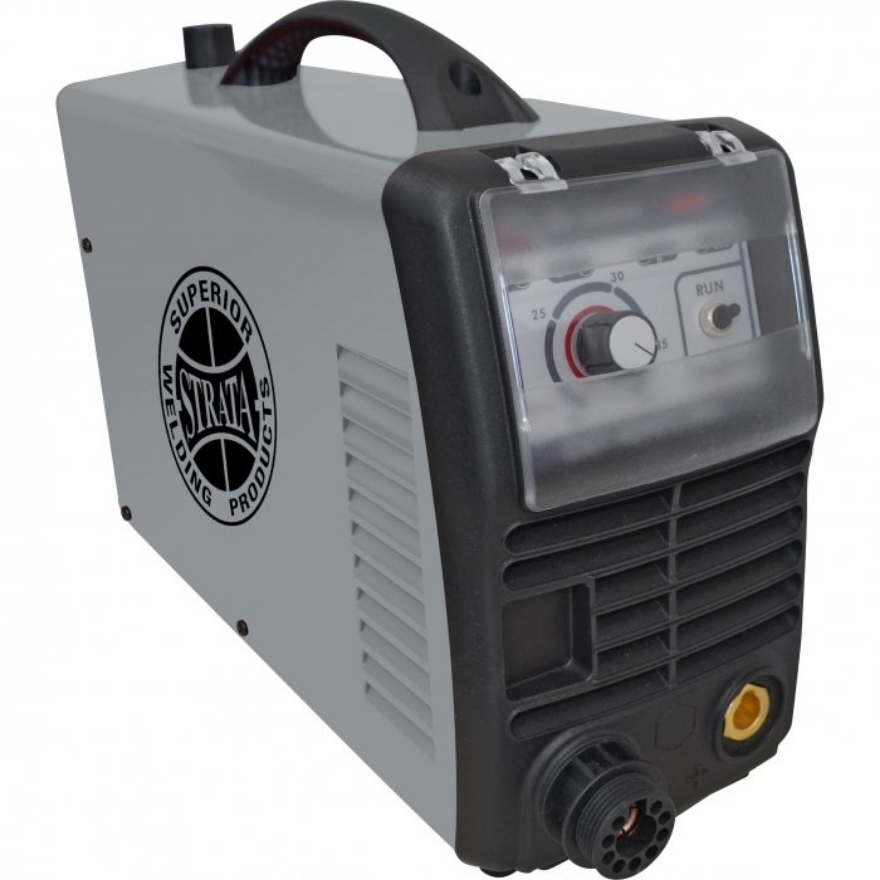

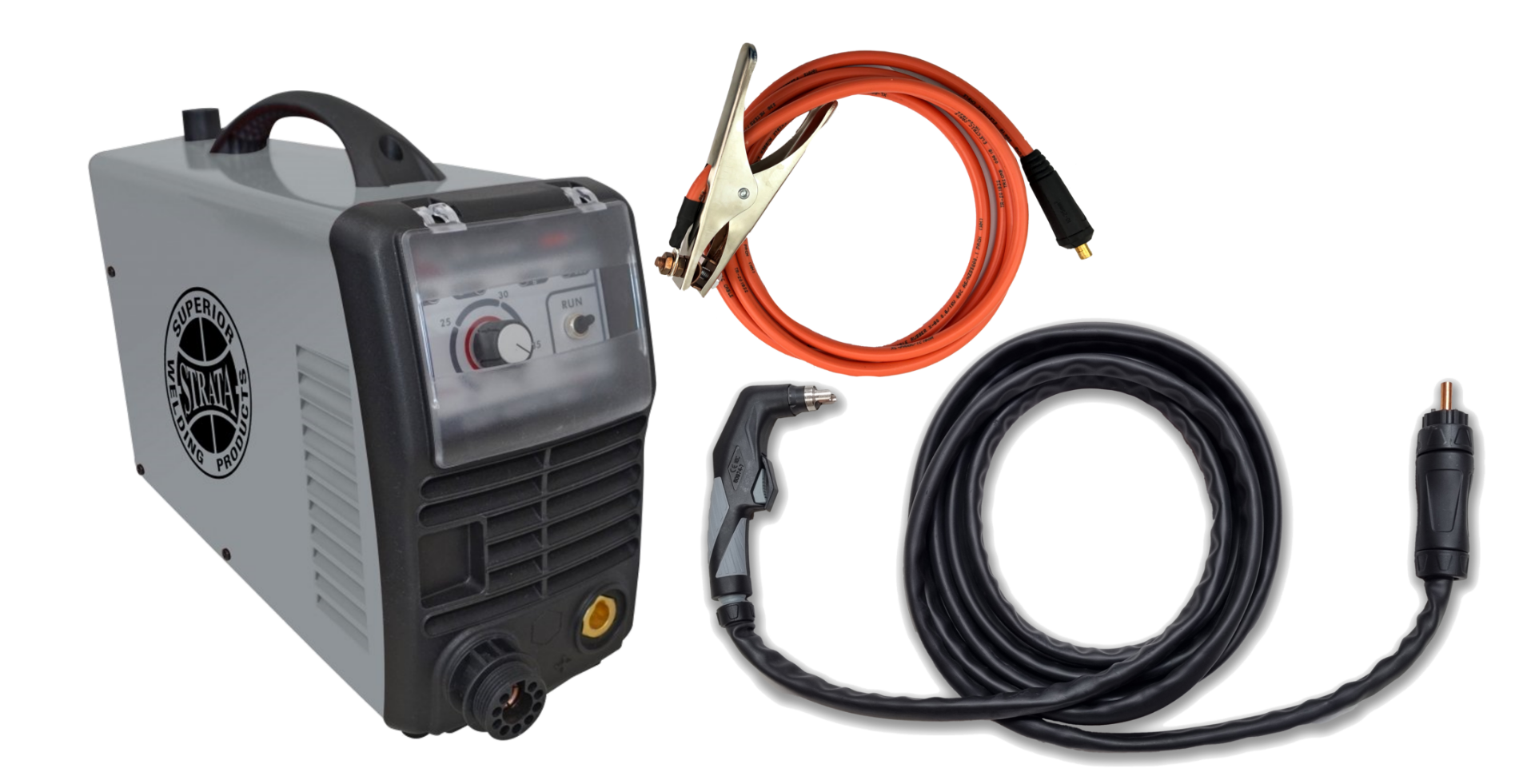

Strata Advance Cut 40 Plasma Cutter

Brand: Strata
SKU: 17393
AdvanceCut40 is the ultimate single phase plasma cutter. Thanks to PFC technology this powerful compact plasma cutter will provide exceptional performance even on rural power supply's or generators. Guaranteed to perform in the harshest conditions.
Please give us a brief description of your intended application (we may have a better solution.)
Call Us- 0800 699 353

Product Overview

Strata AdvanceCut40
  • IGBT inverter technology for smooth & stable output and increased reliability
  • Active PFC technology for increased duty cycle and energy efficiency
  • Multi voltage input, can even be used with long extension lead reliably.
  • Protected external air regulator with water trap/ filter for easy adjustment & servicing
  • Euro connect torch system for safe & robust connection to machine

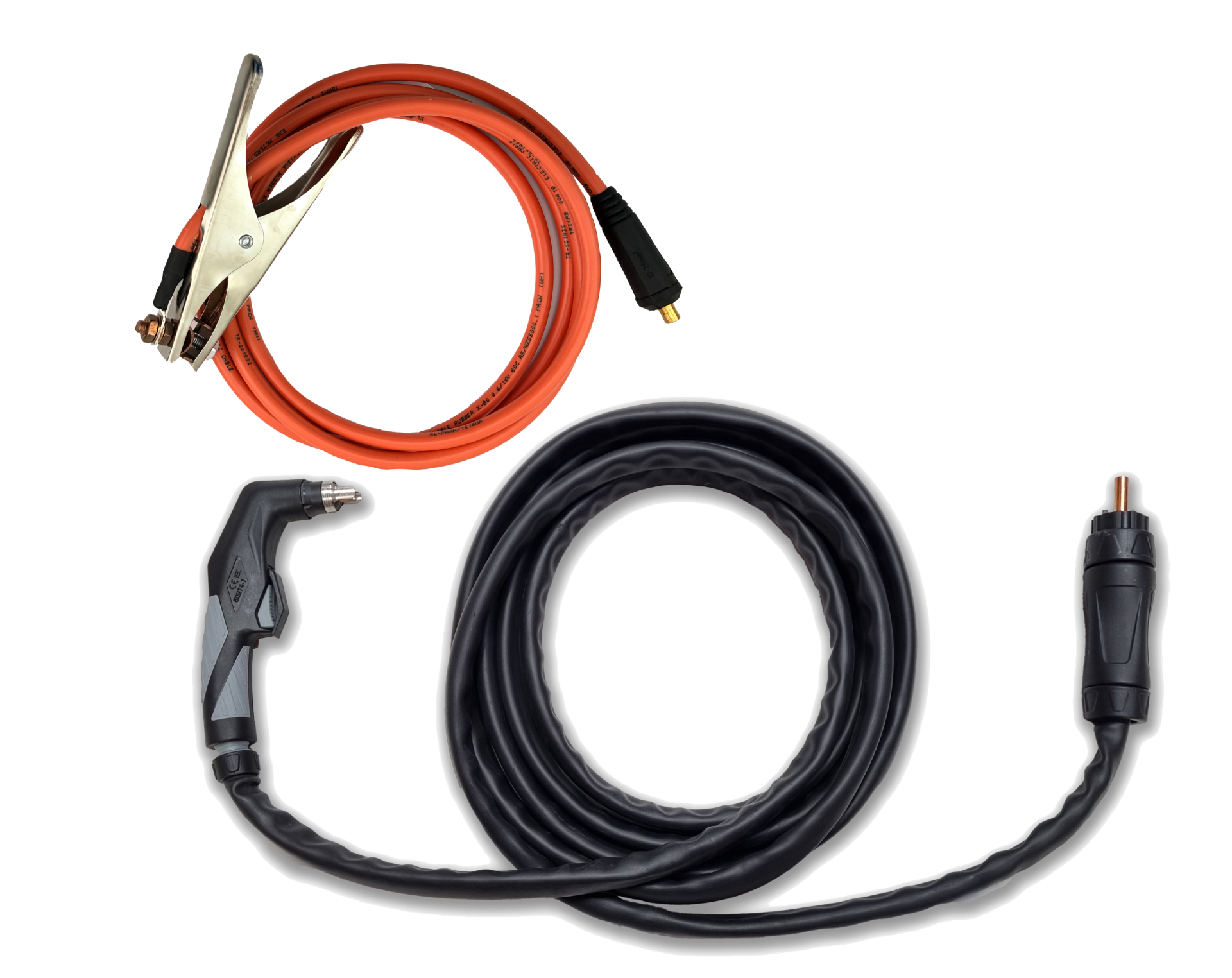

  • Advanced strata plasma torch with european torch head for superior cutting performance and consumable life
  • Non HF arc starting system for increased reliability and low EMF pollution
  • Auto pilot arc control system for increased cutting capability
  • Lightweight & compact design ideal for portable applications
  • High quality & over specified electronic components for durability & reliability
  • Intelligent protection system protects plasma torch from damage from incorrect air pressure, consumables not in place, excessive pilot arc use.
  • Air flow manual activation switch to set & test air pressure without the need to trigger the torch.

Specifications

Products specifications
Dimensions480x146x278mm
Weight7kg
Input Power Supply230V AC 15A 50/60Hz
Input Power Supply Tolerance90V-275V AC
Maximum Input Current21A
Generator Capacity5KVA
Plasma Output Current20-40A
Duty Cycle40A@50%, 30A@100%
Plasma Production Cut Capacity Carbon Steel20mm
Plasma Production Cut Capacity Aluminium16mm
Plasma Severance Cut Capacity Carbon Steel25mm
Compressed Air Requirement110 l/min 5bar
Insulation ClassIP23
StandardsEN60974-1:2012
WarrantyCommercial 12 month extends to 36 months with product registration
Power Efficiency0.8
Power Factor0.99
