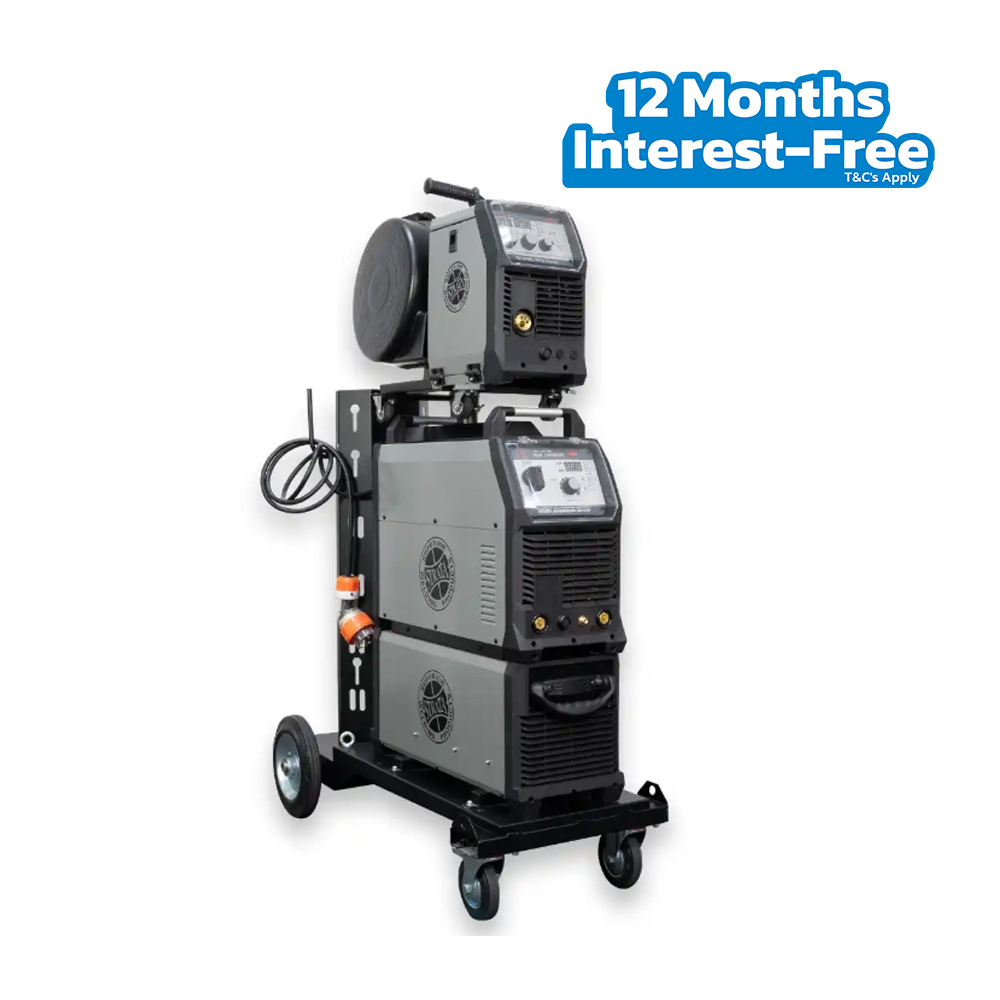

Strata AdvanceMig350 350A Synergic Inverter Welder Package

Brand: Strata
SKU: 17820

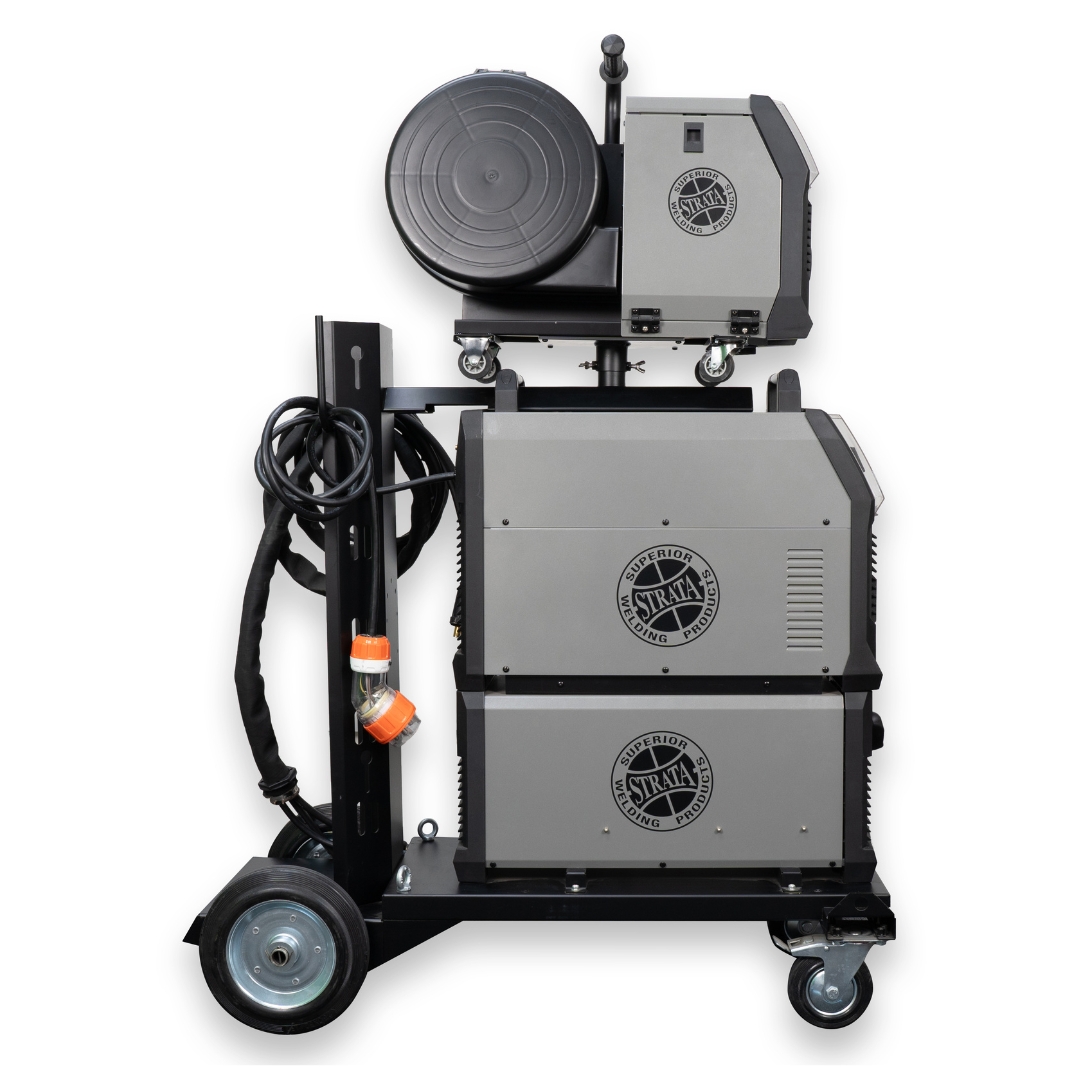

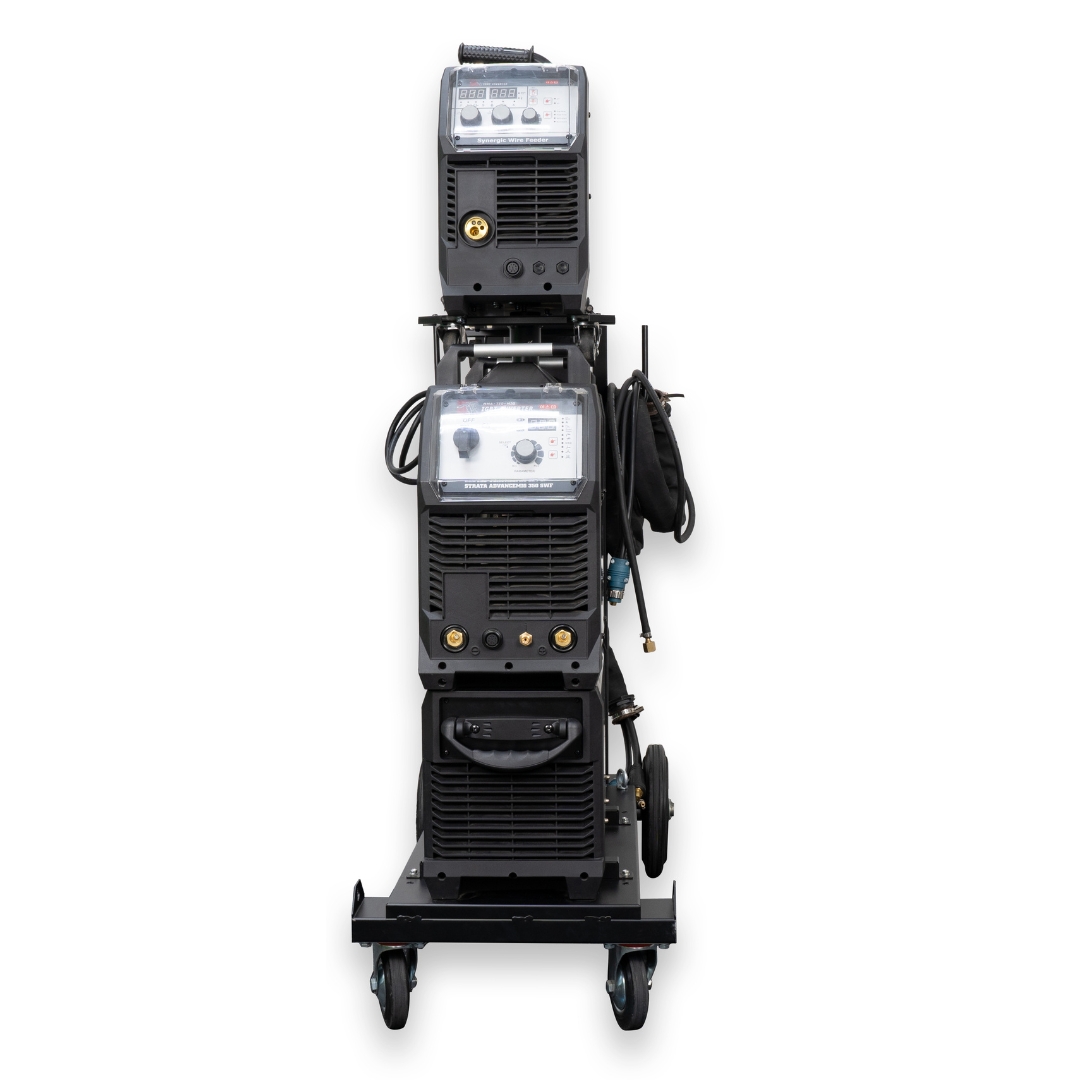

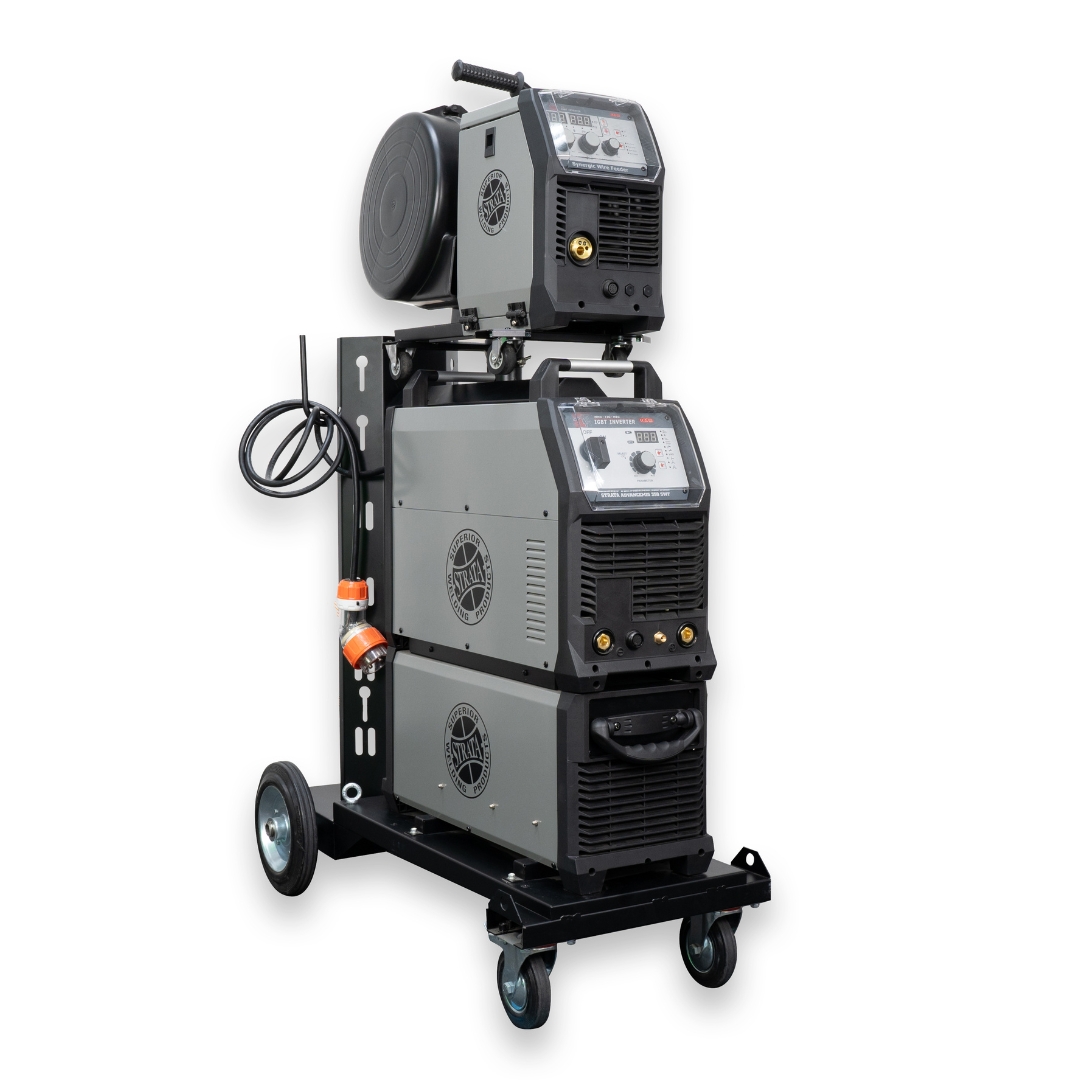

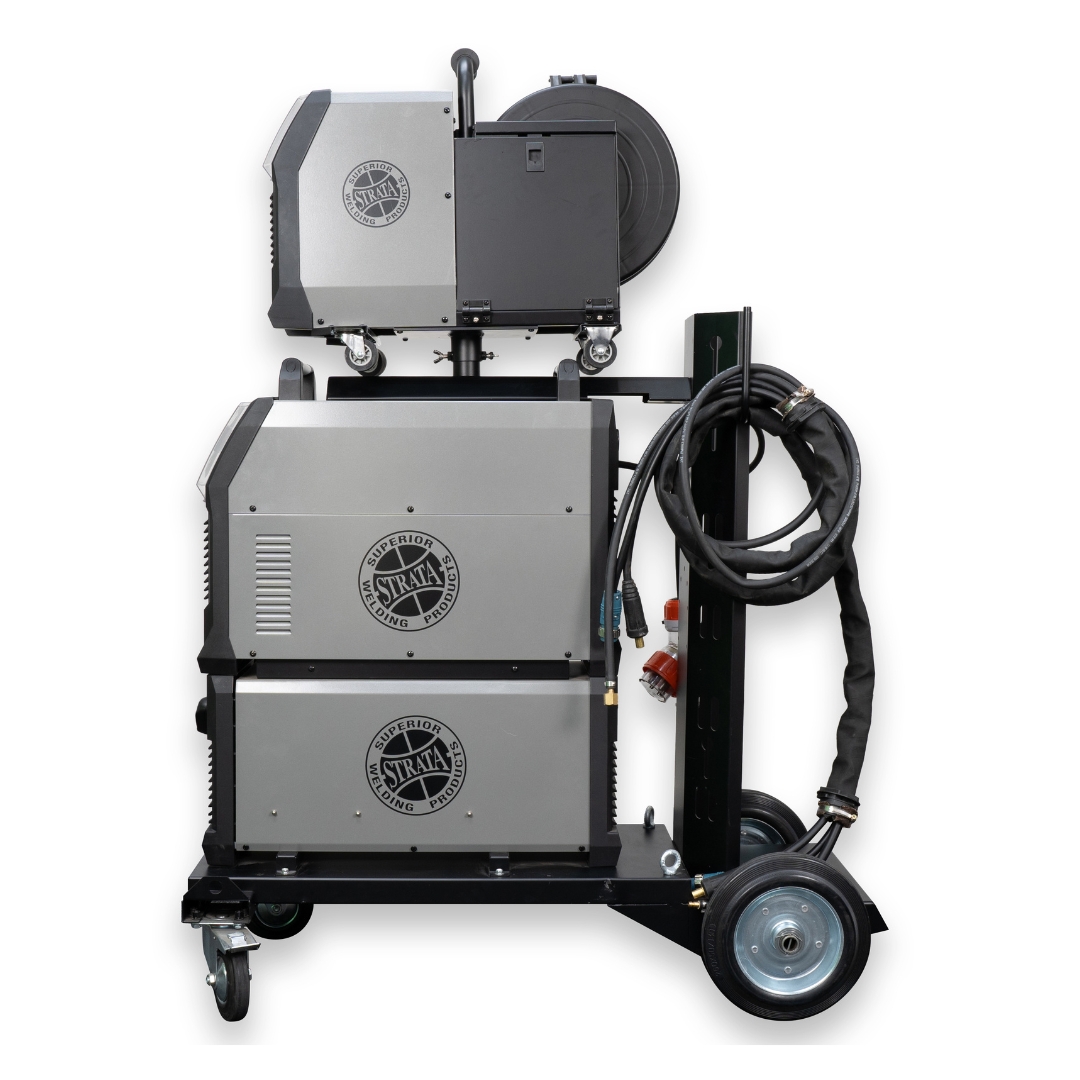

Strata AdvanceMig350 350A Synergic Inverter MIG/MMA/TIG Welder SWF C/W Heavy Duty Trolley, Storage Cabinet, Wire Feeder, Mig Torch, Arc Lead Set & Gas Regulator.
$ 5,480 .00
$ 6,302.00 Incl GST
Qualifies for Free Shipping
Call Us- 0800 699 353
Please give us a brief description of your intended application (we may have a better solution.)

Product Overview

Strata AdvanceMig350 350A Synergic Inverter Welder Package

State of the art synergies technology with full operational controls on the remote wire feeder make these models a breeze to operate. Rich in features including a 4 roll wire feeder and integrated protection systems mean these 3 phase machines are top of the class in performance, reliability and user satisfaction. Designed for rugged heavy work day in and day out.

Key Features

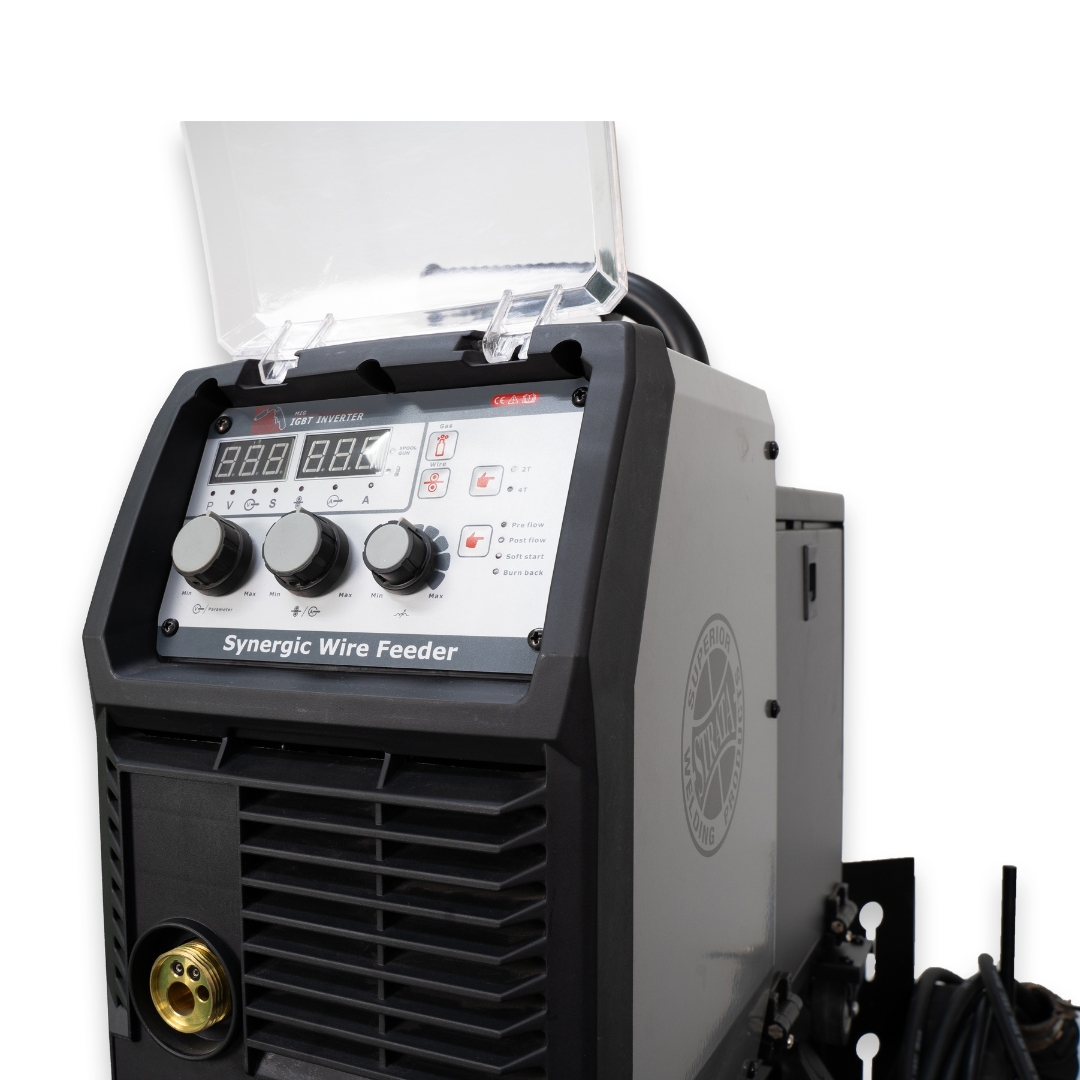

- Intelligent digital wire feeder with all MIG controls and display located on wire feeder control panel

- Digital microprocessor control system for superior & dynamic arc characteristics

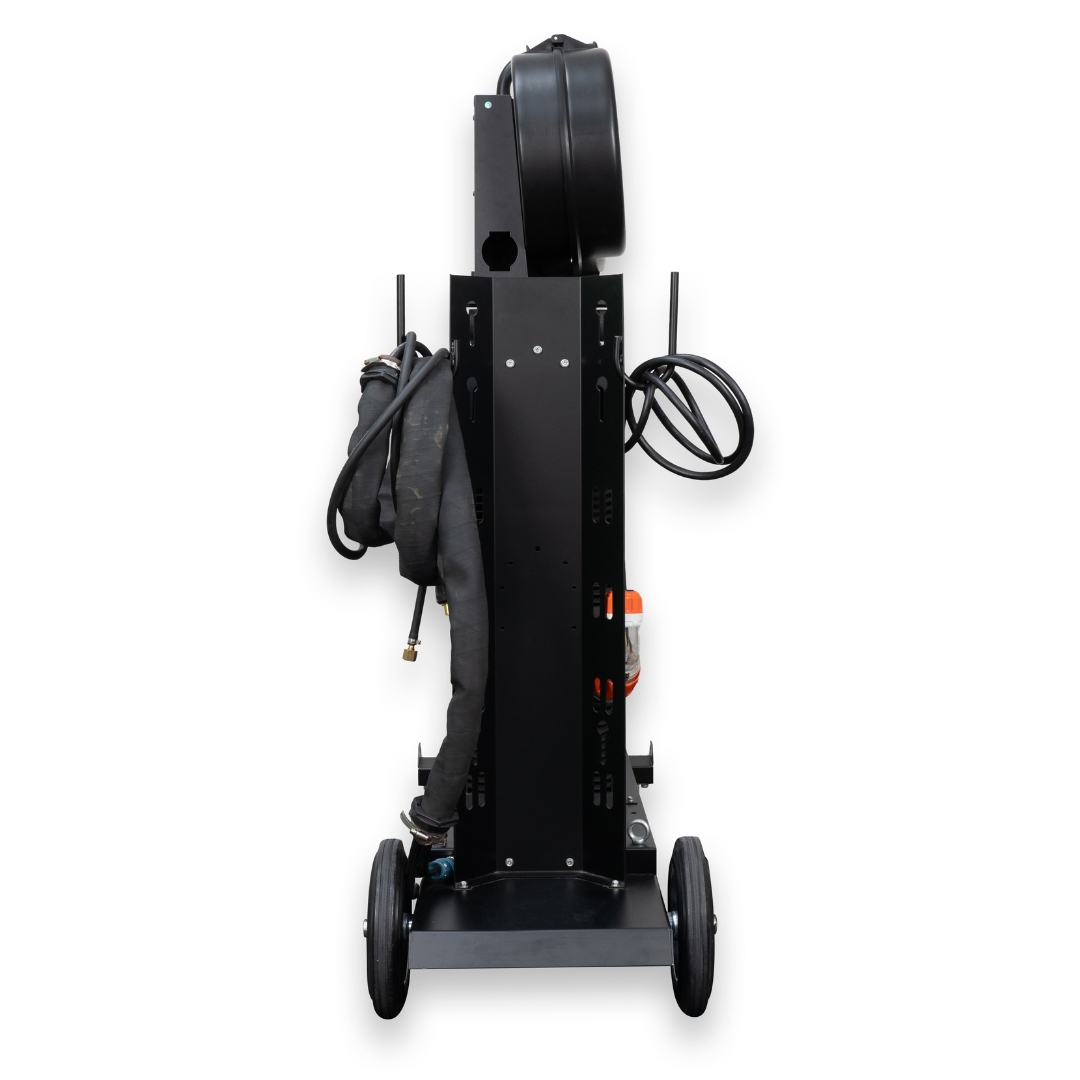

- Optional Integrated heavy duty industrial trolley with storage compartment option

- Optional extended 10m interconnect cable

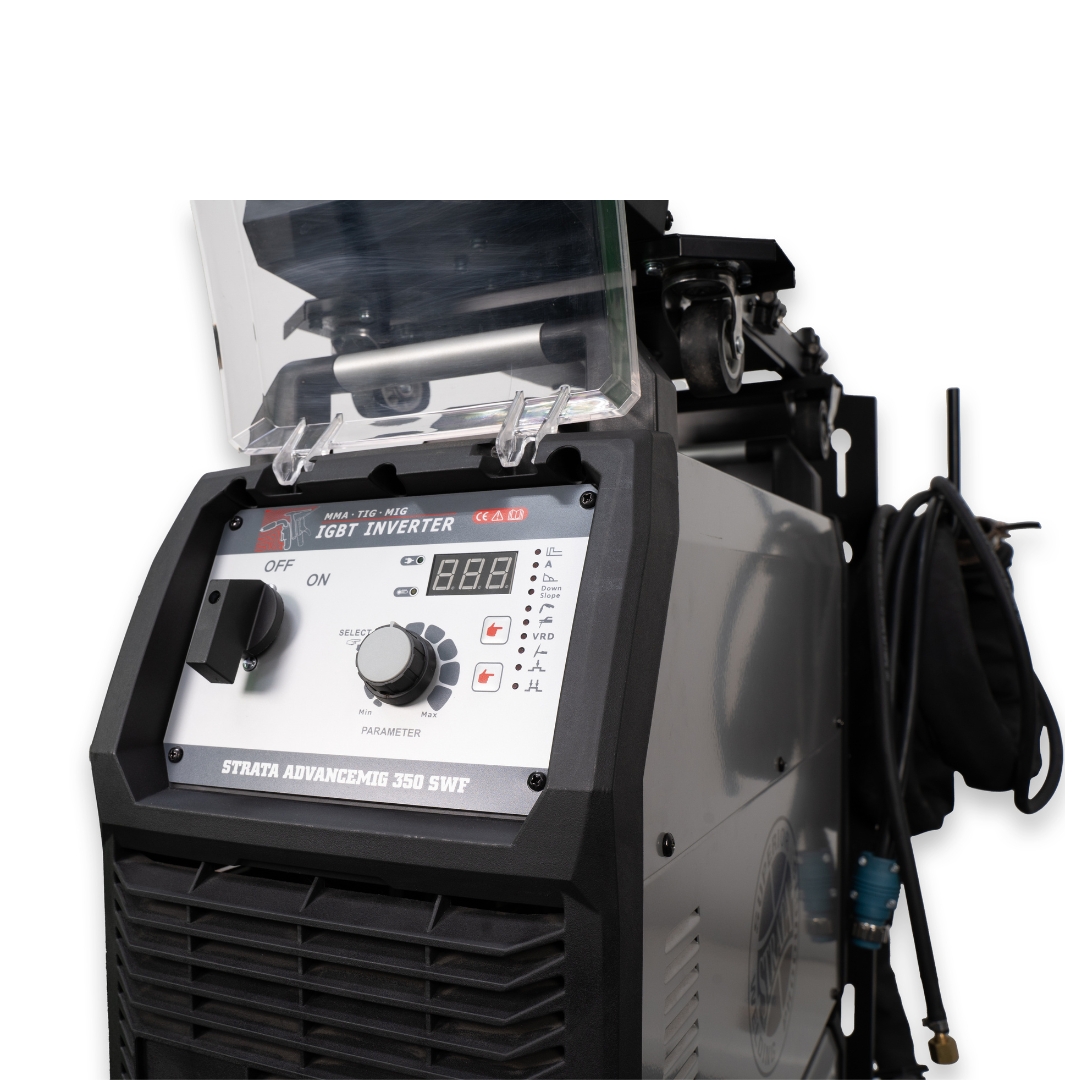

- Modular power source can be used individually for MMA, arc air gouging and lift TIG welding

- Synergic mig operation for optimum welding results every time

- Lift TIG operation with down slope and remote current control

- MIG waveform (inductance) control for great arc control and smoother welding results

- Damage resistant Industrial casing with front panel protection

- Wire inching and gas purge control

- Safe and simple set up and easy to use

- Adjustable pre flow, post flow, burn back and soft start settings

- 2T/4T trigger operation with crater control settings

- Adjustable arc force, hot start & automatic anti stick control

- Dual digital display meters for accurate pre setting and feedback of welding parameters & output

- Power source wind tunnel cooling construction

- Protection against environmental contamination

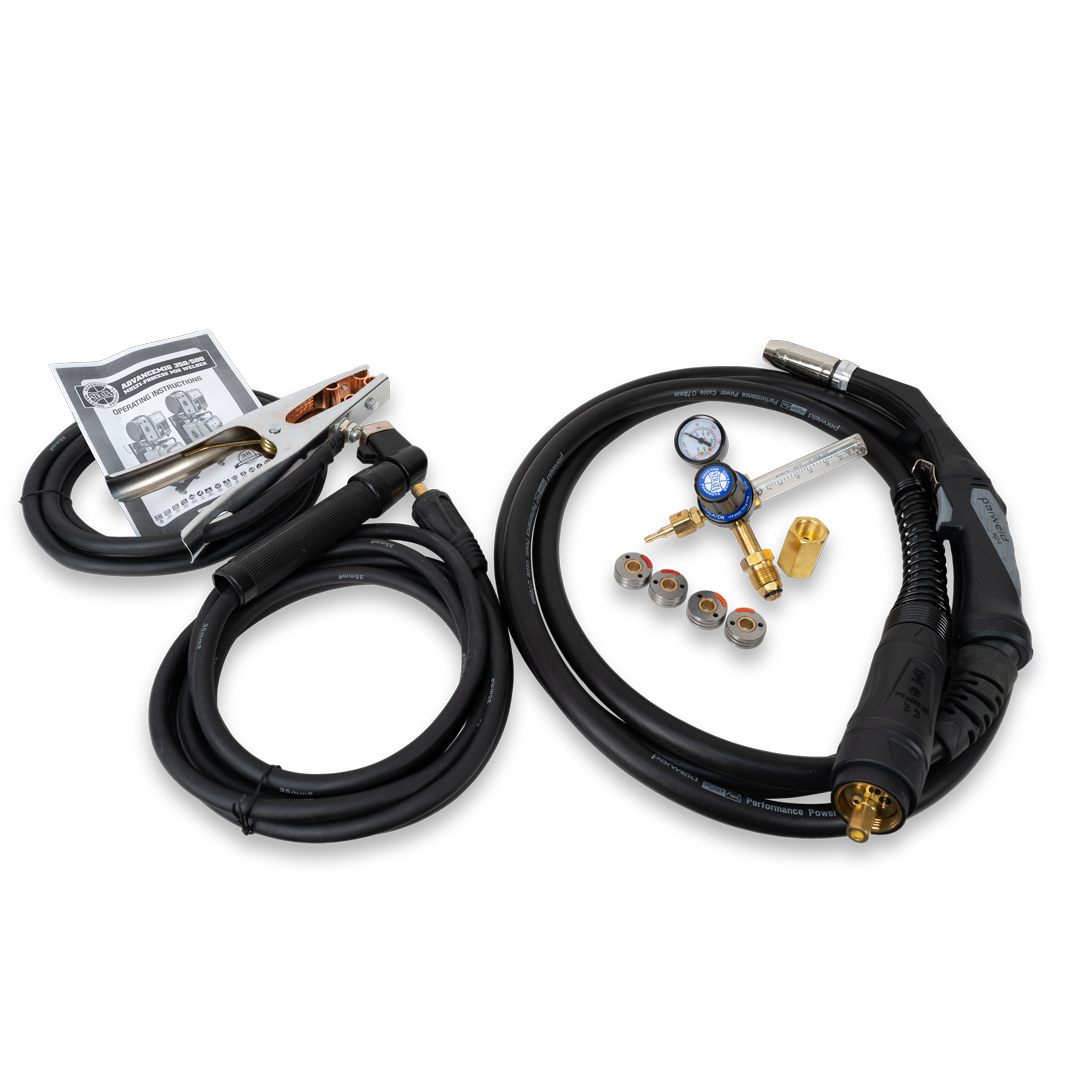

Contents

- Arc lead set

- Earth lead set

- MB36 4M Mig torch

- Argon regulator

- 8mm gas hose

- 2x V groove drive roller 0.6 - 0.8mm

- 2x V groove drive roller 1.0 - 1.2mm

- 2x Knurled drive roller 1.0 - 1.2mm



Specifications

Products specifications
Power Source Dimensions525x240x445mm
Weight21kg
Wire Feeder Dimensions600x290x480mm
Wire Feeder Weight16kg
Trolley Dimensions1050x440x1100mm
Trolley Weight32kg
Storage Compartment Dimensions620x240x290mm
Storage Compartment Weight11kg
Complete Package Dimensions1050x44x1450mm
Complete Package Weight90kg
Input Power Supply400V AC 3 Phase 32A 50/60Hz
Maximum Input Current22A
Generator Capacity15KVA
MIG Output Voltage10V - 35V
MIG Output Current40A - 350A
MIG Duty Cycle350A@60%, 275A@100%
Wire Feeding Speed2.4 - 18m/min
MMA Current Output40A - 350A
MMA O/C Voltage67V
TIG Duty Cycle350A@60% 275A@100%
TIG Current Output40A-350A
TIG SystemInternal solenoid gas control, lift ignition
Insulation ClassIP23
StandardsEN60974-1:2012
MMA Rod Size1.6-6.0mm
WarrantyCommercial 12 month extends to 36 months with product registration
Power Efficiency0.85
Power Factor0.95
MIG Drive Rollers Available0.6/0.8/0.9/1.0/1.2mm V Groove, Knurled 0.8/0.9/1.0/1.2mm, U Groove 0.8/1.0/1.2mm
MIG Wire Spool SizeD200/D300 5KG/15KG
