Air Command WS7.5CI 7.5HP Compressor

Free Shipping
Air Command /
SKU: 41798

A powerhouse 7.5HP, 300L three-phase air compressor with massive output, built for running multiple tools at once with cool, reliable performance.

$ 3,995 .00 Excl GST
$ 4,594.25 Incl GST
Overview

Product Overview

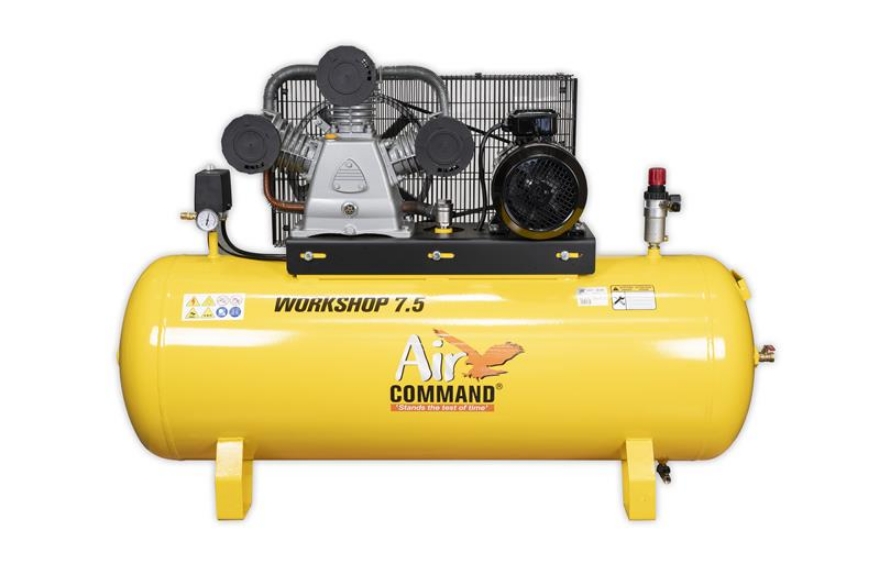

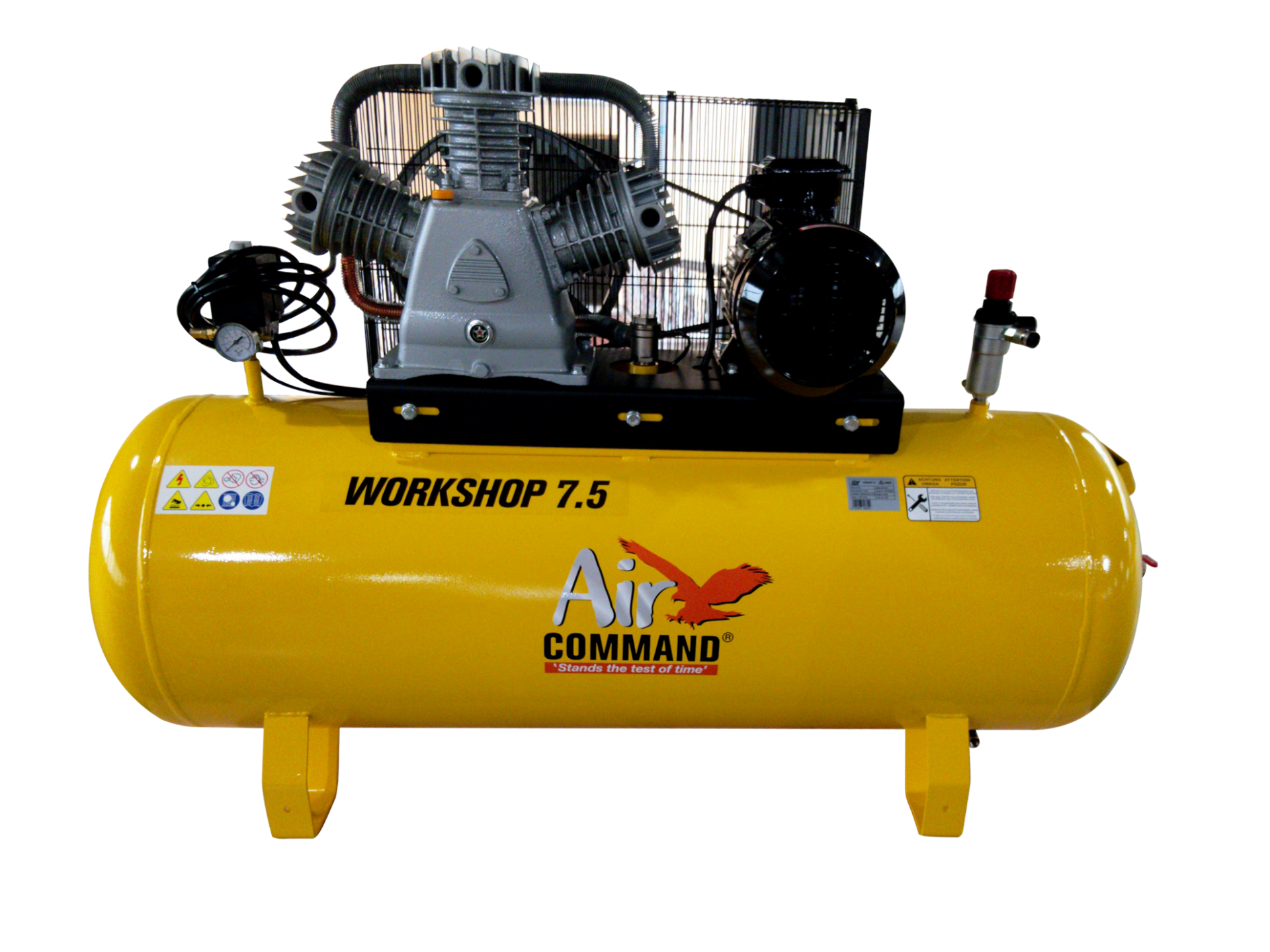

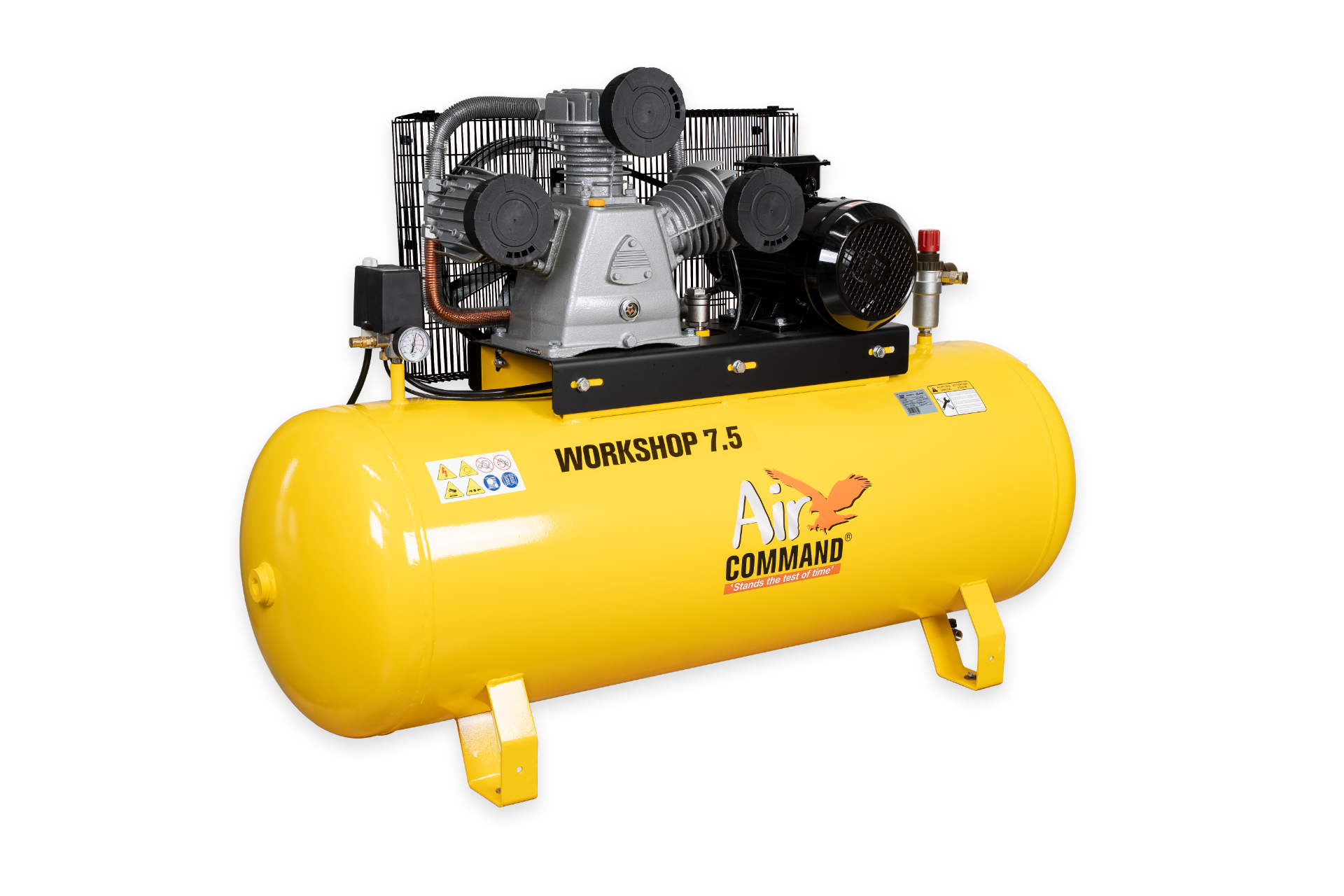

Air Command WS7.5CI 7.5HP Compressor

The WS7.5CI 7.5HP 300L Three-Phase Workshop Air Compressor (400V) is designed for serious industrial and workshop use where maximum air delivery and durability are critical. With its massive 7.5HP motor and slow-revving 3-cylinder pump, this compressor delivers exceptional airflow while running cooler and lasting longer.

Its large 300L tank provides a generous reserve for extended operation, reducing downtime from refills. Complete with a built-in filter/regulator, quick-connectors, and a ½" outlet ball valve, it offers versatile air access to keep your tools running at peak performance.

Key Features

Massive 7.5HP Motor
Delivers 900 L/min (34 CFM) pump displacement, providing maximum power for demanding applications.

Exceptional Output
550 L/min free air delivery at 90 PSI enables multiple air tools to run simultaneously without loss of performance.

300L Air Tank
Large capacity tank ensures long, uninterrupted operation with fewer pauses for recovery.

Slow-Revving 3-Cylinder Pump
Operates at lower speeds for cooler running, reduced wear, and longer-lasting durability.

Versatile Air Access
Includes a built-in filter/regulator, quick-connectors, and ½" outlet ball valve for fast and convenient tool connection.

Three-Phase Power Supply
Runs on a stable 400V 16A three-phase connection, ideal for heavy-duty industrial and workshop setups.

Benefits

Key Features

5.5kW / 7.5HP 3 Phase 400V IE2 Motor
300L Tank Capacity
900L/min, 34cfm Pump Displacement
10bar / 145PSI Max Working Pressure
Overview

Specifications

Dimensions(L x W x H) / 160 x 50 x 107cm
Pump Type / V' 3 Cylinder Cast Iron Single Stage
Receiver Size / 300L
Pump Displacement / 900L/min, 34cfm
Pump Speed (RPM) / 950 RPM
Sound Pressure Level / 80dBA
Weight / 229kg
Power Supply / 400V 3 Phase 16A
Working Pressure / 10bar / 145PSI
Duty Cycle / 60%
Motor / 5.5kW / 7.5HP 3 Phase 400V IE2
FAD @ Working Pressure / 550L/min
Drive Belt Specification / A1600
Receiver End Port Thread Size / G 1/2"
Your Questions Answered

FAQ's

What type of workshop is the WS7.5CI best suited for?

Can the WS7.5CI run multiple tools at the same time?

What kind of tools can I run with this compressor?

How powerful is the WS7.5CI?

What makes the 3-cylinder pump special?

Is the WS7.5CI suitable for continuous operation?
