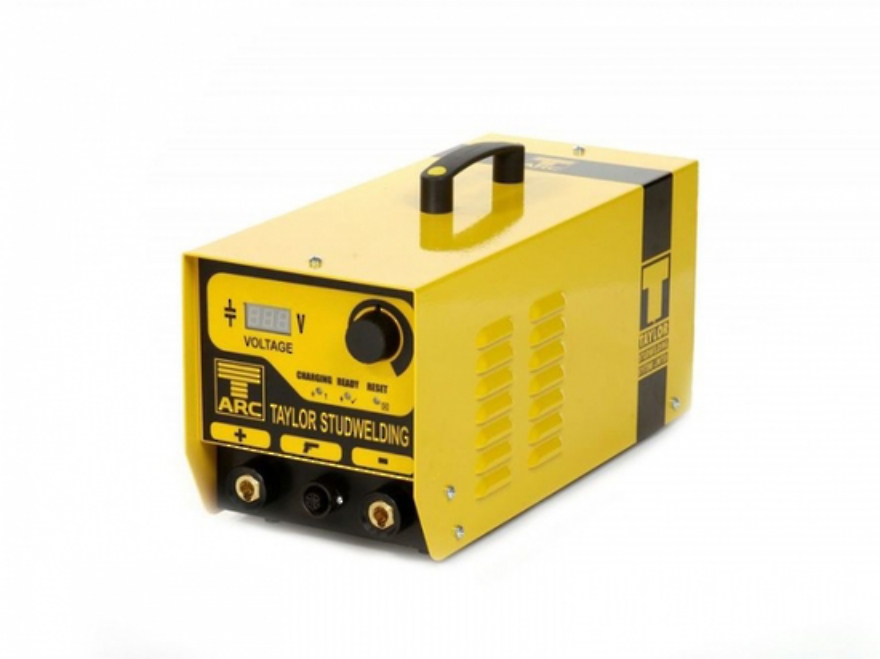

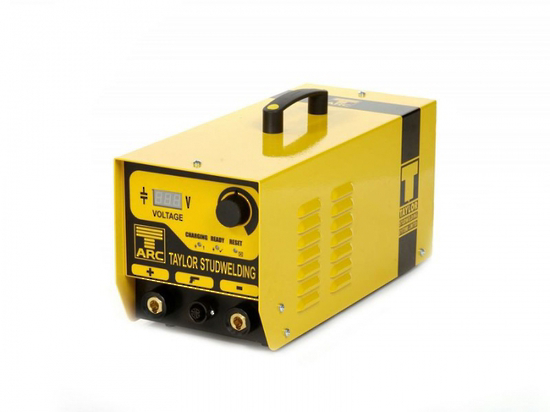

CDM10 Taylor Stud Welder 2-10mm

Brand: Taylor
SKU: 201651
CDM10 Taylor Stud Welder 2-10mm
Please give us a brief description of your intended application (we may have a better solution.)
Call Us- 0800 699 353

Product Overview

CDM10 is a CD (Capacitor Discharge) Stud Welding System for 2-10mm CD Studs. 230v Single Phase

The Taylor CDM range are compact & ultra-portable Capacitor Discharge (CD) stud/pin welders designed to weld up to 10mm diameter studs. With their simple yet robust construction the CDM range offers an economical and reliable method of fixing Mild Steel, Stainless Steel, Aluminium and Brass studs.

Fast and accurate, the CDM range gives you excellent weld results.

Designed and built to meet/exceed all required standards & is CE marked.



FEATURES

-Compact, lightweight portable machine

-Strong, robust construction.

-Rapid welding action reduces weld time.

-Super-fast recharge time improves profitability.

-Easy adjustment of capacitor voltage

-LED displays allow easy monitoring of functions.

-Quality and reliability from Taylor Studwelding Systems

-Welds Mild Steel, Stainless Steel, Aluminium and Brass.

Specifications

Products specifications
Main Input115 and 230V AC 50-60 Hz, 1 Phase
Input Power1.8 KVA
Input Fuse Rating16A at 115V, 10A at 230V
Output Voltage35-200V
Weld Rate10-50 studs per minute
Weld Range2-10mm
Dimention410x200x230
