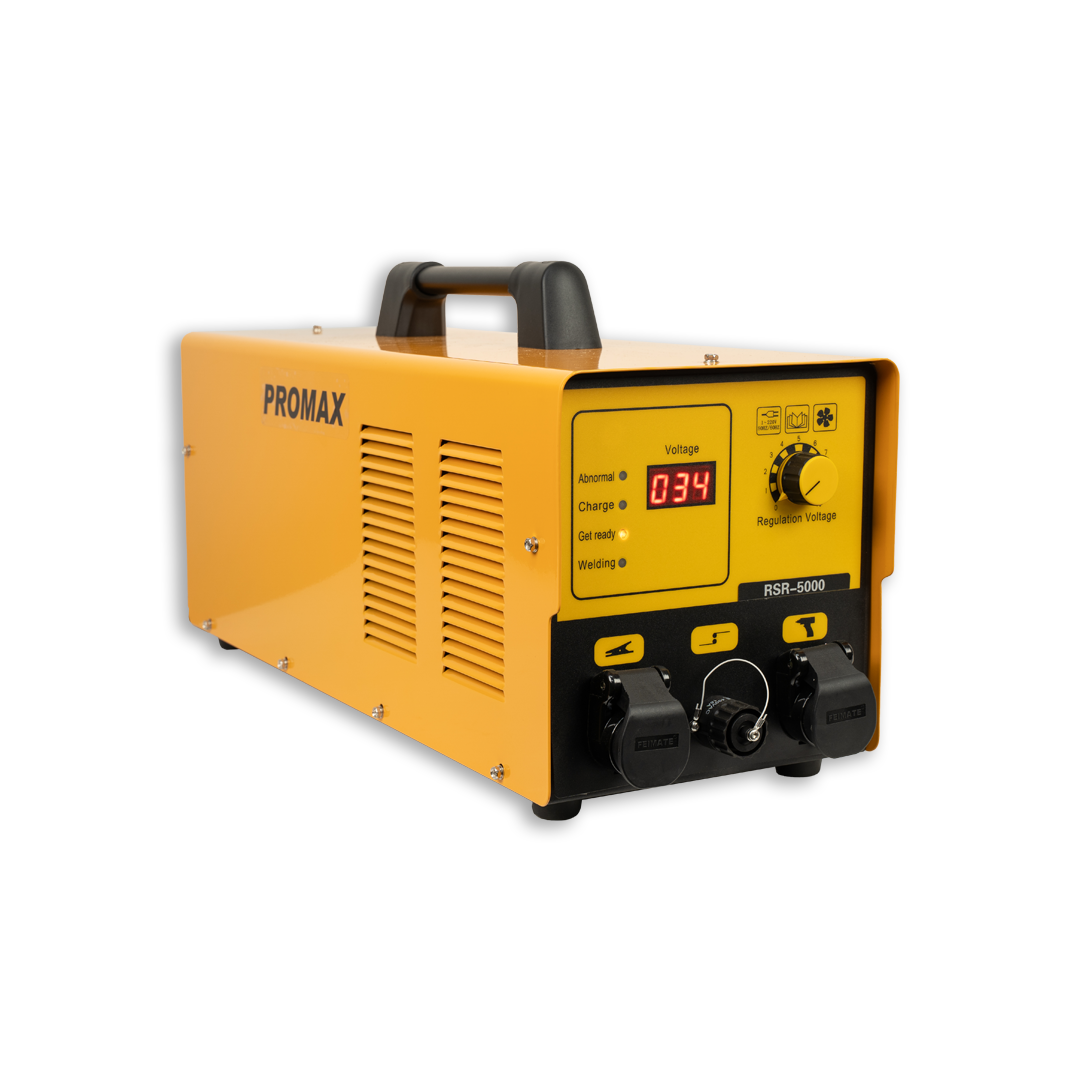

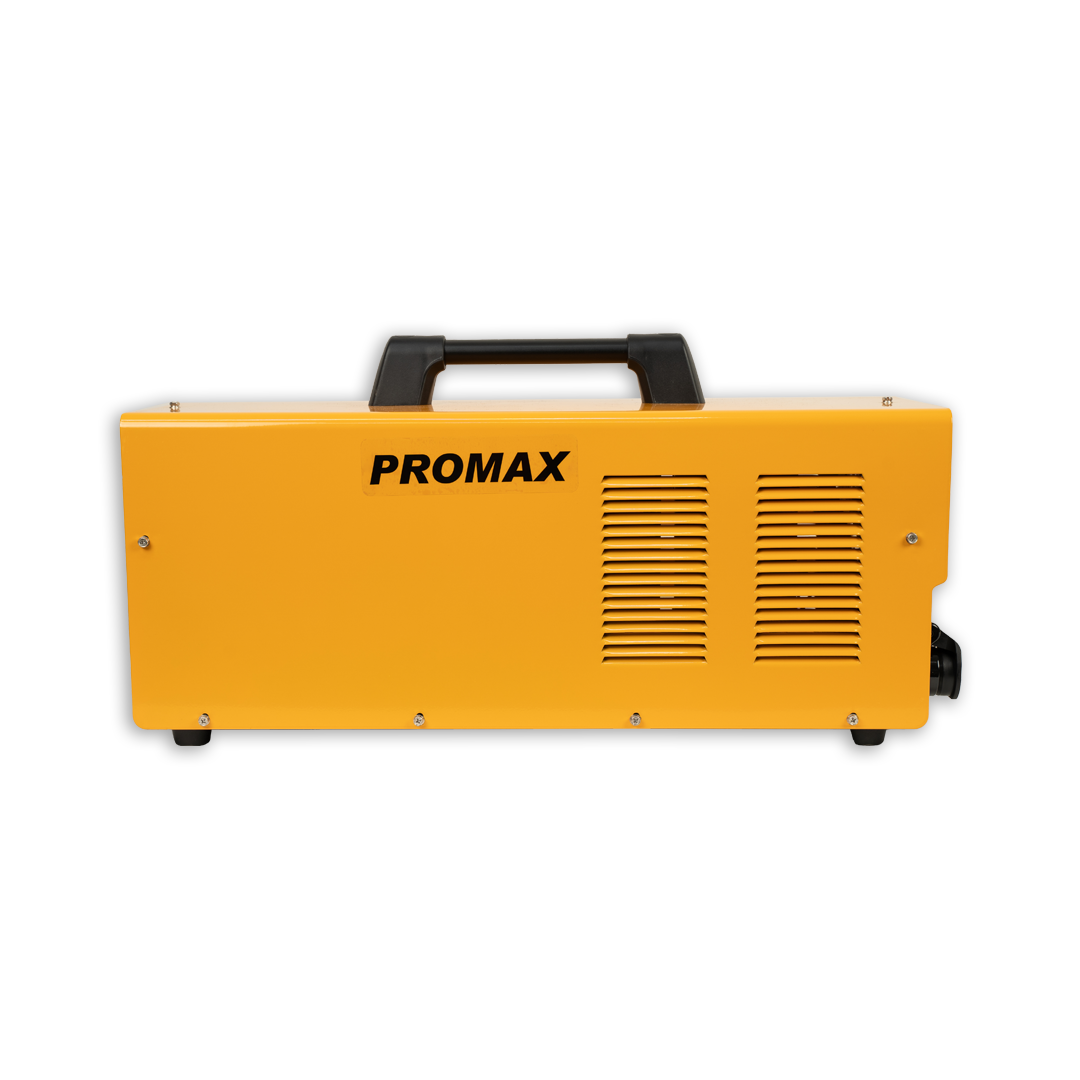

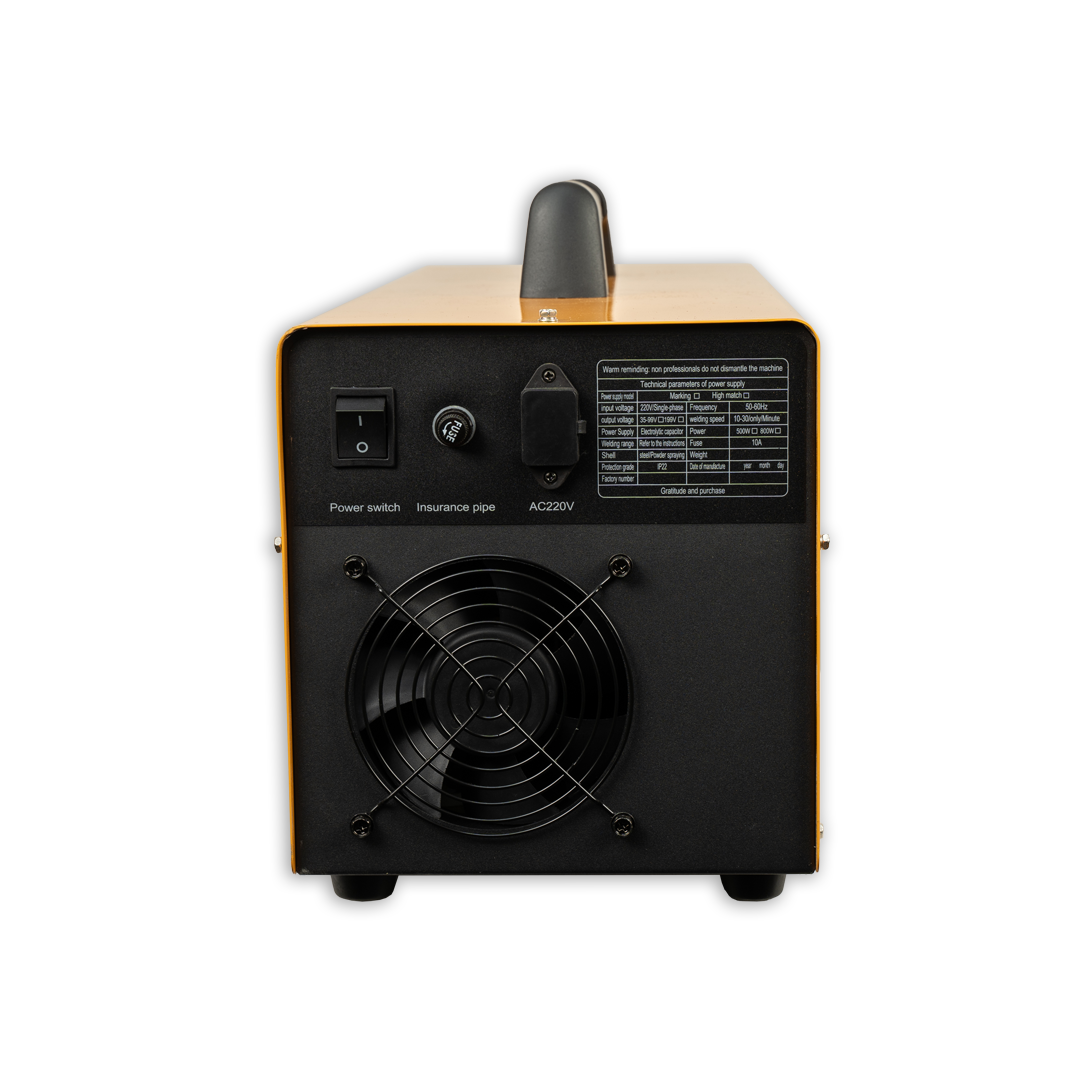

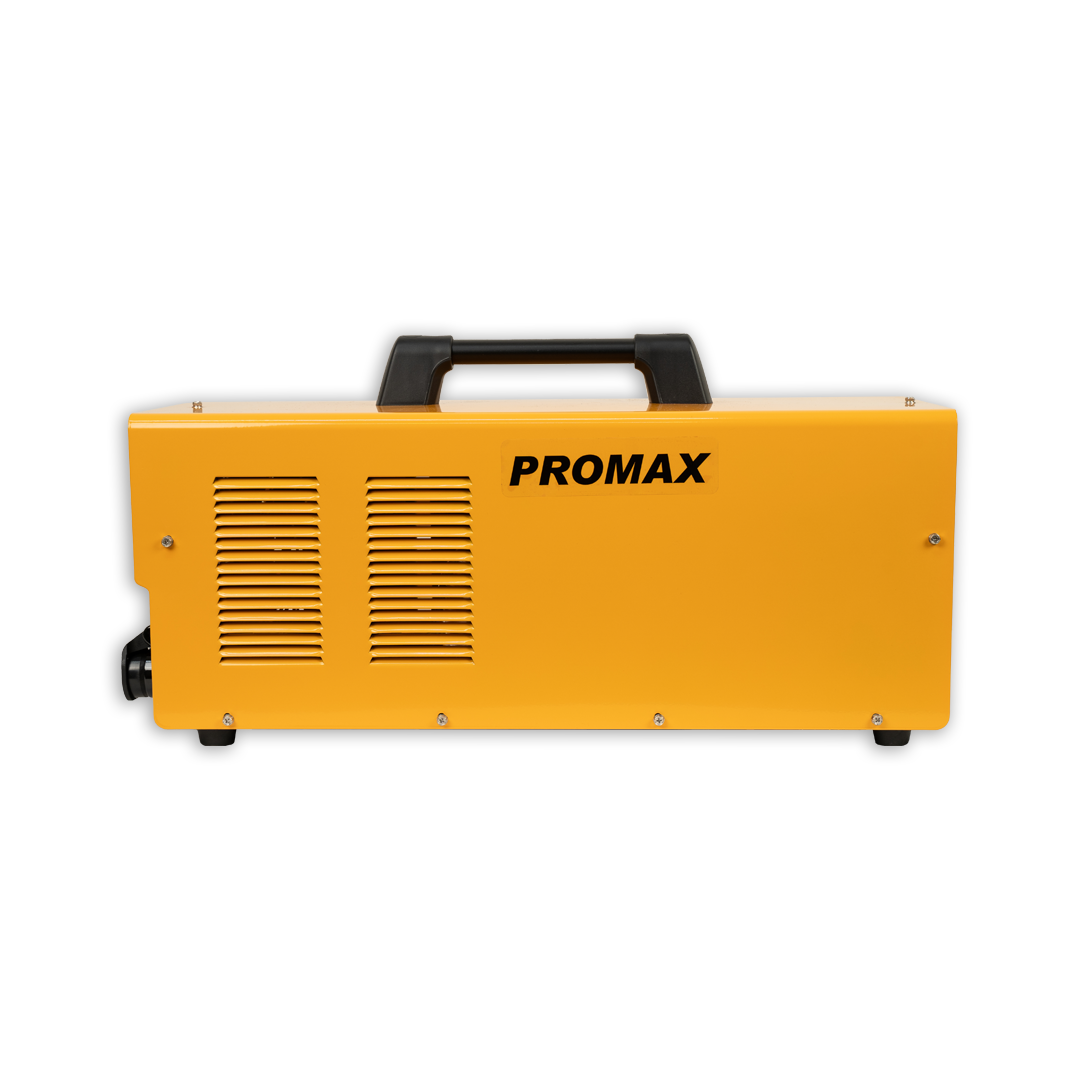

Promax RSR-5000 CD Stud Welder

Free Shipping
Promax /
SKU: 37245
RSR-5000 Capacitor Discharge Stud Welder Package for M2 - M10 Studs/Pins. Ready to weld steel, stainless & aluminium studs. Also suitable for welding CD Pins (also called Insulation Pins).
Overview

Product Overview

Promax RSR-5000 CD Stud Welder Package

Key Features

  • Capacitor Discharge stud welder suitable for welding carbon steel, stainless steel, steel alloy, aluminium, and other materials.
  • Welds M2-M10 CD Studs or Insulation Pins (CD Pins).

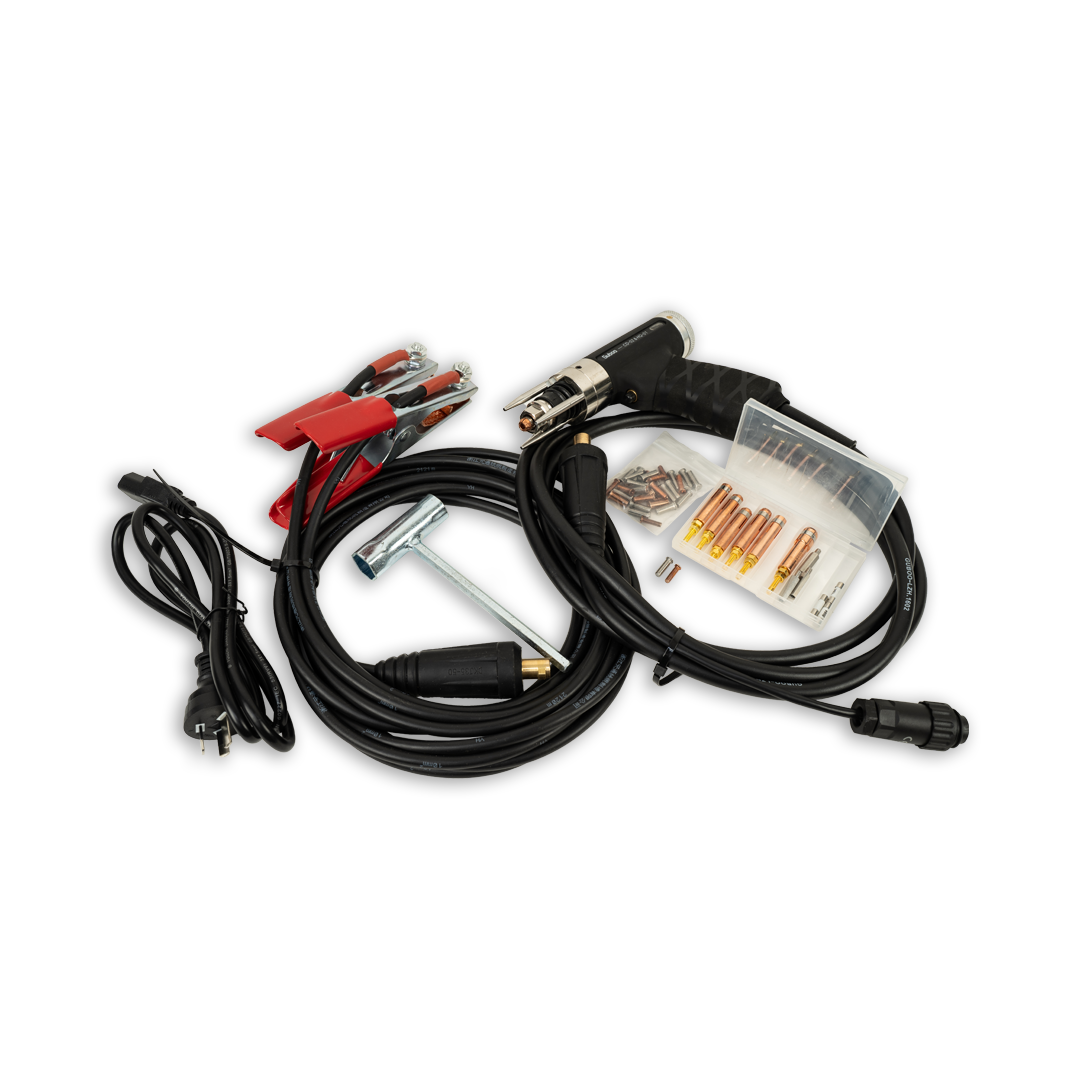

  • Includes CD-Torch, Twin-Earth Leads, M3, M4, M5, M6, M8 & M10 Collets.
  • Uniform welding is achieved through precise heat control & a weld time of just six milliseconds. This ensures consistent solderability without damage to the base material.
  • The microcontroller results in more accurate working voltage detection, a more complete discharge of the capacitor, superior welding performance, and enhanced conductivity protection.
  • The RSR-5000 is manufactured with durability at the forefront of production. Components used are top quality & the life expectancy without issues is greater than one million cycles. The weld guns utilize German micro-switches and the main capacitor's lifespan extends to two million cycles.

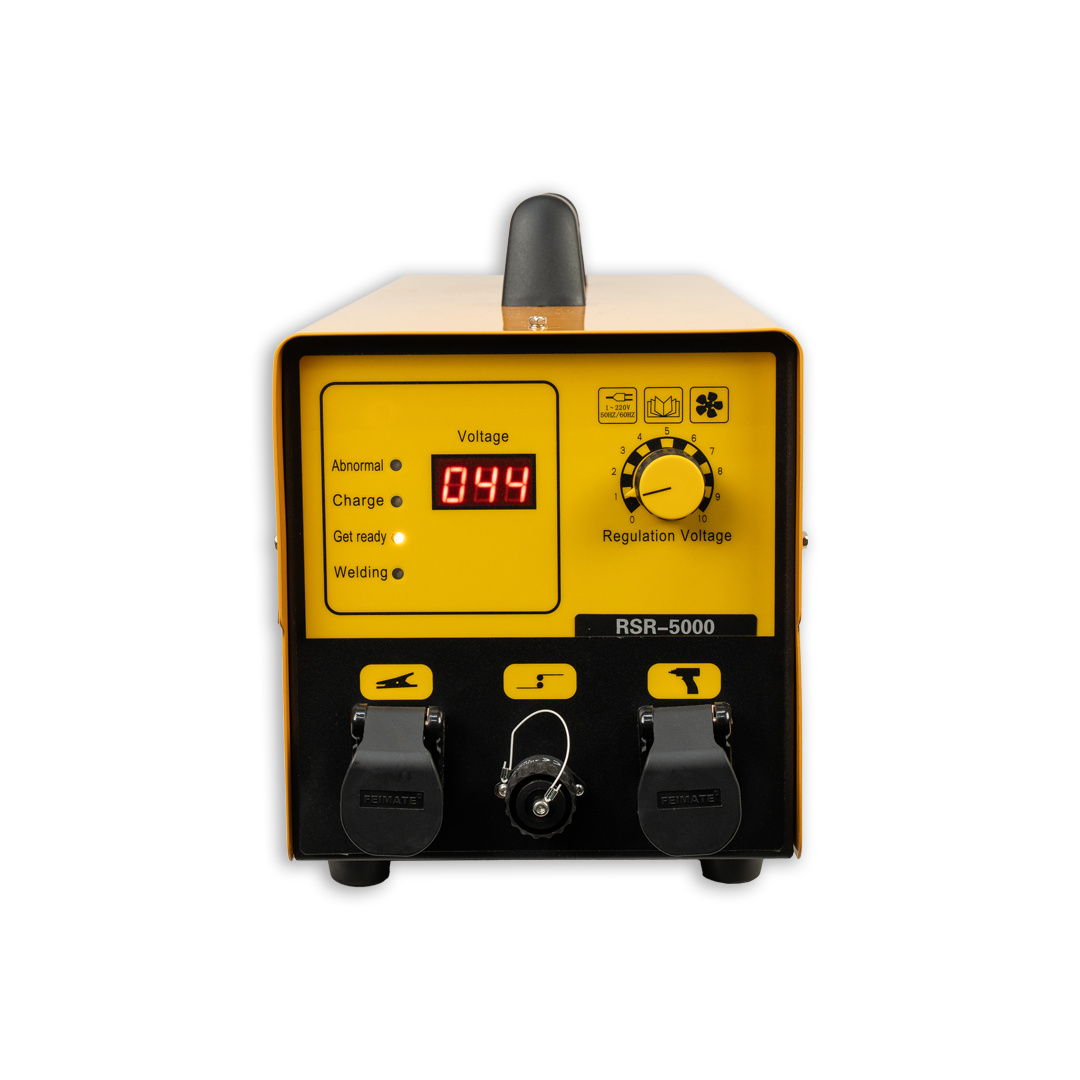

  • The display indicates the operating voltage and can be smoothly adjusted. It is designed for a board-mounted digital tube, offering a long lifespan and easy maintenance, without the need for an external display header.
Overview

Specifications

MMA Duty Cycle @ 25% / 150A @ 26V DC
Welding Current Output Mode / Electrolytic Capacitor
Capacitor Model / 144000
Power / 1000W
Input Fuse / 10A
Charging Voltage / 35-200V
Welding Time / 0.001 - 0.003 Secs
Welding Speed / 15-40 Pcs/min
Power Voltage / AC220-2P (110/380/415)
Frequency / 50/60Hz
Protection Grade / IP31
Welding Range / 2-10mm
Torch Cable / 3M
Stud Welding Range - Carbon Steel / 2-10mm
Stud Welding Range - Stainless Steel / 2-10mm
Stud Welding Range - Aluminium Alloy / 2-8mm
Stud Welding Range - Zinc / 2-10mm
Weight / 28kg
Dimensions / 600 x 220 x 300mm
