    CEBORA POCKET PULSE 1820/M

    $3,149.00 excl GST
    $3,621.35 Incl GST
    ART305 - Cebora 1820/M 185A Pocket Pulse Mig Welder Package
    SKU: 204195
    Please give us a brief description of your intended application (we may have a better solution.)

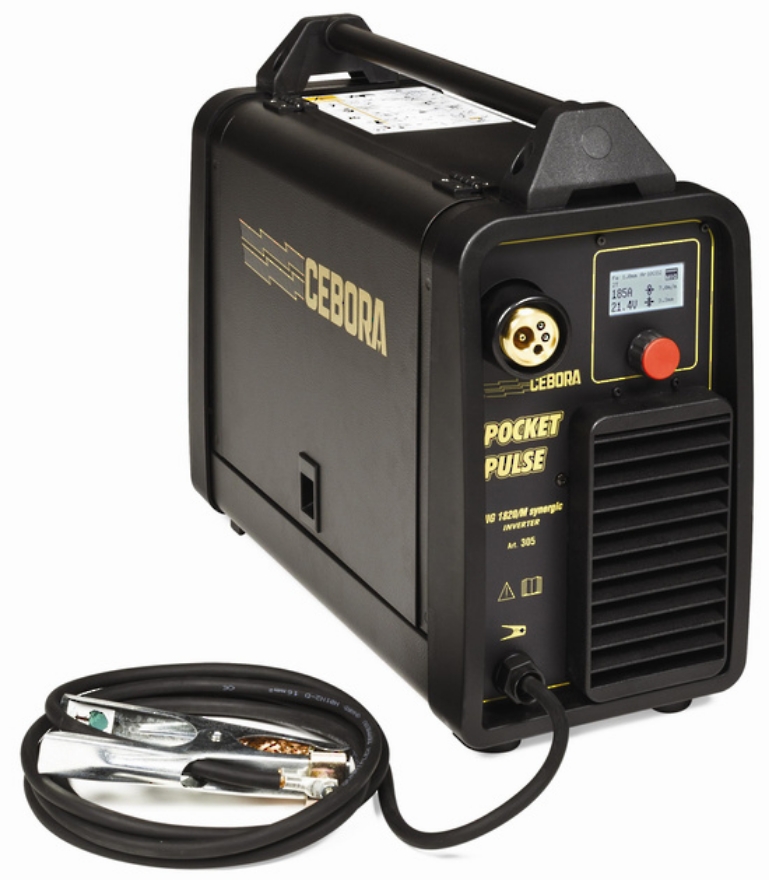

    CEBORA POCKET PULSE 1820/M

    Cebora Pocket Pulse is the most compact pulse MIG-MAG welding power source. This unique European made pulse mig is packed with features & includes 37 synergic programs to make set-up on any job a breeze! Excellent for welding Galvanized Steel, Mild Steel, Aluminium & Stainless Steel.
    • Small enough to take to any job site
    • Light enough to carry with one hand (13.5kg)
    • Powerful enough for 6mm+ Aluminium
    • PFC for greater power efficiency
    • Easy to operate single control display
    • 37 synergic programs included
    • 100% made in Italy
    • Excellent value Ready-To-Weld Packages

    The Cebora 1820/M (Art.305) Pocket Pulse Inverter Pulse Mig is a single-phase, synergic power source for MIG-MAG welding, both short and pulsed. This has Cebora's 2-roller wire feed unit and a total power source weight of only 13.5 kg.

    The power source is factory fitted with 37 synergic programs (mild steel Ø 0.6 / 0.8 / 0.9 / 1.0mm, stainless steel 0.8 / 0.9mm, Aluminium 0.9 / 1.0mm, CuSi3% 0.8 / 0.9mm as well as for flux cored wire Ø 0.9mm).

    The LCD panel allows the operator to read, on three lines, wire and gas type, current and thickness, voltage and wire speed.

    It is a specially versatile power source, suitable for various applications, especially repairs, maintenance and basic car body repairs, marked out by a low electrical input (PFC).

    An optional dedicated transport trolley (art. 1653), particularly compact and handy, is available too.
    Complies with EN 61000-3-12.
    The power source can also be powered by motor-driven generators of adequate power (min. 6 KVA)

    Products specifications
    Three phase input230V 50/60 Hz + 15% / -20%
    Fuse rating (slow blow)16 A
    Input Power5.5KVA 20% 3.7 KVA 60% 2.7 KVA 100%
    Min.-max. current20A ÷ 185A
    Duty Cycle185A 20% 140A 60% 110A 100%
    Stepless regulationElectronic
    Wire Diameter0,6/0,8/0,9/1,0 - Fe 0.9 - Flux Cored 0.8/0.9 - Stainless Steel 0.9/1.0 - Al 0.8/0.9 - CuSi3%
    Max. wire spool sizeØ 200mm /5kg
    Protection classIP 23 S
    Weight13.5 Kg
    Dimension(L x W x H)196x458x380mm
