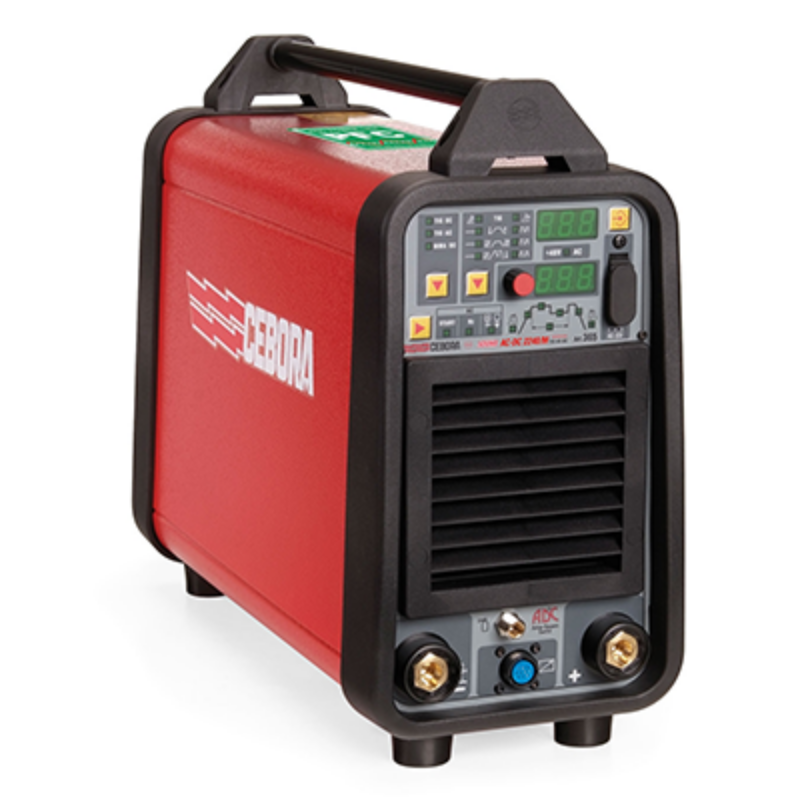

Cebora Tig Sound Acdc 2240M

Brand: Cebora
SKU: 201508
8036500 - Cebora Sound Tig ACDC 2240/M Welder
Please give us a brief description of your intended application (we may have a better solution.)
Call Us- 0800 699 353

Product Overview

TIG sound ac-dc 2240/m is a single-phase direct and alternating current inverter power source for use in TIG and MMASMAW modes (except for cel-lulosic electrodes). The engineering and manufacturing technol-ogy of the machine have produced an excellent duty cycle (220A at 40%, 180A at 60% and 160A at 100%) and a minimum weld-ing current of just 5 Amps. The machine can operate with pulsed arc for working even on thin sheets, where the heat transferred must be kept to a mini-mum, and may also be connected to an optional cooling unit (art. 1341) for water-cooled torches. There is also an optional (art. 1656) trolley available for moving the power source and cooling unit. In TIG mode, the arc is started either in high voltage/high fre-quency or by contact with the Cebora lift system; the machine is also set up for remote control using the foot control (art. 193), remote control (art. 187), or up-down command on the torch. Its tunnel design allows exceptional cooling efficiency, keeping those components that suffer in dusty environments, such as electronic circuits, out of the cooling flow. The adjustable “Hot Start” function enables optimisation of arc ignition in AC. The PFc system brings substantial energy savings (the machine is suitable also for 16a power supply) and a wide supply voltage tolerance (+15% / -20%). The machine is equipped with a memory for storage of welding programmes and an RS232 port for connection to a computer, enabling easy software updates. The power source can also be powered by motor-driven generators of adequate power (min. 8 KVa). complies with En61000-3-12.

Specifications

Products specifications
Fuse rating (slow blow)16 A
Input Power5,6 KVA 40% 4,2 KVA 60% 3,6 KVA 100%
Current Draw5A ÷ 220A
Duty Cycle180A 30% 140A 60% 110A 100%
Protection classIP 23 S
Weight21,5 Kg
Single phase input230V 50/60 Hz + 15% / -20%
Fuse rating16 A
Dimension(L x W x H)207x545x411

TIG sound ac-dc 2240/m is a single-phase direct and alternating current inverter power source for use in TIG and MMASMAW modes (except for cel-lulosic electrodes). The engineering and manufacturing technol-ogy of the machine have produced an excellent duty cycle (220A at 40%, 180A at 60% and 160A at 100%) and a minimum weld-ing current of just 5 Amps. The machine can operate with pulsed arc for working even on thin sheets, where the heat transferred must be kept to a mini-mum, and may also be connected to an optional cooling unit (art. 1341) for water-cooled torches. There is also an optional (art. 1656) trolley available for moving the power source and cooling unit. In TIG mode, the arc is started either in high voltage/high fre-quency or by contact with the Cebora lift system; the machine is also set up for remote control using the foot control (art. 193), remote control (art. 187), or up-down command on the torch. Its tunnel design allows exceptional cooling efficiency, keeping those components that suffer in dusty environments, such as electronic circuits, out of the cooling flow. The adjustable “Hot Start” function enables optimisation of arc ignition in AC. The PFc system brings substantial energy savings (the machine is suitable also for 16a power supply) and a wide supply voltage tolerance (+15% / -20%). The machine is equipped with a memory for storage of welding programmes and an RS232 port for connection to a computer, enabling easy software updates. The power source can also be powered by motor-driven generators of adequate power (min. 8 KVa). complies with En61000-3-12.

Products specifications
Fuse rating (slow blow)16 A
Input Power5,6 KVA 40% 4,2 KVA 60% 3,6 KVA 100%
Current Draw5A ÷ 220A
Duty Cycle180A 30% 140A 60% 110A 100%
Protection classIP 23 S
Weight21,5 Kg
Single phase input230V 50/60 Hz + 15% / -20%
Fuse rating16 A
Dimension(L x W x H)207x545x411
