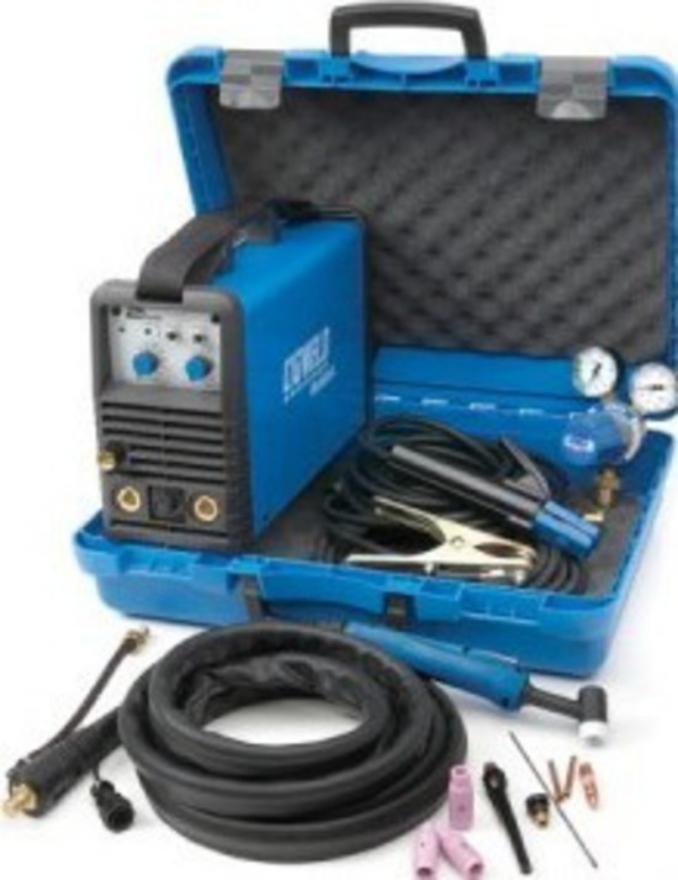

Cigweld Weldskill 175 Arc Welder

Brand: Cigweld
SKU: 1421
Please give us a brief description of your intended application (we may have a better solution.)
Call Us- 0800 699 353

Product Overview

The CIGWELD WeldSkill 170HF Inverter is the latest addition to the WeldSkill inverter range. It is a 240 Volt, single phase welding machine with increased output and duty cycles for more demanding applications. The unit features a HF start function excellent DC TIG performance. With superior arc characteristics on range of welding electrodes from 2.0mm up to 4.0mm diameter, this is an ideal machine for small to medium welding products.

Specifications

Products specifications
Input Voltage240 Volts, +/– 15% (15A plug)
Input Frequency50 Hz
Generator Requirement10 kVA
Output Range5 – 170 amps
Rated Output @ Duty Cycle170A @ 25%, 26.8V
Max OCV65V DC
Dimension(H X W X D)255H x 130W x 360Dmm
Weight7.5kg

The CIGWELD WeldSkill 170HF Inverter is the latest addition to the WeldSkill inverter range. It is a 240 Volt, single phase welding machine with increased output and duty cycles for more demanding applications. The unit features a HF start function excellent DC TIG performance. With superior arc characteristics on range of welding electrodes from 2.0mm up to 4.0mm diameter, this is an ideal machine for small to medium welding products.

Products specifications
Input Voltage240 Volts, +/– 15% (15A plug)
Input Frequency50 Hz
Generator Requirement10 kVA
Output Range5 – 170 amps
Rated Output @ Duty Cycle170A @ 25%, 26.8V
Max OCV65V DC
Dimension(H X W X D)255H x 130W x 360Dmm
Weight7.5kg
