Dimension / 460x190x360mm |
Weight / 11kg |
Input Power Supply / 230V AC 10A 50/60Hz |
Input Power Tolerance / 230+/-10%V |
Max Input Current (A) / 26A |
MIG Output Voltage / 10V - 26V |
MIG Output Current / 40A - 180A |
MIG Duty Cycle / 180A@15%, 130A@60%, 100A@100% |

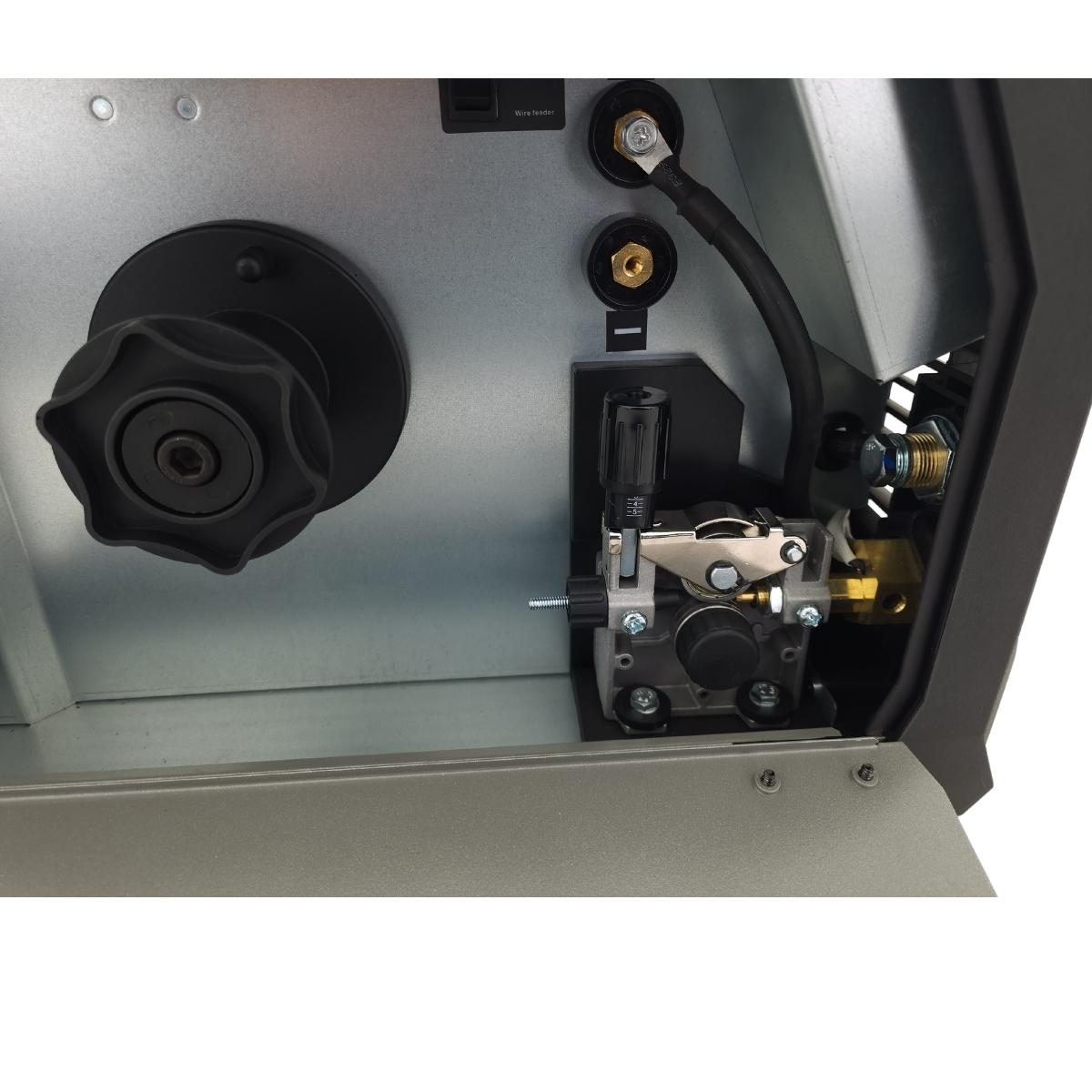

MIG Drive Rollers / V Groove: 0.6/0.8 & 0.9/1.0mm, Knurled: 0.8/0.9mm |
Wire Spool size / D200 5kg |
Wire Speed Range Ipm (M/Min) / 1.5-15m/min |
MMA Current Output / 10A - 180A |
MMA O/C Voltage / 65V |
MMA Duty Cycle / 160A@10%, 130A@60%, 100A@100% |
Insulation Class / IP23 |
Standards / EN60974-1:2012 |
MMA Rod Size / 1.6 - 5.0mm |
Warranty / 24 months* with product registration |
Power Efficiency / 85% |
Power Factor / 0.65 |
Generator Capacity / 7KVA |
