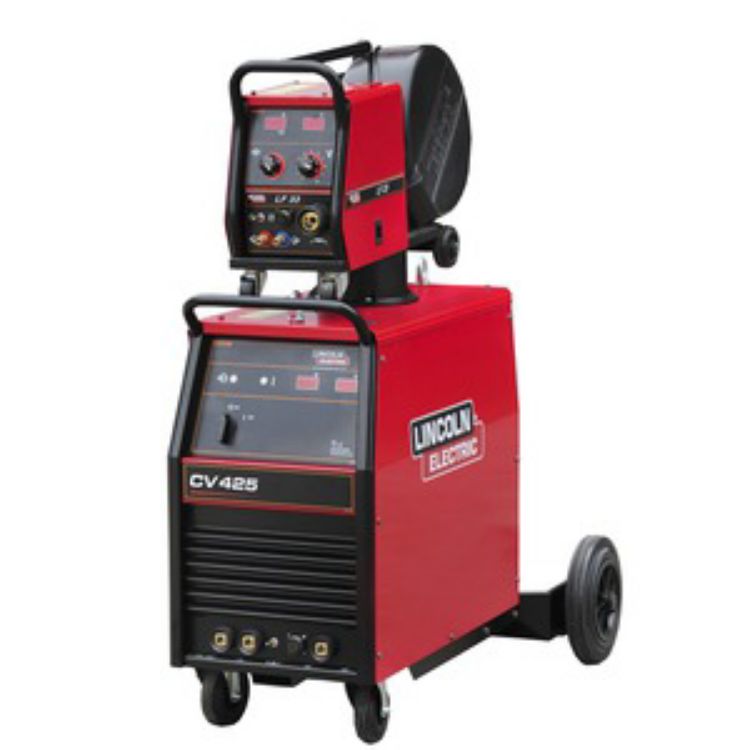

CV-425 Lincoln Mig Welder

Brand: Lincoln
SKU: 205082
K41080-1A Lincoln CV-425 420A Mig Power Source
Please give us a brief description of your intended application (we may have a better solution.)
Call Us- 0800 699 353

Product Overview

The CV-425 and CV-510 are industrial power sources designed for heavy-duty applications. Both power sources meet IP23 protection which means that they will operate in the most arduous environmental conditions experienced, in such places as shipyards or offshore yards. The machines have been designed so that all the sensitive components are enclosed in a compartment free from dust and separated from the air-flow needed to cool the machine. The PCB within the machines is completely encapsulated which will provide maximum protection from the elements. Both the CV-425 and CV-510 power sources are tested at + 40°C and rated at 60% duty cycle. As a result of this rigorous testing and specifications, it allows these machines to operate and weld in any environment at a 100% duty cycle. Like all Lincoln machines the CV-425 and 510 are designed with the application in mind.

  • Potted and Encapsulated Printed Circuit Board controls in separate dust free compartment.
  • Different feeders for construction and shipyards, all with meters, with or without synergy or memory; just select the one of your choice.
  • Superb Arc Behaviour with Argon Mix and 100% CO2.
  • Electronic feedback system on the wire drive will guarantee consistent wire feed speed
  • Equipped with large diameter wheels push/pull bar and lifting eyes for full manoeuverability
  • Completed with an extensive set of features

Specifications

Products specifications
Input Power230/400/3/50-60
Rated Output325A/30.3V@100%
Input current63/32/32A
Output Range10-420A
Dimension(H X W X D)880 mm x 696 mm x 1020 mm
Weight152 kg

The CV-425 and CV-510 are industrial power sources designed for heavy-duty applications. Both power sources meet IP23 protection which means that they will operate in the most arduous environmental conditions experienced, in such places as shipyards or offshore yards. The machines have been designed so that all the sensitive components are enclosed in a compartment free from dust and separated from the air-flow needed to cool the machine. The PCB within the machines is completely encapsulated which will provide maximum protection from the elements. Both the CV-425 and CV-510 power sources are tested at + 40°C and rated at 60% duty cycle. As a result of this rigorous testing and specifications, it allows these machines to operate and weld in any environment at a 100% duty cycle. Like all Lincoln machines the CV-425 and 510 are designed with the application in mind.

  • Potted and Encapsulated Printed Circuit Board controls in separate dust free compartment.
  • Different feeders for construction and shipyards, all with meters, with or without synergy or memory; just select the one of your choice.
  • Superb Arc Behaviour with Argon Mix and 100% CO2.
  • Electronic feedback system on the wire drive will guarantee consistent wire feed speed
  • Equipped with large diameter wheels push/pull bar and lifting eyes for full manoeuverability
  • Completed with an extensive set of features

Products specifications
Input Power230/400/3/50-60
Rated Output325A/30.3V@100%
Input current63/32/32A
Output Range10-420A
Dimension(H X W X D)880 mm x 696 mm x 1020 mm
Weight152 kg
