STRATA EZITIG 180

Brand: Strata
SKU: 17395
Strata EziTig180 180A Inverter DC HF TIG/MMA Welder
$ 1,055 .00 excl GST
$ 1,213.25 Incl GST
Please give us a brief description of your intended application (we may have a better solution.)
Call Us- 0800 699 353

Product Overview

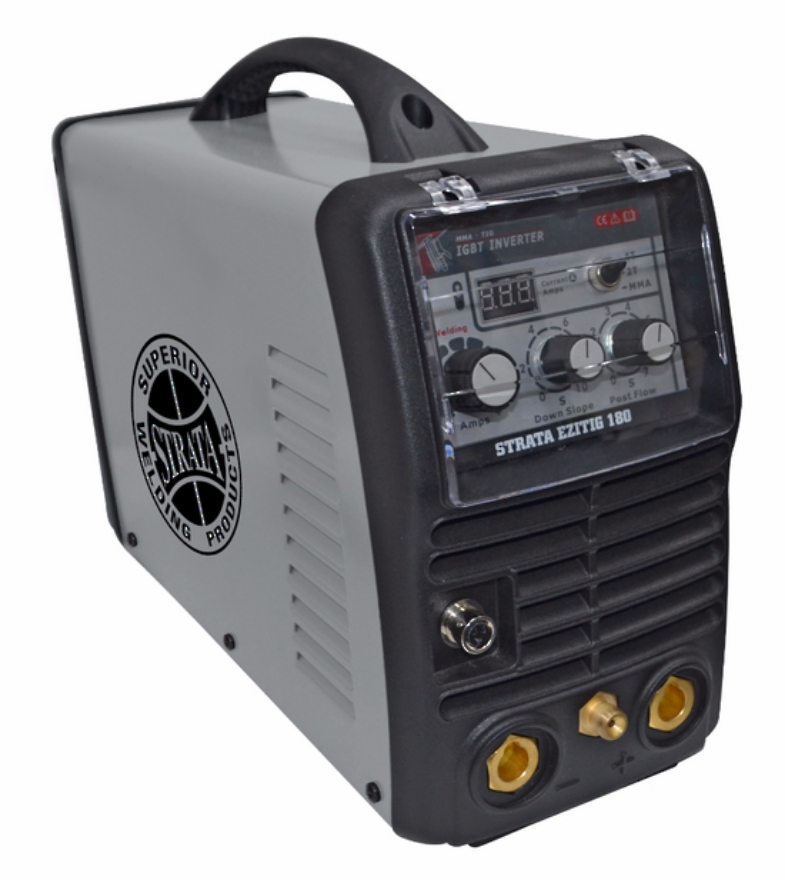

STRATA EZITIG 180

The EZITIG 180 is a powerful, extremely portable and easy to use DC Tig Welder. Featuring HF Start and 180A DC current, this is ideal for mild and stainless steel work such as wine vats, maintenance roll cages and industrial TIG work. The EziTig180 is extreme stress tested to 440V from factory & with IP23 moisture and salt spray protection, is protected against the harshest environments.
  • Generator friendly
  • IGBT inverter technology
  • Strong environmental protection
  • Digital current display meter
  • Temperature, voltage and current sensors for increased reliability and safety
  • Protected against moisture, salt spray and corrosion
  • Lightweight (5.5kg) and compact design
  • HF Tig Arc ignition system
  • Microprocessor control system

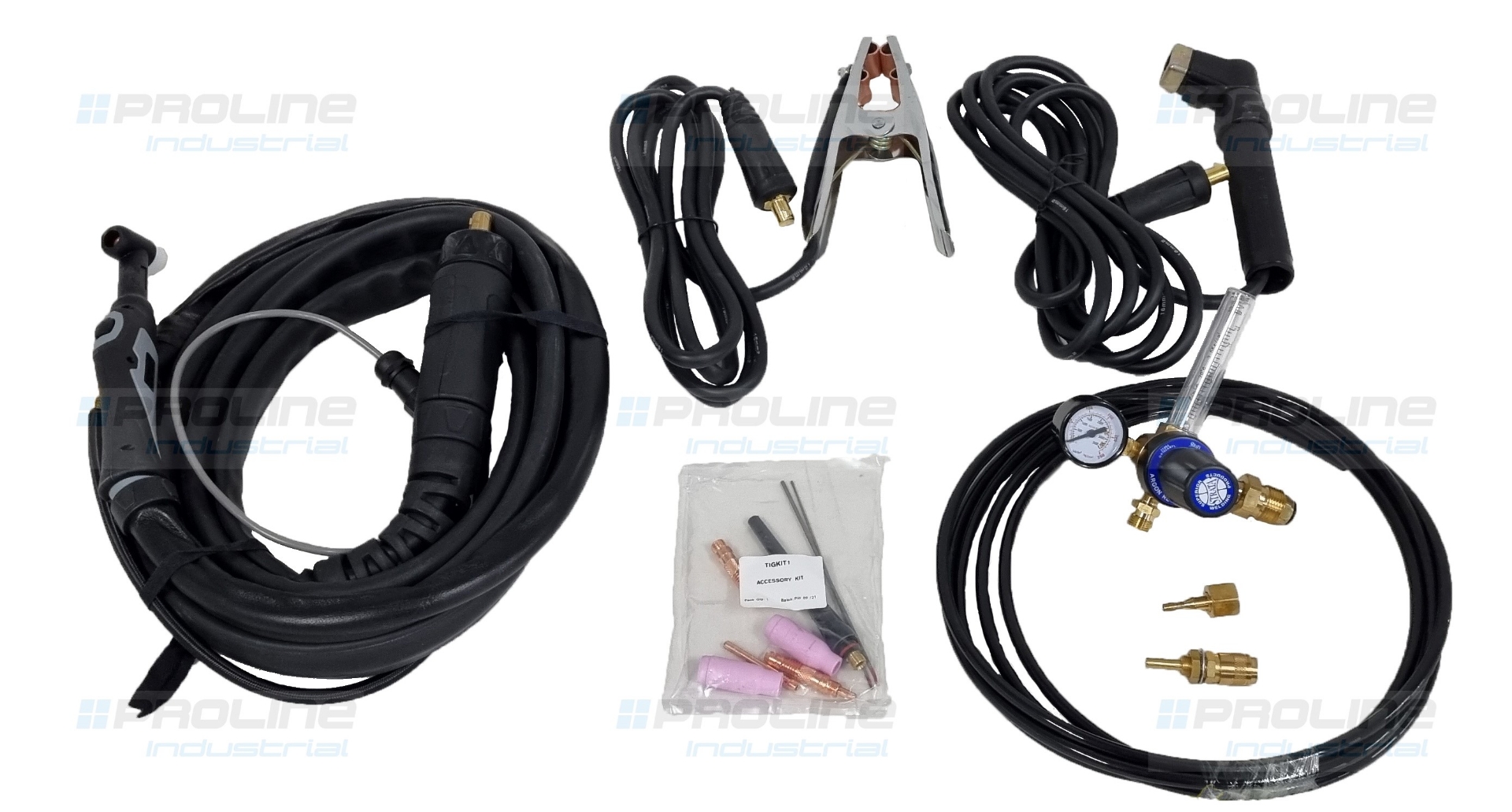

Accessories
4m MMA lead with heavy duty twist lock electrode holder
3m Earth Lead with heavy duty earth clamp
Parweld PRO26 12ft TIG torch with composite machine connection
NZ/Australia Argon Gas Regulator
4m Gas Hose
Gas  inlet Quick Connector
Gas Hose Clamp x2

Specifications

Products specifications
Dimensions410 x 146 x 278mm
Weight5.5kg
Input Power Supply230V AC 15A 50/60Hz
Max. Input Current40A
Generator Capacity9.8KVA
Current Output10-180A
MMA O/C Voltage74V
Duty Cycle60% @125A
StandardsEN60974-1:2012
Power Efficiency0.8
Power Factor0.65
Max Weld Thickness8mm
