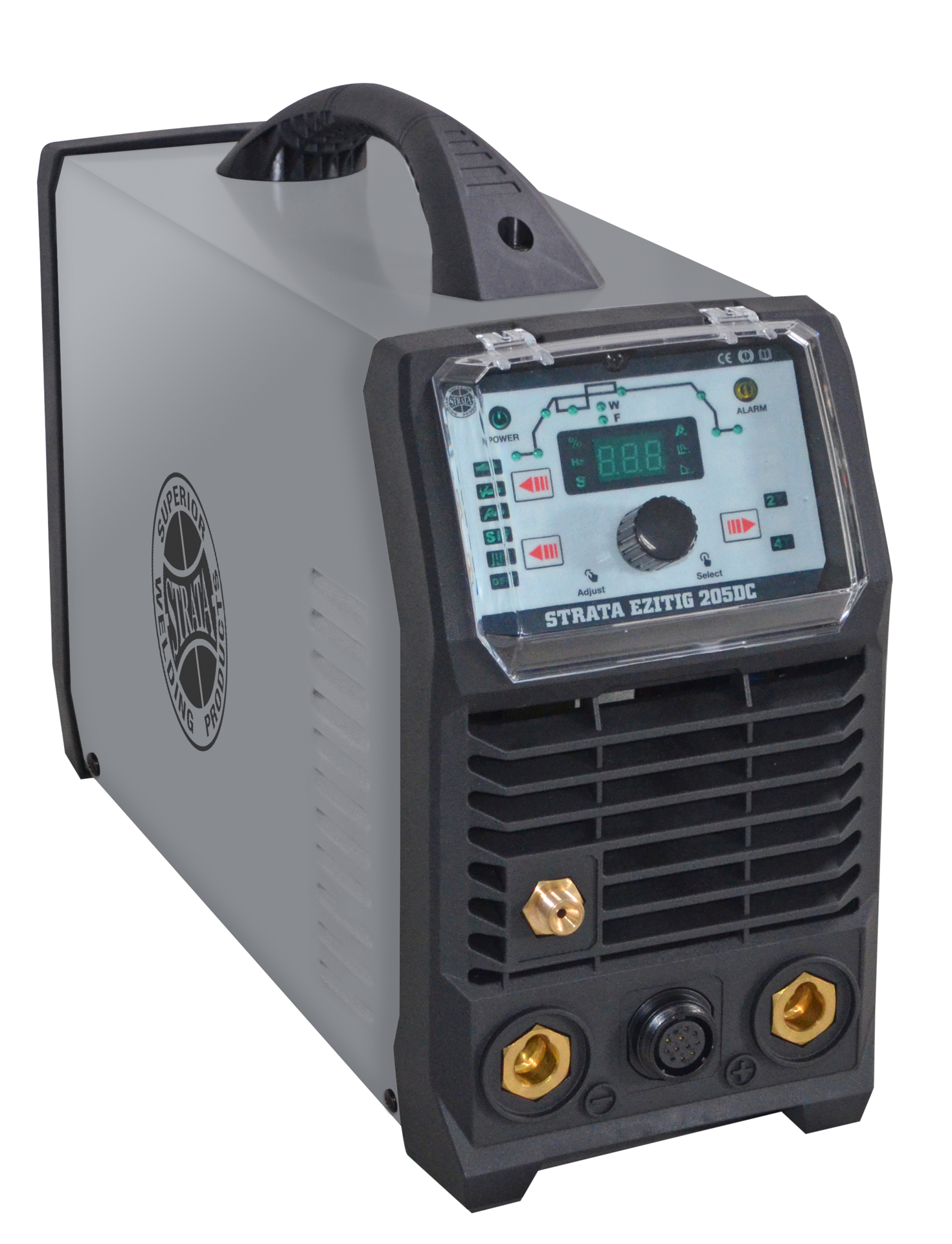

EziTig205 200A Inverter DC Tig

Strata EziTig205 200A Inverter DC HF TIG/MMA Welder Package. Includes PRO26 12ft Tig Torch, Arc/Earth Leads, Gas Regulator & Hose. 2 Year Warranty.

SKU: 205377

Please give us a brief description of your intended application (we may have a better solution.)

Overview
Specifications
Reviews
Videos
Contact Us
Downloads

The EZITIG205DC is a powerful, highly portable, easy to use machine with the latest IGBT inverter technology. Extreme stress tested to 440V with IP23 protection, the EZITIG205DC is built to last in the harshest NZ work environments.

• IGBT inverter technology for smooth & stable welding output and increased reliability
• Industrial IP23 casing with front panel protection resists damage, moisture and corrosion
• Microprocessor control system for superior and dynamic arc characteristics
• Lightweight & compact design, ideal for portable applications
• Extreme stress tested in production up to 440V, ensuring rugged reliability
• Great control and easy to use MMA welding with adjustable arc force, hot start and auto anti-stick control
• Lift TIG and HF start modes gives versatility when welding around sensitive electronic equipment
• Electronic HF TIG arc ignition system, contamination free and easy arc starting with low EMF interference
• Spot welding function with 2T/4T trigger control
• Durable and reliable with high quality & over specified electronic components
• Intelligent protection system with temperature, voltage and current sensors for increased reliability and safety
• Designed to work with generator power supply with protection from power surges.
• Multi PCB construction is economical to service and repair compared to single PCB design
• Potententiometer torch/ foot pedal remote control with digital up/ down button remote control and wireless remote-control options
• All remote functions connect through single plug 12 pin connection
• Quick connect inlet gas fitting

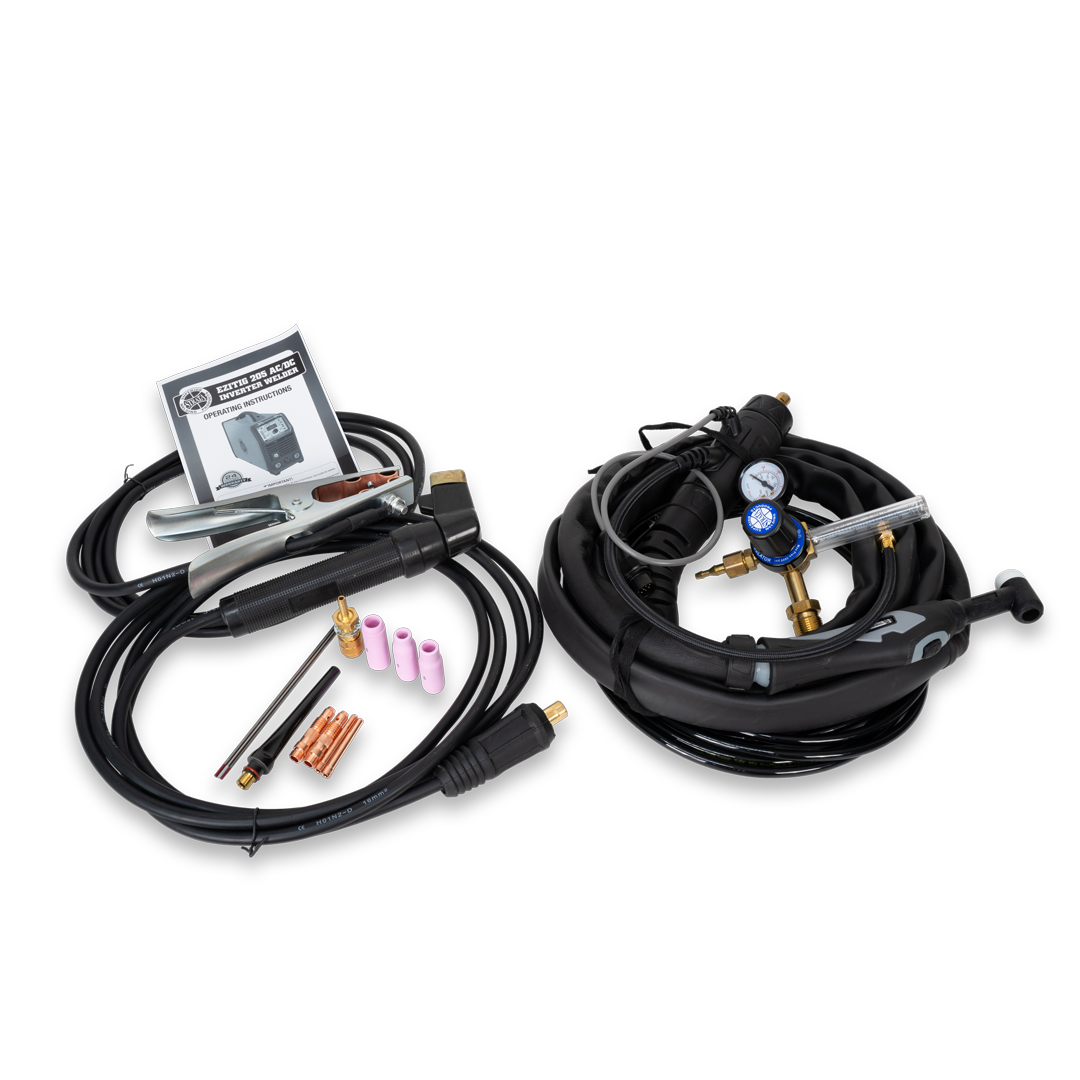

Accessories

3m earth lead with heavy duty earth clamp
4m MMA lead with heavy duty twist lock electrode holder
Strata Professional TIG torch with composite machine connection
2 stage flowmeter
Argon gas regulator
4m gas hose
Gas inlet quick connector
Hose clamps

Products specifications

Dimensions	410x146x278mm
Weight	7kg
Input Power Supply	230V AC 15A 50/60Hz
Input Power Supply Tolerance	±10%V
Maximum Input Current	43A
Generator Capacity	10KVA
MMA Current Output	5A-200A
MMA O/C Voltage	89V
MMA Duty Cycle	200A@15%, 150A@60%, 115A@100%
TIG Current Output	5-200A
TIG Duty Cycle	200A@20%, 155A@60%, 120A@100%
TIG Upslope/Down Slope Adjustment	0-2/0-10S
TIG Pulse Frequency	0.5-200Hz
TIG Pulse Width Range	5-95%
Insulation Class	IP23
Power Efficiency	0.85
Power Factor	0.75
Standards	EN60974-1:2012
MMA Rod Size	1.6-5.0mm
Warranty	24 months* with registration

Write your own review

Product can be reviewed only after purchasing it
Only registered users can write reviews

Download Instruction Manual

Download Technical Data Sheet

Download Spare Parts List

Download Safety Data Sheet

• IGBT inverter technology for smooth & stable welding output and increased reliability
• Industrial IP23 casing with front panel protection resists damage, moisture and corrosion
• Microprocessor control system for superior and dynamic arc characteristics
• Lightweight & compact design, ideal for portable applications
• Extreme stress tested in production up to 440V, ensuring rugged reliability
• Great control and easy to use MMA welding with adjustable arc force, hot start and auto anti-stick control
• Lift TIG and HF start modes gives versatility when welding around sensitive electronic equipment
• Electronic HF TIG arc ignition system, contamination free and easy arc starting with low EMF interference
• Spot welding function with 2T/4T trigger control
• Durable and reliable with high quality & over specified electronic components
• Intelligent protection system with temperature, voltage and current sensors for increased reliability and safety
• Designed to work with generator power supply with protection from power surges.
• Multi PCB construction is economical to service and repair compared to single PCB design
• Potententiometer torch/ foot pedal remote control with digital up/ down button remote control and wireless remote-control options
• All remote functions connect through single plug 12 pin connection
• Quick connect inlet gas fitting

Accessories

3m earth lead with heavy duty earth clamp
4m MMA lead with heavy duty twist lock electrode holder
Strata Professional TIG torch with composite machine connection
2 stage flowmeter
Argon gas regulator
4m gas hose
Gas inlet quick connector
Hose clamps

Products specifications

Dimensions	410x146x278mm
Weight	7kg
Input Power Supply	230V AC 15A 50/60Hz
Input Power Supply Tolerance	±10%V
Maximum Input Current	43A
Generator Capacity	10KVA
MMA Current Output	5A-200A
MMA O/C Voltage	89V
MMA Duty Cycle	200A@15%, 150A@60%, 115A@100%
TIG Current Output	5-200A
TIG Duty Cycle	200A@20%, 155A@60%, 120A@100%
TIG Upslope/Down Slope Adjustment	0-2/0-10S
TIG Pulse Frequency	0.5-200Hz
TIG Pulse Width Range	5-95%
Insulation Class	IP23
Power Efficiency	0.85
Power Factor	0.75
Standards	EN60974-1:2012
MMA Rod Size	1.6-5.0mm
Warranty	24 months* with registration
