S-7018.G Low hydrogen electrodes available in 2.6mm & 3.2mm, 5kg packs & 20kg cartons.

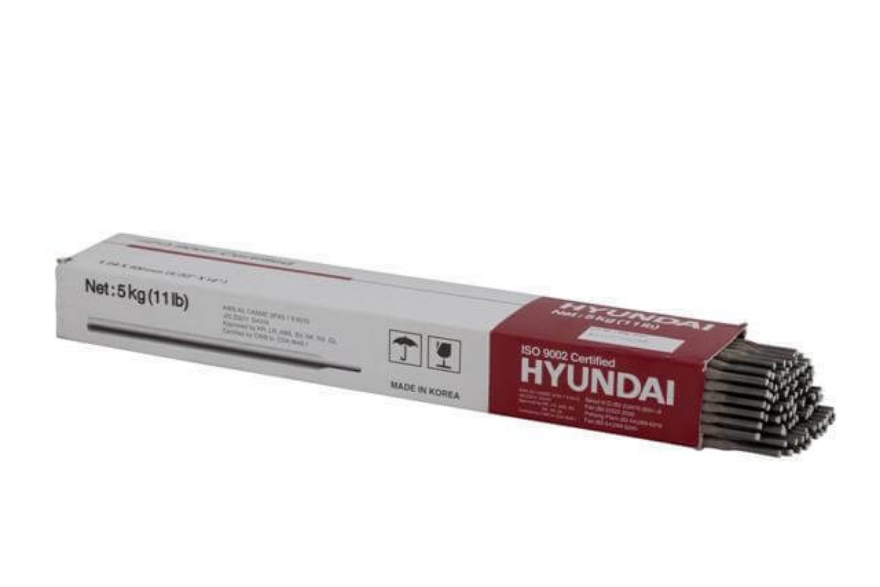

S-7018.G Hyundai Low Hydrogen Arc Electrodes
AWS: A5.1 / ASME SFA5.1 E7018
Type: Basic Applications
S-7018.G can be used for highly efficient-welding of 490MPa(73,000lbs/in2) class high tensile steel, such as bridges, buildings, rolling stock and machines. Characteristics of Usage
S-7018.G is an iron powder low hydrogen type electrode of high efficiency used for welding 490MPa(73,000lbs/in2) class high tensile steel. Notes on Usage
Dry the electrodes at 300~350°C (572~662°F) for 60 minutes before use.
Keep the arc as short as possible.
Use a windshield or screen when welding in strong wind. Packaged in
- 2.6mm & 3.2mm Rods
- 5KG Packs or 20KG Cartons (4x 5KG Packs)
- 205159 - S-7018.G 2.6mm 5KG Pack
- 205160 - S-7018.G 3.2mm 5KG Pack
