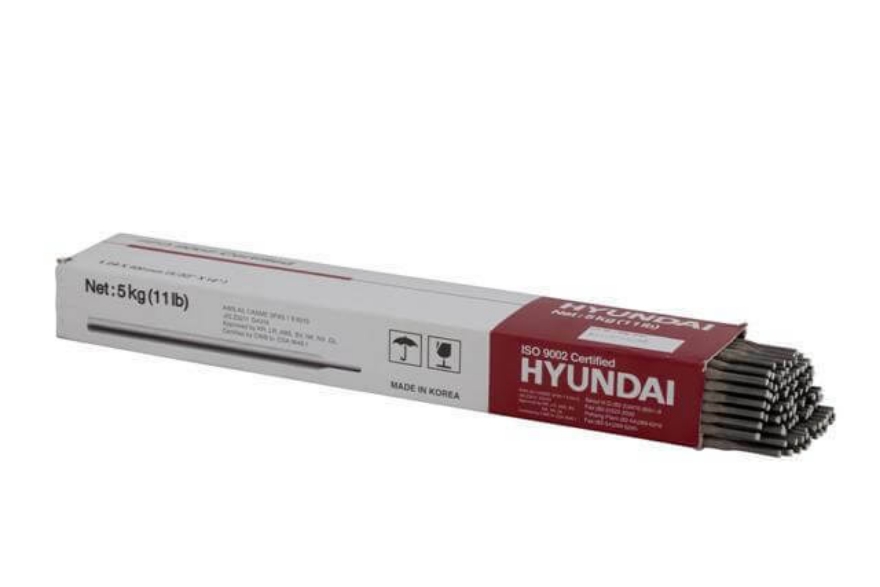

S-6013.LF General purpose, all position, low fume, electrodes available in 2.6mm & 3.2mm, 5kg packs & 20kg cartons.
S-6013.LF Hyundai General Purpose Arc Electrodes AWS: A5.1 / ASME SFA5.1 E6013 Type: Rutile Applications S-6013.LF General Purpose, All Position Electrodes These can be used for welding of machinery, vehicles and light structural steels, and surface dressing of heavy steel structures. Characteristics of Usage S-6013.LF is a low fume, high titania type electrode. Fume generation is about 20% less than conventional high titania type electrodes and the usability is excellent in all positions & they have self pealing slag. S-6013.LF is suitable for welding of light structural steels because of its stable arc, shallow penetration and smooth welding bead. Notes on Usage Dry the electrodes at 70~100°C (158~212°F) for 30-60 minutes before use. Pay attention not to exceed the range of proper currents. Can be used on AC or DC∓ Current Packaged in
