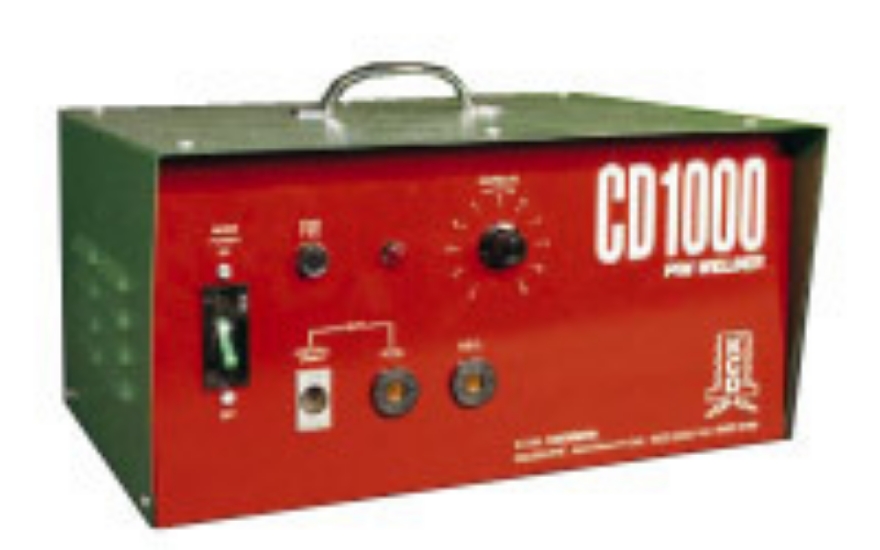

KCD Stud welding CD1000

SKU: 203009
KCD Stud welding CD1000
Please give us a brief description of your intended application (we may have a better solution.)
Call Us- 0800 699 353

Product Overview

KCD Stud welding CD1000

Designed specifically for the insulation industry

The CD1000 is designed specifically for the insulation industry. The Pin Welders robust and reliable design has performed efficiently and reliably for many years under the stress of on-site and workshop conditions.

The unique chuck guard design has the following advantages:
1. No adjustment necessary for different length pins.
2. Protects chuck from zinc splashing during welding, therefore increasing the life of the chuck.
3. Because of the self-tightening effect between the chuck and the chuck guard, arcing between the chuck and the pin is minimal

Specifications

Products specifications
Stud Size105" insulation pin through 5/32 whit or M4 threaded studs
Stud MaterialMild steel, stainless steel. Zinc, galvanised and copper finished.
Weight16kg
Dimention315x436x245
Welding rate15 per minute
Input Power240 V
Weld ModeContact
Circuit ProtectionPrimary fuses Output voltage; circuit breaker operator protection
Cable LengthsGun 4.8(16'), Earth 3.04m (10')

KCD Stud welding CD1000

Designed specifically for the insulation industry

The CD1000 is designed specifically for the insulation industry. The Pin Welders robust and reliable design has performed efficiently and reliably for many years under the stress of on-site and workshop conditions.

The unique chuck guard design has the following advantages:
1. No adjustment necessary for different length pins.
2. Protects chuck from zinc splashing during welding, therefore increasing the life of the chuck.
3. Because of the self-tightening effect between the chuck and the chuck guard, arcing between the chuck and the pin is minimal

Products specifications
Stud Size105" insulation pin through 5/32 whit or M4 threaded studs
Stud MaterialMild steel, stainless steel. Zinc, galvanised and copper finished.
Weight16kg
Dimention315x436x245
Welding rate15 per minute
Input Power240 V
Weld ModeContact
Circuit ProtectionPrimary fuses Output voltage; circuit breaker operator protection
Cable LengthsGun 4.8(16'), Earth 3.04m (10')
