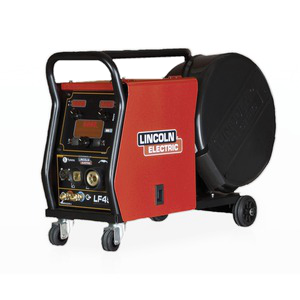

LF-45 Wire Feed Lincoln K14072

Lincoln LF-45 4 Roller Wire Feeder, Air/Water Cooled, Includes 1.0-1.2mm Rollers

SKU: 203047

Please give us a brief description of your intended application (we may have a better solution.)

Overview
Specifications
Contact Us
Downloads

The LF 45 is based on the design of the LF33 and built to with stand extreme environmental conditions. These feeders are designed for ruggedness, small dimensions and ease of use. The result is an incredibly rugged, protective casing as standard complete with an undercarriage, for use under tough industrial conditions. The feeders are able to accept D300 (15 KG) but also small D200 (5KG) wire spools.

Small rugged and easy to handle – with bright digital meters
Four roll drive system – with powerful motor.
Remote control – on the gun (job, WFS Trim).
Hot /Soft start Crater Fill – all standard features

Products specifications

Solid Wire Size Range	0.8-1.6
Cored Wire Sizce Range	1.0-1.6
Wire Speed Range Ipm (M/Min)	2 – 20
Net Weight	17 kg
Dimension(H X W X D)	440 mm x 270 mm x 636 mm
