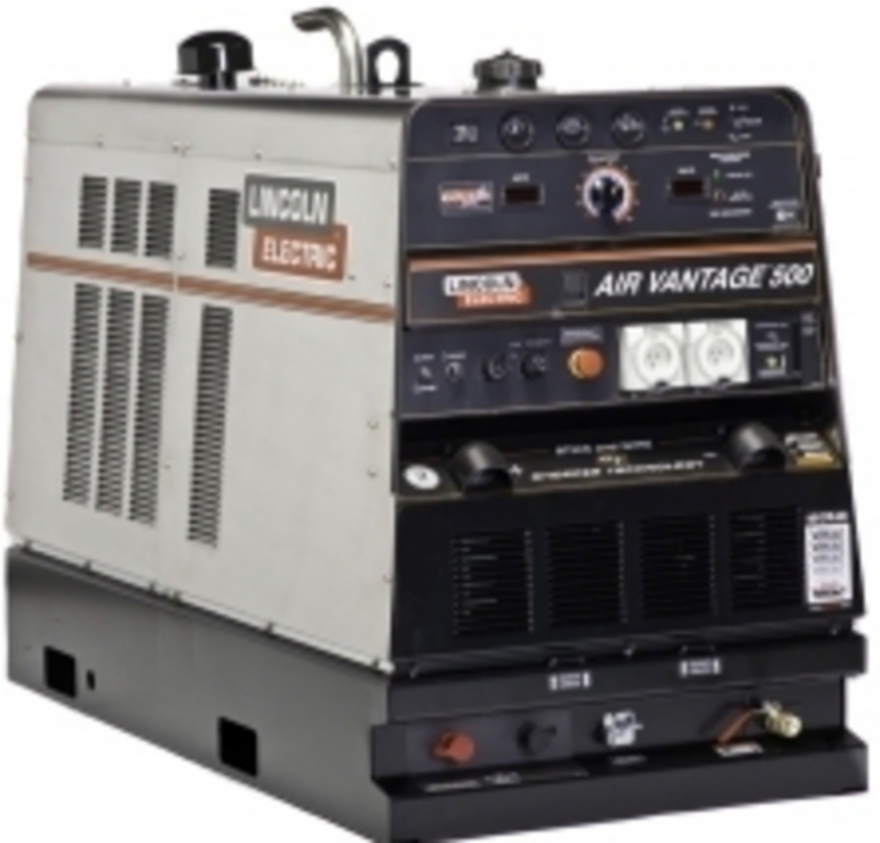

Lincoln Air Vantage 500 Engine Driven Welder

Brand: Lincoln
SKU: 1309
Lincoln Air Vantage 500 Engine Driven Welder
Please give us a brief description of your intended application (we may have a better solution.)
Call Us- 0800 699 353

Product Overview

This model delivers high performance across a wide range of processes including stick (conventional and pipe modes), TIG, MIG welding including FCAW with excellent gouging capabilities. A variety of Air Vantage® 500 options are available which include welding accessories such as spill tray, tropic proofing, battery isolators and so forth.

Specifications

Products specifications
Output RangeContinuous Control 30-575 Amps CC/CV Range 15 - 250 Amps Touch Start™ TIG Range
Rated Output500A, 40V @ 100% 550A, 36V @ 60% 575A,35V @ 50%
Engine ModelCummins ® B3.3 liquid cooled diesel engine 12V electric start
Cylinder4
HP and Speed56 @ 1800
Weight785 kg
Dimension(H X W X D)1260 x 831 x 1603mm

This model delivers high performance across a wide range of processes including stick (conventional and pipe modes), TIG, MIG welding including FCAW with excellent gouging capabilities. A variety of Air Vantage® 500 options are available which include welding accessories such as spill tray, tropic proofing, battery isolators and so forth.

Products specifications
Output RangeContinuous Control 30-575 Amps CC/CV Range 15 - 250 Amps Touch Start™ TIG Range
Rated Output500A, 40V @ 100% 550A, 36V @ 60% 575A,35V @ 50%
Engine ModelCummins ® B3.3 liquid cooled diesel engine 12V electric start
Cylinder4
HP and Speed56 @ 1800
Weight785 kg
Dimension(H X W X D)1260 x 831 x 1603mm
