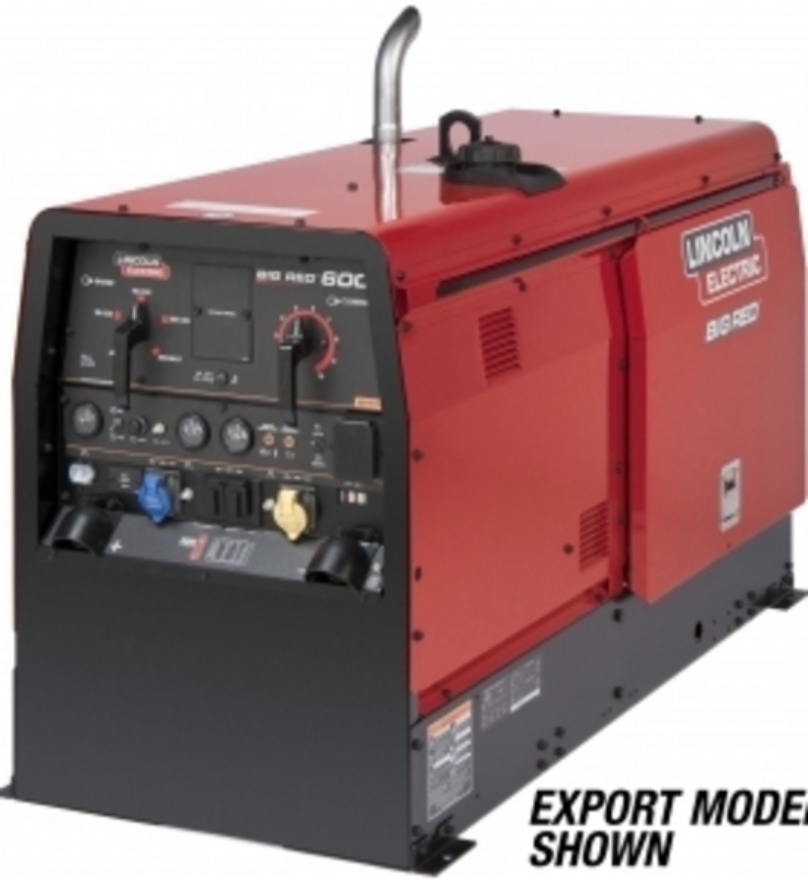

Lincoln Big Red 600 Engine Driven Welder

Brand: Lincoln
SKU: 1312
Built for operation in remote locations, the Big Red™ 600 is a simple, rugged diesel engine driven welder for stick welding, TIG and arc gouging. The design features no PC boards, proven reactor technology and the widely-used Deutz®F3L912 air-cooled industrial diesel engine for high reliability in jungles, deserts and other extreme environments.
Please give us a brief description of your intended application (we may have a better solution.)
Call Us- 0800 699 353

Product Overview

KEY FEATURES
- Simple, Rugged Design
- Proven reactor technology.
- No PC boards.
- Heavy gauge steel base, frame, case sides and roof.
- High-Output Welding and Arc Gouging
- 600 Amps DC stick and DC TIG welding.
- 10 mm (3/8 in.) carbon arc gouging.
- Desert Duty™ Rated– Rated welding outputs for extreme temperature operation up to 55°C.
- Versatile Receptacle Connections for AC Generator Power –Operate common construction tools:

The 600amp rated output DC arc constant current welding power source for construction and maintenance stick welding.
•     Weld mode selector switch to select either stick/arc gouging mode or TIG mode.
•     5 taps and fine control for selecting a wide range of output from 65 to 600 amps.
•     Built-in “hot” start (in the stick/arc gouging mode) for easier starts and restrikes to minimize the electrode “sticking” to the work.
•     Arc gouging with up to a 10mm (3/8in.) carbon.
•     Scratch  start DC TIG welding.
•     Delivers up to 2,400watts of 120V generator AC power for a grinder, or lights and 3,600 watts of 240V AC generator power for other power tools.*
•     Nominal 120V and 240V AC* generator voltage is independent of any weld dial setting.
•     Get multiple arcs from the Big Red™ 600 constant current DC welding output by adding the Multi-Weld® 350 system.    Available power  is 16,500 watts at 60V DC. See the Multi-Weld® 350 bulletin E5.302.

Specifications

Products specifications
Cylinders3
HP and Speed44 @ 1,800 rpm
Weight752 kg
Dimension(H X W X D)937 x 718 x 1654 mm
