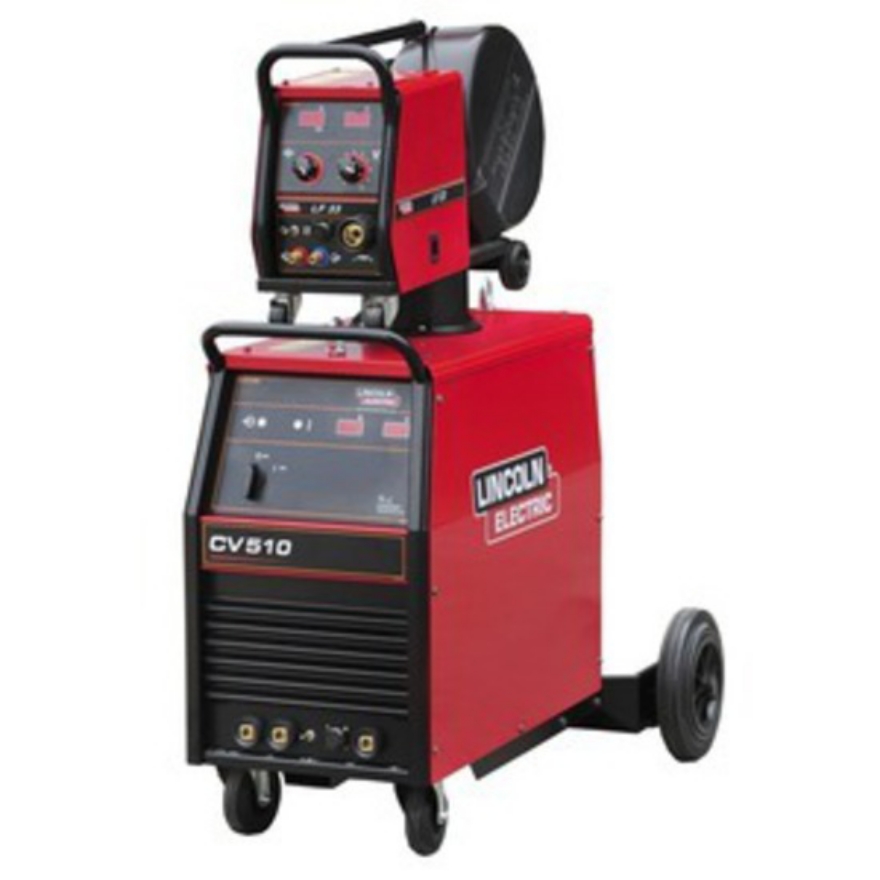

Lincoln Ideal Arc CV510 MIG Welder

Free Shipping
Lincoln /
SKU: 1480

The Lincoln Electric Idealarc® CV-510 delivers powerful, reliable MIG and flux-cored welding performance with 500 amps of output, built tough for heavy-duty fabrication.

Overview

Product Overview

Lincoln Ideal Arc CV510 MIG Welder

Built for reliability in demanding environments, the Lincoln Electric Idealarc® CV-510 is a robust power source designed for MIG and flux-cored welding. All sensitive components are housed in a dust-free compartment, with a fully encapsulated PCB for maximum protection and durability. Rated at 60% duty cycle at 500A (100% at 385A) and NEMA-tested at 40°C, the CV-510 ensures dependable performance even under extreme conditions.

Paired with the recommended LF33 wire feeder, which features a 4-roll drive system, 2/4-step trigger control, and clear digital meters, this system is built for precision and ease of use. Whether you’re welding solid wires or large-diameter cored wires, the CV-510 offers consistent power and rugged dependability for heavy fabrication tasks.

Key Features

  • Heavy-Duty Welding Output
    Rated at 60% duty cycle at 500A and 100% at 385A, the CV-510 can handle long, demanding welding operations with ease.
  • Reliable Component Protection
    All sensitive components are sealed in a dust-free compartment, with a fully encapsulated PCB to extend machine life and reduce maintenance.
  • Tested Tough
    NEMA-tested at 40°C to guarantee consistent performance in high-temperature environments.
  • Precision with LF33 Wire Feeder
    The LF33 feeder includes a 4-roll drive system, digital meters for voltage and amperage, and features like burnback, run-in, wire inch, and gas purge for smooth operation.
  • Solid and Cored Wire Capability
    Designed to weld both solid and large-diameter cored wires at 100%, making it highly versatile for heavy fabrication applications.
  • Operator-Friendly Design
    Digital displays and intuitive controls ensure precise settings, while rugged construction guarantees long-term reliability.
Overview

Specifications

Item Number / K14081-1A
Primary Voltage / 230/400V
Fuse Size / 63/32A
Weight / 160kg
Dimension(H X W X D) / 880x696x1020mm
Insulation Class / H
Protection class / IP23
Compliance / EN 60974-1 & -10 EN 50199 CE ROHS
Your Questions Answered

FAQ's

What type of welder is the Lincoln Idealarc® CV-510?

What wire feeder is recommended with this machine?

Is the CV-510 suited for continuous industrial use?

How much power can the CV-510 deliver?

Can the CV-510 handle large-diameter wires?

Who is the CV-510 best suited for?
