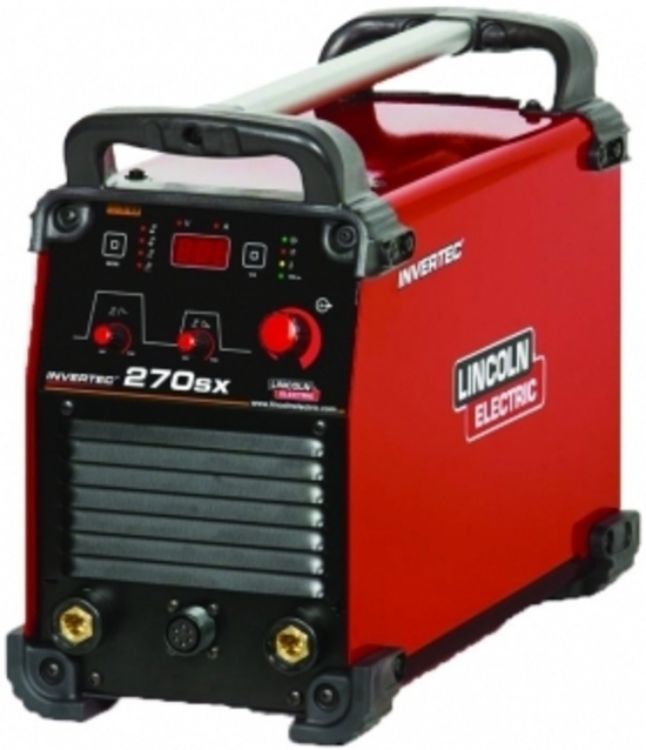

Lincoln Invertec 270SX ARC Welder

Brand: Lincoln
SKU: 1244
Lincoln Invertec 270SX ARC Welder
Please give us a brief description of your intended application (we may have a better solution.)
Call Us- 0800 699 353

Product Overview

The Invertec® V270SX stick and Lift TIG welder utilises quality digital inverter technology to deliver excellent arc characteristics with a wide output range of 5 - 270 Amps.
This welding equipment features a digital meter showing the presettable welding current, actual welding current or voltage during welding. The high duty cycle of the machine supports continuous stick welding with a wide variety of electrode types such as Rutile, Basic and even Cellulosic. The Lift TIG welding function incorporated in this machine allows easy starting without tungsten contamination. The Invertec® V270SX comes with a built-in VRD (voltage reducing device) and combines a rugged industrial construction, excellent arc characteristics, wide output range and portability.

Specifications

Products specifications
Item NumberK12040-1
Primary Voltage415V/3/50-60Hz +/-15%
Fuel Tank Size20A
Weight22
Dimensions389 x 247 x 502
Protection classIP23 / H
ComplianceEN60974-1
Current range5-270A
Input Power9.5kW @ 35% 6.3kW @ 100%
Rated Output270A / 30.8V @ 35% 200A / 28V @ 100%
The Invertec® V270SX stick and Lift TIG welder utilises quality digital inverter technology to deliver excellent arc characteristics with a wide output range of 5 - 270 Amps.
This welding equipment features a digital meter showing the presettable welding current, actual welding current or voltage during welding. The high duty cycle of the machine supports continuous stick welding with a wide variety of electrode types such as Rutile, Basic and even Cellulosic. The Lift TIG welding function incorporated in this machine allows easy starting without tungsten contamination. The Invertec® V270SX comes with a built-in VRD (voltage reducing device) and combines a rugged industrial construction, excellent arc characteristics, wide output range and portability.
Products specifications
Item NumberK12040-1
Primary Voltage415V/3/50-60Hz +/-15%
Fuel Tank Size20A
Weight22
Dimensions389 x 247 x 502
Protection classIP23 / H
ComplianceEN60974-1
Current range5-270A
Input Power9.5kW @ 35% 6.3kW @ 100%
Rated Output270A / 30.8V @ 35% 200A / 28V @ 100%
