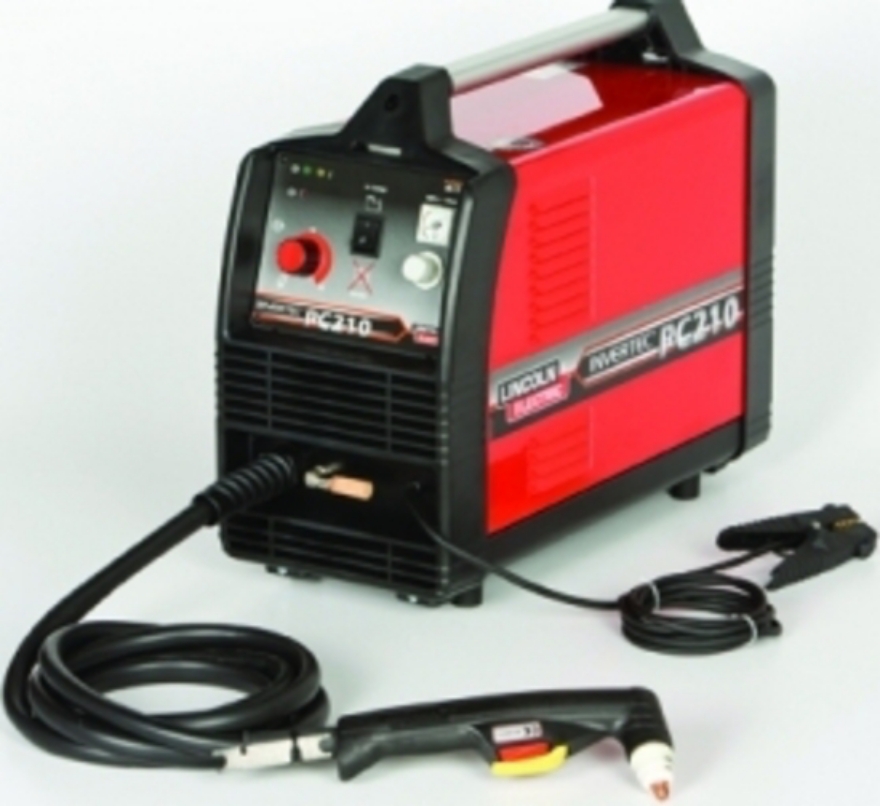

Lincoln Invertec PC210 Plasma Cutter

Brand: Lincoln
SKU: 1313
Lincoln Invertec PC210 Plasma Cutter
Please give us a brief description of your intended application (we may have a better solution.)
Call Us- 0800 699 353

Product Overview

The Invertec® PC210 makes short work of your plasma cutting requirements using ordinary 240V power - simply take the torch and cut in seconds.The Invertec® PC210 inverter machine is equipped with an integrated air compressor, combined with the ability to take in external air for even greater plasma cutting power and higher travel speeds. Using the internal compressor, it can quickly and easily cut up to 8mm steel. With the additional external air supply, it can cut up to 10mm steel. The Invertec® PC210 is built tough to ensure reliability throughout its lifetime. The compressor incorporates two air filters and a moisture filter to clean the incoming air. The most flexible plasma cutting machines you could envisage, the units arrive ready to go, able to cut fast and precisely.

Specifications

Products specifications
Item NumberK12038-2
Primary Voltage240 V 1ph (± 10%) 50/60Hz
Fuse Size16A (slow)
Weight18.5kg
Dimension(H X W X D)385 x 215 x 480mm
Protection classIP23S
Insulation ClassH
ComplianceEN 60974-1 / EN 50199 CE
Current range10-25A
Input Voltage240 V 1ph (± 10%) 50/60Hz
Rated Output2kW @ 35%
Frequency50/60Hz

The Invertec® PC210 makes short work of your plasma cutting requirements using ordinary 240V power - simply take the torch and cut in seconds.The Invertec® PC210 inverter machine is equipped with an integrated air compressor, combined with the ability to take in external air for even greater plasma cutting power and higher travel speeds. Using the internal compressor, it can quickly and easily cut up to 8mm steel. With the additional external air supply, it can cut up to 10mm steel. The Invertec® PC210 is built tough to ensure reliability throughout its lifetime. The compressor incorporates two air filters and a moisture filter to clean the incoming air. The most flexible plasma cutting machines you could envisage, the units arrive ready to go, able to cut fast and precisely.

Products specifications
Item NumberK12038-2
Primary Voltage240 V 1ph (± 10%) 50/60Hz
Fuse Size16A (slow)
Weight18.5kg
Dimension(H X W X D)385 x 215 x 480mm
Protection classIP23S
Insulation ClassH
ComplianceEN 60974-1 / EN 50199 CE
Current range10-25A
Input Voltage240 V 1ph (± 10%) 50/60Hz
Rated Output2kW @ 35%
Frequency50/60Hz
