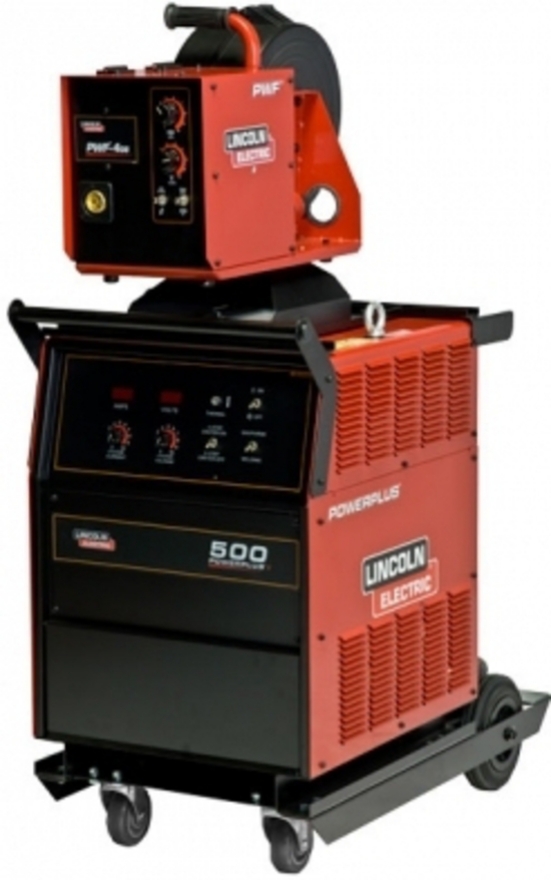

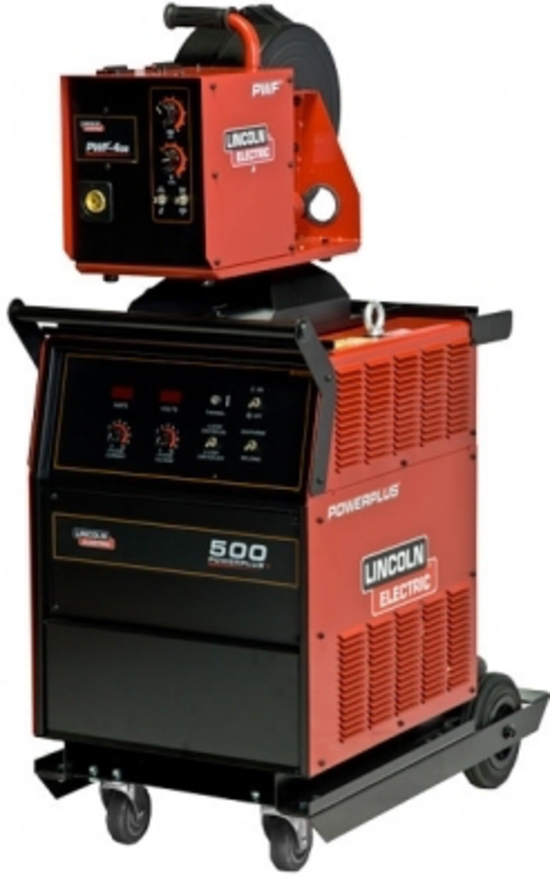

Lincoln Power Plus II 500 Mig Welder

Free shipping on orders over $50
Lincoln /
SKU: 1481

The POWERPLUS™ II 500 is a heavy-duty three-phase MIG welder with a 60–550A output range, advanced control features, and exceptional performance for demanding industrial applications.

Overview

Product Overview

Lincoln Power Plus II 500 Mig Welder

The POWERPLUS™ II 500 is a professional-grade MIG machine designed to meet the most rigorous demands of heavy fabrication, engineering, maintenance, and industrial welding environments. With a massive 60–550A output range and impressive duty cycles, this welder delivers power, precision, and productivity across a wide range of applications.

Featuring IGBT inverter technology and advanced functions such as 2T/4T trigger modes, crater control, burnback, gas pre-flow, and energy saving mode, it provides operators with maximum flexibility and ease of use. The included PWF-4GS four-roll wire feeder with an 8m interconnection lead ensures smooth, consistent wire feeding, even with aluminium and flux-cored wires. Supplied as a Ready-to-Weld™ package complete with a Magnum® 400 gun, work return lead, drive roll, flowmeter, and gas hose, the POWERPLUS™ II 500 is a true workhorse for any professional workshop.

Key Features

  • Wide Output Range
    Delivers a massive 60–550A welding output, making it suitable for everything from light sheetmetal work to heavy fabrication.
  • High Duty Cycles
    Rated at 500A @ 60% and 390A @ 100%, ensuring consistent performance under demanding conditions
  • Advanced Welding Controls
    Includes 2T/4T switching, gas purge, crater control, burnback, and energy saving mode, giving precise control and reducing downtime.
  • Four-Roll Wire Feeder
    The PWF-4GS wire feeder provides positive traction for smooth feeding of both flux-cored and softer wires like aluminium, minimising bird-nesting
  • Versatile Wire Sizes
    Handles a wide range of wires: solid 0.6–1.6mm, aluminium 0.9–1.6mm, and flux-cored 0.9–2.0mm
  • Ready-to-Weld™ Package
    Supplied with Magnum® 400 MIG gun, work return lead, drive roll, flowmeter, 3m input lead, 8m interconnection cable, and gas hose .
  • Energy Saving Mode
    Automatically goes into standby if inactive for more than 5 minutes, saving power and extending component life.
  • Industrial Applications
    Ideal for general engineering, fabrication, sheetmetal, heavy industry, offshore, and automotive manufacturing.
  • Robust & Reliable Build
    Tested to the highest standards, with a tool-less wire drive system and swivel platform for ease of use.
  • Warranty Support
    Backed by Lincoln Electric’s 3-year parts and labour warranty, ensuring peace of mind for professional users.
Overview

Specifications

Item Number / K32064-1- AUP
Output Range / 60-550 amp
Wire Feed Speed / 1 - 20m/min
Rated Output Current/ Voltage/ Duty Cycle / 500A/39V @ 60% 390A/33.5V @ 100%
Wire Size / Solid 0.6 – 1.6 mm Alum 0.9 – 1.6 mm FCAW 0.9 – 2.0 mm
Rated Input / 39.3 amp
Dimension(H X W X D) / 1000 x 555 x 1020 mm
Weight / 180kg
Your Questions Answered

FAQ's

What type of welder is the Lincoln POWERPLUS II 500?

How does the duty cycle perform under load?

What makes the wire feeder system special?

What is the output range of this machine?

Can it weld different types of materials?

Does it include advanced welding controls?
