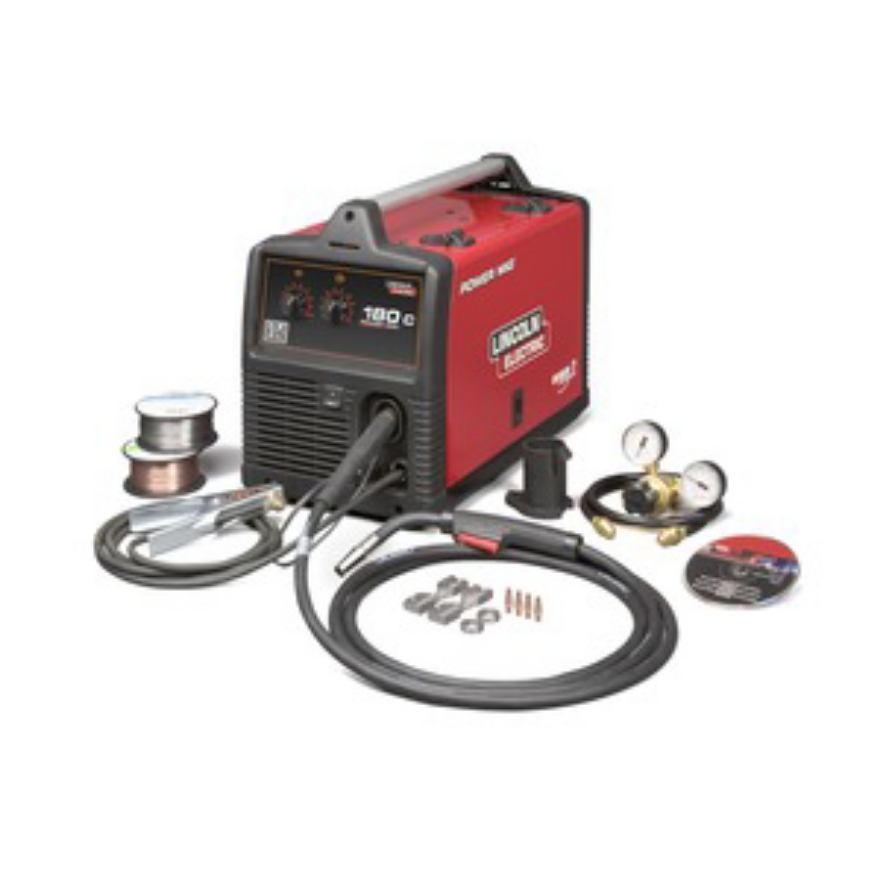

Lincoln PowerMIG 180C MIG Welder

Brand: Lincoln
SKU: 202715
K2668-1 - Lincoln Power Mig 180C Mig Welder Package. Includes Mag100 Mig Torch, Earth Cable, Drive Roller & Wire.
Please give us a brief description of your intended application (we may have a better solution.)
Call Us- 0800 699 353

Product Overview

Whether you’re a farmer or a fabricator, an autobody shop or a backyard mechanic, the POWER MIG® 180C will help you get the job done! It’s a portable wire welder designed for use with industrial 240 volt input power, so you can weld on thicker material – up to 3/16 in. with MIG welding and 1/2 in. with gas-less flux-cored welding.

  • Diamond Core Technology™ – Delivers a forgiving arc, excellent out-of-position arc action, low spatter and a wide voltage sweet spot at a given wire feed speed for steel, stainless steel or aluminum.
  • Industrial Cast Aluminum Drive – Dual gear-driven drive rolls deliver positive traction. Patented split wire guides ensure optimal wire alignment and a brass-to-brass gun connection aids critical conductivity. A large industrial closed-design drive motor improves torque and enhances trouble-free performance.
  • No Hassle Tool-less Design – For input power changes, wire spool mounting, wire drive service and polarity changes.
  • Spool Gun Ready – Just remove the standard MIG gun and plug in the economical Magnum® 100SG spool gun (optional) for enhanced aluminum wire feeding performance.
  • Toughest PC Board Protection in the Industry – ‘Potted’ to seal sensitive components from the environment, ‘trayed’ in a tough plastic tray to add rigidity and shock resistance.

Specifications

Products specifications
Input Power15A
Rated Output180A/23V@20% 80A/18V@100%
Output Range20-180A
Solid Wire Size Range0.6-1.2 mm
Cored wire size range0.9-1.1 mm
Wire speed range IPM1-20 m/min
Dimension(H X W X D)14 in x 10.2 in x 18.6 in (357 mm x 258 mm x 472 mm)

Whether you’re a farmer or a fabricator, an autobody shop or a backyard mechanic, the POWER MIG® 180C will help you get the job done! It’s a portable wire welder designed for use with industrial 240 volt input power, so you can weld on thicker material – up to 3/16 in. with MIG welding and 1/2 in. with gas-less flux-cored welding.

  • Diamond Core Technology™ – Delivers a forgiving arc, excellent out-of-position arc action, low spatter and a wide voltage sweet spot at a given wire feed speed for steel, stainless steel or aluminum.
  • Industrial Cast Aluminum Drive – Dual gear-driven drive rolls deliver positive traction. Patented split wire guides ensure optimal wire alignment and a brass-to-brass gun connection aids critical conductivity. A large industrial closed-design drive motor improves torque and enhances trouble-free performance.
  • No Hassle Tool-less Design – For input power changes, wire spool mounting, wire drive service and polarity changes.
  • Spool Gun Ready – Just remove the standard MIG gun and plug in the economical Magnum® 100SG spool gun (optional) for enhanced aluminum wire feeding performance.
  • Toughest PC Board Protection in the Industry – ‘Potted’ to seal sensitive components from the environment, ‘trayed’ in a tough plastic tray to add rigidity and shock resistance.
Products specifications
Input Power15A
Rated Output180A/23V@20% 80A/18V@100%
Output Range20-180A
Solid Wire Size Range0.6-1.2 mm
Cored wire size range0.9-1.1 mm
Wire speed range IPM1-20 m/min
Dimension(H X W X D)14 in x 10.2 in x 18.6 in (357 mm x 258 mm x 472 mm)
