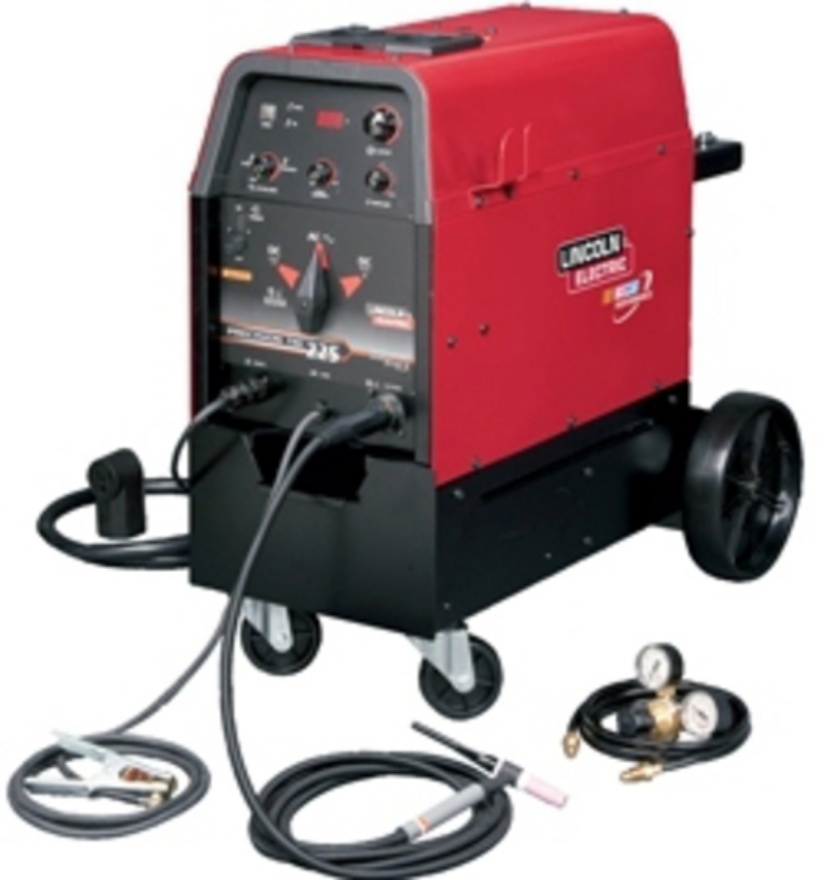

Lincoln Precision TIG 225 Welder

Brand: Lincoln
SKU: 1483
Lincoln Precision TIG 225 Welder
Please give us a brief description of your intended application (we may have a better solution.)
Call Us- 0800 699 353

Product Overview

With the widest welding range in its class (5-230 amps), the Precision TIG®225 gives you the "Power to Perform™". For general fabrication, automotive/motorsports, vocational schools or serious hobby work, this quality TIG welding machine achieves outstanding results. Micro-Start™ II Technology delivers precision arc performance to improve arc starting, welding and weld cratering delivering quality TIG welding. Lincoln Electric's patented Auto-Balance™ and a built-in simple pulse control make this welding equipment easy to use.

Specifications

Products specifications
Item NumberK2534-1
Input Power380/400-415/1/50/60
Rated Output Current/ Voltage/ Duty Cycle90A/23.4V/100%
Input current21/20A
Output Range5-230 Amps AC 5-230 Amps DC Max. OCV: 75V
Dimension(H X W X D)800 x 356 x 985mm
Weight112kg

With the widest welding range in its class (5-230 amps), the Precision TIG®225 gives you the "Power to Perform™". For general fabrication, automotive/motorsports, vocational schools or serious hobby work, this quality TIG welding machine achieves outstanding results. Micro-Start™ II Technology delivers precision arc performance to improve arc starting, welding and weld cratering delivering quality TIG welding. Lincoln Electric's patented Auto-Balance™ and a built-in simple pulse control make this welding equipment easy to use.

Products specifications
Item NumberK2534-1
Input Power380/400-415/1/50/60
Rated Output Current/ Voltage/ Duty Cycle90A/23.4V/100%
Input current21/20A
Output Range5-230 Amps AC 5-230 Amps DC Max. OCV: 75V
Dimension(H X W X D)800 x 356 x 985mm
Weight112kg
