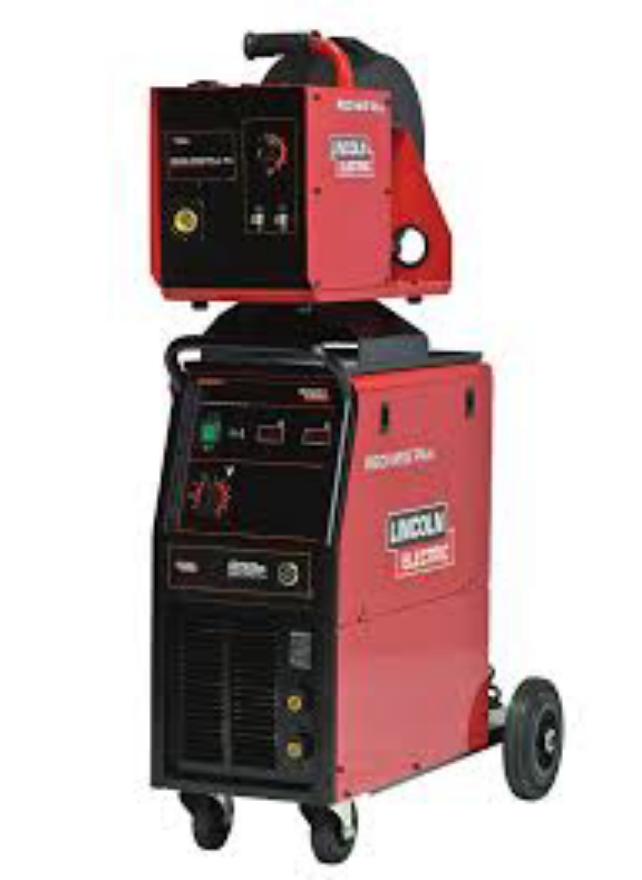

Lincoln REDI-MIG Plus 255S MIG Welder

Free Shipping
Lincoln /
SKU: 203742

The Lincoln REDI-MIG® Plus Range delivers outstanding results on aluminium, stainless, and mild steel with easy-to-use controls, low spatter, and superb arc stability.

Overview

Product Overview

Lincoln REDI-MIG Plus 255S MIG Welder

The Lincoln REDI-MIG® Plus Range is engineered for welders who need precision, simplicity, and reliability in one compact package. Designed to provide a tight, crisp arc that’s easy to strike and control, these medium-duty MIG welders deliver exceptional results across aluminium, stainless steel, and mild steel. With semisynergic control offering a wide voltage “sweet spot,” even less experienced welders can achieve clean, quality welds with minimal spatter and reduced clean-up time.

Ideal for panel and sheetmetal work, the REDI-MIG® Plus can MIG weld from 0.5mm up to 5mm, while the flux-cored wire capability extends performance on thicker materials up to 8mm. Both the 215c and 255c models feature integrated wire feeding for 5kg and 15kg spools with simple, tool-less wire change, while the 255s includes a separate 4-roll feeder with 8m interconnection cables for added reach and convenience. Each package is supplied Ready-to-Weld™, meaning you can unpack and start working within minutes. Backed by a 3-year parts and labour warranty, these machines are built to handle smash repair, sheetmetal fabrication, rural, and general maintenance applications with confidence.

Key Features

  • Outstanding Welding Performance
    Delivers smooth, stable arcs with low spatter on aluminium, stainless steel, and mild steel – reducing clean-up time and improving productivity.
  • Semisynergic Control
    Ensures an easy-to-find voltage “sweet spot,” giving consistent results and simplifying setup for welders of all experience levels.
  • Welding Range
    MIG weld 0.5mm to 5mm with precision, or use flux-cored wire for thicker materials up to 8mm, offering maximum application flexibility.
  • Integrated or Separate Wire Feeder Options
    The 215c and 255c include built-in feeders for 5kg and 15kg spools with tool-less change, while the 255s features a separate 4-roll feeder and 8m cables for greater versatility.
  • Ready-to-Weld™ Package
    Supplied with LINC Gun® 240G torch, work return lead, drive roll, flowmeter, 3m primary lead, and 240V 15A plug, so you can start welding straight away.
  • Durability and Warranty
    Designed for tough environments, these welders are backed by a 3-year parts and labour warranty for peace of mind.
Overview

Specifications

Product Name / REDI-MIG® Plus 255s including REDIMIG® Plus 4s wire feeder
Product Number / K32062-2-AUP
Output Range (Amps) / 30-255
Wire Feed Speed / 1 - 20m/min
Rated Output Current/Voltage/Duty Cycle / 255A/26.8V @ 20% 150A/21.5V @ 60% 120A/20V @ 100%
Wire Sizes / Solid 0.6 – 1.2 mm Alum 0.9 – 1.2 mm FCAW 0.9 – 1.2 mm
Rated Input to AS60974.1 / 25 amp
Net Weight kg / 108 (255s) 15 (4s)
Dimension(H X W X D) / 765 x 427 x 850 (255s)
Your Questions Answered

FAQ's

What makes the REDI-MIG® Plus 255S different from the 215c and 255c models?

What thickness of materials can it weld?

How does the separate 4-roll feeder improve performance?

What types of metals can the 255S weld?

What is semisynergic control and why is it useful?

Is the REDI-MIG® Plus 255S easy to set up?
