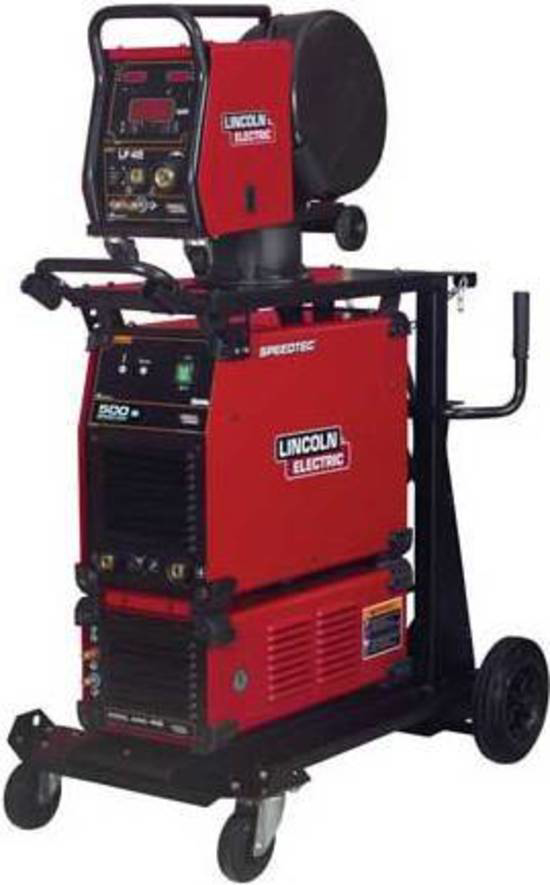

Lincoln Speedtec 500S Multi Process Welder

Free Shipping
Lincoln /
SKU: 204301

The Lincoln Speedtec® 500-S is a compact, high-performance industrial multi-process welder with advanced inverter technology, delivering precision, efficiency, and reliability for demanding applications.

Overview

Product Overview

Lincoln Speedtec 500S Multi Process Welder

The Lincoln Speedtec® 500-S is designed for industrial multi-process welding where power, efficiency, and ease of use are essential. With a compact, modular design, it is easy to move around the site, while its lower weight ensures simple transport and handling.

Built on advanced 32 kHz inverter technology, the Speedtec® 500-S delivers arc control that is many times faster than conventional analogue power sources. With software-driven real-time updates and a wide range of synergic programs, operators can achieve precise and consistent welds across MIG, Stick, and Lift TIG processes.

Driven by Lincoln Electric’s Green Initiative, this welder also helps reduce energy consumption and operating costs without compromising performance. Rated at 500A with a 60% duty cycle (at 40°C), the Speedtec® 500-S is a reliable solution for heavy-duty industrial welding applications.

Key Features

Multi-Process Performance
Supports MIG, Stick, and Lift TIG welding modes with superb arc characteristics, excellent arc starting, and stable performance.

Advanced Inverter Technology
Operates at 32 kHz inverter frequency, allowing precise arc control and improved efficiency compared to analogue systems.

Synergic Programs
Comes with a wide range of synergic programs for steel, stainless steel, aluminium, and flux-cored wires, ensuring the best results across applications.

Energy Efficient
Inverter design reduces energy demand, saving both time and power while supporting Lincoln Electric’s Green Initiative.

Compact and Modular Design
Lightweight and modular construction makes it easy to move, transport, and integrate into different work environments.

Digital Meters
Features digital voltage and amperage meters for parameter presetting and real-time monitoring during welding.

Memory Function
Equipped with 8 memory locations to save and quickly recall preferred welding settings.

Wire Feeder Compatibility
Pairs with the LF-45 wire feeder, offering precise control over wire speed, voltage trim, and advanced diagnostic functions.

User-Friendly Interface
Designed with clear, intuitive controls and a simple display to make operation easy, even for less experienced welders.

Warranty Backed
Protected by a 3-year parts and labour warranty, ensuring long-term reliability and peace of mind.

Overview

Specifications

Item Number / K14052-1
Primary Voltage (50-60Hz) / 415 V 3ph 50/60Hz 0.95/88%
Rated Output / 16.2 kVA @ 80%
Compliance / EN 60974-1 EN 60974-10
Weight (kg) / 50
Protection class / IP23
Fuse Size / 40A
Dimension(H X W X D) / 476 x 305 x 600
Current range / 20 – 400A
Your Questions Answered

FAQ's

What welding processes does the Speedtec 500-S support?

How powerful is the Speedtec 500-S?

Can I save my preferred settings?

What makes this machine different from conventional welders?

What are synergic programs and how do they help?

What wire feeder works with this welder?
