Plasma Torch CBR50-60-CC1

Brand: Strata
SKU: CBR50-60-CC1

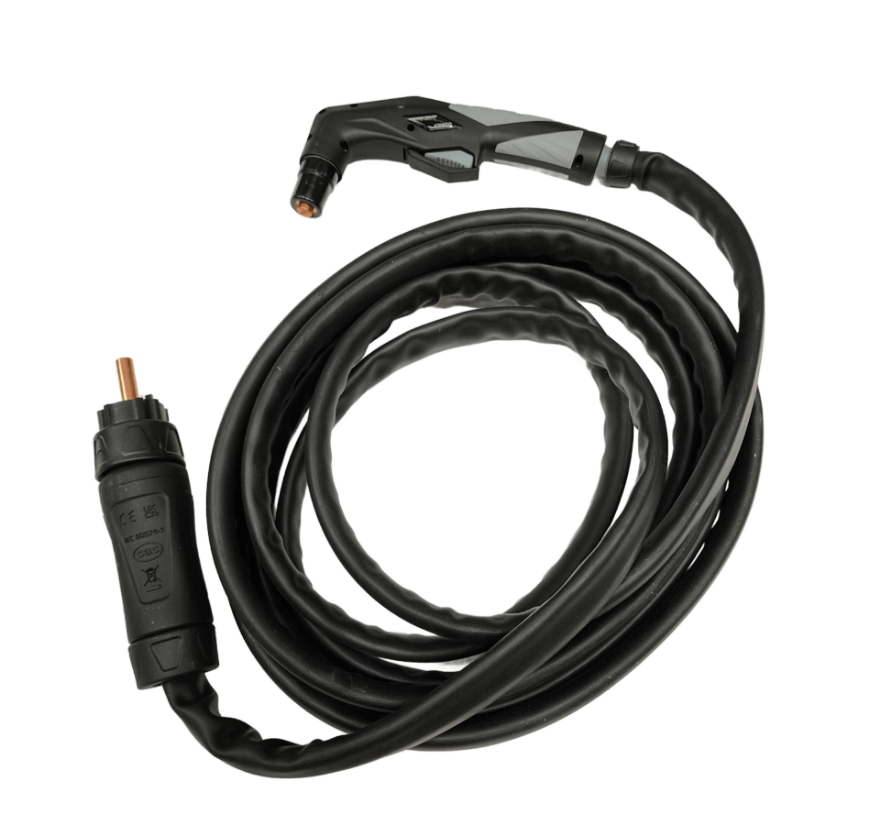

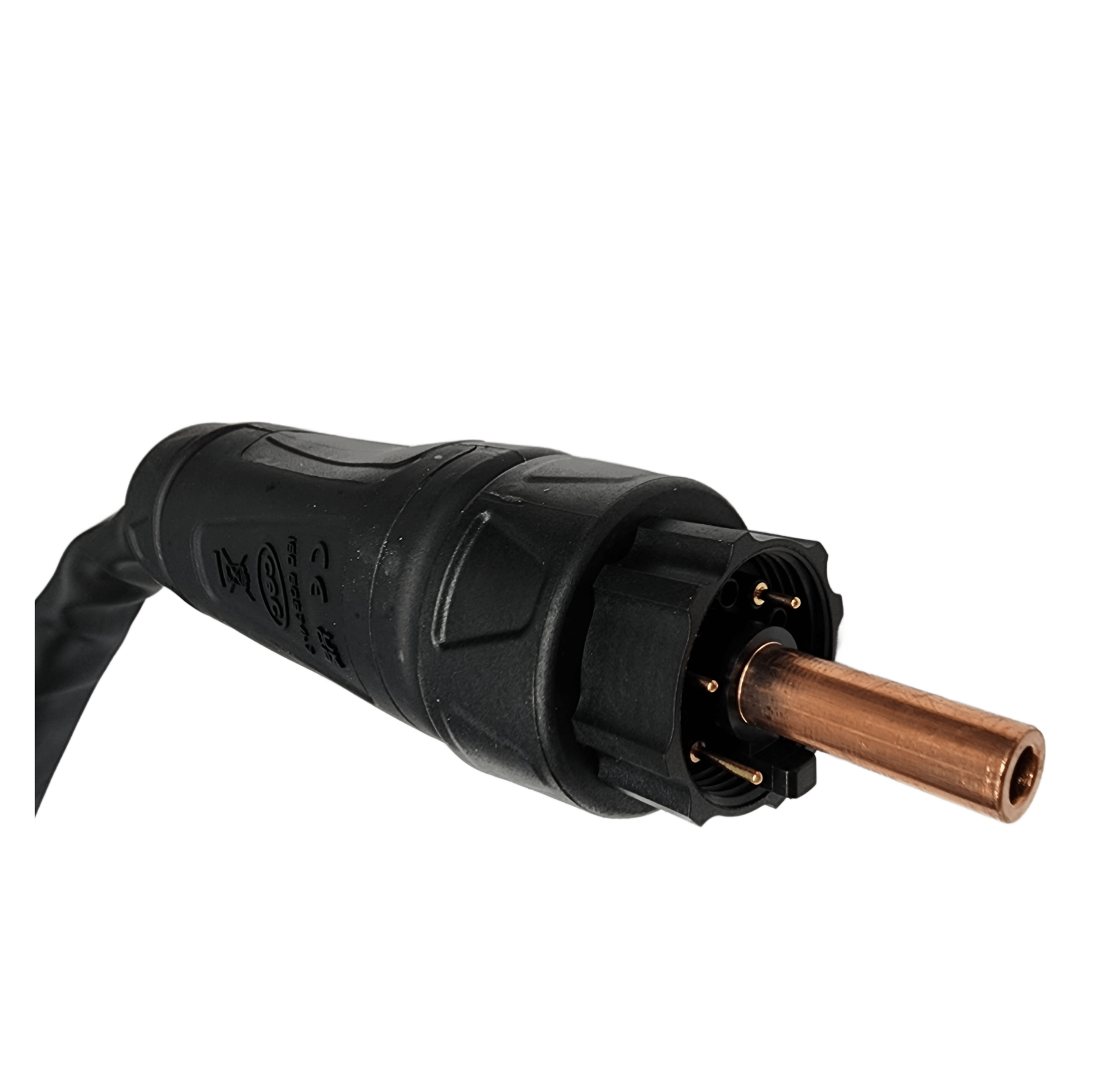

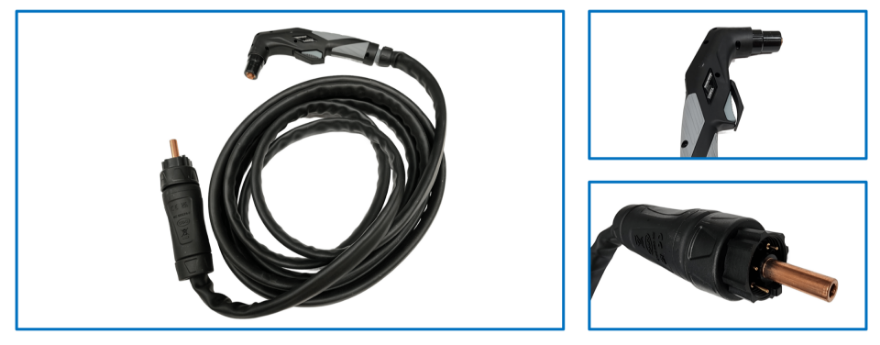

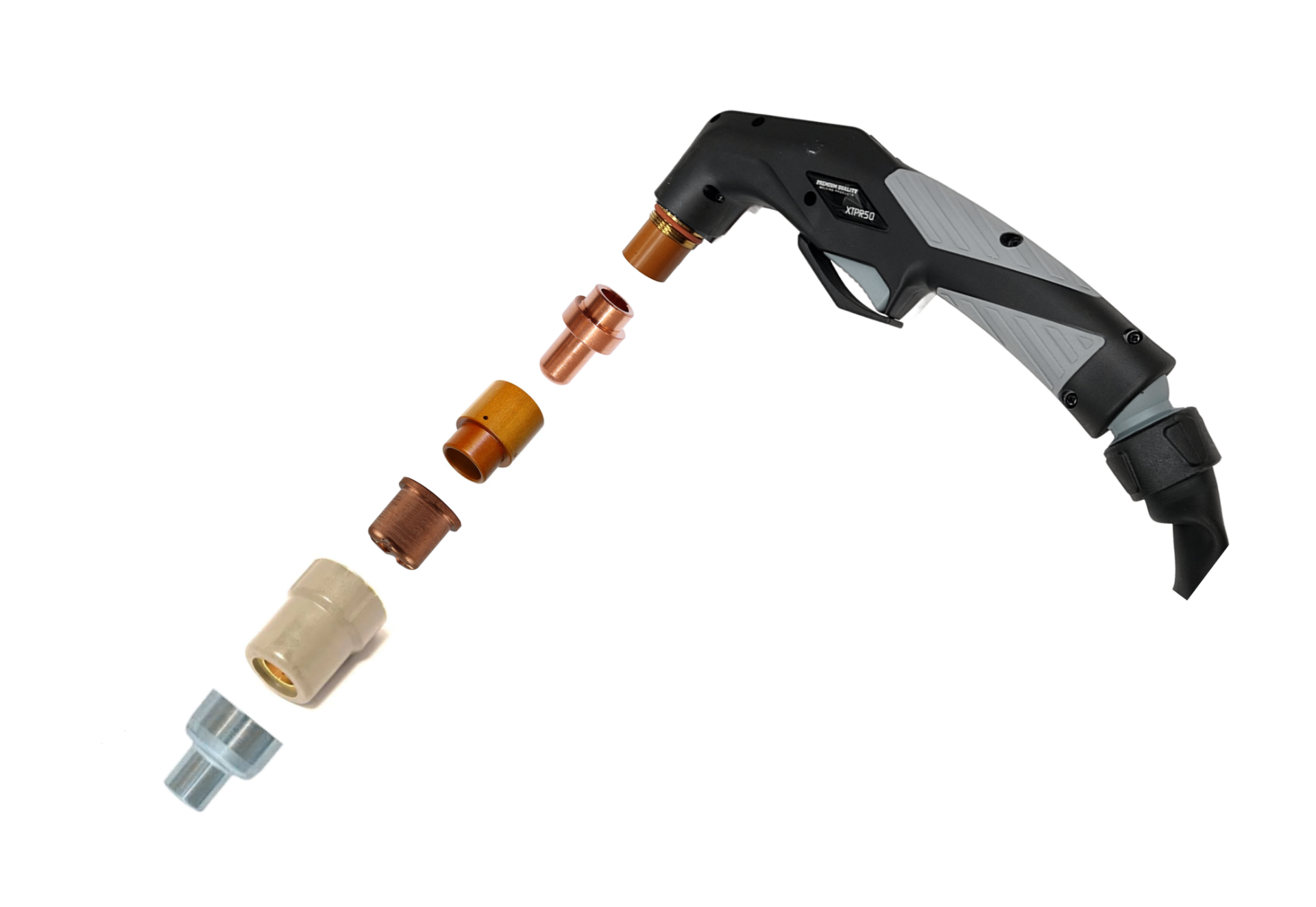

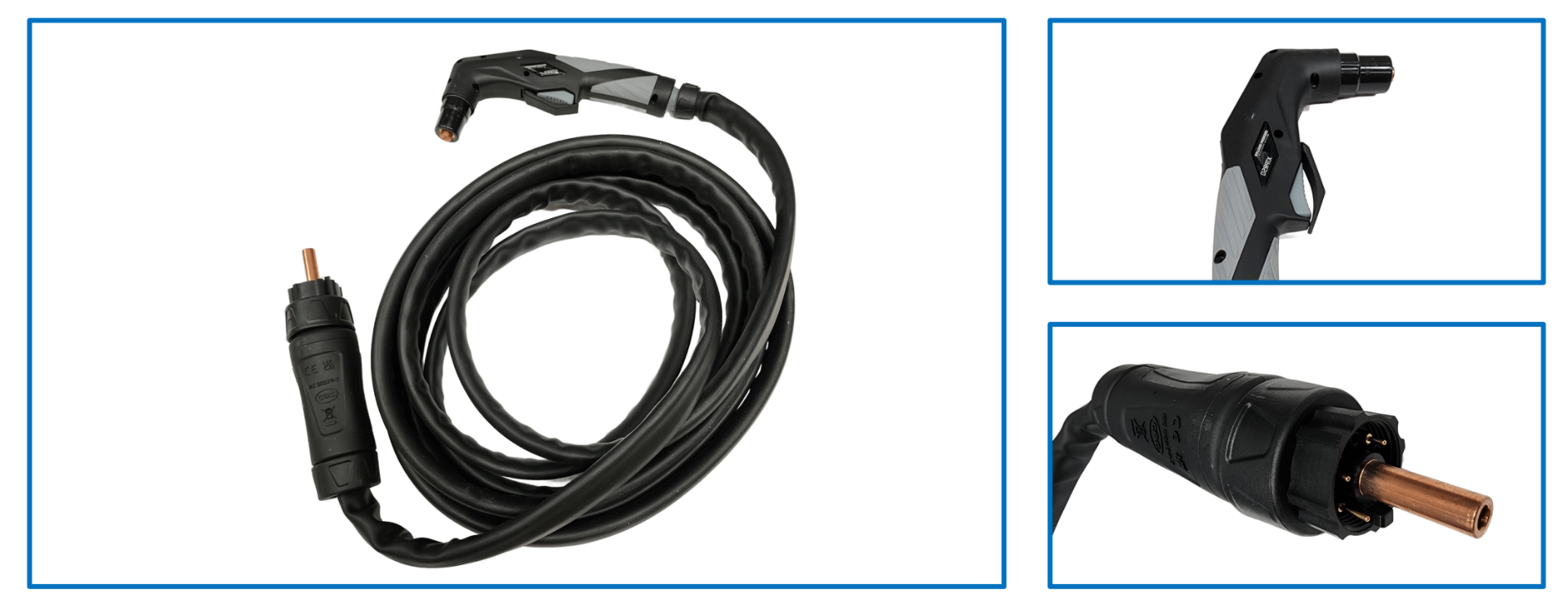

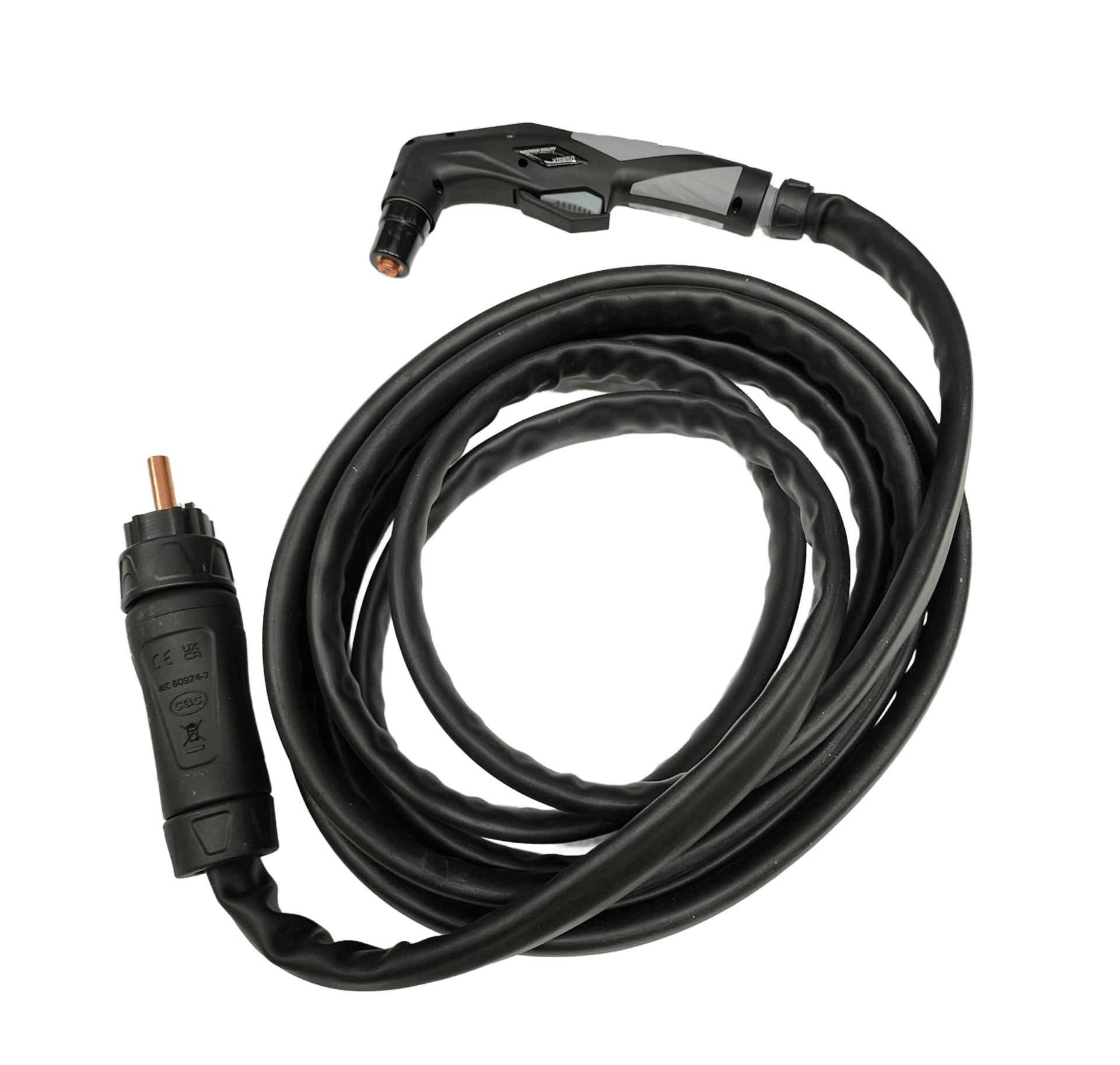

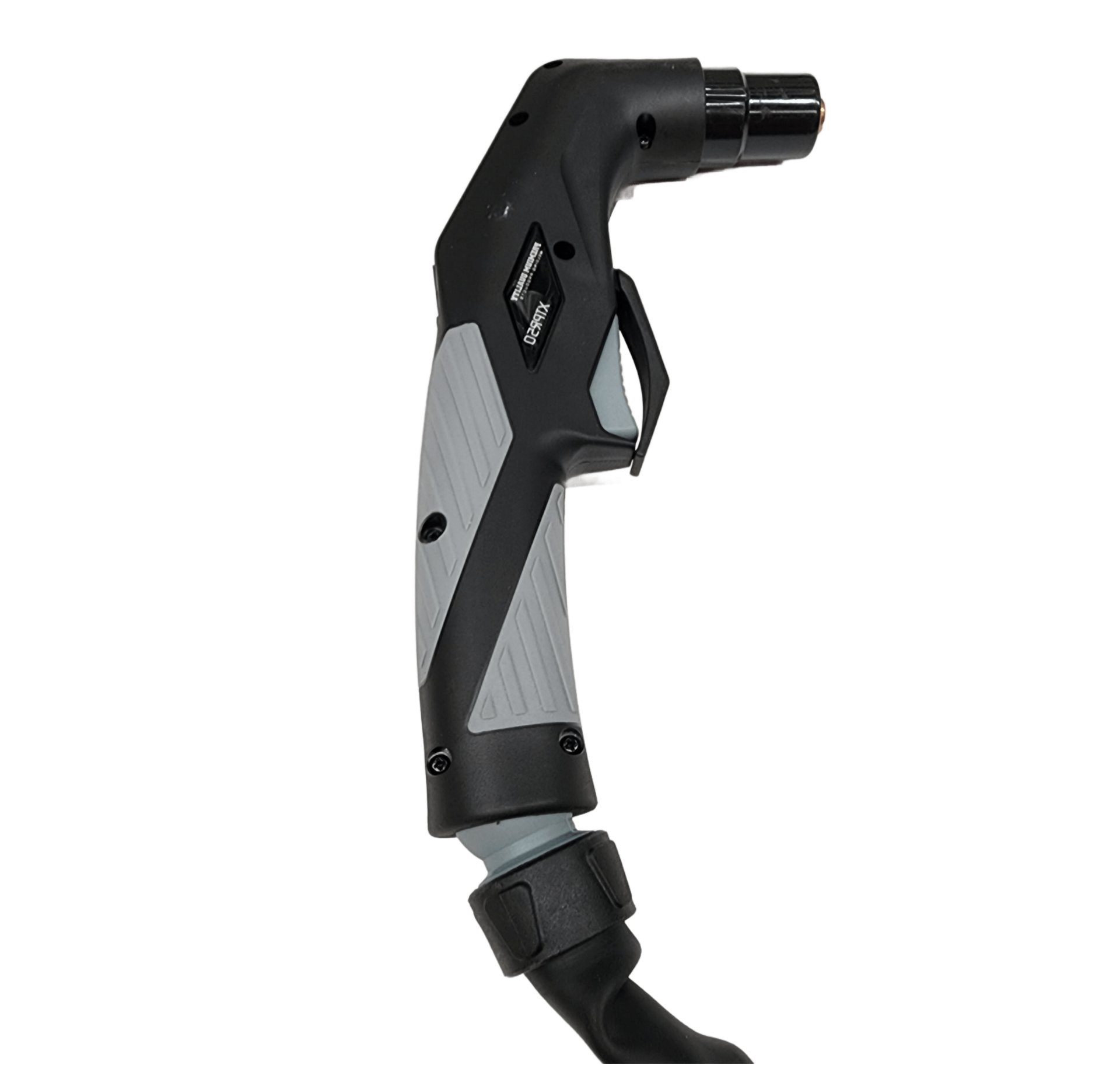

Plasma Torch 50A HF Start - Euro Connect (50Amp, 6metre)
$ 529 .00 excl GST
$ 608.35 Incl GST
Please give us a brief description of your intended application (we may have a better solution.)
Call Us- 0800 699 353

Product Overview

  • CUT-50 is a newly designed with the meter and adjustment attached to the front of the machine and the filter is located inside the machine. The new and improved model makes it more convenient and easier to use. New digitally controlled 15-50 amps Plasma Cutter Machine with advanced inverter technology and high cutting performance. Designed for portable repair work and small business project use, CUT-50 Plasma Cutter cuts a thickness of 1/2 in., and the max severance thickness is 1.0 in.

    Features:

    • Auto-voltage automatically adapts to 100-240V input power, plug adapters included.
    • Torch design provides a sure, comfortable grip made from heat and impact resistant material.
    • 50 Amp Digital Air Inverter Plasma Cutter handles cuts up to 1.0". Designed for both demanding industrial and construction work, or home and hobby use.
    • You can cut stainless steel, alloy steel, mild steel, copper aluminum, and other metal materials.
    • Less cleaning, maintenance, noxious gases, and less fire hazard, you have simply less overall work and a better, cleaner cut.

Specifications

Products specifications
TypeDC Air Plasma Cutter
Supply Power115V / 230V / 60Hz / 1-Phase
Rated Input CurrentAC-115V / 35.7A & AC-230V / 27.1A
Cutter Current RangeAC-115V at 15-35A & AC-230V at 15-50A
Nominal DC Open Circuit Voltage(OCV)260V
Output Voltage 104F(40c)50A / DC-100V
Duty Cycle60% at 50A & 100% at 38.7A
Efficiency0.85
Power Factor0.93
Output Terminal TypeDirect Wire
Cooling MethodFan Air Cooled
Gas SupplyClean Dry Oil-Free Air
Gas Pressure Range45 psi - 70 psi
Recommended Gas Inlet Flow4.5scfm @ 70 psi
Maximum Severance Cutting Thickness1.0 in.
Movement Speed12.5 in./min
Net Weight21.56 lbs.
Product Size17.91 x 7.87 x 13.86 in.
Package Weight30.36 lbs.
Shipping Size20.66 x 12.2 x 16.53 in.
