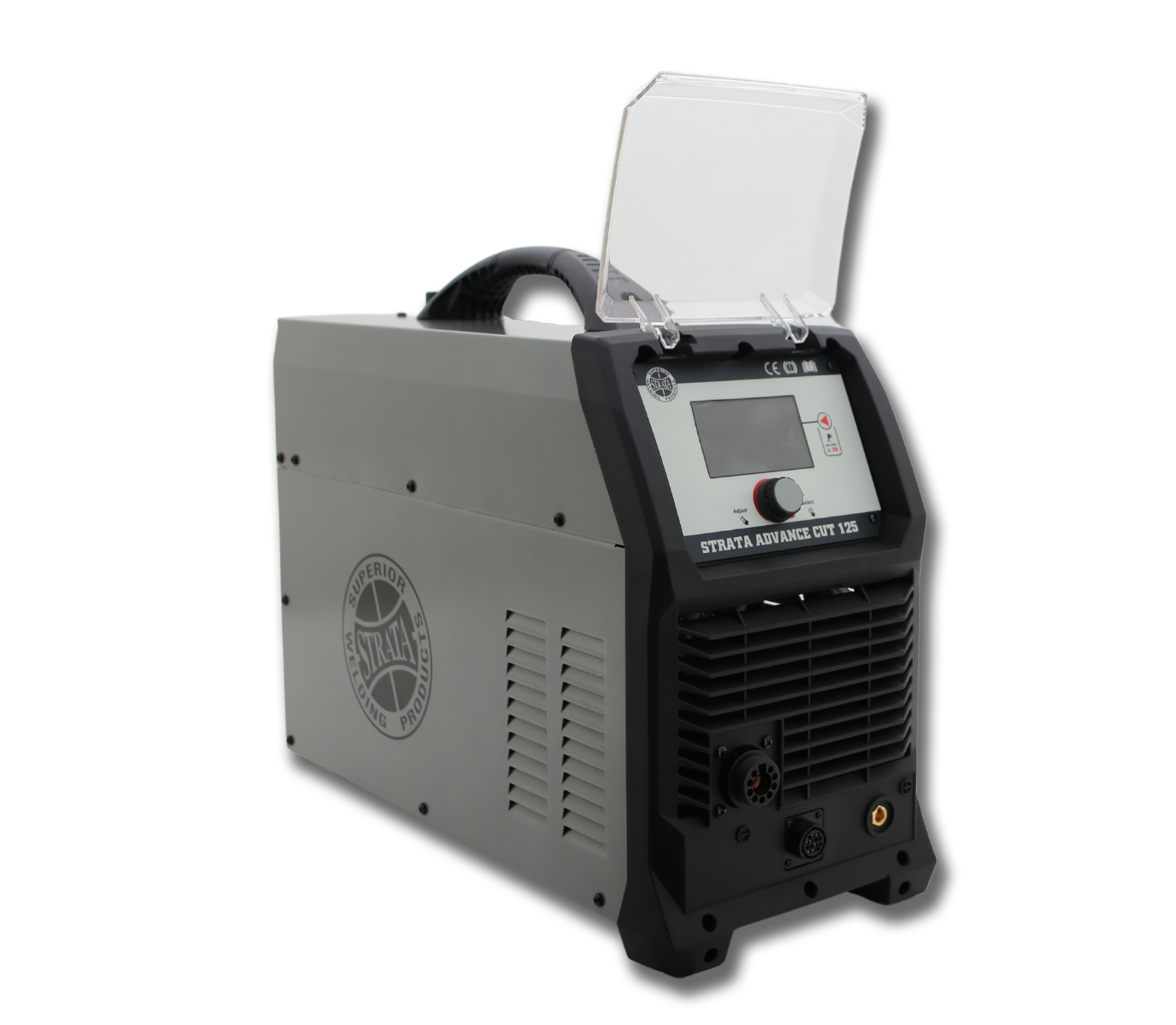

Strata AdvanceCut125 120A Inverter CNC Plasma Cutter

Brand: Strata
SKU: 22120
$ 4,595 .00
$ 5,284.25 Incl GST
Qualifies for Free Shipping
Call Us- 0800 699 353
Please give us a brief description of your intended application (we may have a better solution.)

Product Overview

Strata AdvanceCut125 120A Inverter CNC Plasma Cutter

The AdvanceCut125 offers superior functionality in the Plasma cutting sector. Utilising IGBT module
inverter technology and dual HF/Non HF arc starting systems, the user has the convenience of reliable high
performance cutting. The AdvanceCut125 is the easy choice for your heavy duty plasma cutting needs.

Key Features

- IGBT Module Inverter Technology for smooth & stable output, increased reliability, high duty cycle

- Dual HF/Non HF ARC starting system for high starting reliability and low EMF pollution

- Simple and clear display of all parameters on full colour LCD control panel

- Onboard air pressure sensor for accurate monitoring and control of compressed air supply pressure

- Designed for operating with automated CNC cutting equipment with interface connection

- Heavy Duty Italian TH-125 Plasma Torch equipped as standard for superior cutting  performance and consumable life

- Automatic Pilot Arc Control System providing increased cutting capability, especially for discontinuous cutting

- Intelligent Plasma Torch Protection System protects plasma torch from damage from incorrect air pressure, consumables not in place, excessive pilot arc use.

- Protected external air regulator with water trap/ filter provides easy adjustment & serviceability

- Intelligent Machine Protection System with temperature, voltage and current sensors for increased reliability & safety

- Machine automatically shuts down if power supply phase loss occurs, to prevent damage.

- IP23 - protected against moisture, salt spray and corrosion

- Extreme stress tested to 550V in production for rugged reliability.

- Safe & Robust Euro Torch Connection to Machine

- Damage resistant industrial casing with front panel protection

- Set & test air pressure without the need to trigger the torch with air flow manual activation switch

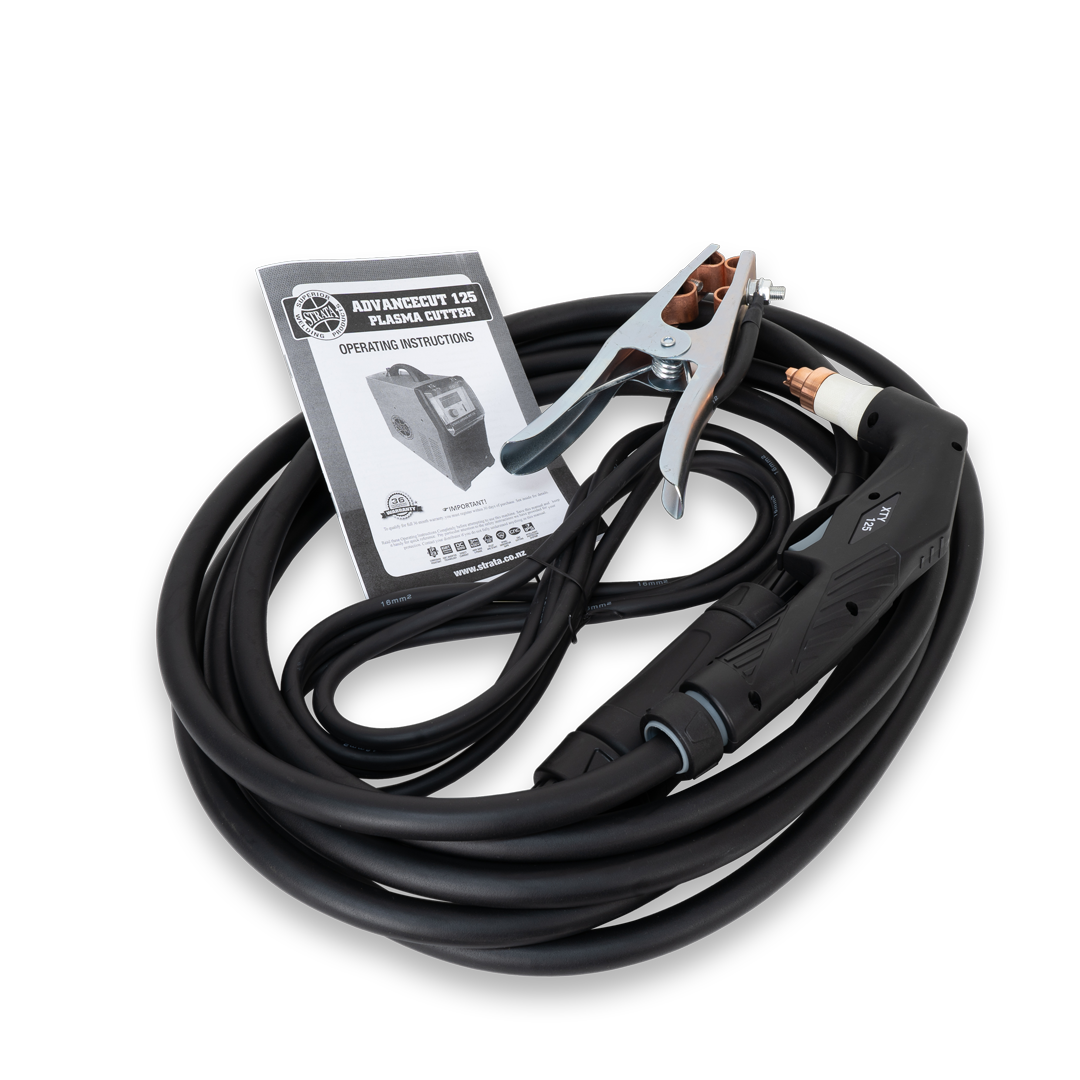

- Includes: Hand Cutting Torch, Earth Lead and Air Regulator/Watertrap

Specifications

Products specifications
Dimensions660 x 240 x 445
Weight33kg
Input Power Supply400V AC 3 Phase 32A 50/60Hz
Input Power Tolerance+/-10%
Maximum Input Current34A
Generator Capacity25KVA
Duty Cycle100%@100A, 60%@120A
Plasma Severance Cut Capacity Carbon Steel35mm
Insulation ClassIP23
StandardsEN60974-1:2012
Warranty36 months* with product registration
Compressed Air Requirement295 l/min 6 Bar
Plasma Production Cut Capacity Carbon Steel50mm
Plasma Production Cut Capacity Aluminium45mm
