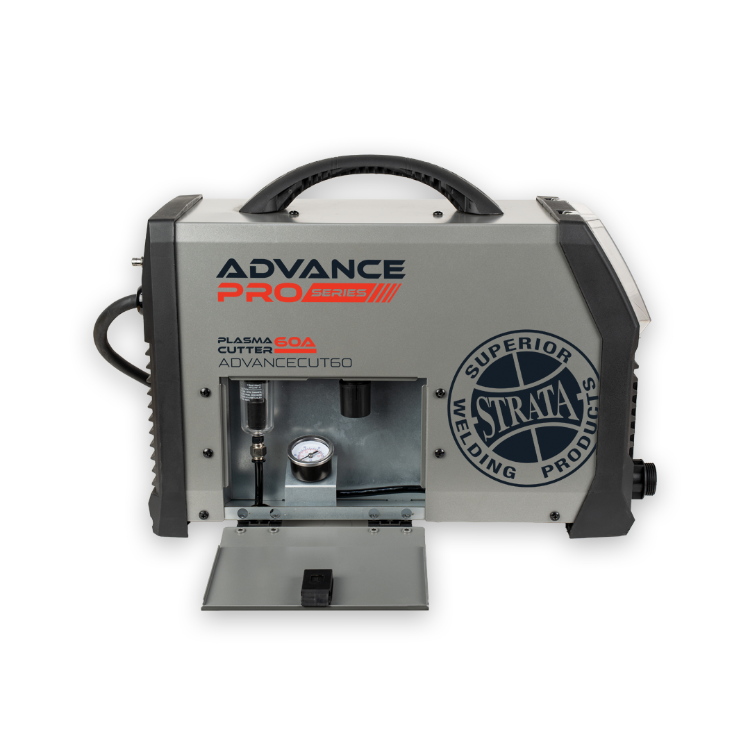

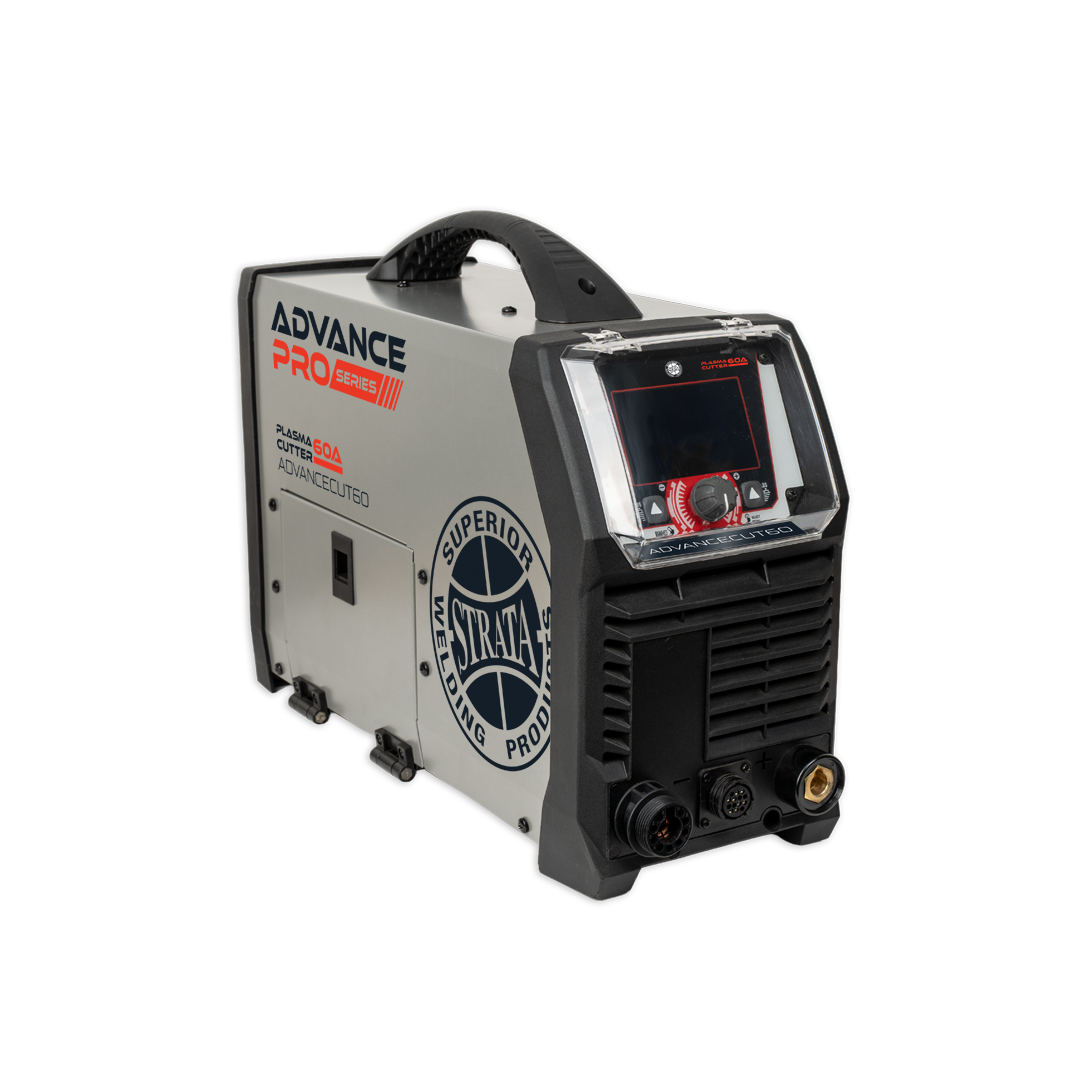

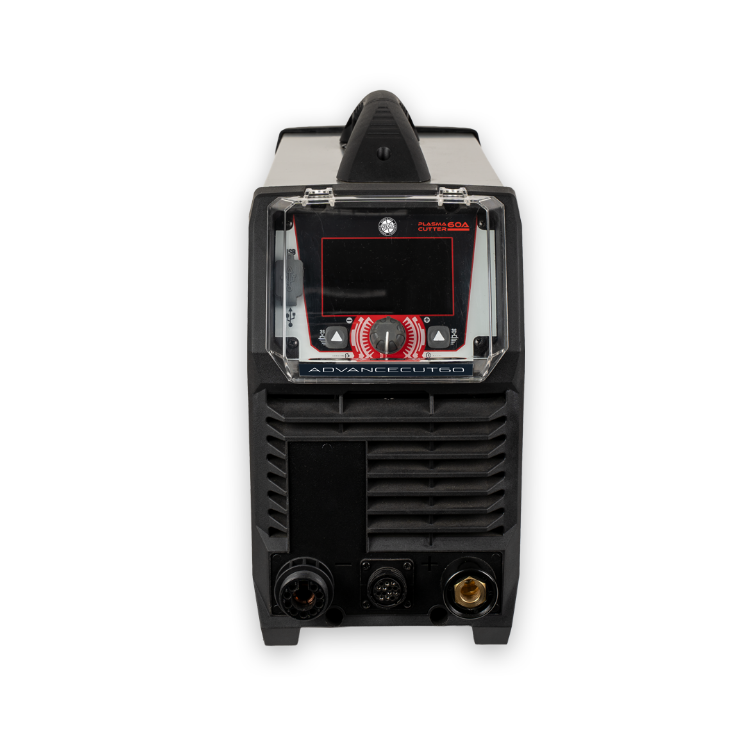

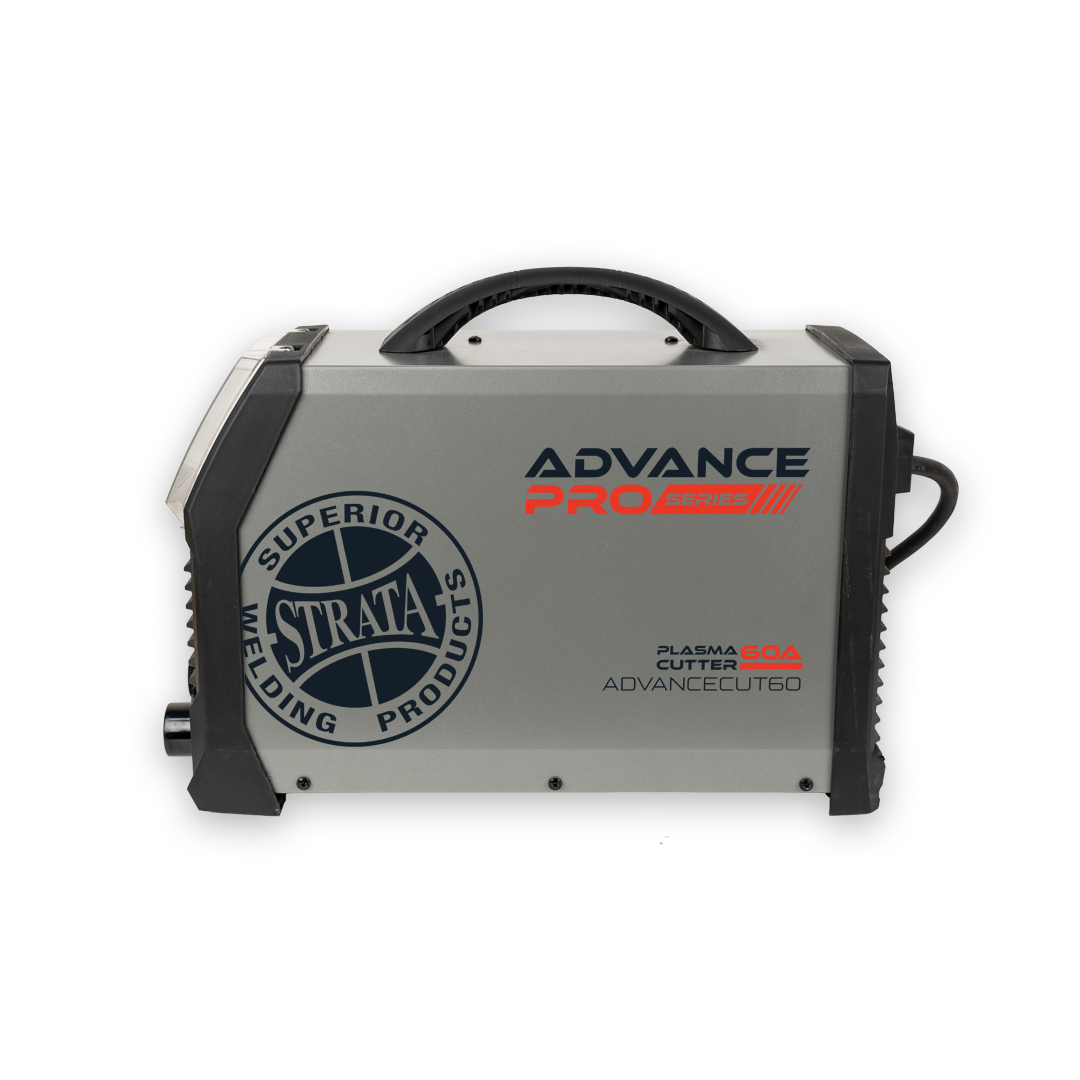

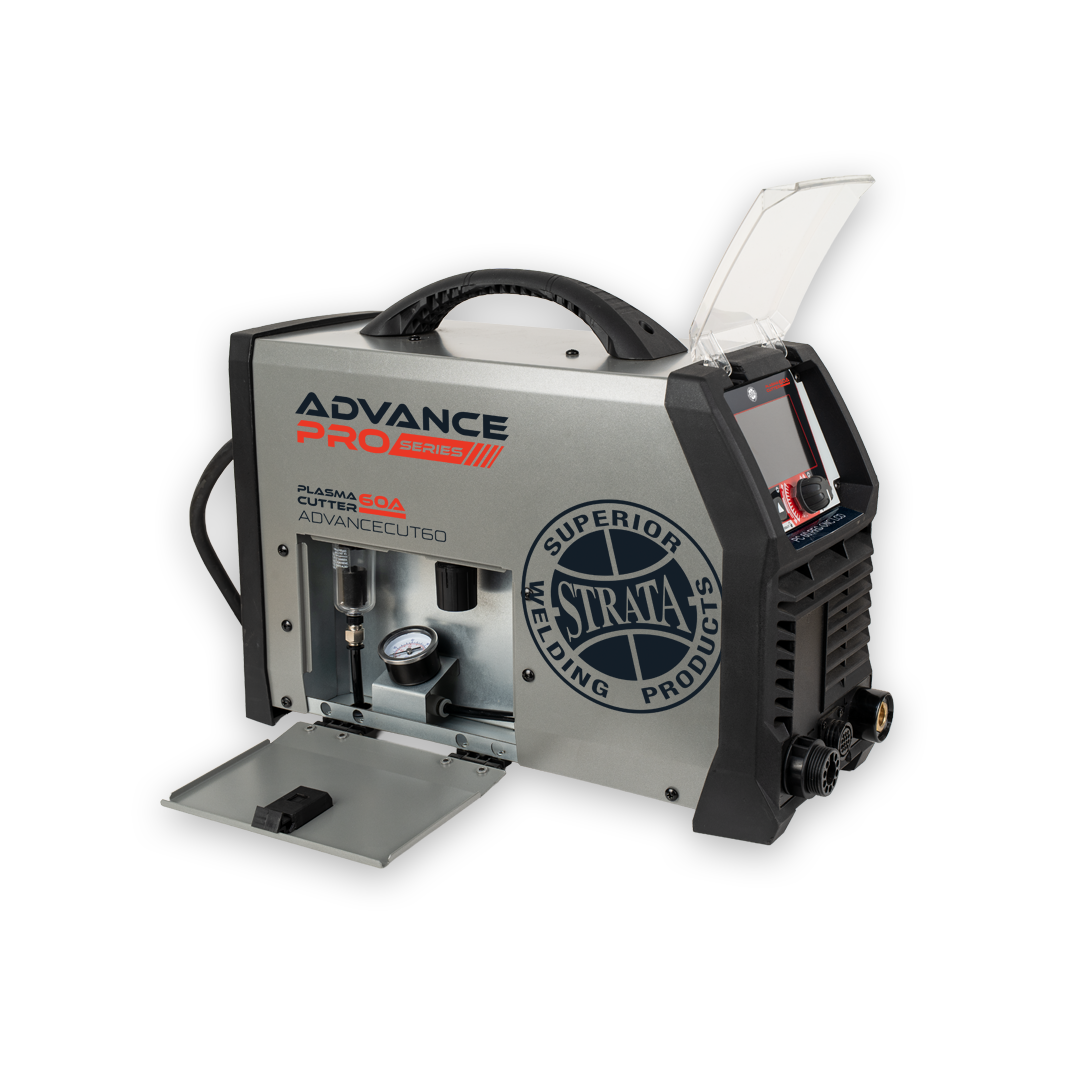

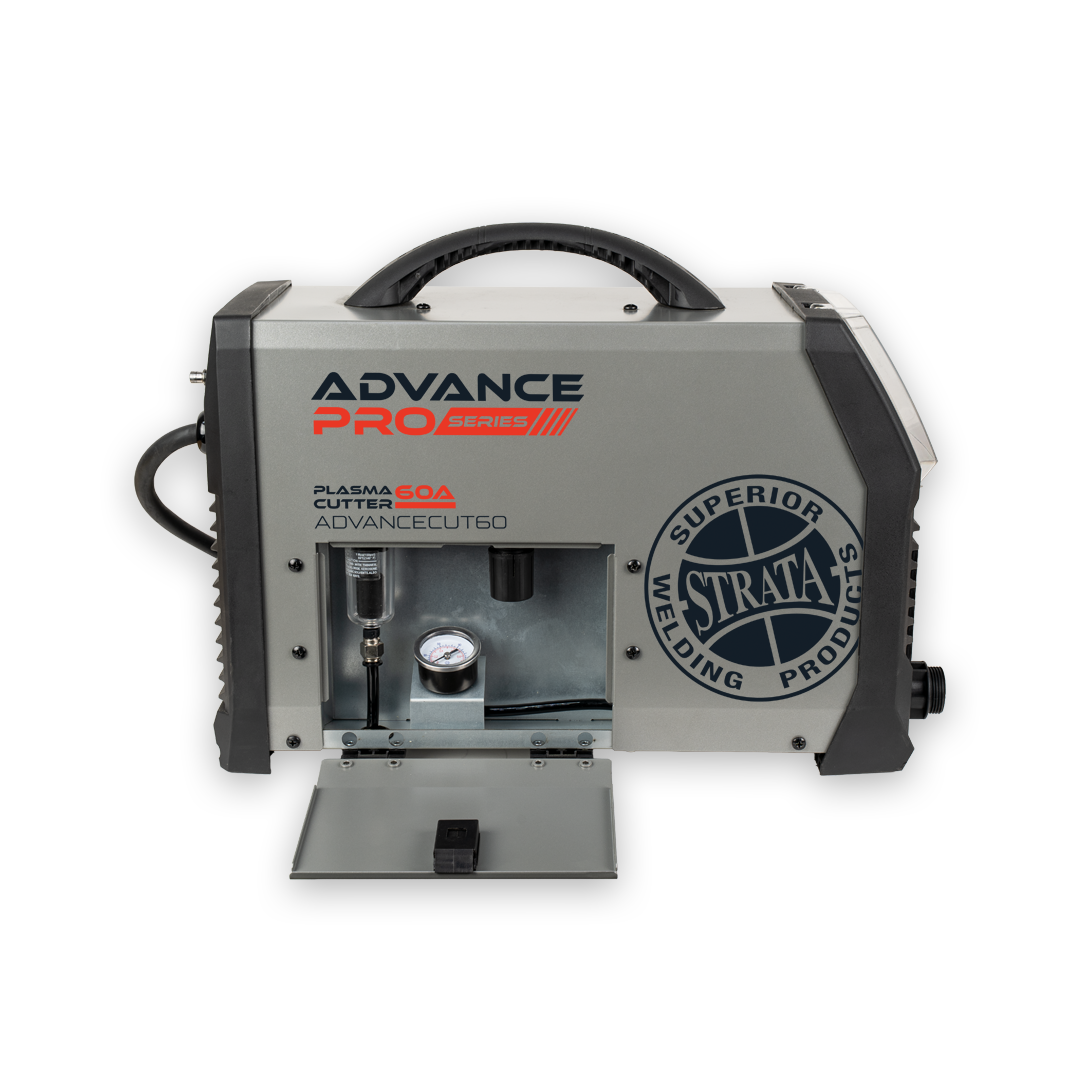

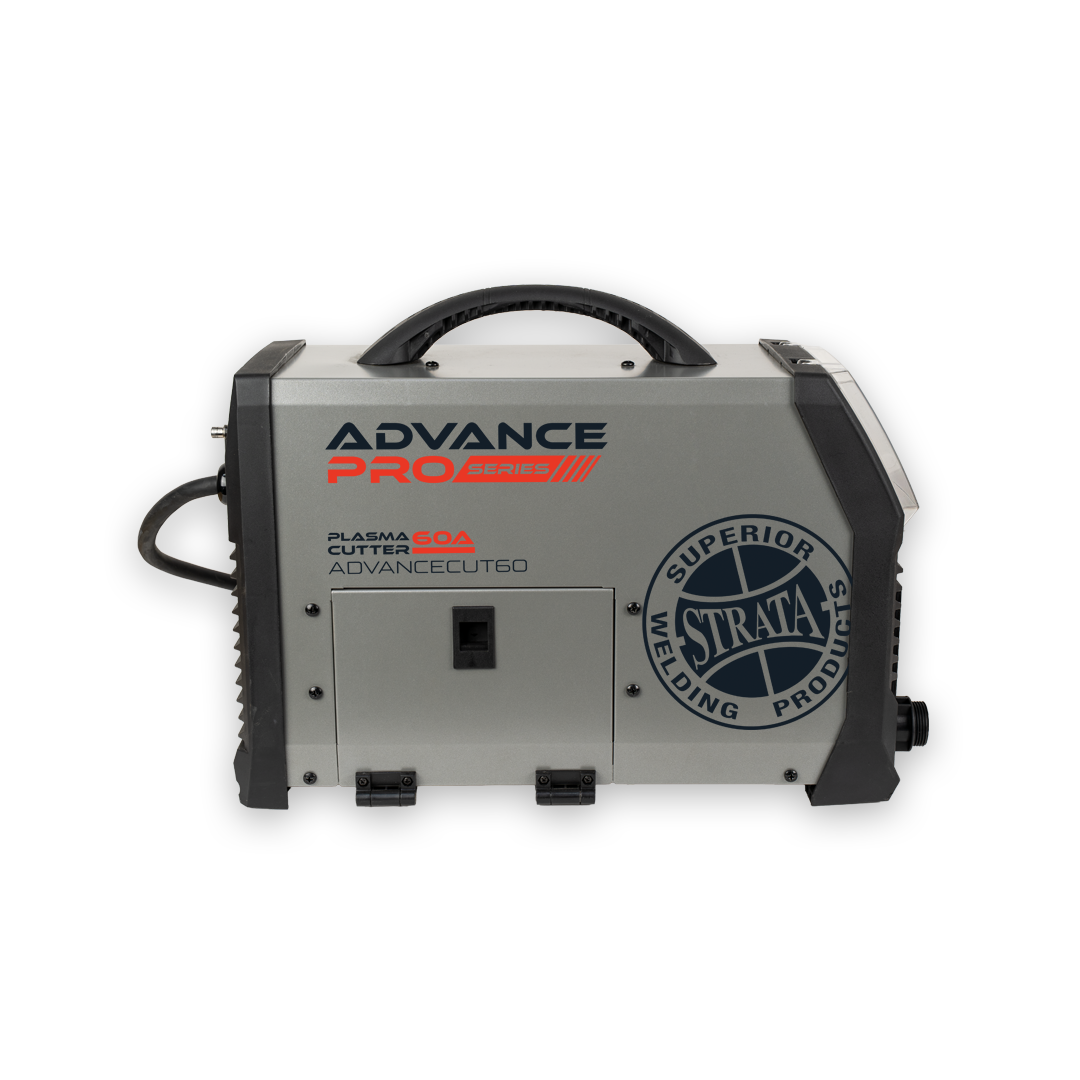

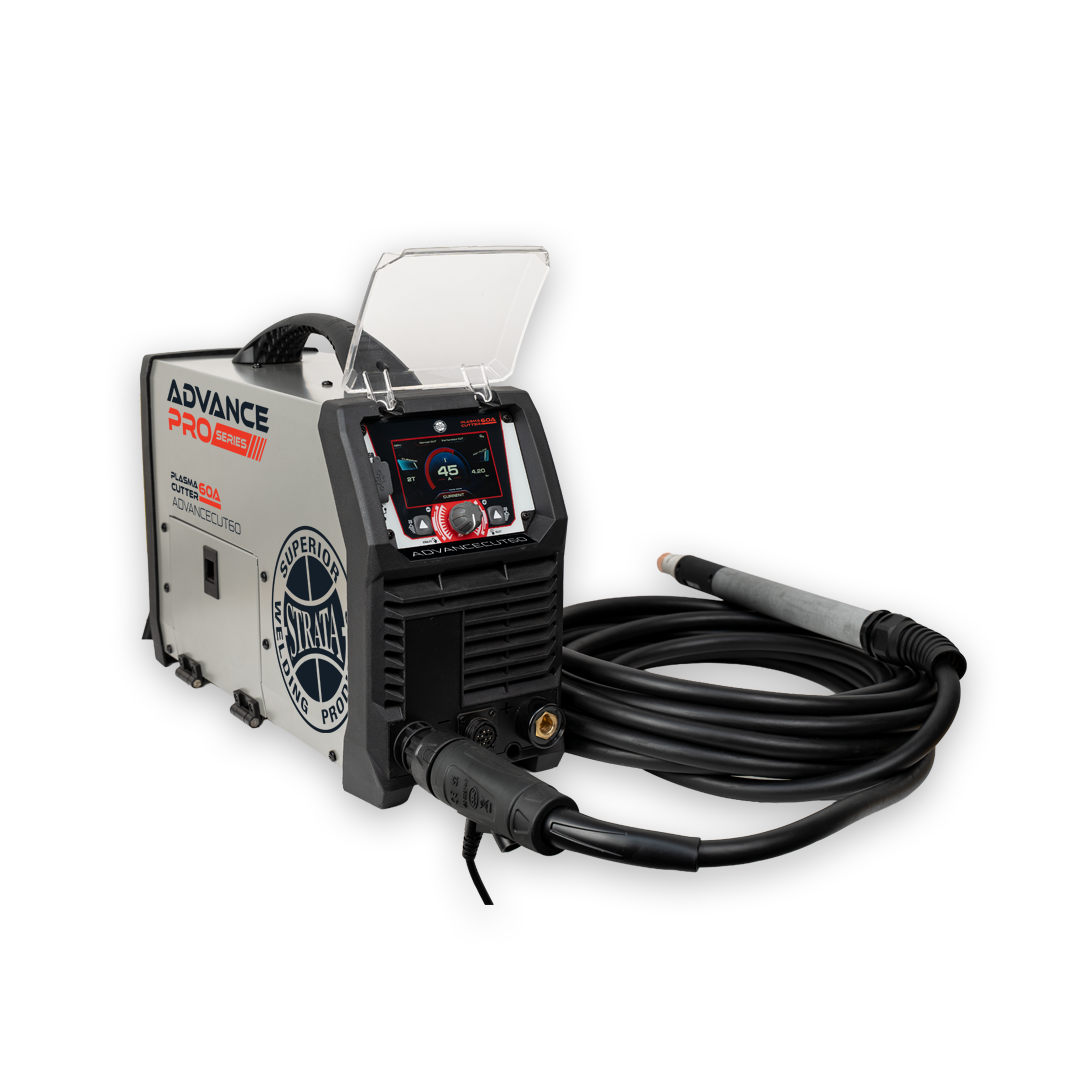

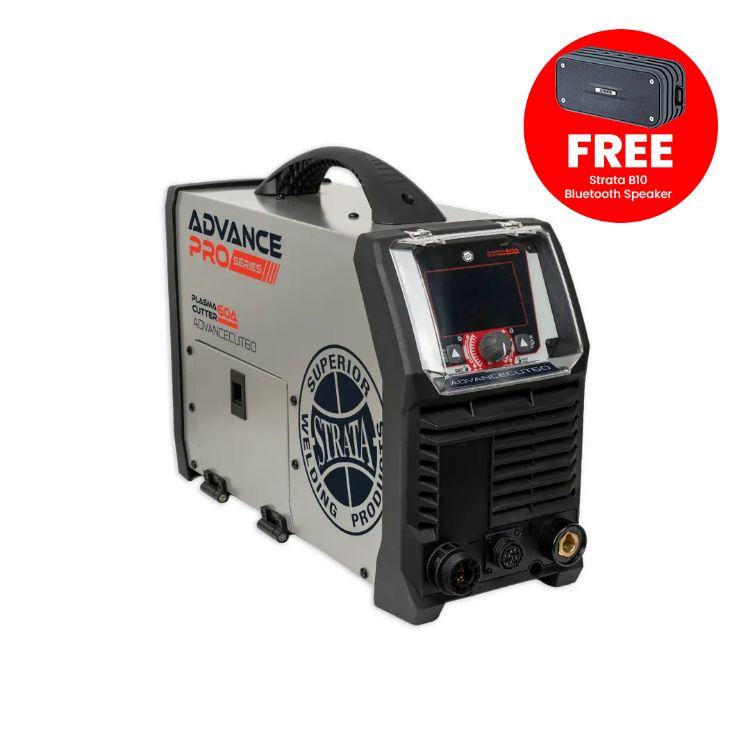

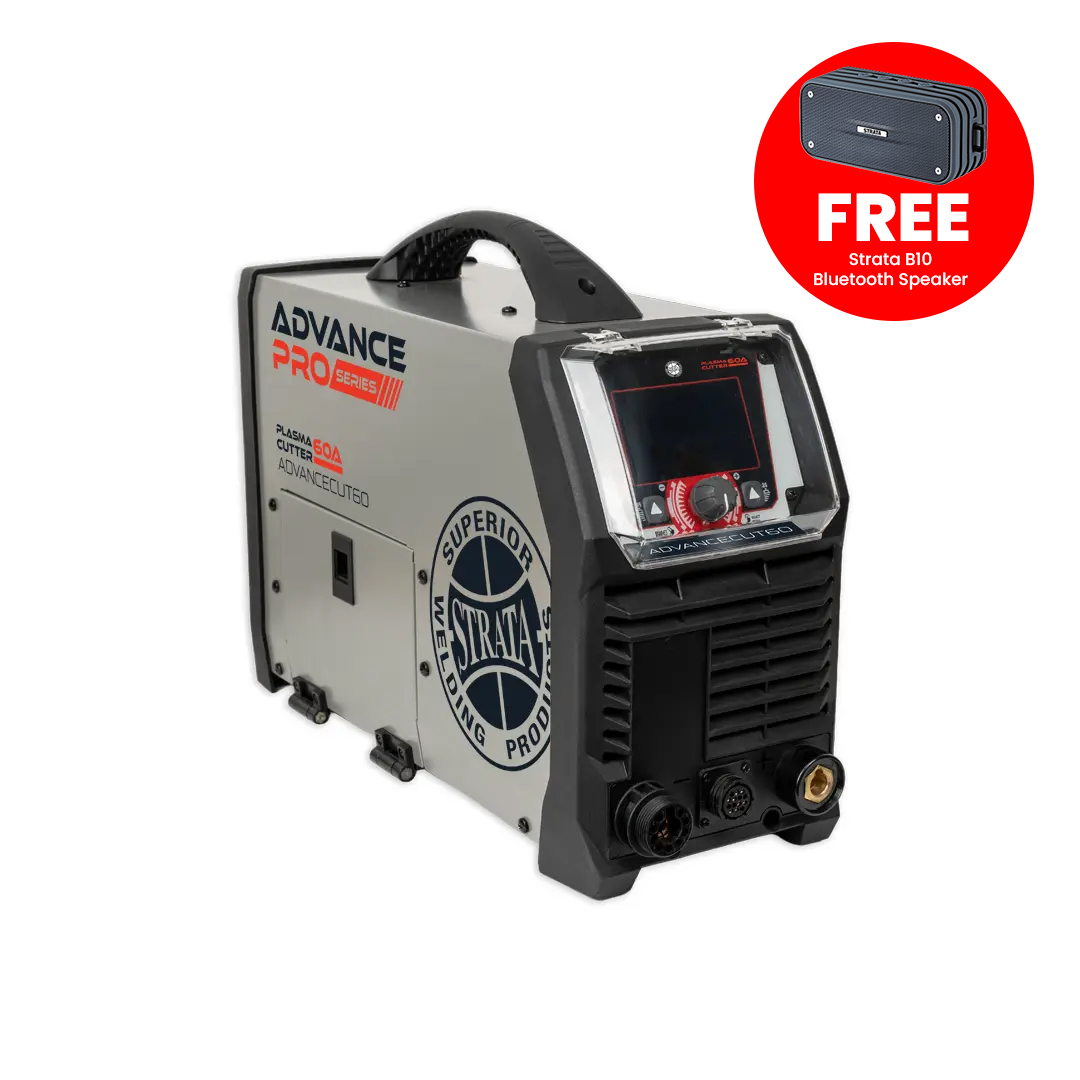

Strata AdvanceCut60 60A PFC Inverter Plasma Cutter

Strata AdvanceCut60 60A 230V Industrial Plasma Cutter

Engineered for serious workshop performance, the Strata AdvanceCut60 delivers professional-grade plasma cutting power in a compact and generator-friendly design. Whether you are cutting structural steel, fabricating components, or integrating into a CNC system, this 60A inverter plasma cutter offers precision, durability and intelligent protection.

Powerful 60A Output with 20mm Production Cut
With adjustable plasma current from 20–60A, the AdvanceCut60 provides:

• 20mm production cut on carbon steel
• 25mm severance cut capacity
• 15mm production cut on aluminium
• This makes it ideal for fabrication workshops, maintenance departments and light industrial applications.

230V Single Phase – Standard 15A Plug
Designed to operate from a standard 230V 15A power supply, the AdvanceCut60 eliminates the need for three-phase power. It is workshop-ready and suitable for job-site environments where power access may be limited.

Active PFC & Generator Friendly Design
Featuring Active Power Factor Correction (PFC), the machine improves energy efficiency and increases duty cycle performance.
It is generator compatible with a recommended 9.5kVA continuous output, making it ideal for on-site and remote applications.

Intelligent Pilot Arc System
The automatic pilot arc system allows for easy cutting on:

• Painted surfaces
• Rusted materials
• Mesh and perforated steel
• Perforated Cut Mode improves performance on discontinuous materials and increases cutting efficiency.

CNC Interface Ready
The AdvanceCut60 includes a CNC interface connection with built-in voltage divider options, allowing seamless integration into CNC cutting tables. Ideal for fabrication shops looking to automate plasma cutting processes.

Industrial Protection & Reliability
Built for harsh workshop environments, this plasma cutter features:

• IP23 industrial casing
• Intelligent machine protection system
• Temperature, voltage and current sensors
• Non-HF arc start for improved reliability
• Smart cooling fan system

Each unit is production stress-tested at 440V for rugged durability.

Air Requirements

• 185 l/min at 6 bar
• 1/4" Male Aro Type inlet

Clean, dry air is essential for optimal plasma performance.

Warranty
Commercial and domestic users benefit from an industry-leading 48-month warranty for added confidence.
