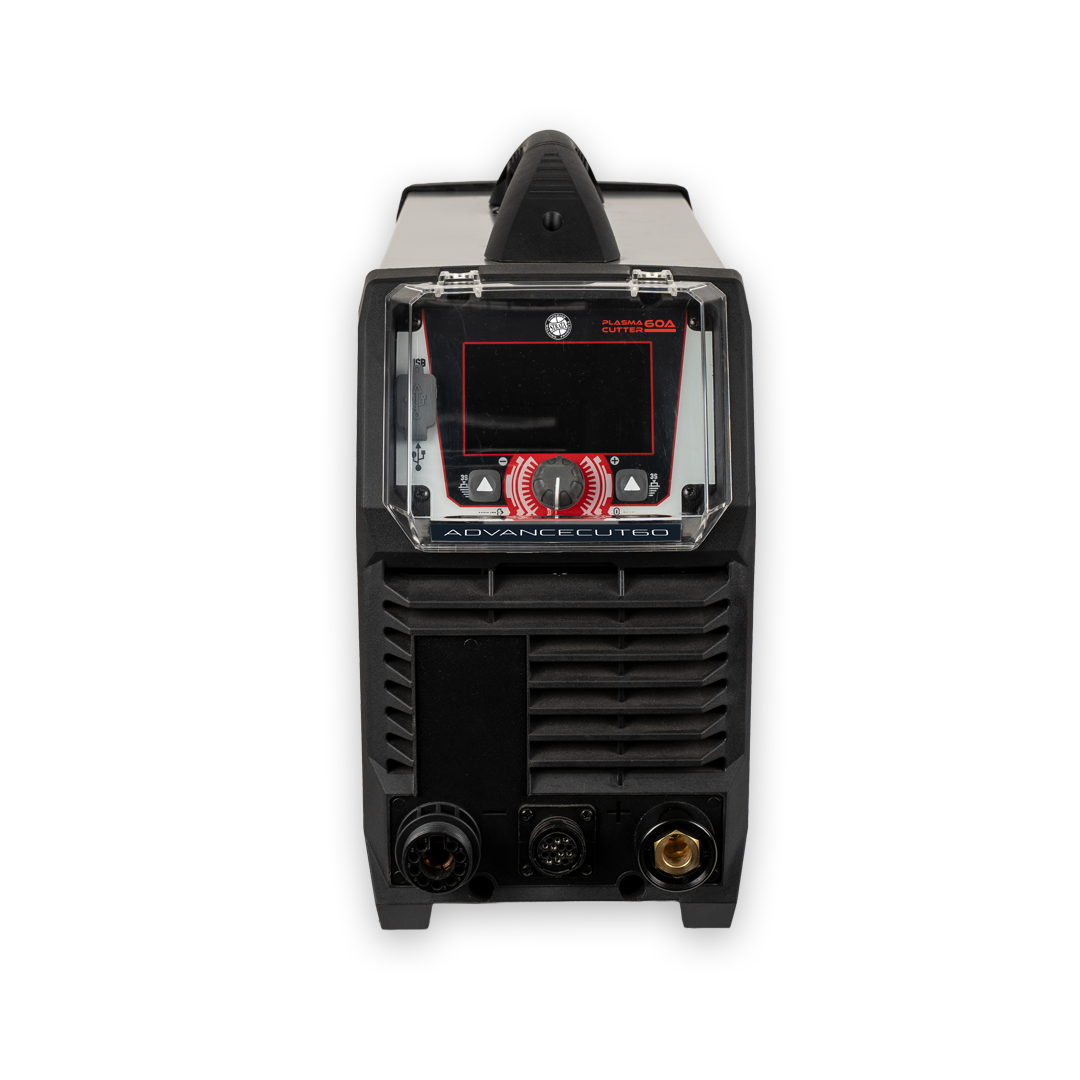

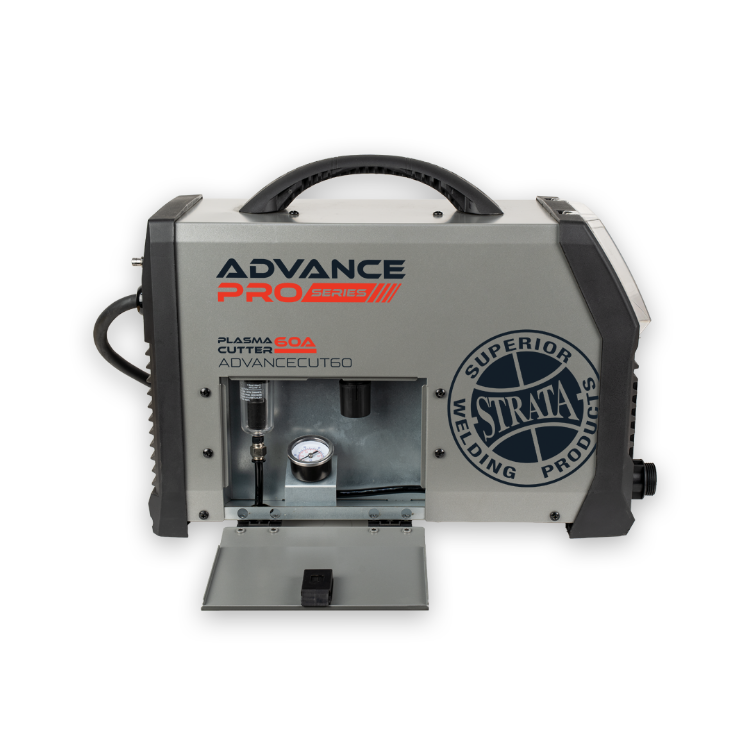

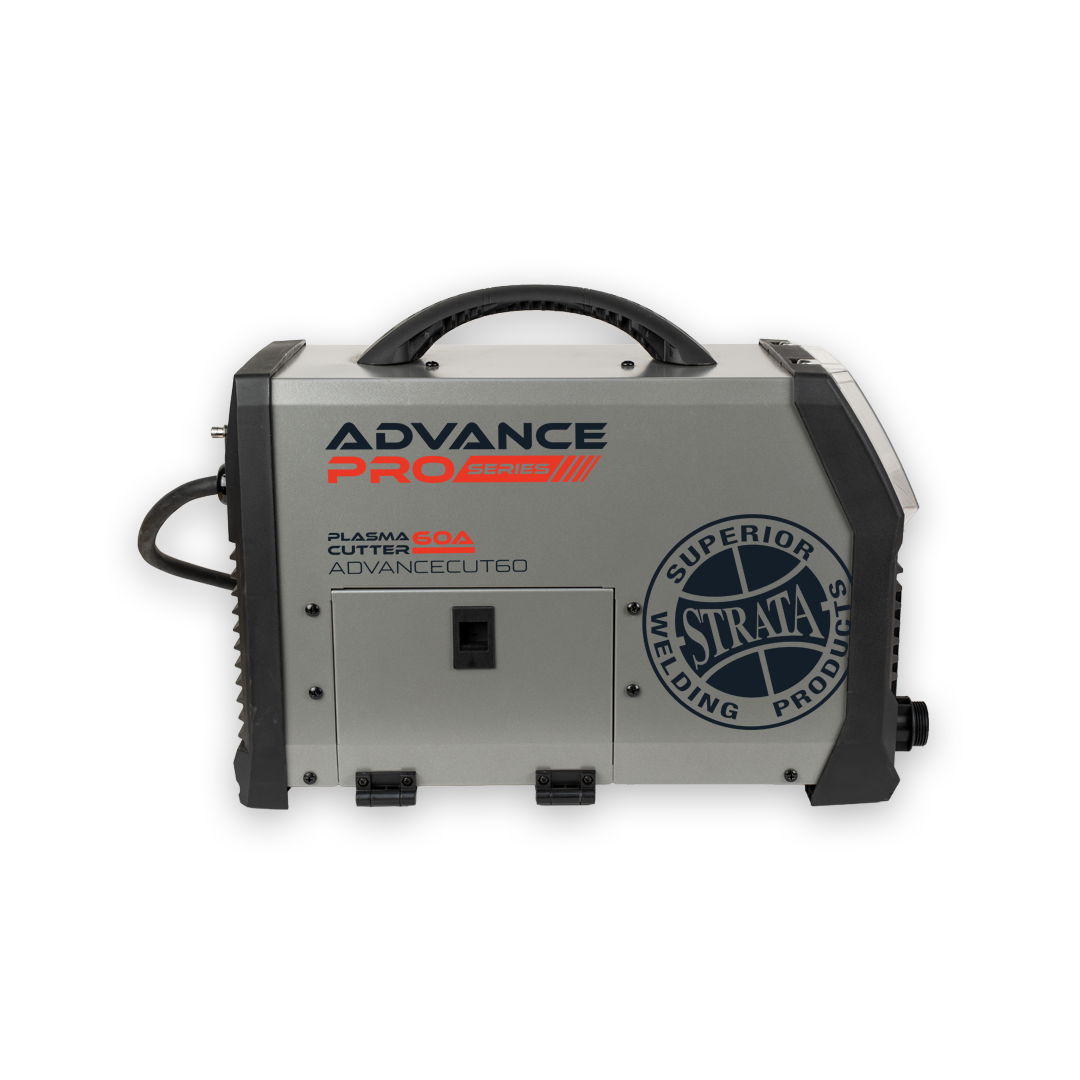

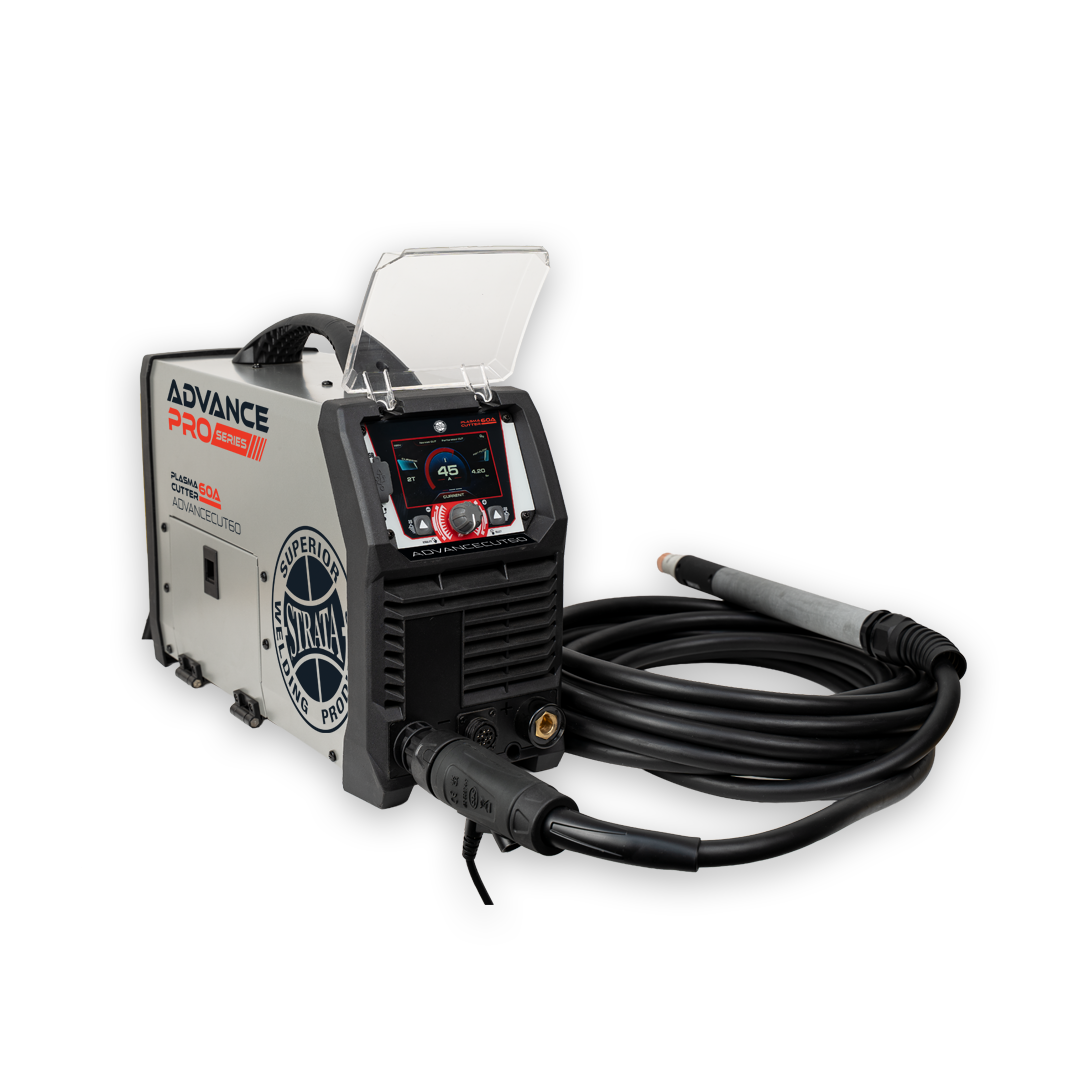

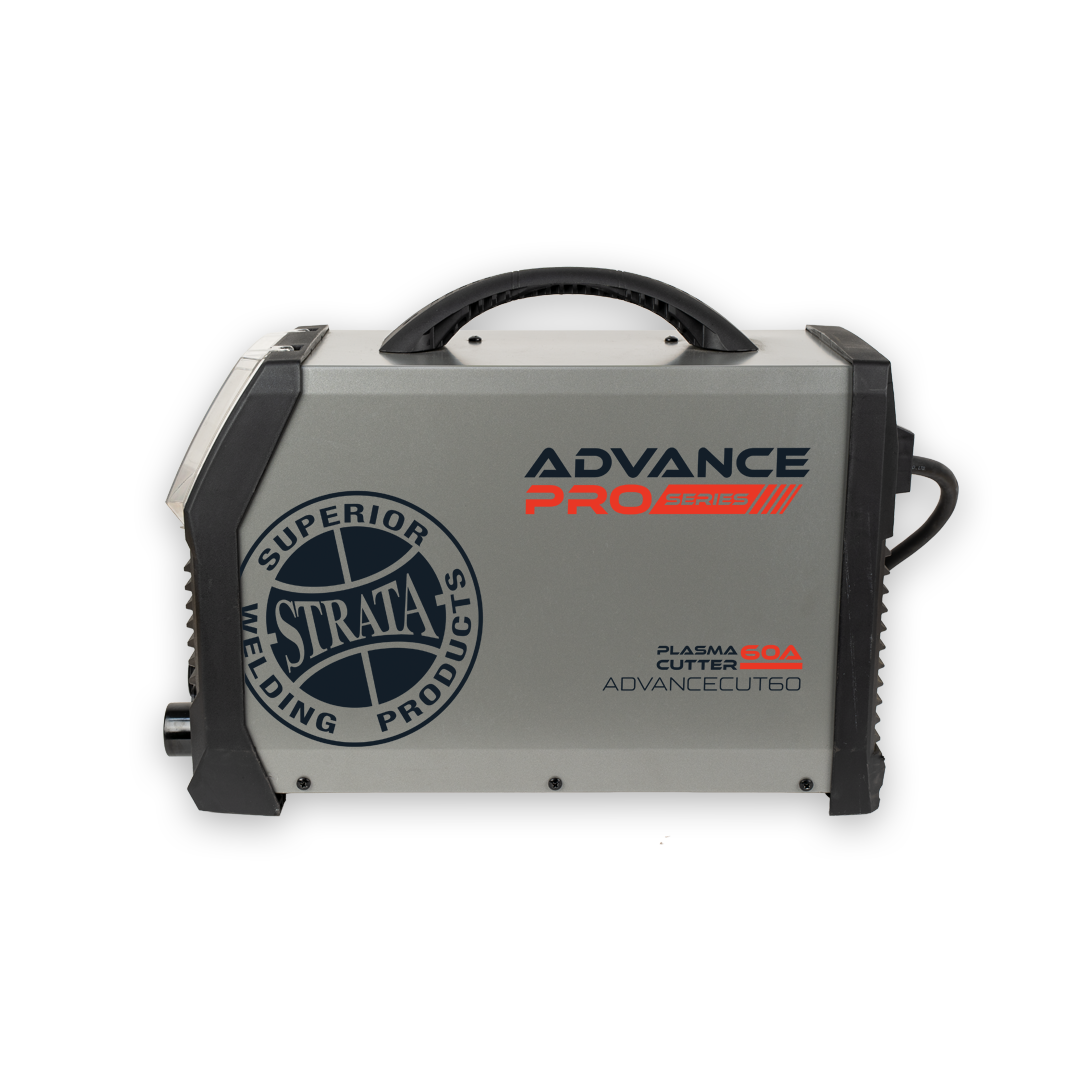

Strata AdvanceCUT60 CNC Pack

Strata AdvanceCut60 CNC Pack

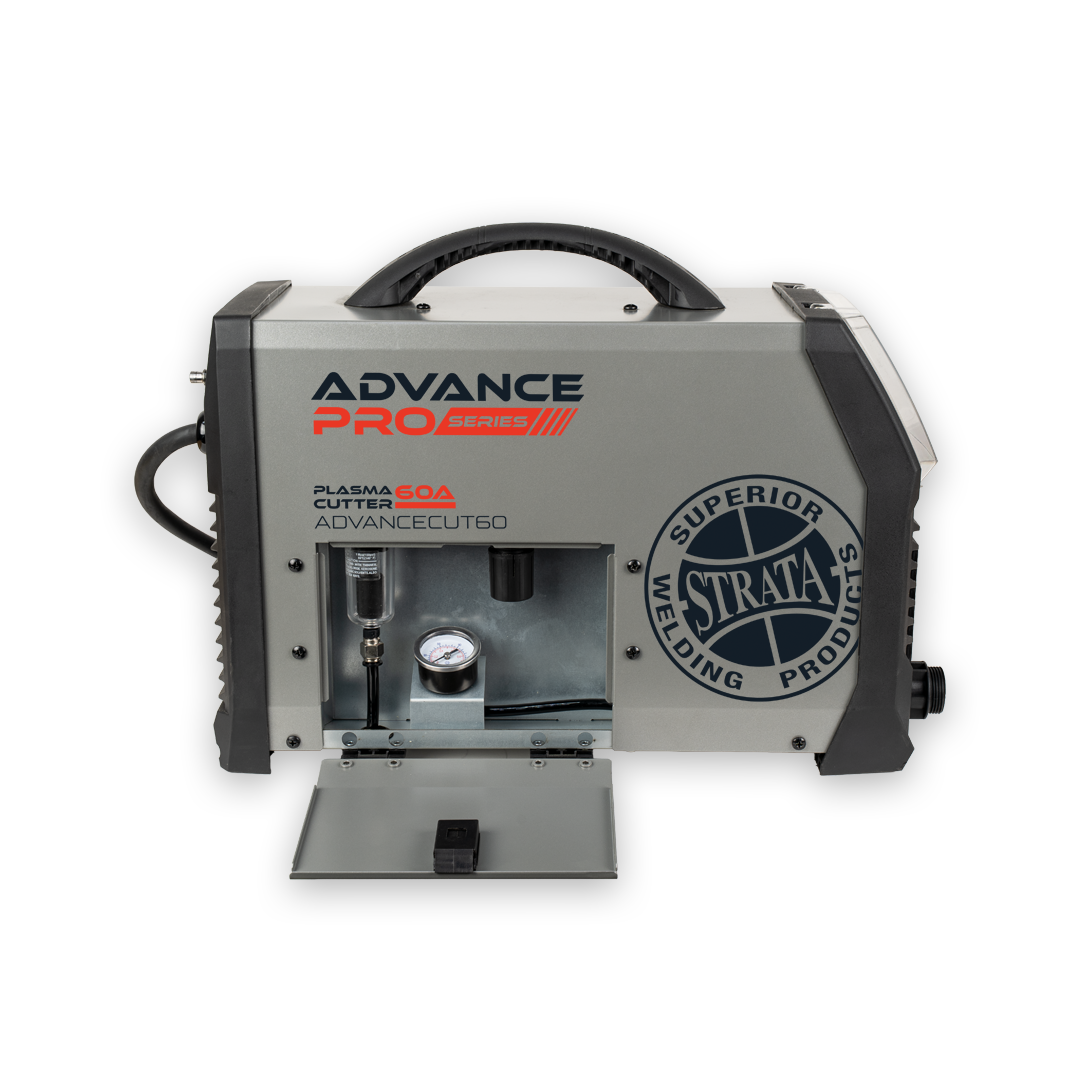

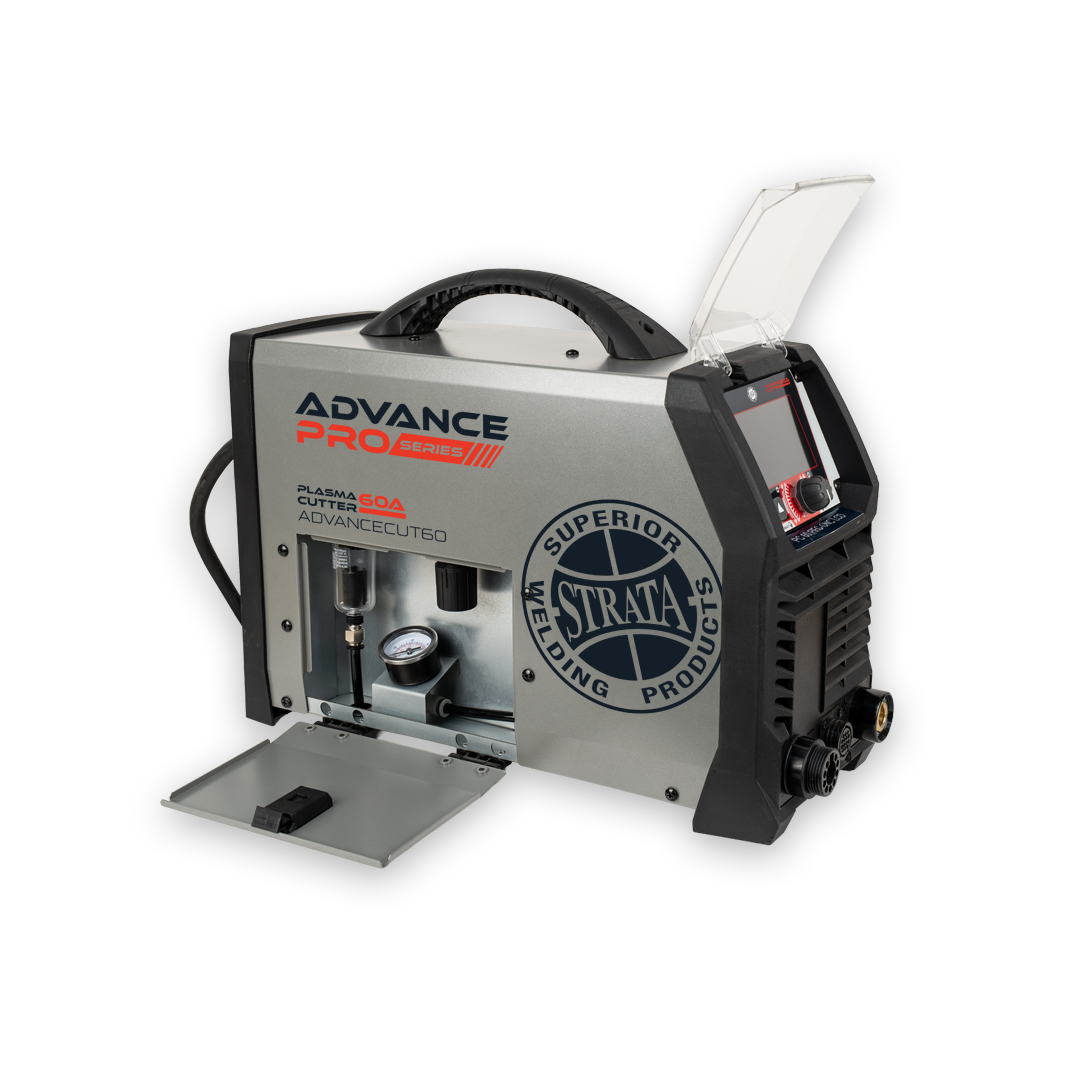

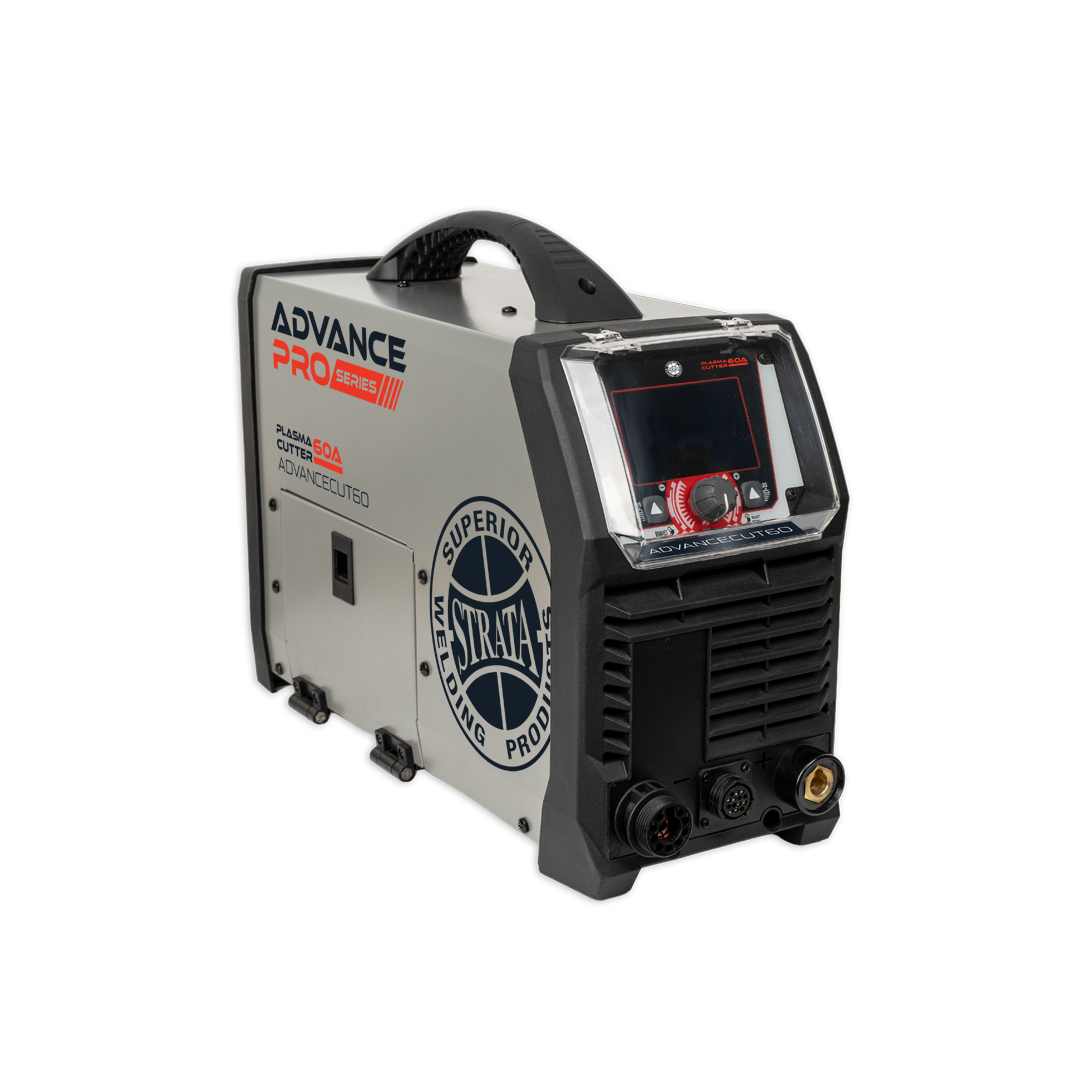

The Strata AdvanceCut60 CNC Pack is a versatile 60A plasma cutting package designed for metal fabrication workshops, engineering professionals and CNC cutting applications. Built around the powerful 230V AdvanceCut60 industrial plasma cutter, this package includes the standard hand torch, an SPT70M 6m machine torch, an AC2085 desiccant dryer and an AC10HS 10m air hose. Combining precision CNC cutting with manual cutting flexibility, it provides a practical solution for professional metalworking.

Key Features

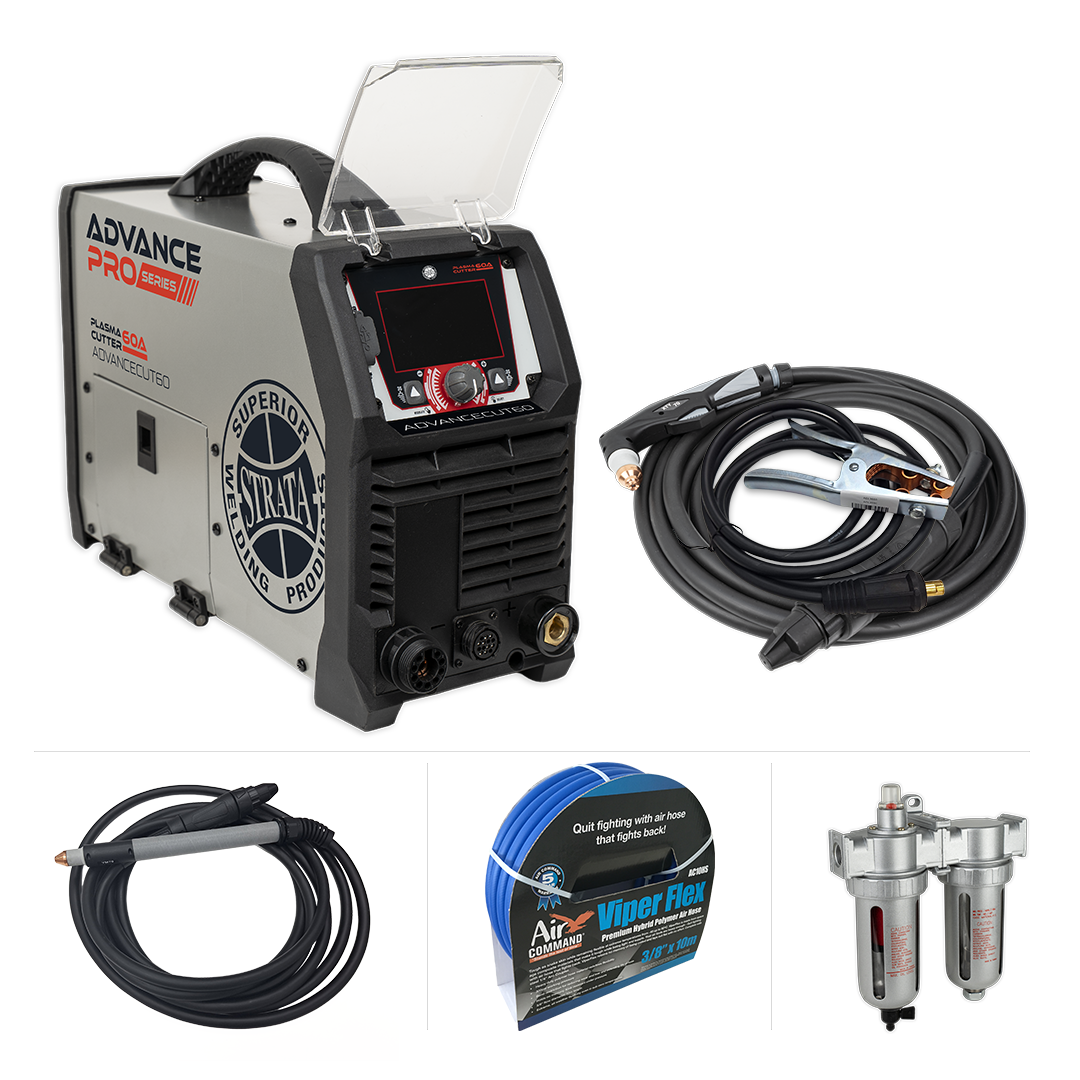

Complete CNC Plasma Cutting Package
The pack combines the AdvanceCut60 plasma cutter, SPT70M 6m machine torch, AC2085 desiccant dryer and AC10HS 10m air hose, providing essential equipment for efficient CNC plasma cutting operations.

Powerful 60A Output with 20mm Production Cut
With adjustable plasma current from 20–60A, the AdvanceCut60 provides:

• 20mm production cut on carbon steel
• 25mm severance cut capacity
• 15mm production cut on aluminium
• This makes it ideal for fabrication workshops, maintenance departments and light industrial applications.

230V Single Phase – Standard 15A Plug
Designed to operate from a standard 230V 15A power supply, the AdvanceCut60 eliminates the need for three-phase power. It is workshop-ready and suitable for job-site environments where power access may be limited.

Active PFC & Generator Friendly Design
Featuring Active Power Factor Correction (PFC), the machine improves energy efficiency and increases duty cycle performance.
It is generator compatible with a recommended 9.5kVA continuous output, making it ideal for on-site and remote applications.

Intelligent Pilot Arc System
The automatic pilot arc system allows for easy cutting on:

• Painted surfaces
• Rusted materials
• Mesh and perforated steel
• Perforated Cut Mode improves performance on discontinuous materials and increases cutting efficiency.

CNC Interface Ready
The AdvanceCut60 includes a CNC interface connection with built-in voltage divider options, allowing seamless integration into CNC cutting tables. Ideal for fabrication shops looking to automate plasma cutting processes.

Industrial Protection & Reliability
Built for harsh workshop environments, this plasma cutter features:

• IP23 industrial casing
• Intelligent machine protection system
• Temperature, voltage and current sensors
• Non-HF arc start for improved reliability
• Smart cooling fan system

Each unit is production stress-tested at 440V for rugged durability.

Air Requirements

• 185 l/min at 6 bar
• 1/4" Male Aro Type inlet

Clean, dry air is essential for optimal plasma performance.

Warranty
Commercial and domestic users benefit from an industry-leading 48-month warranty for added confidence.

**The AdvanceCut60 requires a suitable air compressor delivering 185 L/min at 6 bar. An air compressor is not included in the pack and must be purchased separately. Contact our team for assistance in choosing the right compressor for your setup.
