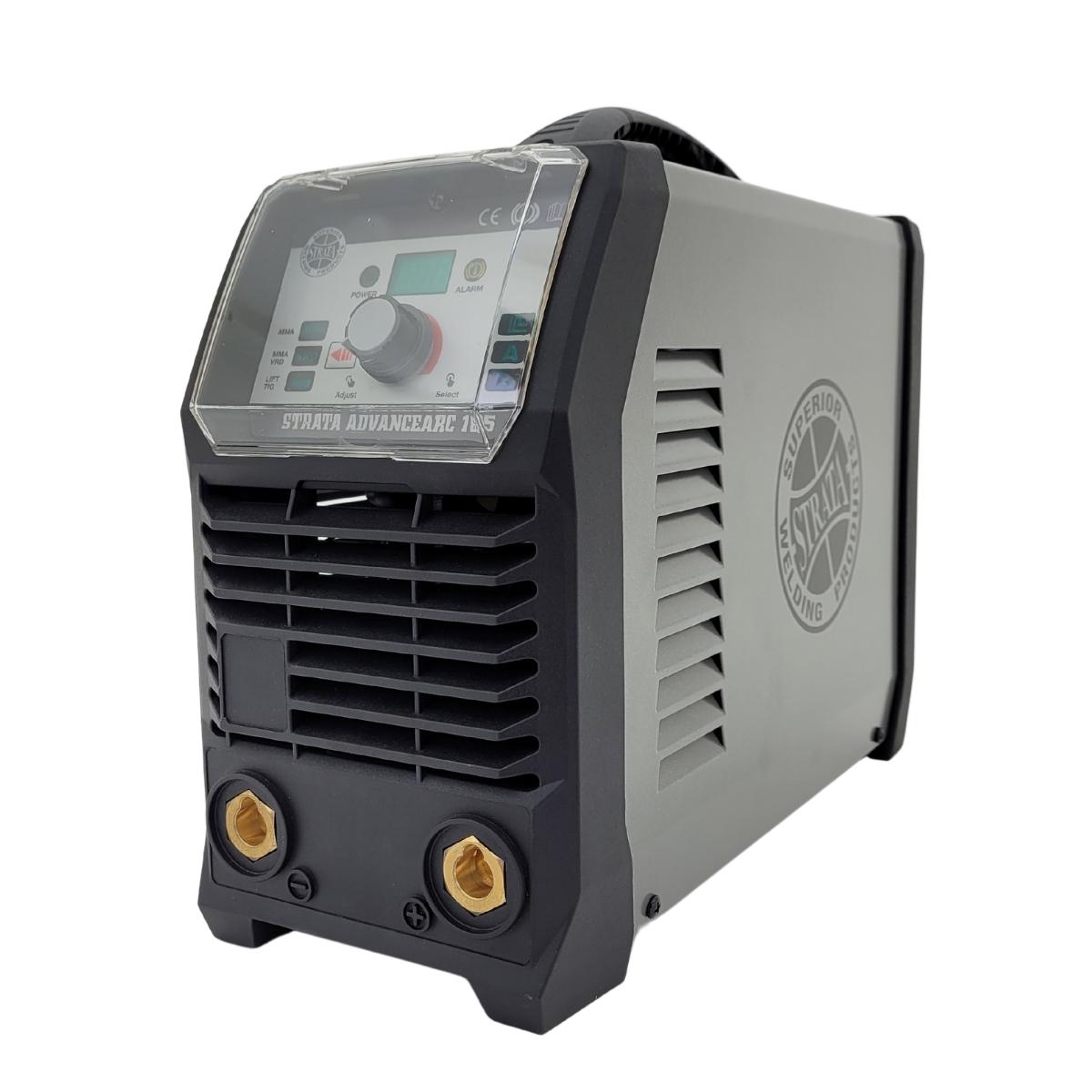

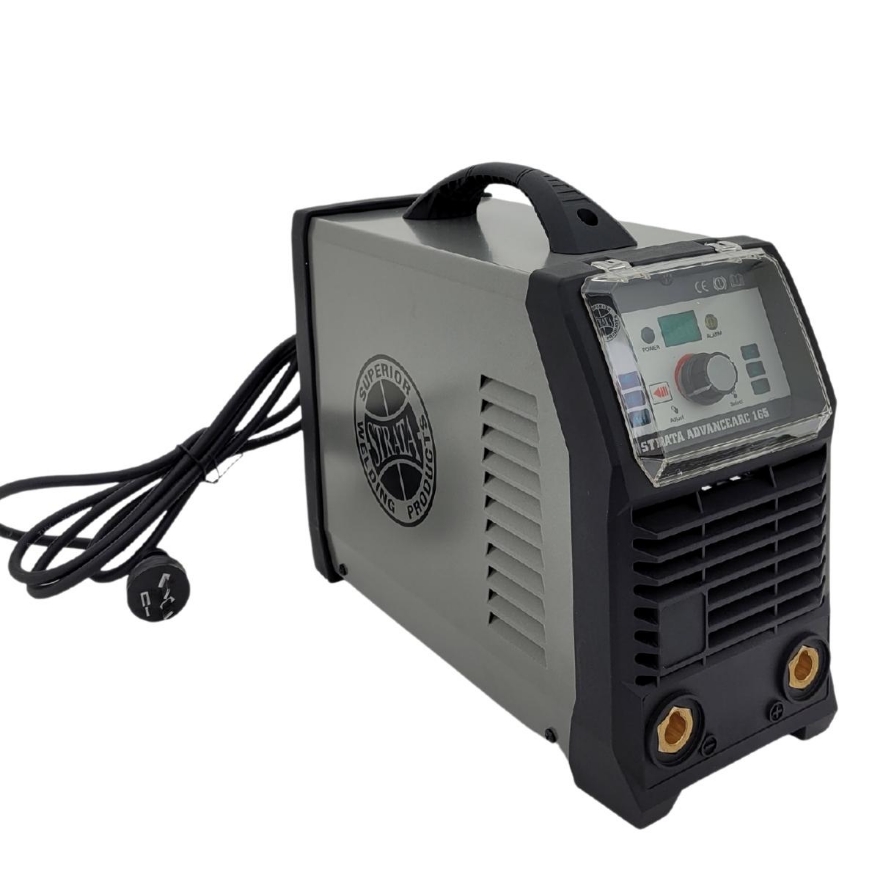

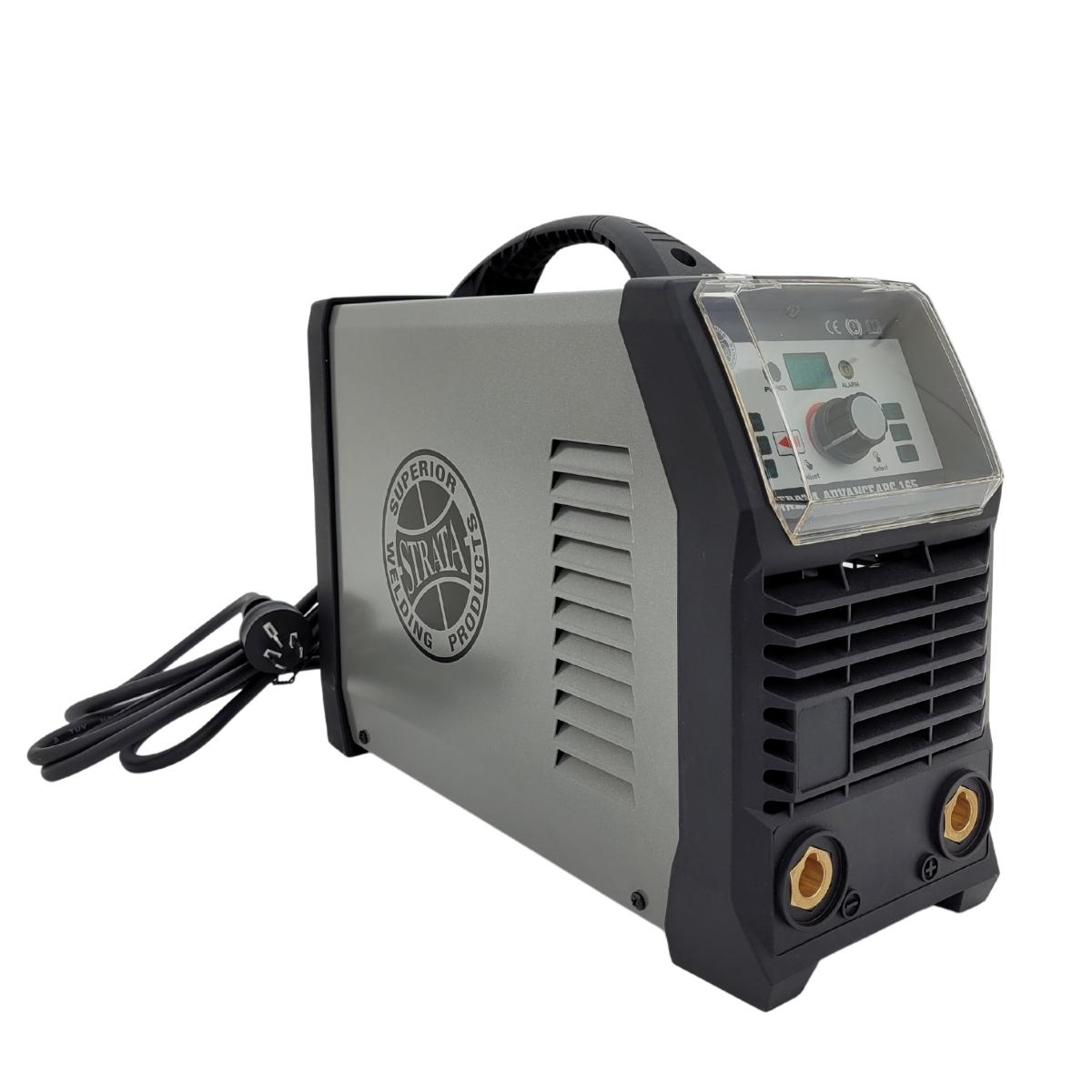

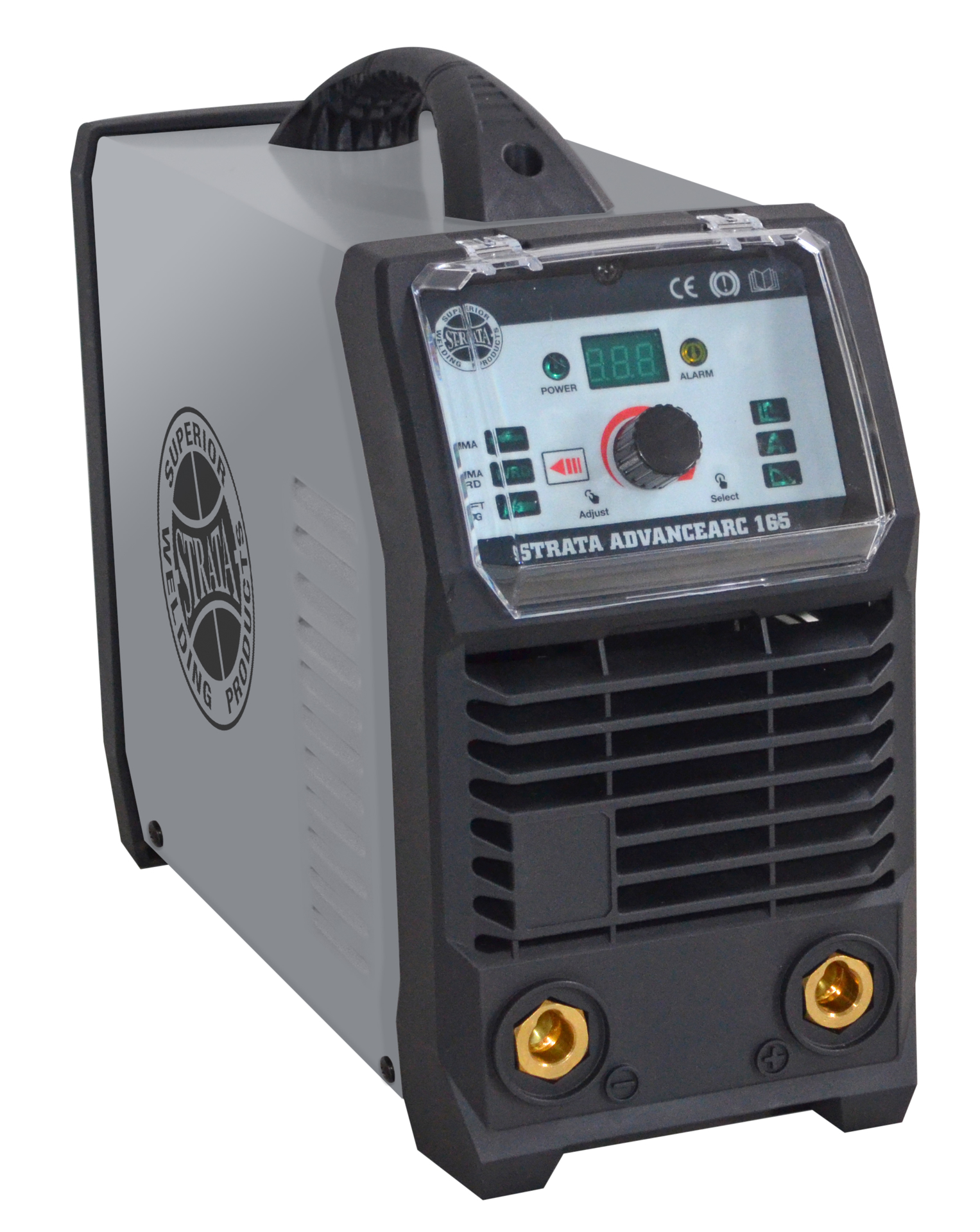

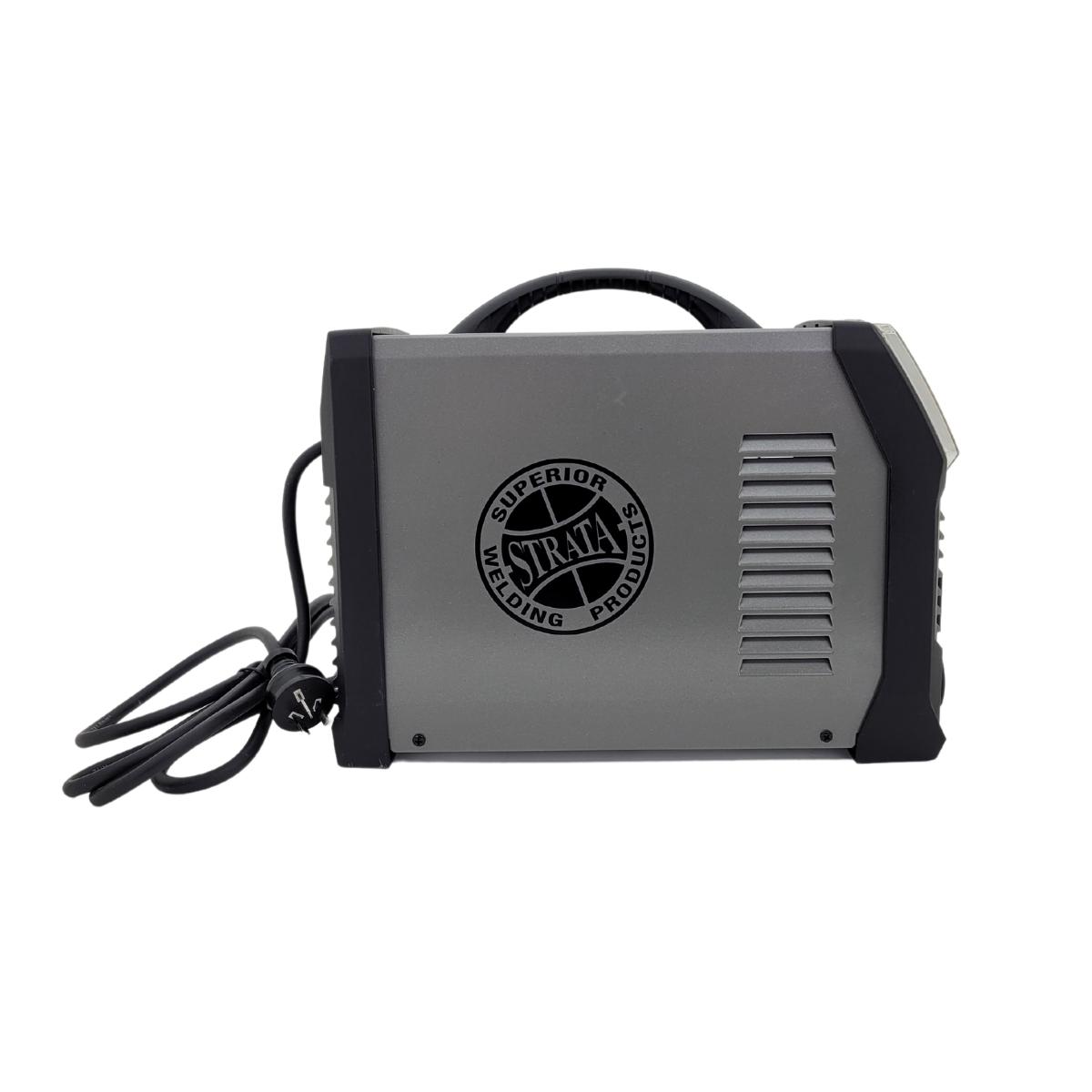

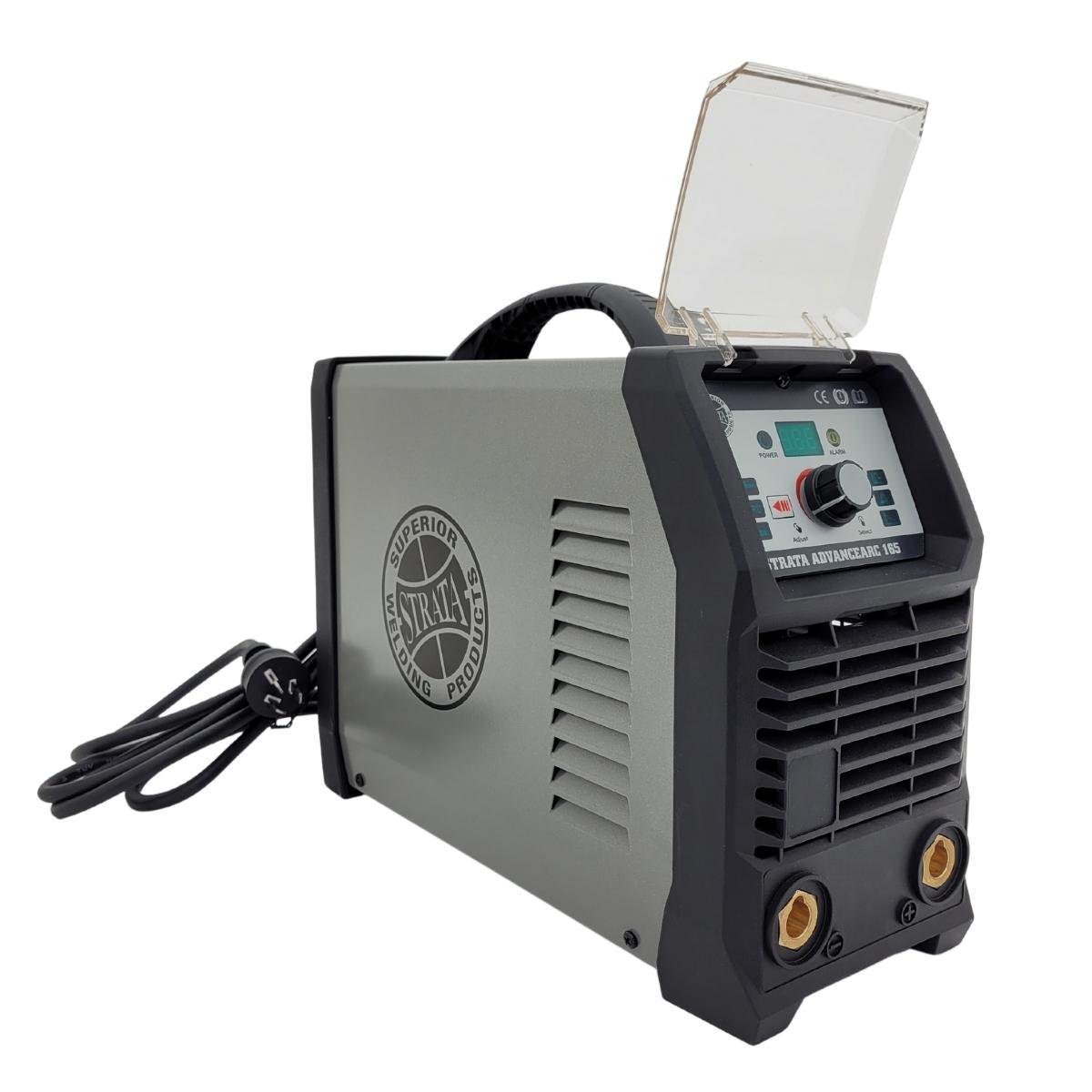

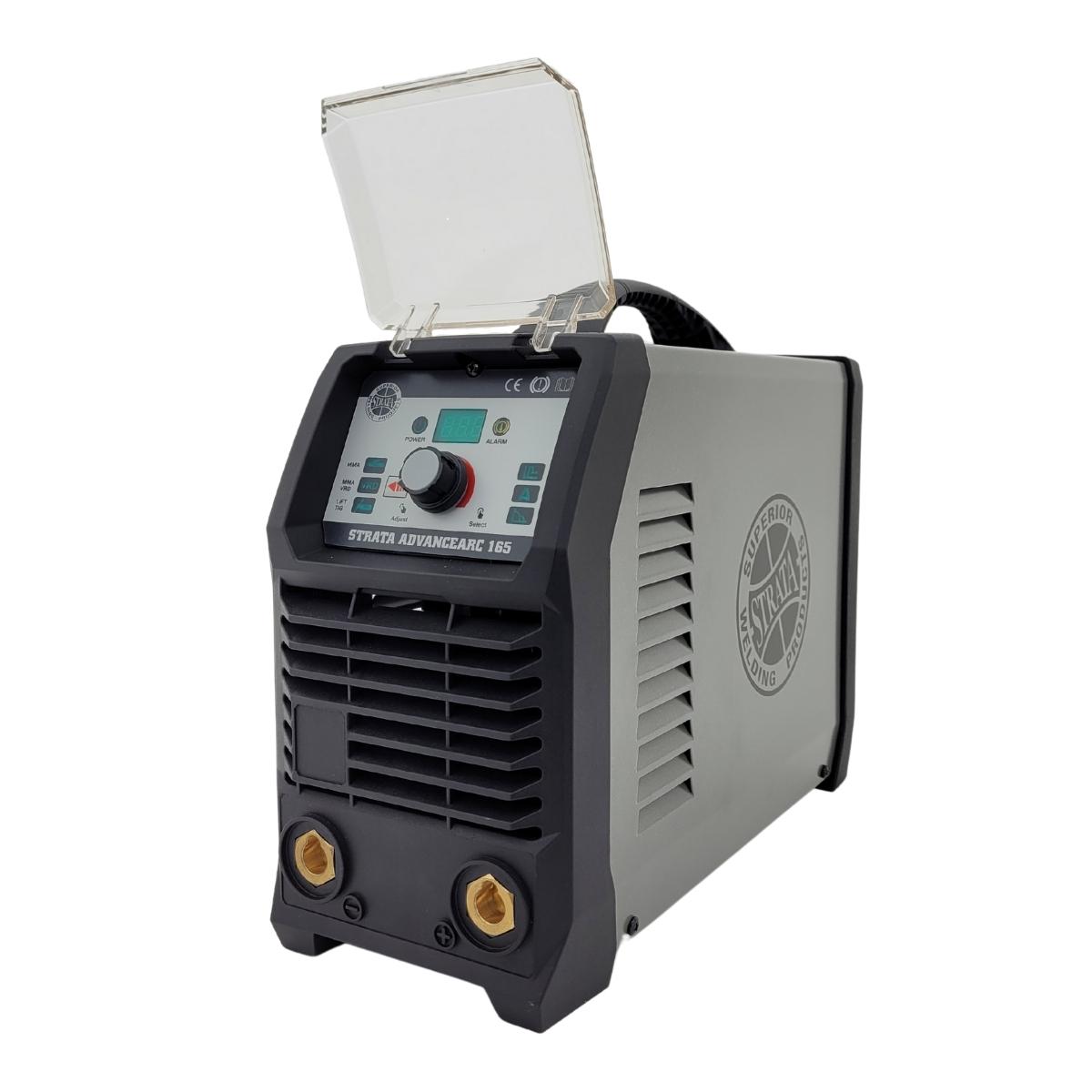

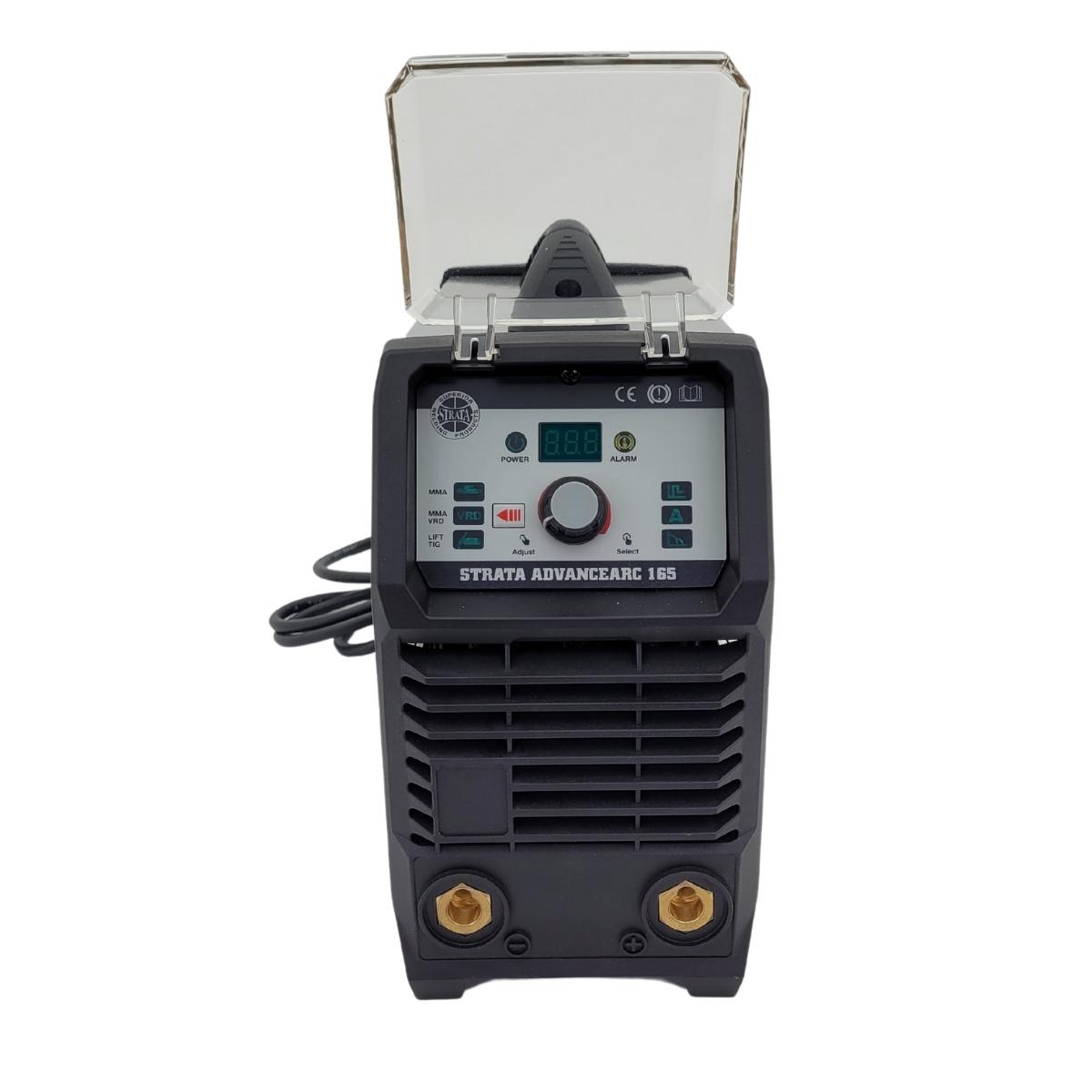

Strata ARC Welder ADVANCE ARC165

Overview
Specifications
Reviews
Contact Us
Downloads

The ADVANCEARC Series of MMA (Stick) welders offer the latest IGBT and PFC (Power Factor Correction) technology for smart operators. Increased reliability and performance for harsh and demanding conditions. Equipped with multi-voltage technology, giving you piece of mind when operating on generators or long extension cords.

IGBT Inverter technology for smooth & stable welding output
Active PFC technology for increased duty cycle and energy efficiency
Increased safety with MMA VRD protection mode
Will operate with wide range of input voltage, including long extension leads
Industrial IP23 casing with front panel protection resists damage, moisture and corrosion
Microprocessor control system with superior and dynamic arc characteristics
Lightweight & compact design for portable applications
Extreme stress tested in production up to 440V, ensuring rugged reliability
Adjustable arc force and hot start enable good control and ease of use when MMA welding
Lift TIG welding operation for precision in aesthetically important welding jobs (torch optional)

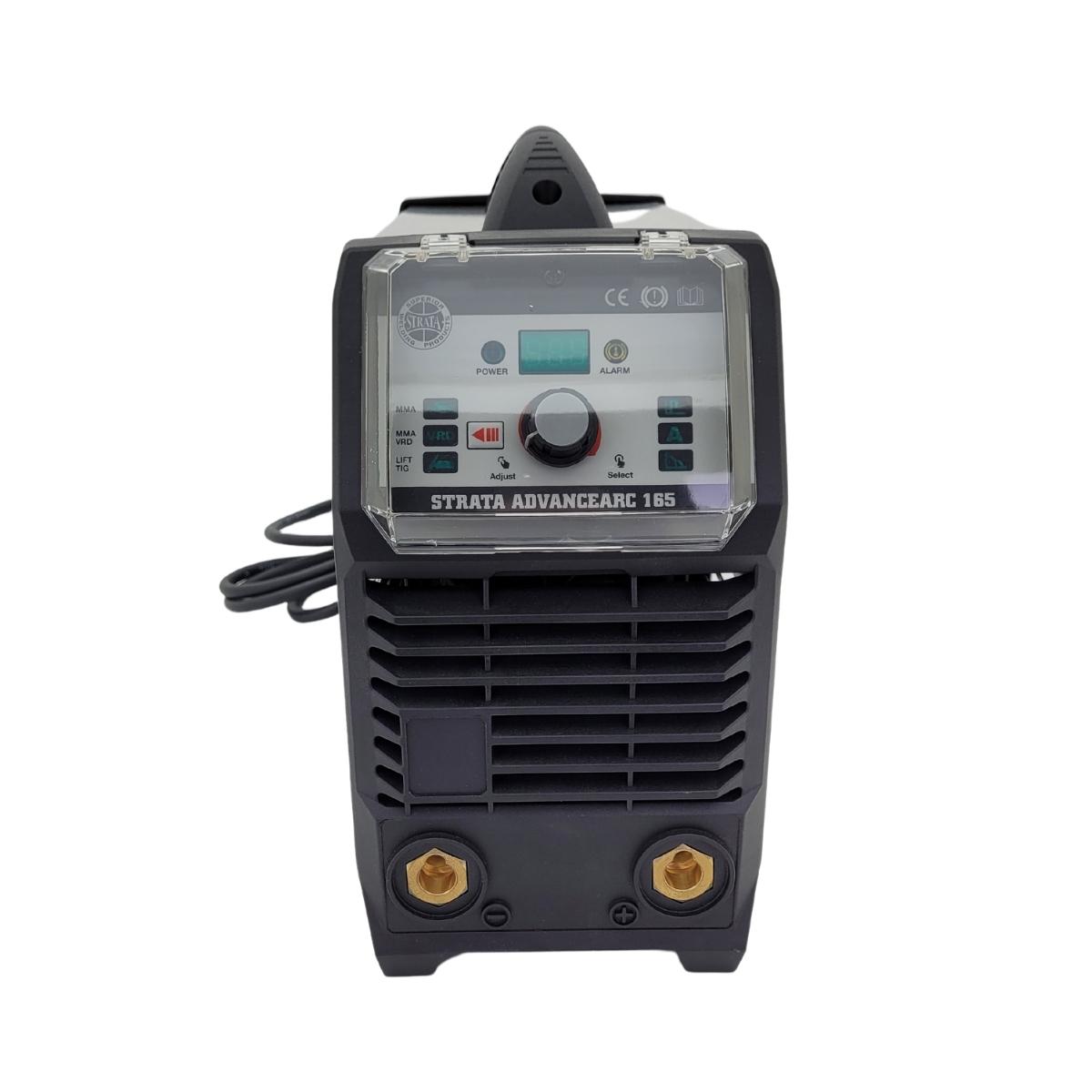

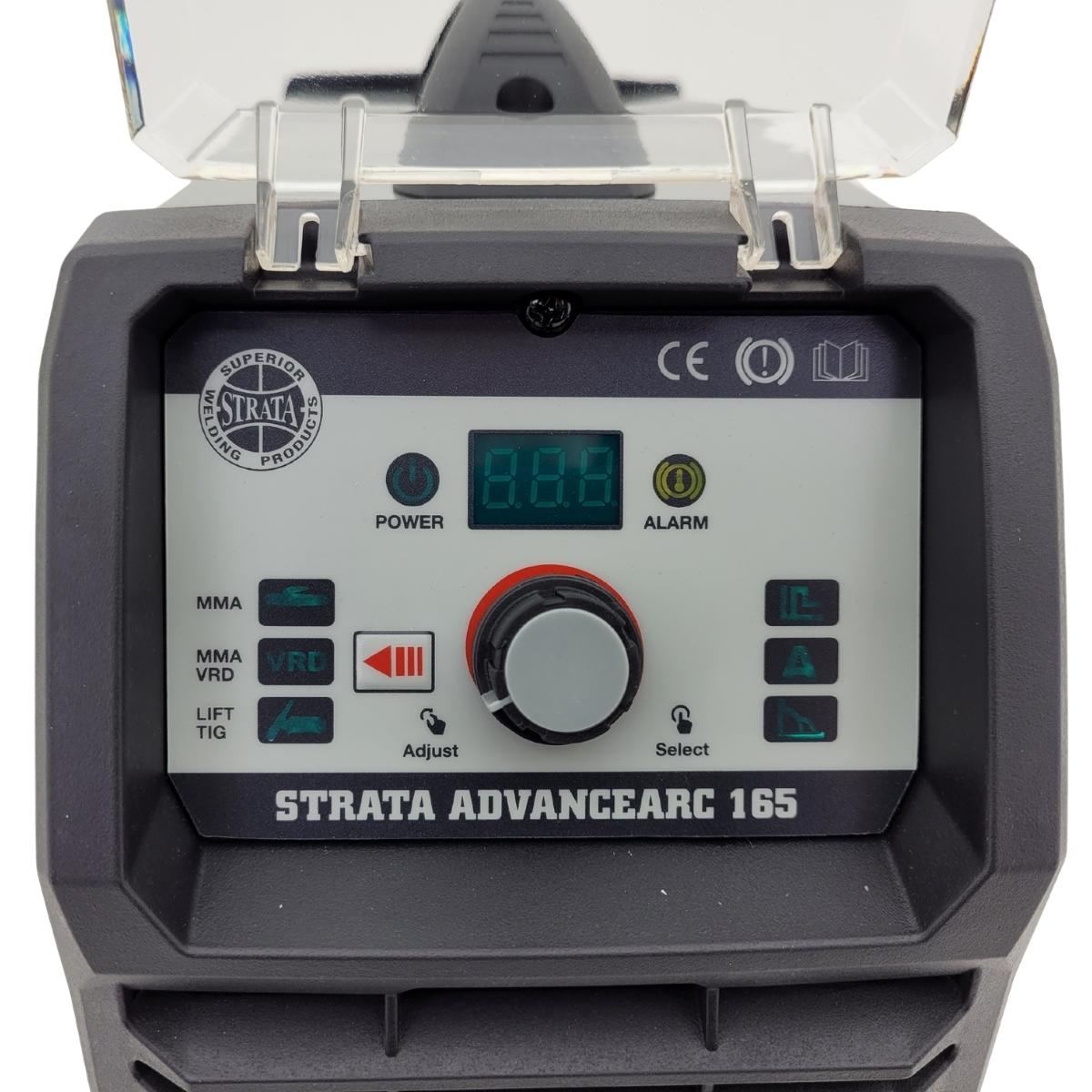

Accurate pre-setting and feedback of welding parameters & output with digital current display meter
Durable and reliable with high quality & over specified electronic components
Intelligent protection system with temperature, voltage and current sensors for increased reliability and safety
Designed to work with generator power supply with protection from power surges

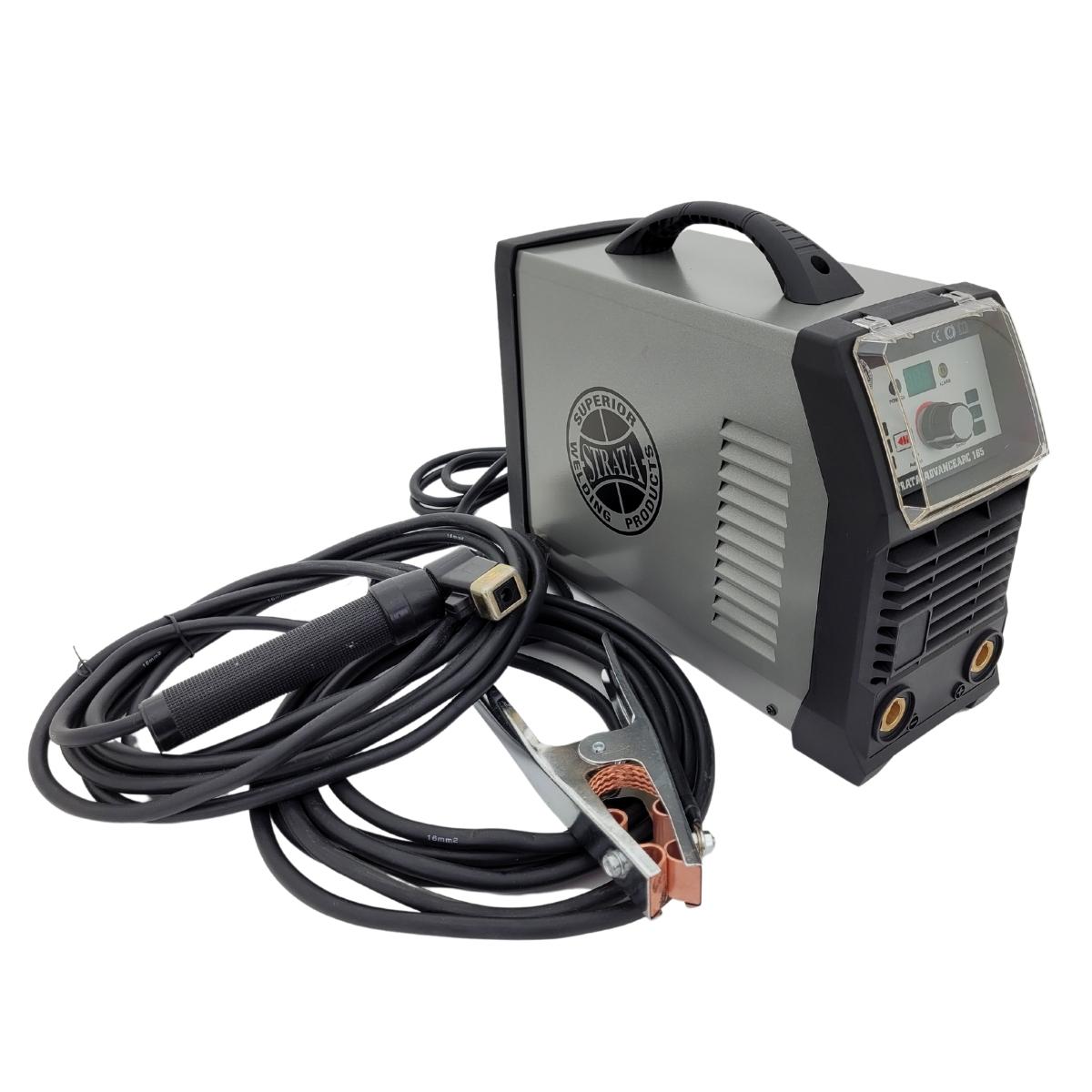

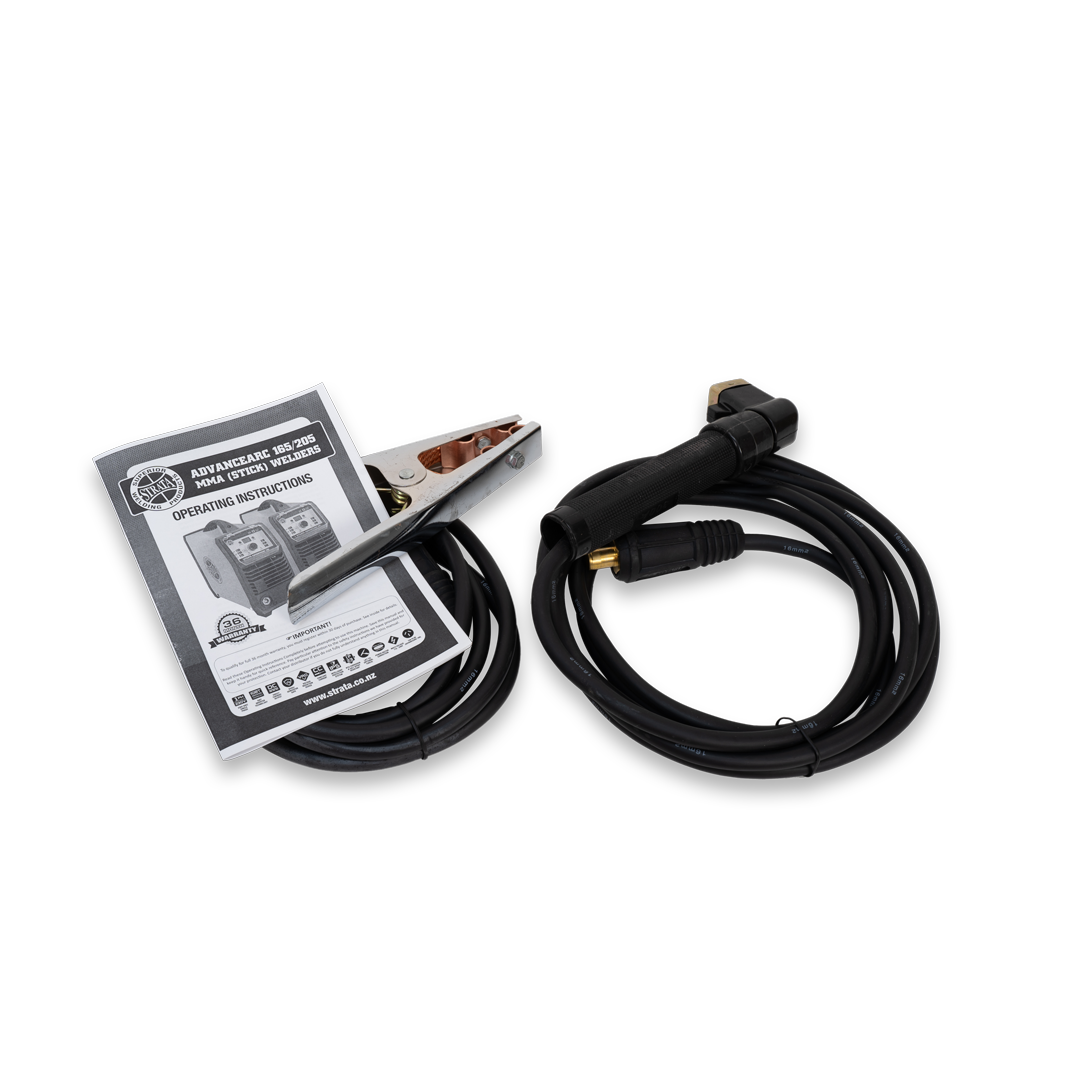

Standard Accessories:

4m MMA Lead with Heavy Duty Twist Lock Electrode Holder
3m Earth Lead with Heavy Duty Earth Clamp

Products specifications

Input Power Supply	230V AC 15A 50/60Hz
MMA Current Output	10A-160A
Lift TIG Current Output	10A-160A
Insulation Class	IP23
Standards	EN60974-1:2012
MMA Rod Size	1.6-4.0mm
Input Power Tolerance	90V-275V AC
Maximum Input Current	22.9A
MMA O/C Voltage	66V /14.5V Limited
MMA TIG Duty Cycle	160A@20%, 135A@60%, 105A@100%
Lift TIG Duty Cycle	160A@40%, 135A@60%, 105A@100%
Power Efficiency	85%
Power Factor	0.99
Warranty	36 months* with product registration
