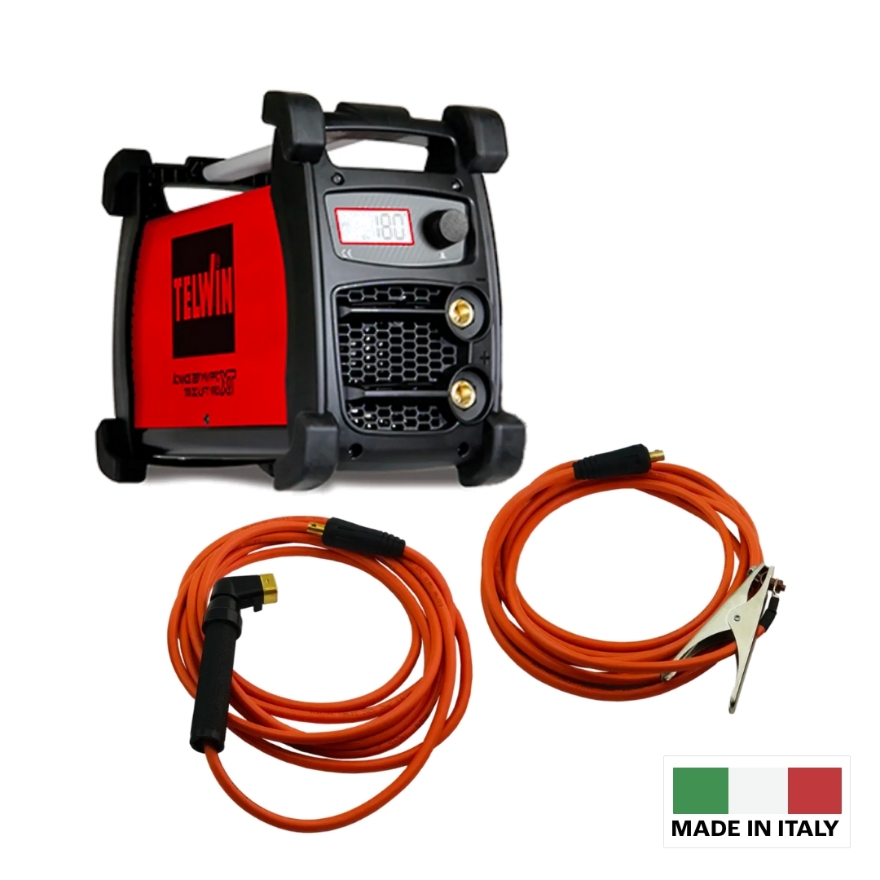

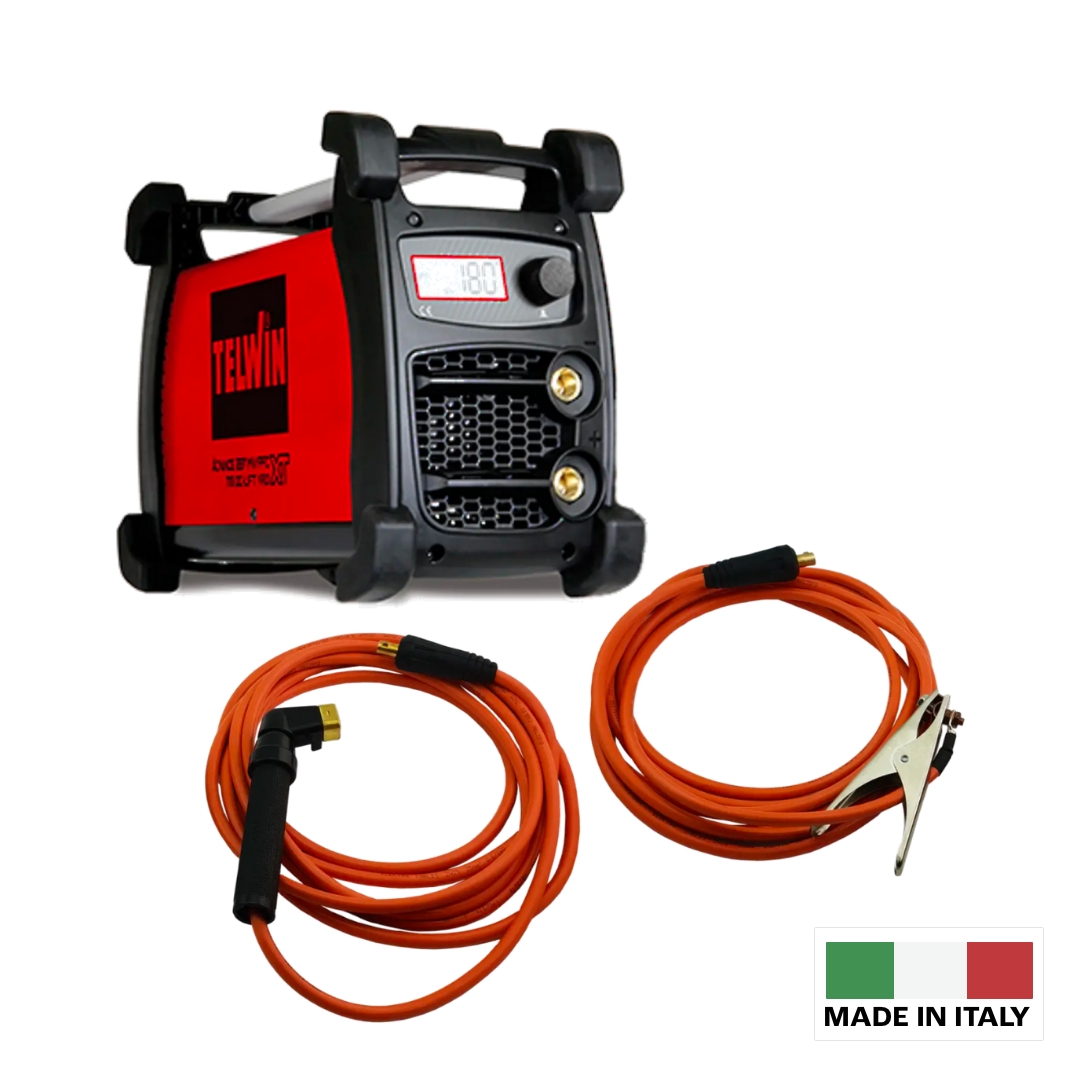

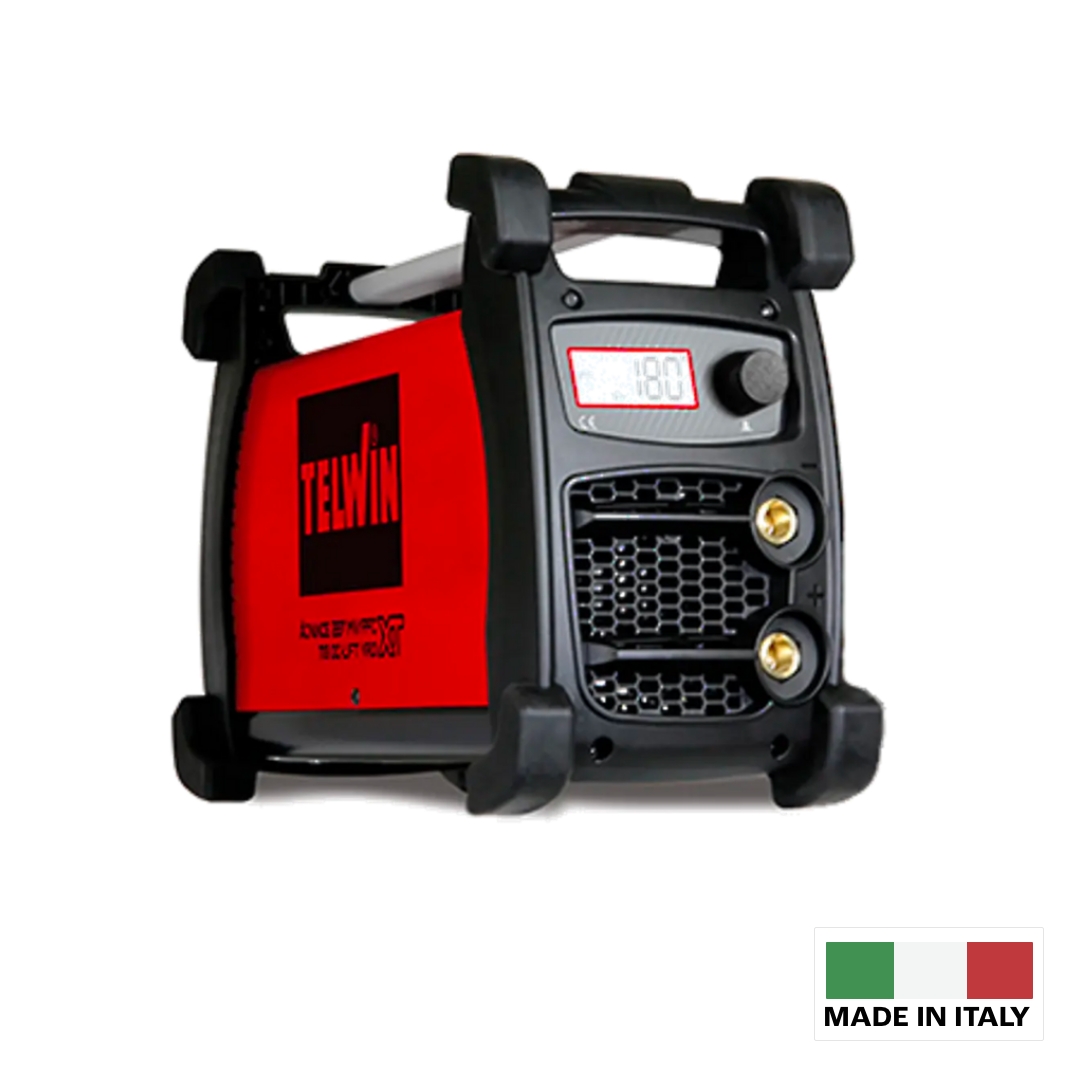

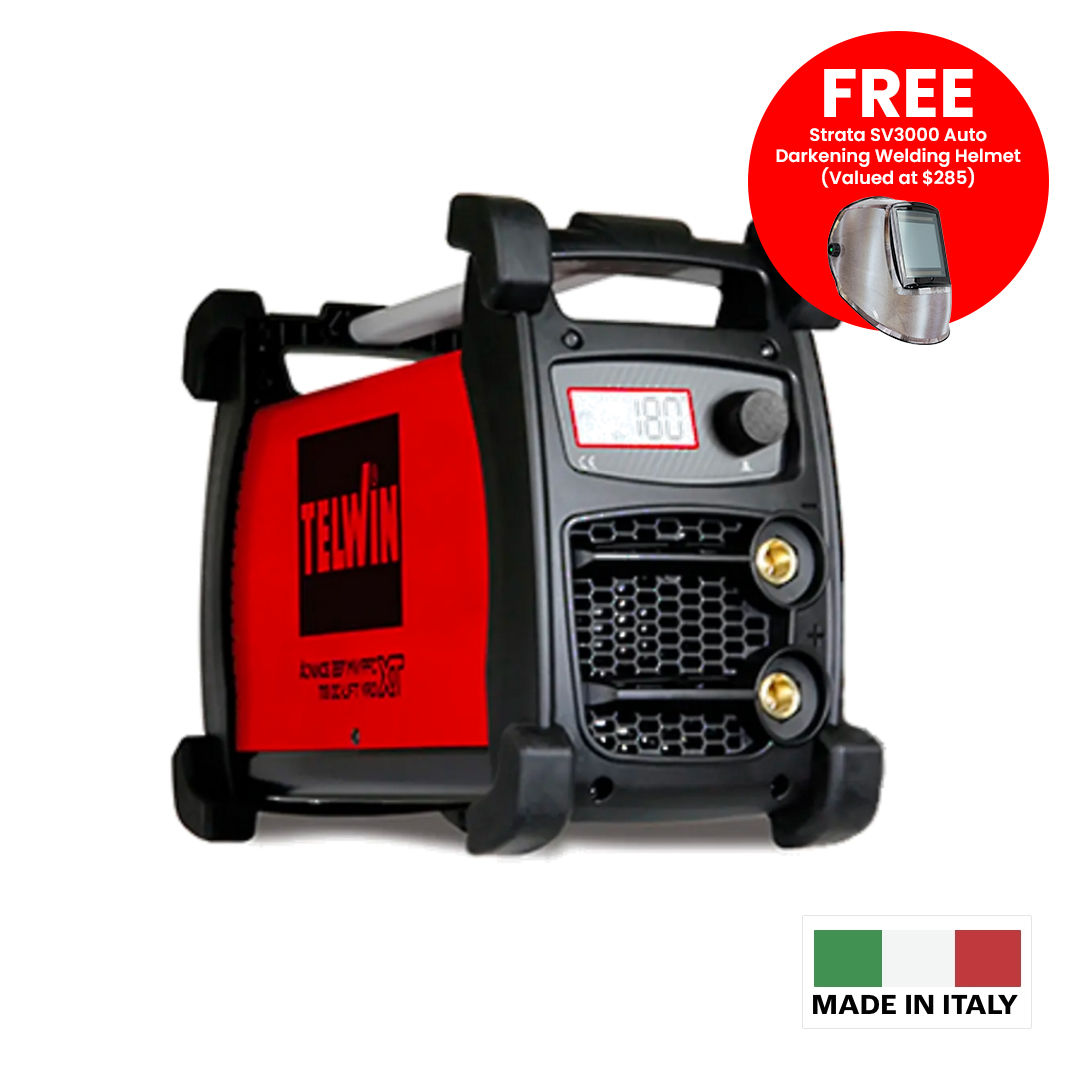

Telwin Advance 227-XT MV/PFC Arc Welder

Brand: Telwin
Style: Telwin
SKU: 205316
Qualifies for Free Shipping
The professionals choice! The European made 227-XT industrial arc welder is made for extreme conditions. PFC & MV allow the 227-XT to operate on 250M of extension cables. Packed with all the great features site welders need, including adjustable arc force and hot start and has switchable VRD. Making even the most difficult welding tasks easy!
$ 1,090 .00
$ 1,253.50 Incl GST
Telwin Advance 227-XT MV/PFC Arc Welder

Telwin Advance 227-XT MV/PFC Arc Welder

Now only:
$ 1,090 .00
$ 1,253.50 Incl GST
Product Overview
Learning Center
Product Overview

The Telwin Adance 227-XT MV/PFC Arc Welder is a MMA and Tig (LFT striking) inverter welding machine in direct current (DC). It can be used with wide range of materials such as steel/stainless, titanium, copper, nickel and their alloys. It is a great arc welder option for using in situations where the power supplies are fluctuating and unstable as it can be used with a range of variable power supply. Designed to be used with welding a range of electrodes including rutile, basic, stainless steel and cast iron. The 227-XT guarantees maximum performance with the MV/PFC feature when compared to other welding machines of equal power. The VRD device reduces the output voltage to a safe level when the welding machine is switched on but not under welding load, ensuring safety for the operator.

Key Features:

- Robust and impact resistant.

- Compact and lightweight.

- Adjustable Arc force and hot start.

- LCD display for easy setting of current, arc force and hot start.

- Power Factor Correction (PFC) more efficent on power & improved preformance on generators.

- Multi Voltage (MV) Operates on voltage from 100-250v & counteracts voltdrop from long leads.

- Operates on up to 250M extension cords.

- Switchable VRD alows operator to turn on or off depending on application.

- Thermostatic, overcurrent, overvoltage, undervoltage, motorgenerator protections.

- European made

- Available as powersource only or package option (Includes Earth & Arc Leads)


Products specifications
Single phase Mains Voltageq100-120/ 200-240V
Mains Frequency50/60 Hz
Current range10-130(150)/10-200A
Max current130A-40%(150-30%)/ 200@ 30%
Current At 60%110(125)/ 135 A
Max no Load Voltage81V
Max Absorbed current25(33)/ 27 A
Main Fuse15(20)/ 16A
Power Factor0.98
Proctection DegreeIP23
Dimensions45cm x 18.1cm x 29.2cm
