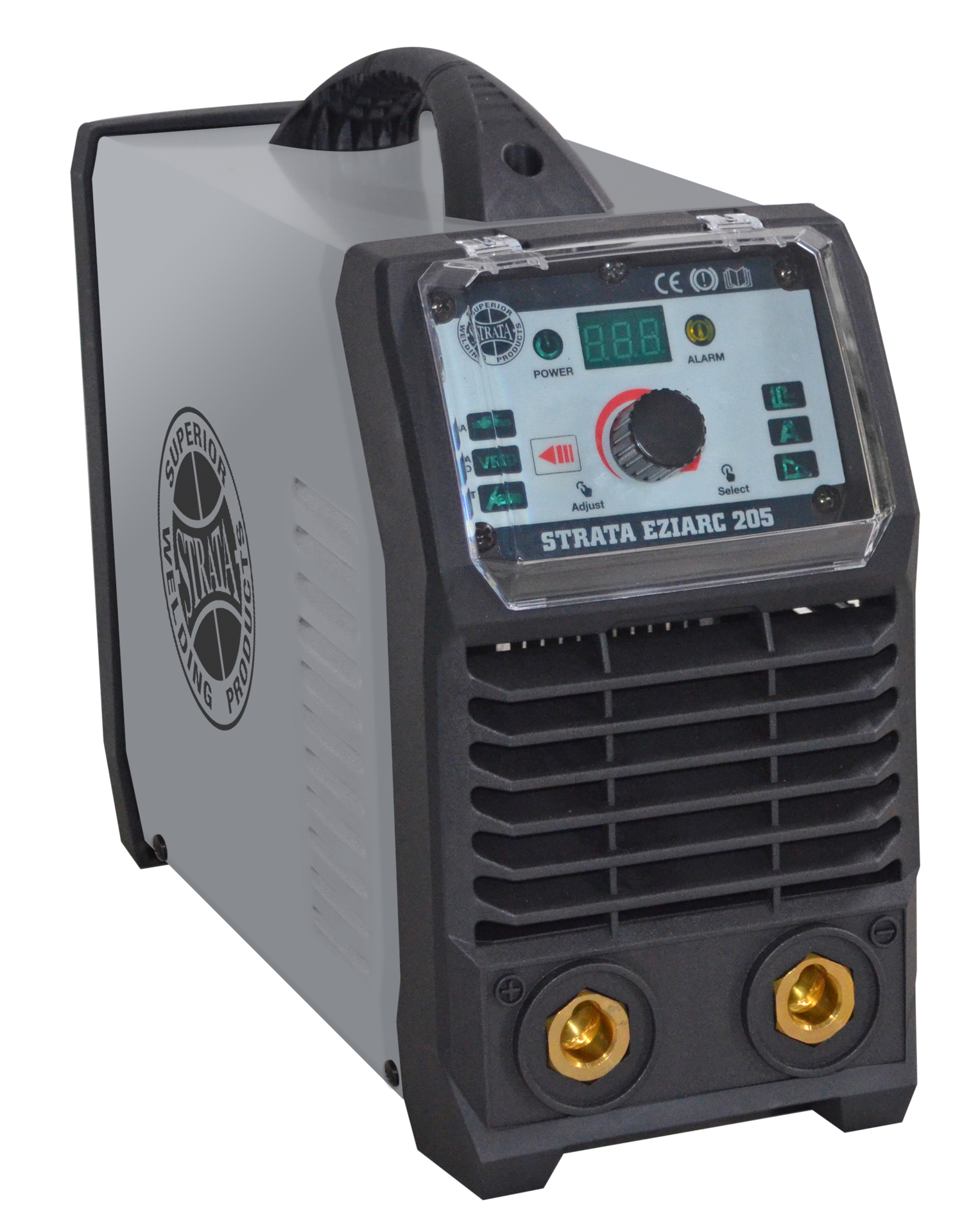

Strata ARC Welder EZIARC205

Brands: ACR , Strata
SKU: 22102
200A Inverter MMA/Lift TIG Welder
$ 530 .00
$ 609.50 Incl GST
Qualifies for Free Shipping
Call Us- 0800 699 353
Please give us a brief description of your intended application (we may have a better solution.)

Product Overview

A very versatile and easy to use 230V machine with the latest IGBT technology, hot start and anti-stick technology. At only 2.8kg this machine packs a punch is built tough for onsite work and engineering applications.

  • IGBT Inverter technology for smooth & stable
    welding output
  • Microprocessor control system with superior
    and dynamic arc characteristics
  • Lightweight & compact design for portable applications
  • Production tested to 440V for extreme stress
    testing in production, ensuring rugged reliability
  • Industrial IP23 casing with front panel protection resists damage, moisture and corrosion
  • Adjustable arc force and hot start enable good control and ease of use when MMA welding
  • Increased safety with MMA VRD protection mode
  • Lift TIG welding operation for precision in aesthetically important welding jobs (torch optional)
  • Accurate pre-setting and feedback of welding parameters & output with digital current display meter
  • Durable and reliable with high quality & over specified electronic components
  • Intelligent protection system with temperature, voltage and current sensors for increased reliability and safety
  • Designed to work with generator power supply with protection from power surges.

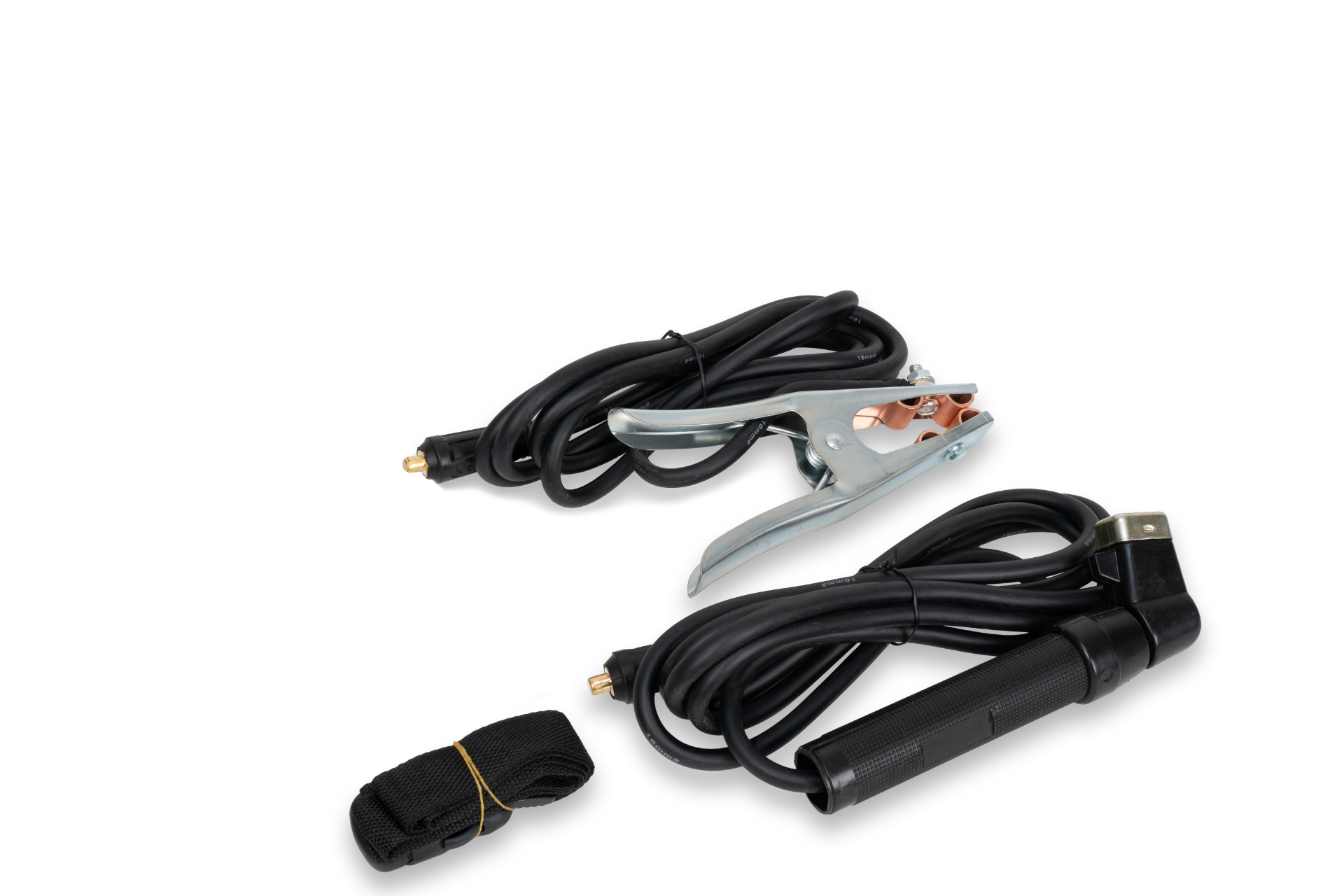

Standard Accessories:
  • 4m MMA Lead with Heavy Duty Twist Lock Electrode Holder
  • 3m Earth Lead with Heavy Duty Earth Clamp


Specifications

Products specifications
Input Power Supply230V AC 15A 50/60Hz
Input Power Tolerance230±20%V
MMA O/C Voltage70V
Insulation ClassIP23
Power Efficiency0.8
Power Factor0.65
StandardsEN60974-1:2012
Warranty24 months* with product registration
Maximum Input Current46A
MMA Current Output10A-200A
MMA TIG Duty Cycle200A@10%, 130A@60%, 100A@100%
Lift TIG Current Output10A-200A
Lift TIG Duty Cycle200A@40%, 145A@60%, 110A@100%
MMA Rod Size1.6-5.0mm
Dimensions410x146x278mm
Weight2.8kg

A very versatile and easy to use 230V machine with the latest IGBT technology, hot start and anti-stick technology. At only 2.8kg this machine packs a punch is built tough for onsite work and engineering applications.

  • IGBT Inverter technology for smooth & stable
    welding output
  • Microprocessor control system with superior
    and dynamic arc characteristics
  • Lightweight & compact design for portable applications
  • Production tested to 440V for extreme stress
    testing in production, ensuring rugged reliability
  • Industrial IP23 casing with front panel protection resists damage, moisture and corrosion
  • Adjustable arc force and hot start enable good control and ease of use when MMA welding
  • Increased safety with MMA VRD protection mode
  • Lift TIG welding operation for precision in aesthetically important welding jobs (torch optional)
  • Accurate pre-setting and feedback of welding parameters & output with digital current display meter
  • Durable and reliable with high quality & over specified electronic components
  • Intelligent protection system with temperature, voltage and current sensors for increased reliability and safety
  • Designed to work with generator power supply with protection from power surges.

Standard Accessories:
  • 4m MMA Lead with Heavy Duty Twist Lock Electrode Holder
  • 3m Earth Lead with Heavy Duty Earth Clamp
