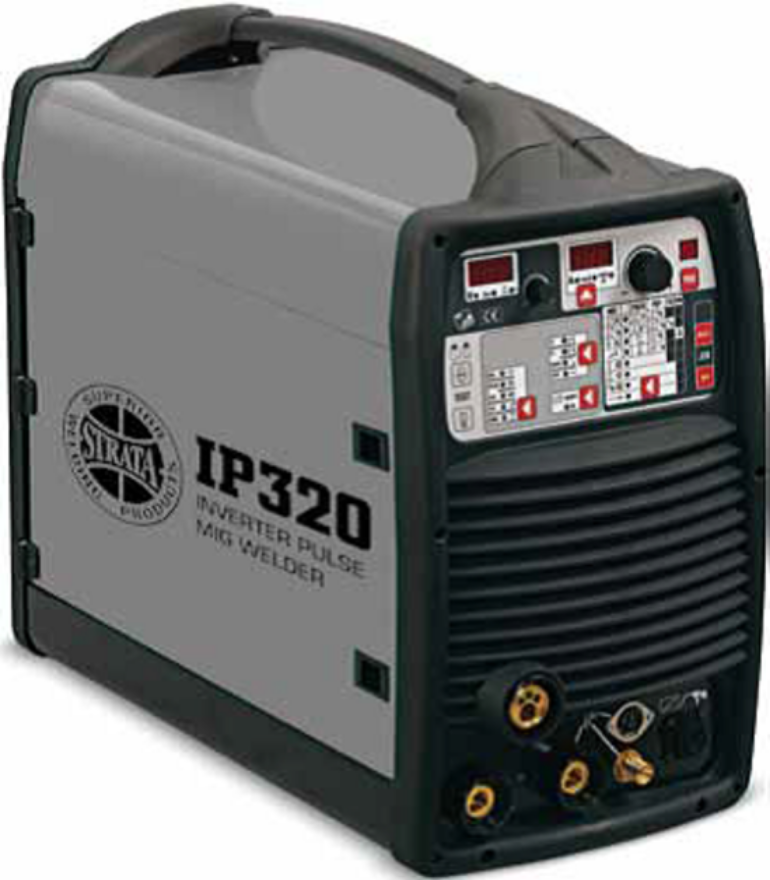

Strata IP320 - 320A MIG/TIG/ARC Inverter Pulse Welder with push/pull function

Brand: Strata
SKU: IP320
High Performance - High Productivity
Please give us a brief description of your intended application (we may have a better solution.)
Call Us- 0800 699 353

Product Overview

Inverter, microprocessor-controlled, welding machine for MIG-MAG (short-arc, pulsed, double pulsed - PULSE ON PULSE), FLUX CORED MIG, MIG BRAZING, TIG-DC lift and MMA welding.

The flexibility of use with a wide range of materials such as steel, stainless steel, high strength steels, galvanized sheets, aluminium and its alloys, complete with 4 rolls, integrated wire feeder. The SYNERGIC control, the remote regulation of welding parameters and the possibility to connect to computers or automatic plants, make it particularly suitable for use in the industrial field.

Key features:

  • Short-arc twin pulse and single pulse operation
  • 50 preset welding programs
  • Storage of 40 personalized welding programs
  • Possibility to connect to computers via USB or industrial lines
  • Regulation of: bi-level, post-gas time, current down slope, electronic reactance, start up wire feed, burnback time
  • Choice of 2T/4T trigger, spot operation and bi-level Push/Pull Gun capable (optional P/P torch)
  • Thermostatic, overcurrent, overvoltage, undervoltage, phase failure protections and alerts
  • Control check of all functions at start up.



Model #IP320

Specifications

Products specifications
Dimensions670 x 320 x 560mm
Wire Diameter0.6 - 1.2mm
Type Of Wire FeederIntegrated
Diameter of Coil300mm
PostflowYes

Inverter, microprocessor-controlled, welding machine for MIG-MAG (short-arc, pulsed, double pulsed - PULSE ON PULSE), FLUX CORED MIG, MIG BRAZING, TIG-DC lift and MMA welding.

The flexibility of use with a wide range of materials such as steel, stainless steel, high strength steels, galvanized sheets, aluminium and its alloys, complete with 4 rolls, integrated wire feeder. The SYNERGIC control, the remote regulation of welding parameters and the possibility to connect to computers or automatic plants, make it particularly suitable for use in the industrial field.

Key features:

  • Short-arc twin pulse and single pulse operation
  • 50 preset welding programs
  • Storage of 40 personalized welding programs
  • Possibility to connect to computers via USB or industrial lines
  • Regulation of: bi-level, post-gas time, current down slope, electronic reactance, start up wire feed, burnback time
  • Choice of 2T/4T trigger, spot operation and bi-level Push/Pull Gun capable (optional P/P torch)
  • Thermostatic, overcurrent, overvoltage, undervoltage, phase failure protections and alerts
  • Control check of all functions at start up.



Model #IP320

Products specifications
Dimensions670 x 320 x 560mm
Wire Diameter0.6 - 1.2mm
Type Of Wire FeederIntegrated
Diameter of Coil300mm
PostflowYes
