Lincoln K14258-2P Speedtec 400SP Multi Process Welder Package

Free Shipping
Lincoln /
SKU: 38629

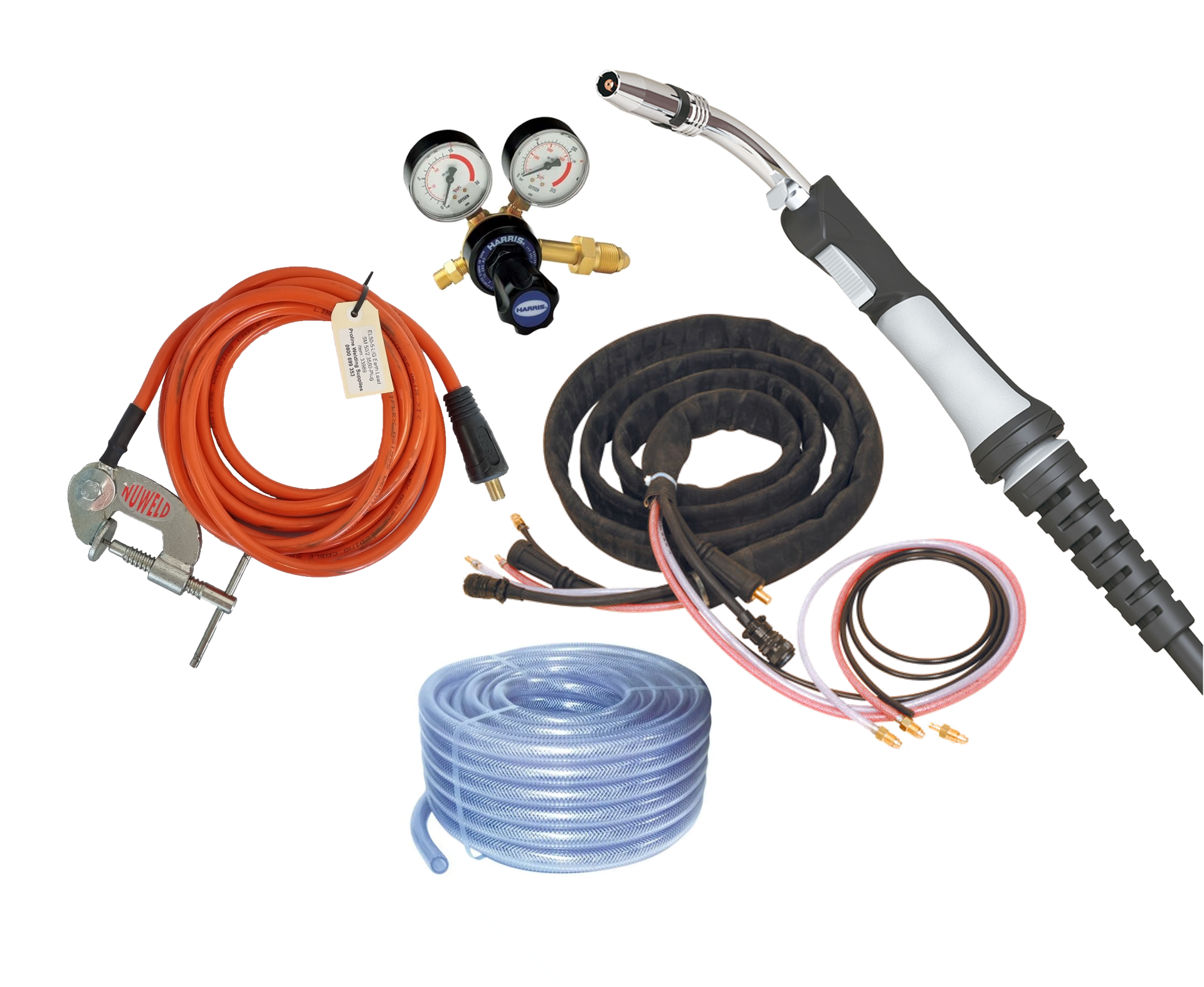

K14258-2P Speedtec 400SP Multi Process Welder Package, Includes 400SP power source, 4-wheel undercarriage, LF56D feeder & 1.0-1.2mm drive rolls, 10m interconnection cables, MB36 4m gun, 3m work return lead, gas hose 2m, flowmeter, input lead 5m
Overview

Product Overview

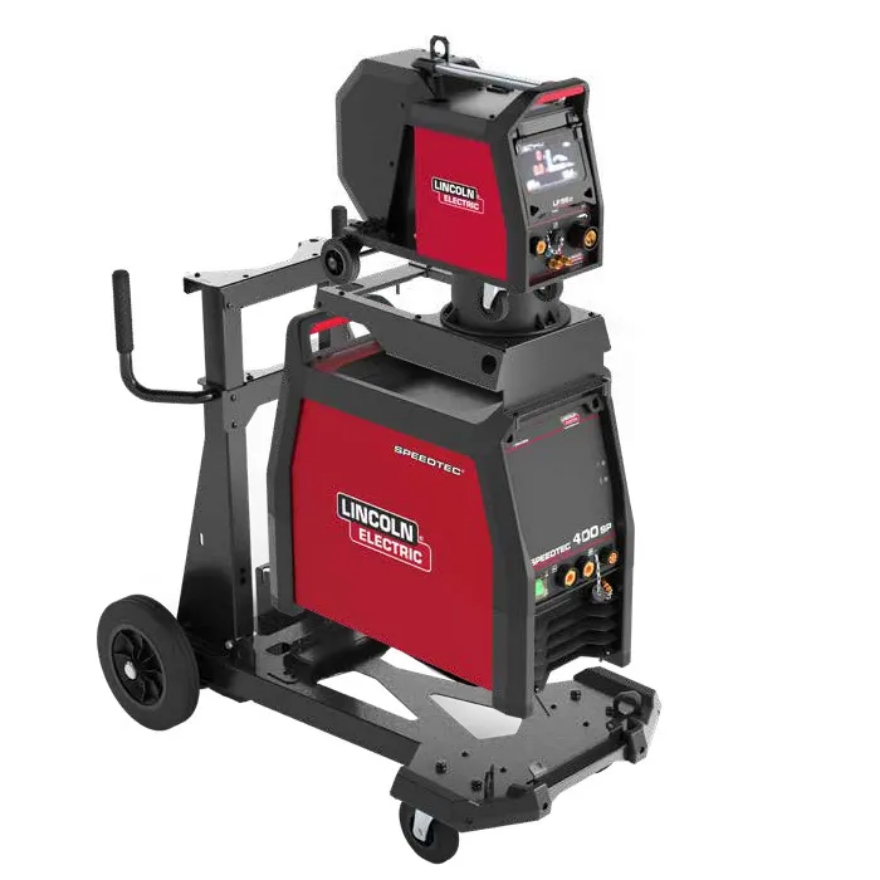

Lincoln K14258-2P Speedtec 400SP Multi Process Welder Package

Introducing the latest innovations in welding technology, the third-generation SPEEDTEC® 400SP redefines professional welding. This cutting-edge machine not only delivers superior welding quality but also boasts high-efficiency processes that significantly enhance productivity. Engineered with state-of-the-art inverter technology and robust construction, the new SPEEDTEC® range is engineered to thrive even in the most challenging environmental conditions. But it doesn't stop there – behind its exceptional welding performance, the SPEEDTEC® platform incorporates a cutting-edge digital communication system. Equipped with built-in communication tools like Ethernet and USB, it provides precise traceability and real-time monitoring of your welding activities, ensuring utmost precision and control. Welcome to the future of professional welding with SPEEDTEC®!

Key Features

  • High-duty cycle multi-process power source
  • High Efficiency Processes (Speed Short Arc™, Soft Silent Pulse™, High Penetration Speed™)
  • MECHAPULSE™ produces very high-quality welds with rippled seam appearance
  • Modular concept to build configuration for any requirements
  • Professional wire feeding system – 4 individually driven rolls, big roll diameter (37 mm) for optimal wire feeding
  • Double-side fully potted PCB with superior resistance for dust, humidity, jerk or vibrations
  • Solid metal construction, rugged and very stable – ready for any industrial environment
  • Voltage Reduce Device (VRD)
  • Innovative and intuitive user interfaces (Auto-settings, USB connectivity, Speaker, New encoders, Clock and calendar).
  • Processes include: GMAW, FCAW-G, FCAW-S, pulsed MIG, GTAW, SMAW, CAG and MIG brazing
  • Typical Applications: General fabrication, heavy fabrication, structural, transportation, chemical processing, maintenance and repair and shipbuilding
  • Suitable materials: Steel, stainless steel, low alloy steel and aluminium
  • Weight: 53.5kg
  • Dimensions (HxWxD): 550x295x625mm
  • Warranty: 5 years (with product registration)
Overview

Specifications

Input Voltage / 400V
Input Current / 25A
Input Hertz / 50/60Hz
Input Power / 400V/3/50-60 Hz (±15%)
Input Phase / 3 Phase
Mode Icon / CC/CV
Output Range / 20-420A
Polarity / DC
Rated Output / 420A@100%
Machine Processes / Pulsed MIG (GMAW-P)
Max Rating / 420A
Open Circuit Voltage / 65V
Dimensions (HxWxD) / 550x295x625mm
Weight / 53.5kg
Warranty / 5 Years (With Product Registration)
Your Questions Answered

FAQ's

What welding processes can the Speedtec 400SP perform?

What materials can it weld effectively?

How reliable is the wire feeding system?

What makes the Speedtec 400SP different from standard welders?

What is MECHAPULSE™ and why is it useful?

What digital tools are available on this machine?

Benefits

Product Videos

video image
Lincoln Speedtec 400SP and 500SP Multi Process Welders
video image
Advantages of the HIGH PENETRATION SPEED™ (HPS™) process
video image
Advantages of the MECHAPULSE™ function
video image
Advantages of the SPEED SHORT ARC™ (SSA™) process
