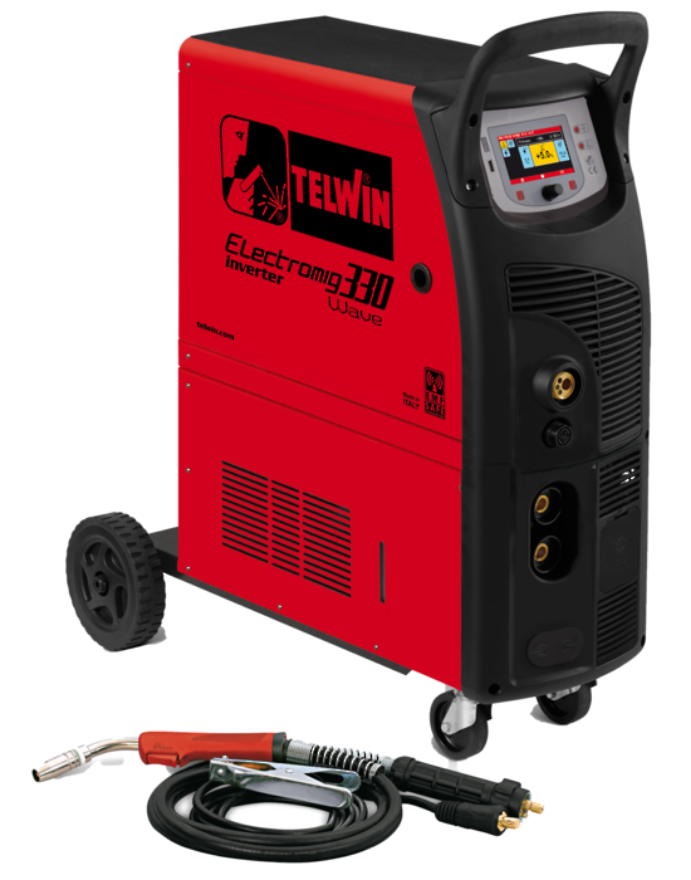

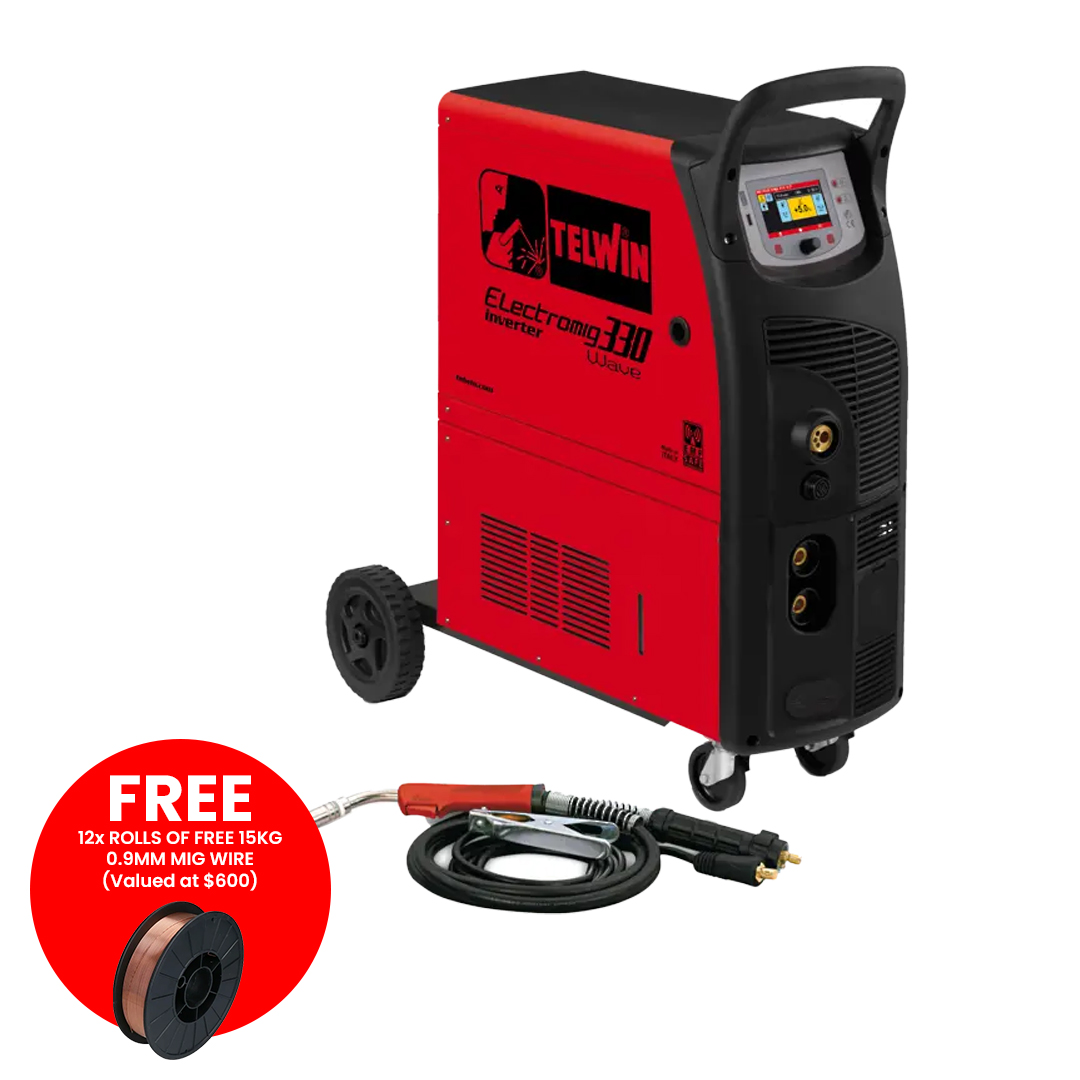

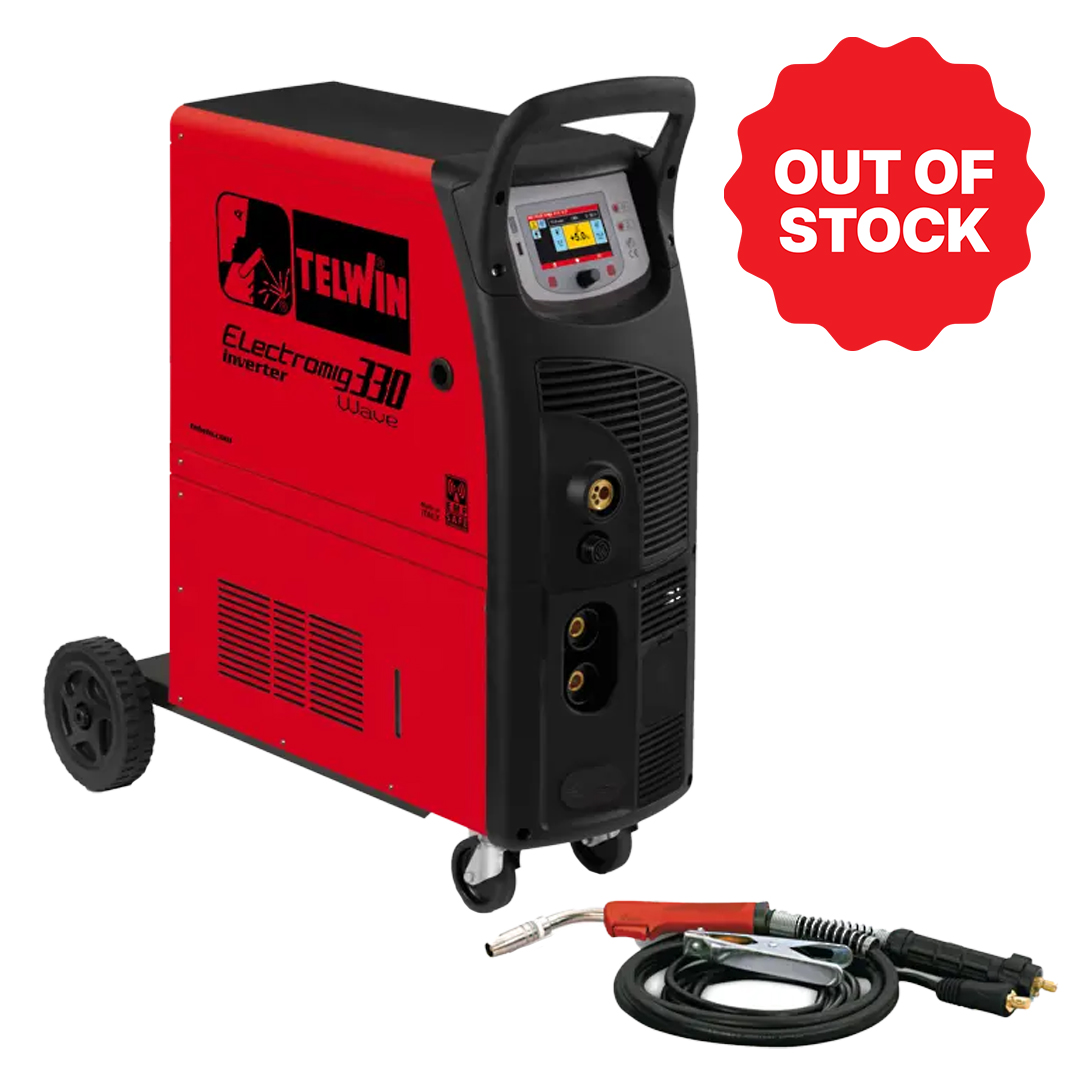

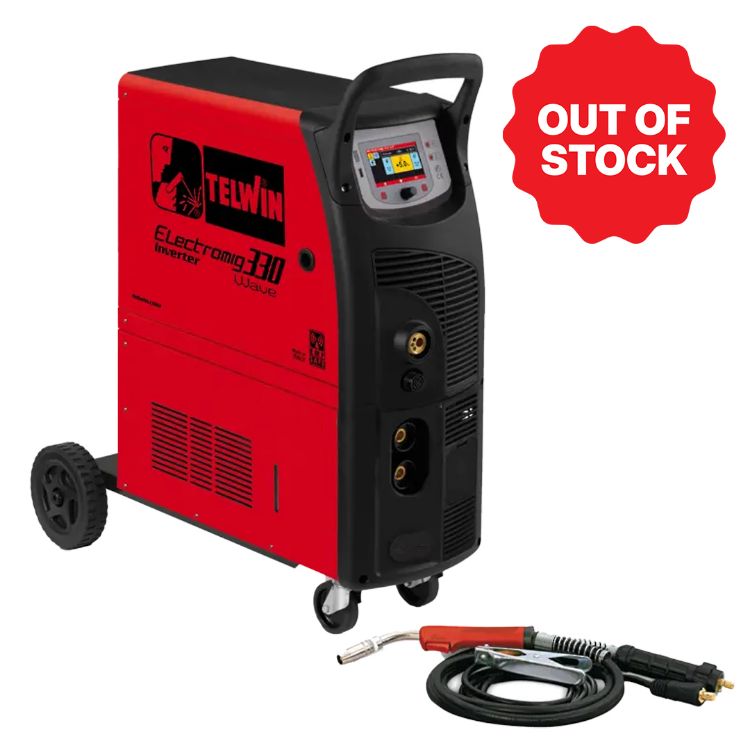

Telwin Electromig 330 Wave Pulse Mig

Brand: Telwin
SKU: 202825
Telwin Electromig 330 Wave Pulse Mig
$ 5,995 .00 excl GST
Please give us a brief description of your intended application (we may have a better solution.)
Call Us- 0800 699 353

Product Overview

Comes standard with pulse & double pulse. Can be supplied with a push-pull torch.

Microprocessor controlled, multiprocess MIG-MAG (continuous and pulse), FLUX/BRAZING/MMA/TIG
DC-Lift inverter welding machine. The WAVE OS system makes welding operations customisable to suit customer-specific requirements. Maximum operational flexibility for use in a wide variety of application sectors, from maintenance to installation and interventions at body shops. Although it comes supplied with various stored welding programmes, it offers the possibility to store, trace and export more customised programmes.
  • 300A - Mig Pulse/Double Pulse – Tig – Arc
  • European Made
  • Complete with MIG-MAG torch, cable and earth clamp.
  • Suitable for a range of materials: steel, stainless, aluminium, galvanised and zinc-plated metal.
  • Specific welding processes low thermal transfer - ROOT-MIG and ATC, AB PULSE and AB POP for aluminium and brazed
  • materials.
  • Automatic control of the arc maintains quality welding in all working conditions, regardless of material or gas type being used.
Standard kit includes;
  • Binzel MB36-3 Mig Torch
  • Earth Lead
  • Argon Regulator

Optional Extras
  • Aluminium Welding Kit (Liner & Drive Rollers)
  • Push-Pull Torch
  • Upgrade to 4M or 5M Mig Torch

Specifications

Products specifications
Three phase main voltage400V
Mains Frequency50/60 Hz
Current range20-300A
Max current270A- 30%
Current At 60%205A
Max no Load Voltage63 V
Max Absorbed current15A
Max Absored power9kW
Main Fuse16 A
Efficiency0.9
Power Factor0.9
Protection degreeIP23
Weight39kg
Dimensions86.5x39x91.5

Comes standard with pulse & double pulse. Can be supplied with a push-pull torch.

Microprocessor controlled, multiprocess MIG-MAG (continuous and pulse), FLUX/BRAZING/MMA/TIG
DC-Lift inverter welding machine. The WAVE OS system makes welding operations customisable to suit customer-specific requirements. Maximum operational flexibility for use in a wide variety of application sectors, from maintenance to installation and interventions at body shops. Although it comes supplied with various stored welding programmes, it offers the possibility to store, trace and export more customised programmes.
  • 300A - Mig Pulse/Double Pulse – Tig – Arc
  • European Made
  • Complete with MIG-MAG torch, cable and earth clamp.
  • Suitable for a range of materials: steel, stainless, aluminium, galvanised and zinc-plated metal.
  • Specific welding processes low thermal transfer - ROOT-MIG and ATC, AB PULSE and AB POP for aluminium and brazed
  • materials.
  • Automatic control of the arc maintains quality welding in all working conditions, regardless of material or gas type being used.
Standard kit includes;
  • Binzel MB36-3 Mig Torch
  • Earth Lead
  • Argon Regulator

Optional Extras
  • Aluminium Welding Kit (Liner & Drive Rollers)
  • Push-Pull Torch
  • Upgrade to 4M or 5M Mig Torch
Products specifications
Three phase main voltage400V
Mains Frequency50/60 Hz
Current range20-300A
Max current270A- 30%
Current At 60%205A
Max no Load Voltage63 V
Max Absorbed current15A
Max Absored power9kW
Main Fuse16 A
Efficiency0.9
Power Factor0.9
Protection degreeIP23
Weight39kg
Dimensions86.5x39x91.5
