Strata MFG365 Fume Extraction Mig Torches

Overview

Product Overview

Key Features

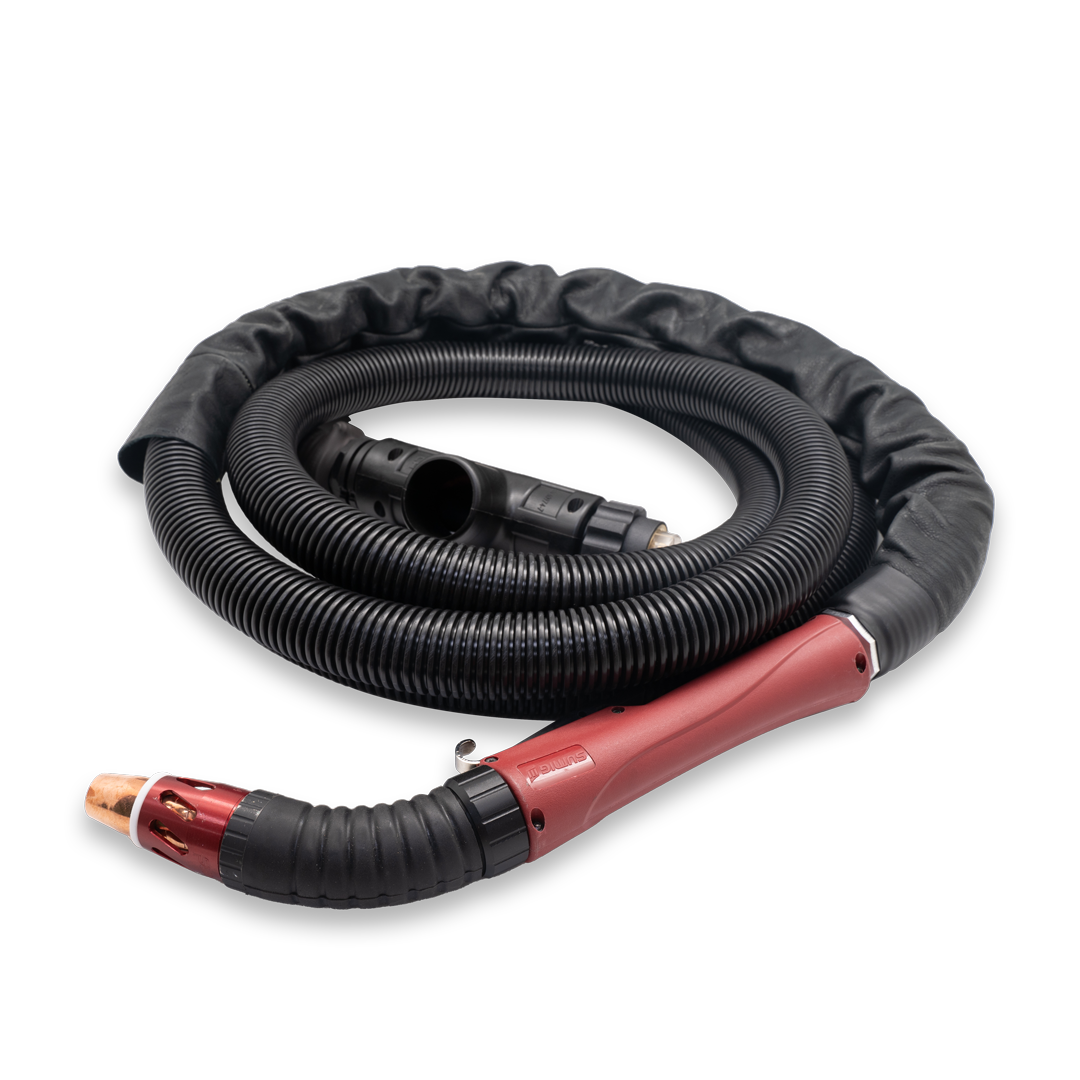

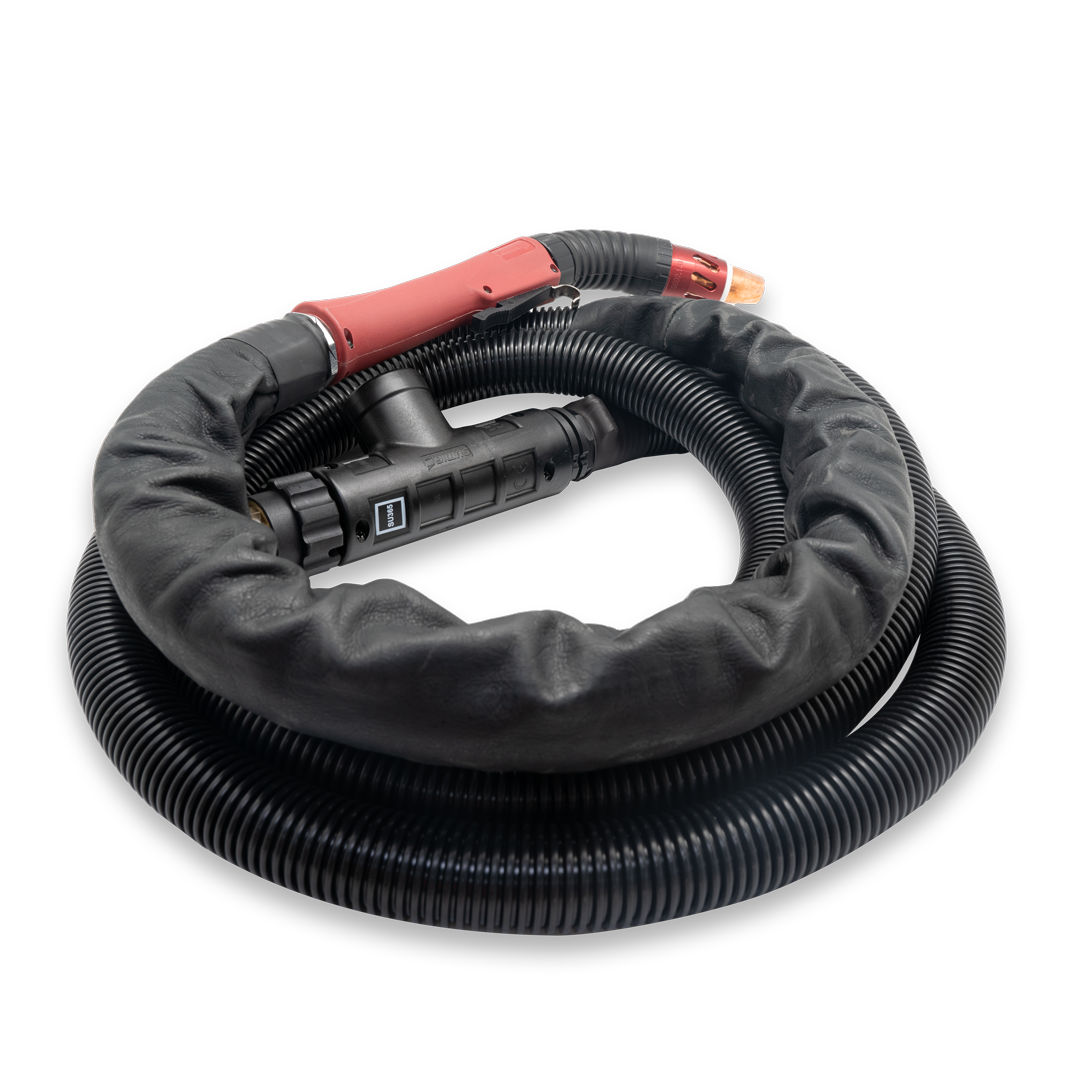

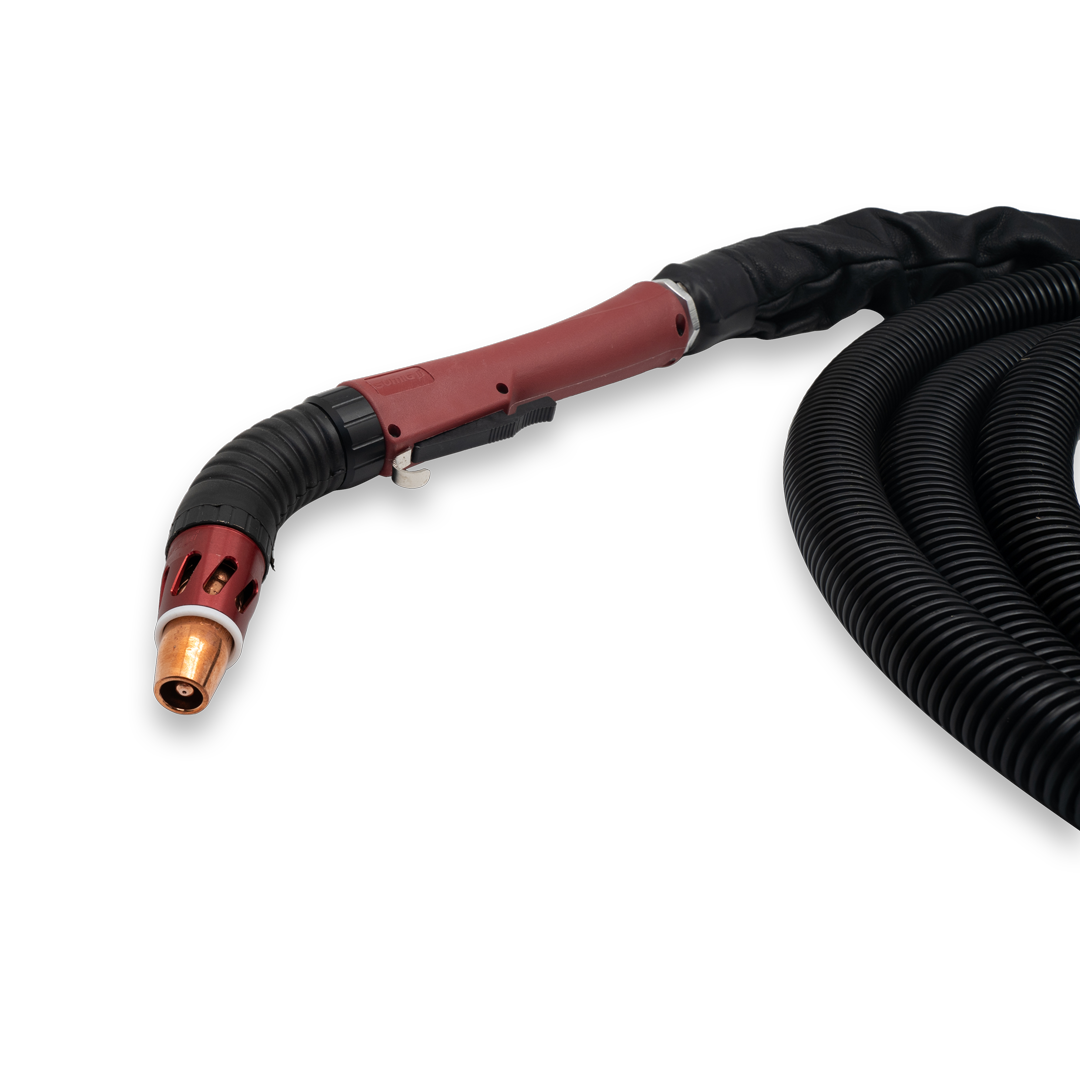

Air cooled euro connection fume extraction Mig torches, designed for use in conjunction with fume extraction system
Reduced weight for operator
Long handle, with swivel bracket, compatible with short, medium and long trigger
Various types of aluminum exhaust nozzles - tapered or inverted for different applications
Equipped with exhaust control
Optional welding tips for hard-to-reach places
Perfect for closed or poorly ventilated environments
Suitable for use with solid, flux core, aluminium and stainless steel wires
Duty cycle - 325A @ 60% (CO2), 285A @ 60% (Argon/Mixed gas)
Suitable to use with wires from 0.8mm to 1.2mm
Available in 3M or 4.5M length

Resources

Downloads

Overview

Specifications

Cooling / Air Cooled
Rating - CO2 / 325A
Rating - Mixed Gas / 285A
Wire Diameter / 0.8 - 1.2mm
