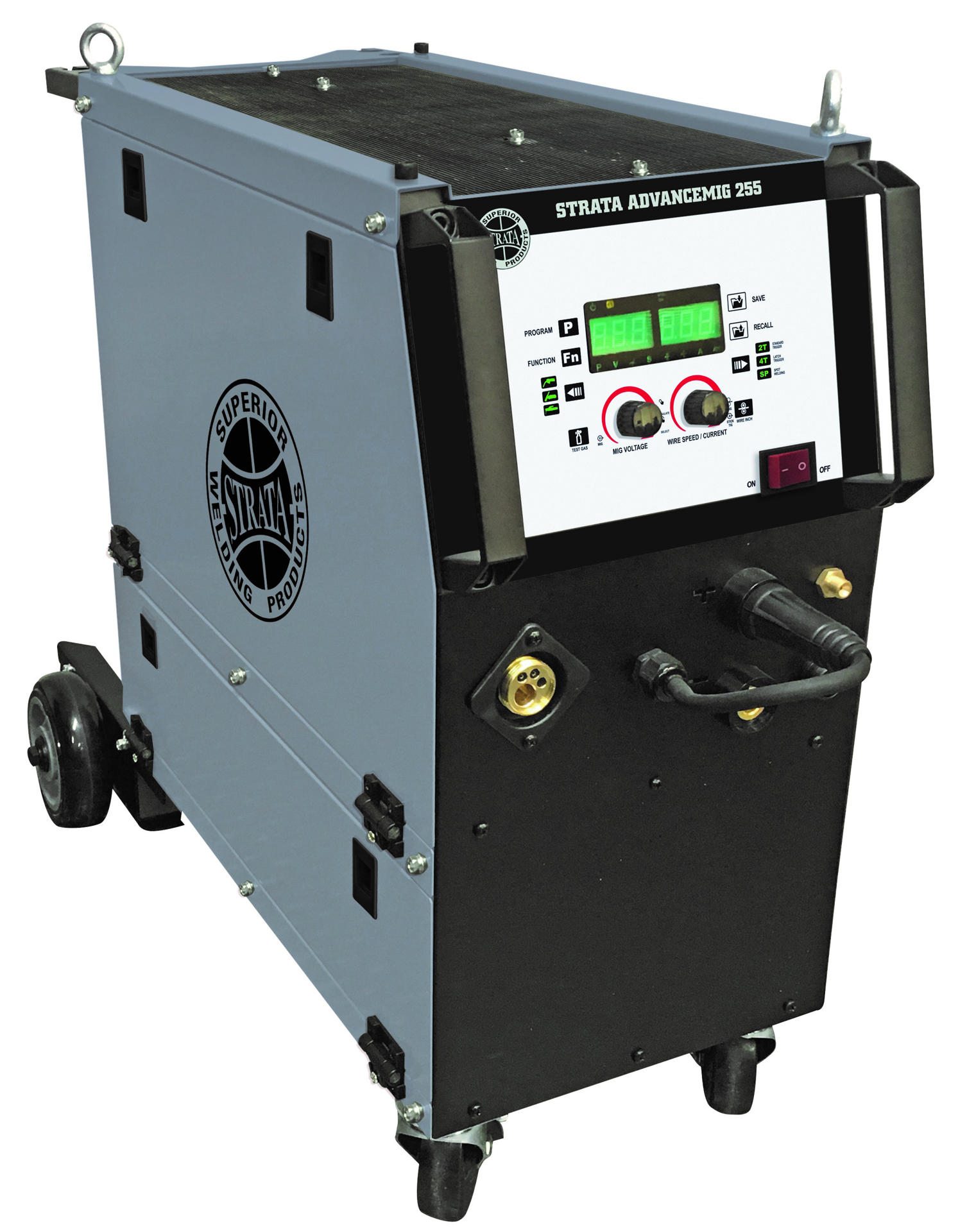

Strata MIG Welder ADVANCE MIG 255

Be the first to review this product
Free Shipping
Strata /
SKU: 21362

Strata AdvanceMig255 250amp Heavy Duty MIG/ARC Inverter Welder. Including 4M Mig Torch, Arc/Earth Lead Set, Heated Co2 Regulator.

Replaced by Strata AdvanceMig255C

Overview

Product Overview

Consistent, smooth and reliable!

  • Single phase, 230V input power
  • Multifunction Powersource: MIG, TIG, ARC capabilities - Suitable for a wide range of welding tasks.
  • Latest IGBT inverter technology for high efficiency and reliability with smooth welding output.
  • Sturdy Integrated Wheeled Trolley gives portability and protection for workshop environments with gas cylinder mounting tray and on-board storage compartment.
  • Heavy Duty Aluminium 4 Roll Wire Feeder for consistent, smooth and reliable wire feeding.
  • Synergic MIG operation with parameter save/recall function - intuitive & simple setting of controls for consistent weld results.
  • Spool Gun Connectivity for Aluminium welding capability and access for difficult welding locations.
  • Reversible welding polarity connection - Suitable for Gas & Gasless MIG operation.
  • Strong environmental protection against moisture, salt spray and corrosion.
  • Intelligent protection system for increase reliability & safety.
  • Designed to work with generator power supply and protect from power surges.

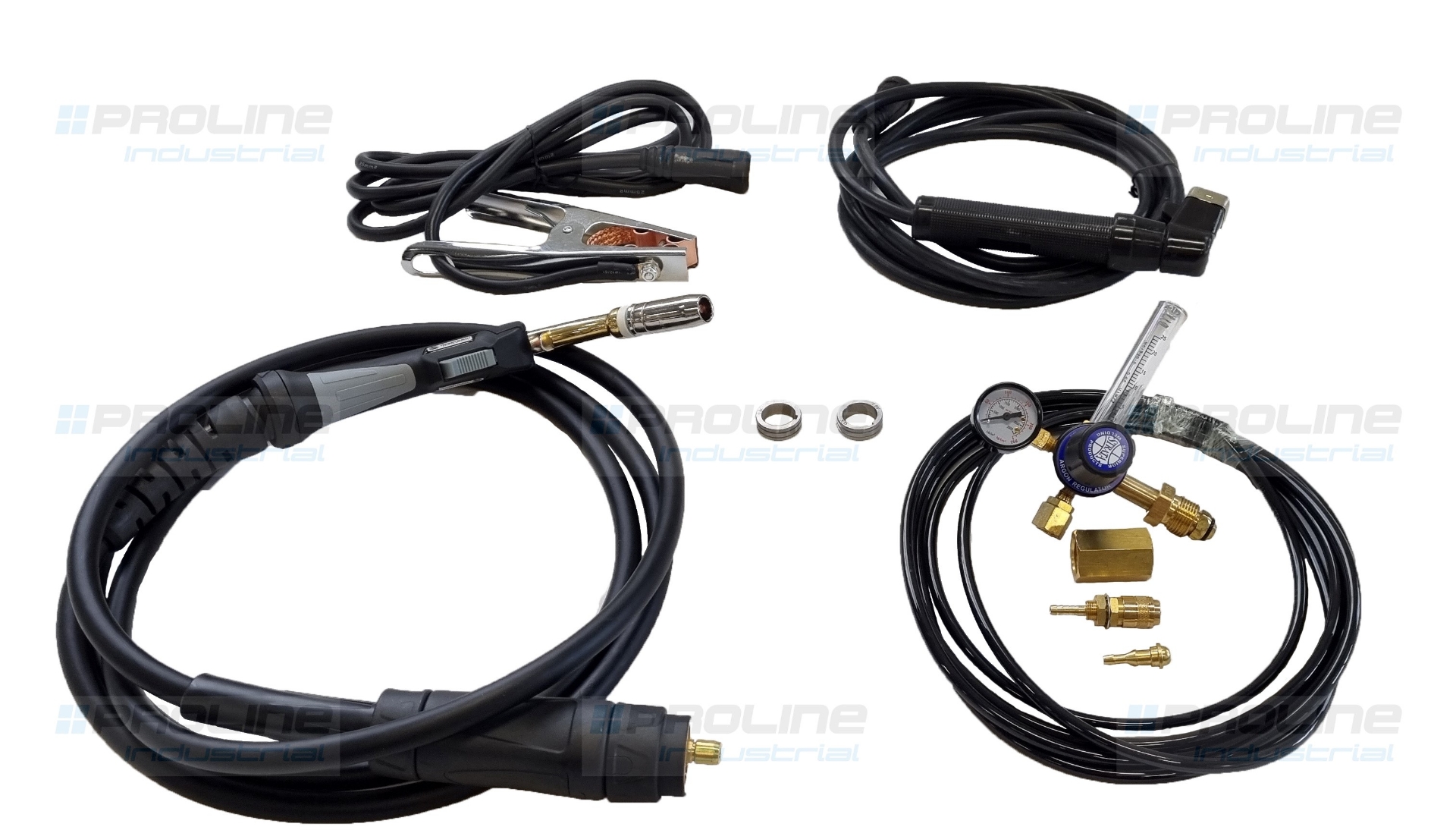

  • Includes Professional MIG Torch, Earth Lead with Heavy Duty Earth Clamp, MMA Lead with Twist Lock Electrode Holder, Argon Regulator/ CO2 Cylinder Adaptor and Gas Hose



Replaced by Strata AdvanceMig255C

Resources

Downloads

Overview

Specifications

Function / MIG / ARC
No Load Voltage ARC / 58V
Wire Diameter / 0.6mm - 1.2mm
Feeding Speed / 2m - 16m /min
Type Of Wire Feeder / Internal
Diameter of Coil / 200mm - 300mm
Input Power / Single phase 230V
Rated Input Power Capacity / 10KVA
No Load Voltage MIG / 26V
Output Current Range MIG / 40A - 250A
Output Current Range ARC / 10A - 250A
Rated Output Voltage MIG / 16V - 30V
Rated Output Voltage ARC / 20V - 30V
MIG Duty Cycle / 60% @ 195A
Power Efficiency / 0.85
Power Factor / 0.99
Max Weld Thickness / 12mm
Rod Diameter / 1.6mm - 5.0mm
Your Questions Answered

FAQ's

What welding processes can this machine perform?

Can this welder be used for aluminium?

Is it suitable for both gas and gasless MIG welding?

What makes the wire feeding system reliable?

How does the Synergic MIG function help me as an operator?

Does the welder include everything I need to get started?
