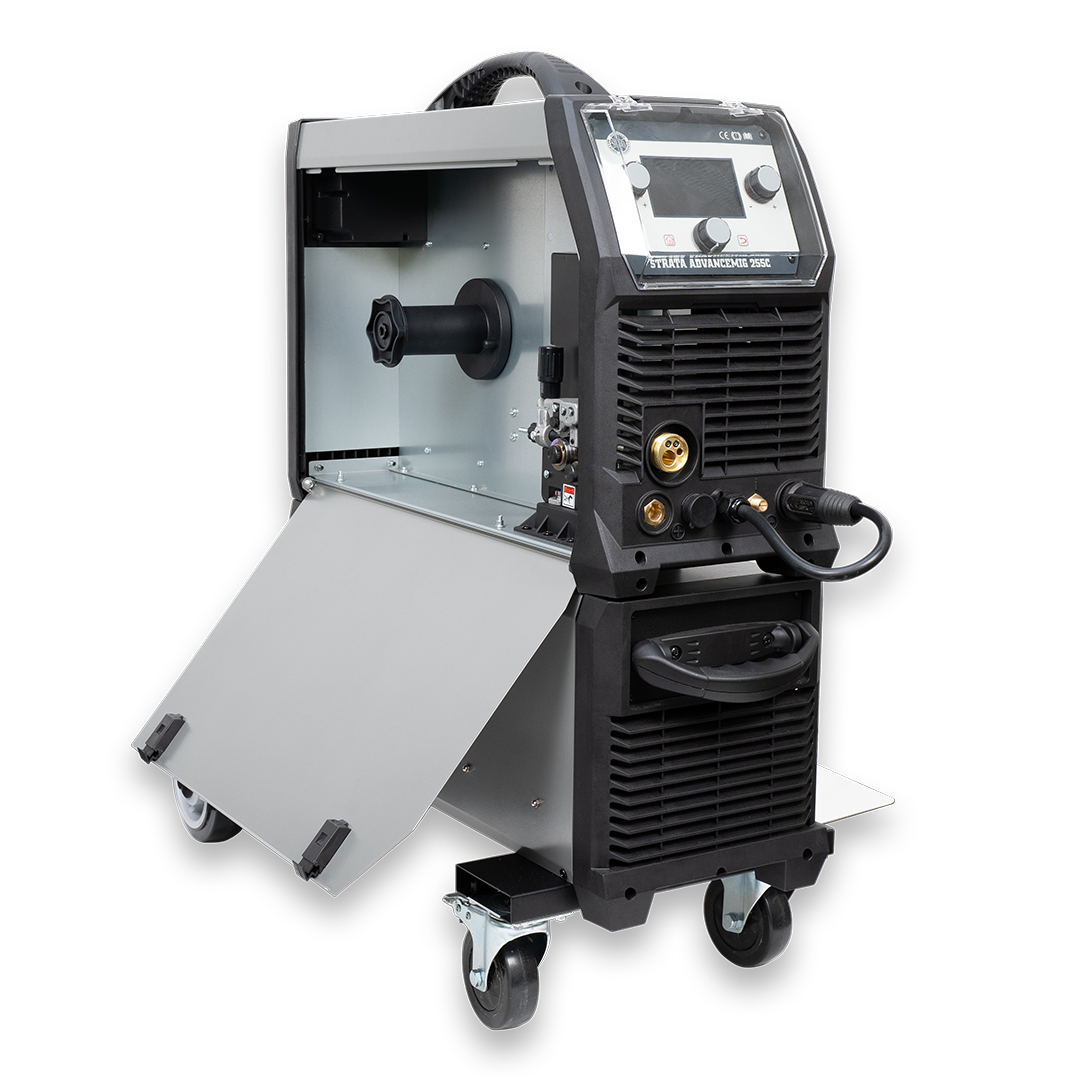

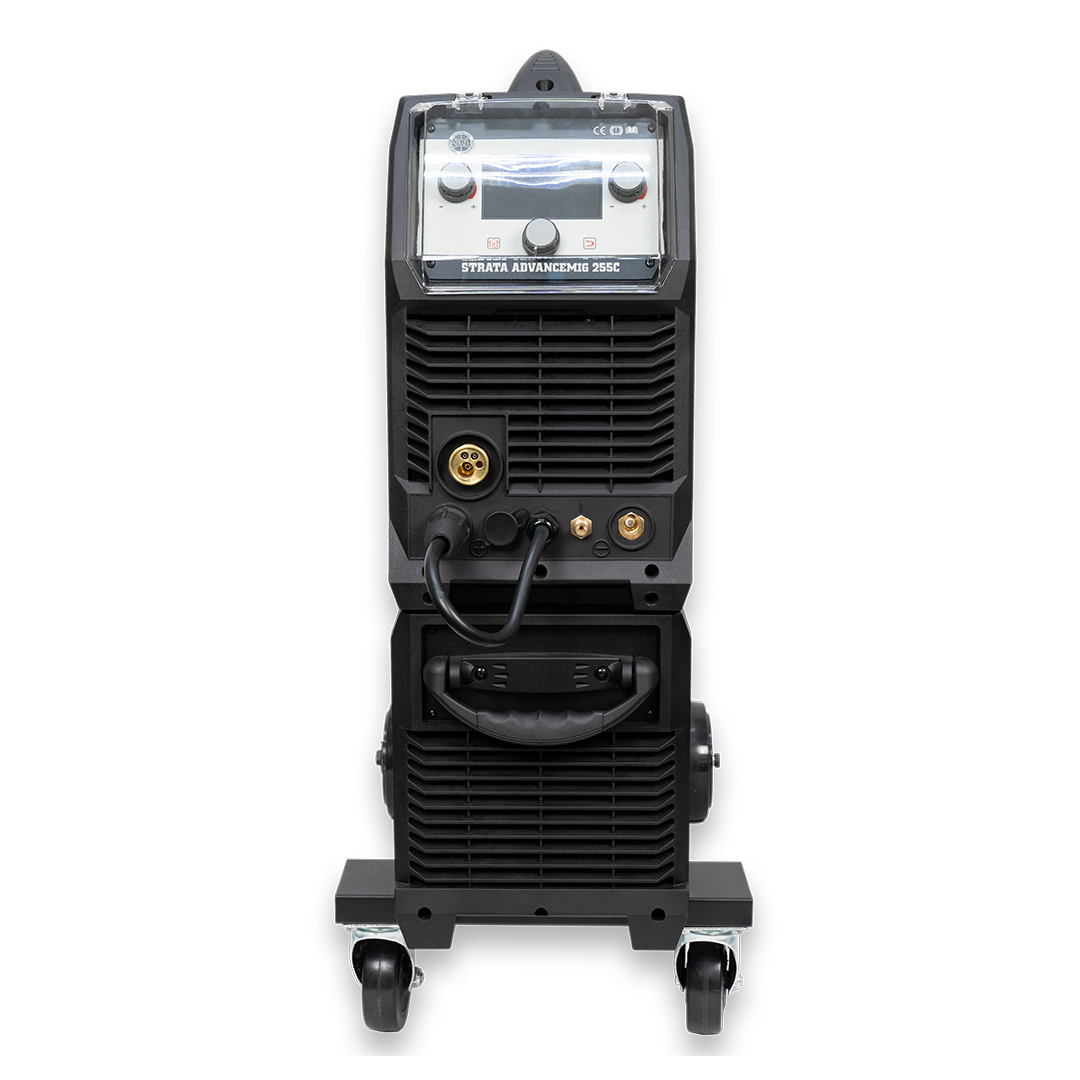

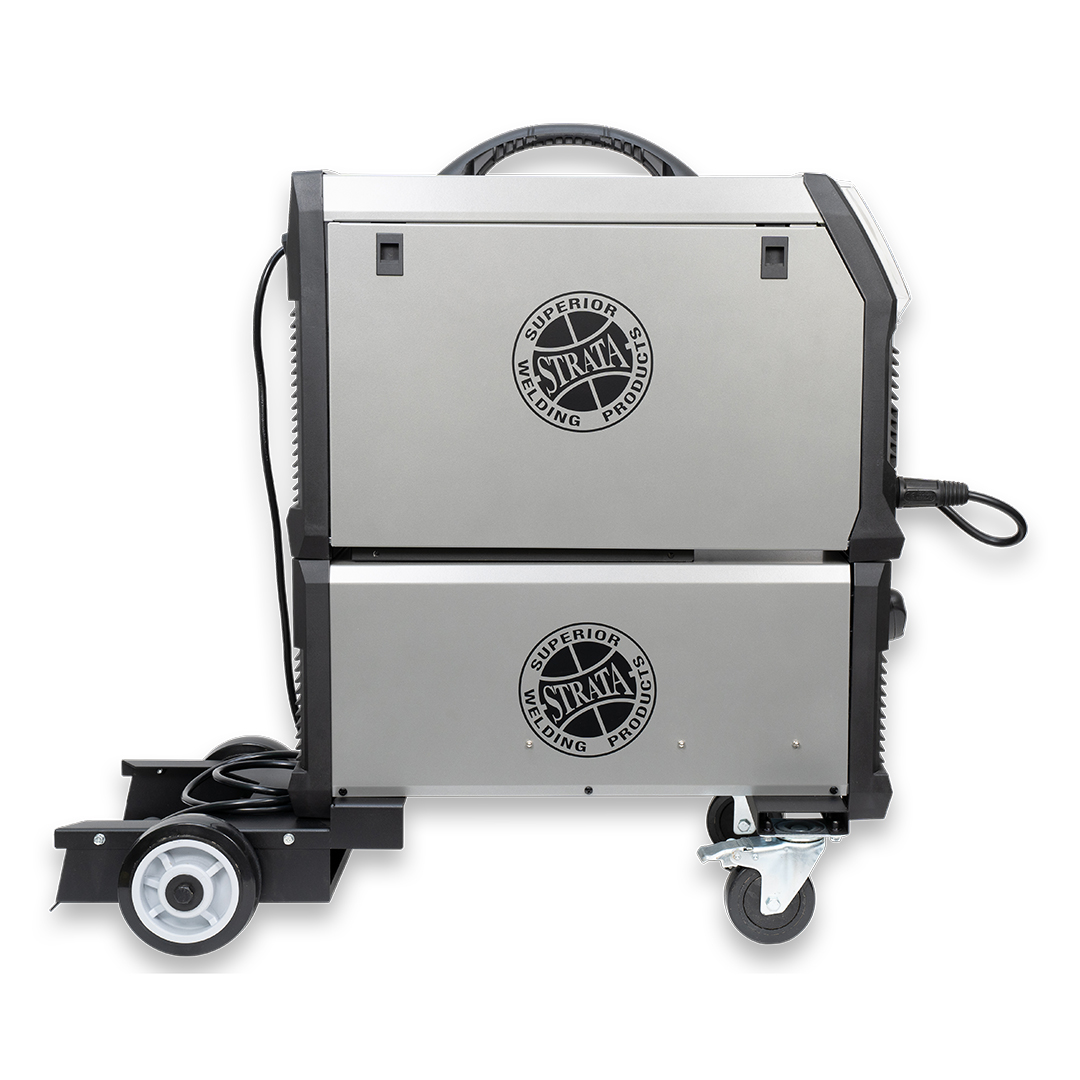

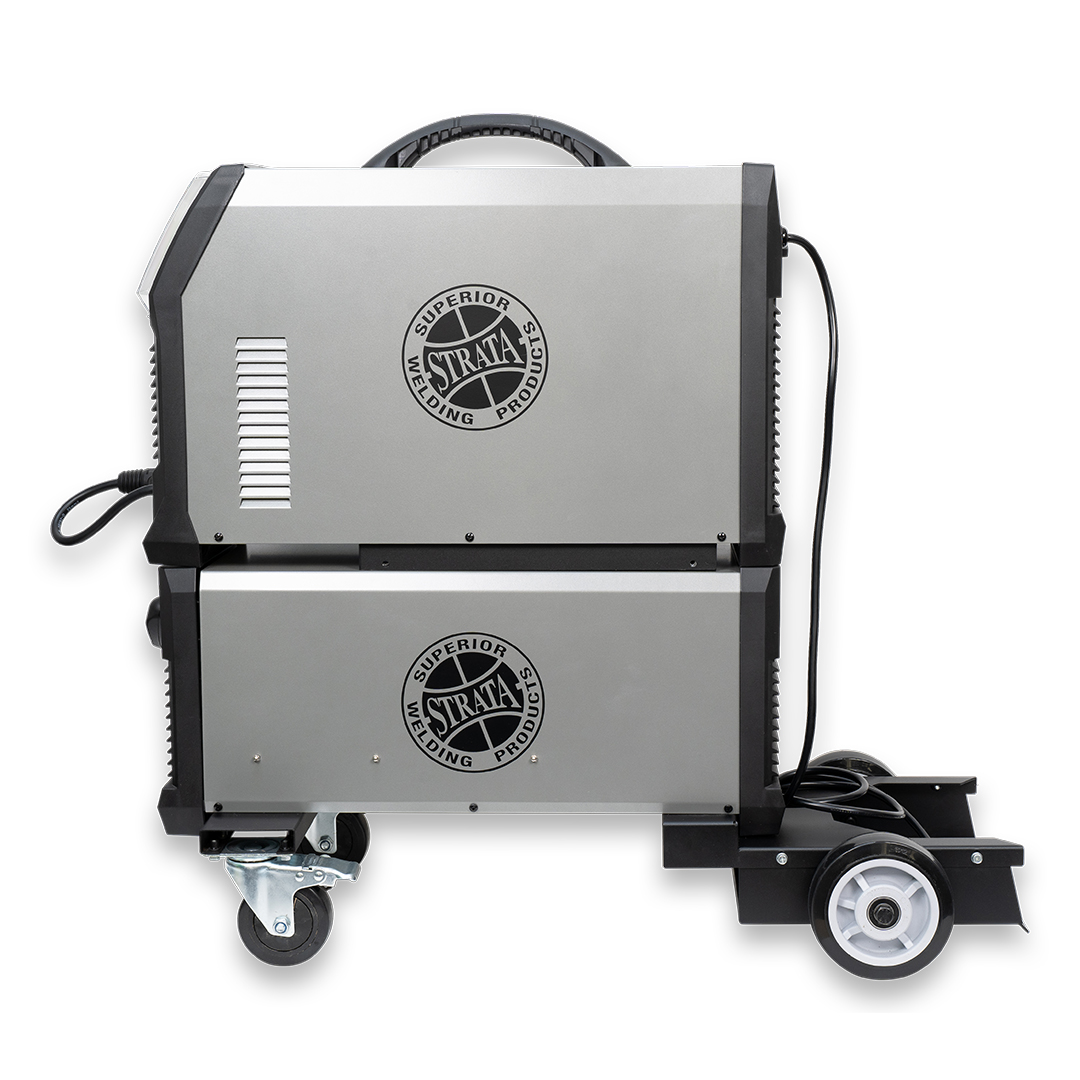

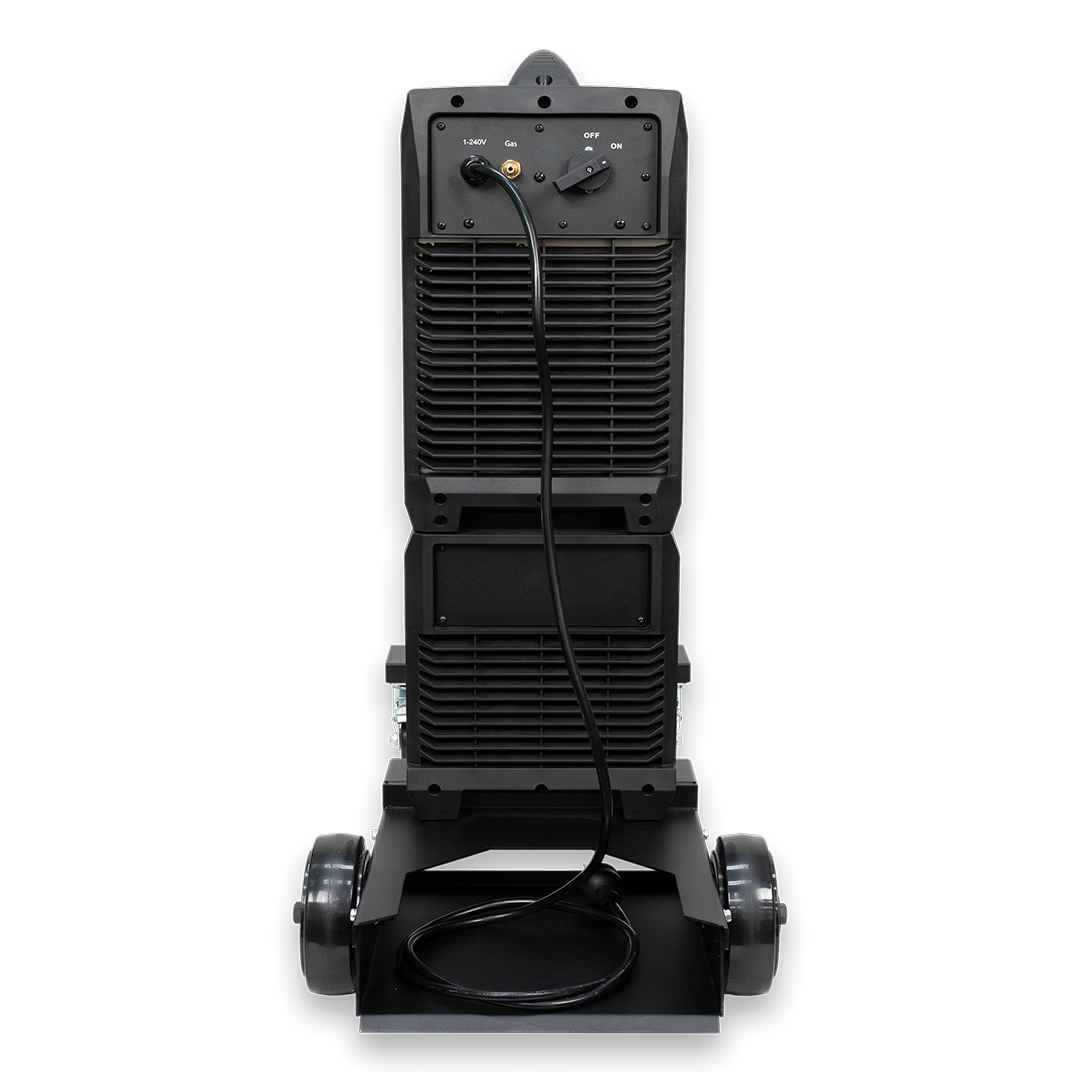

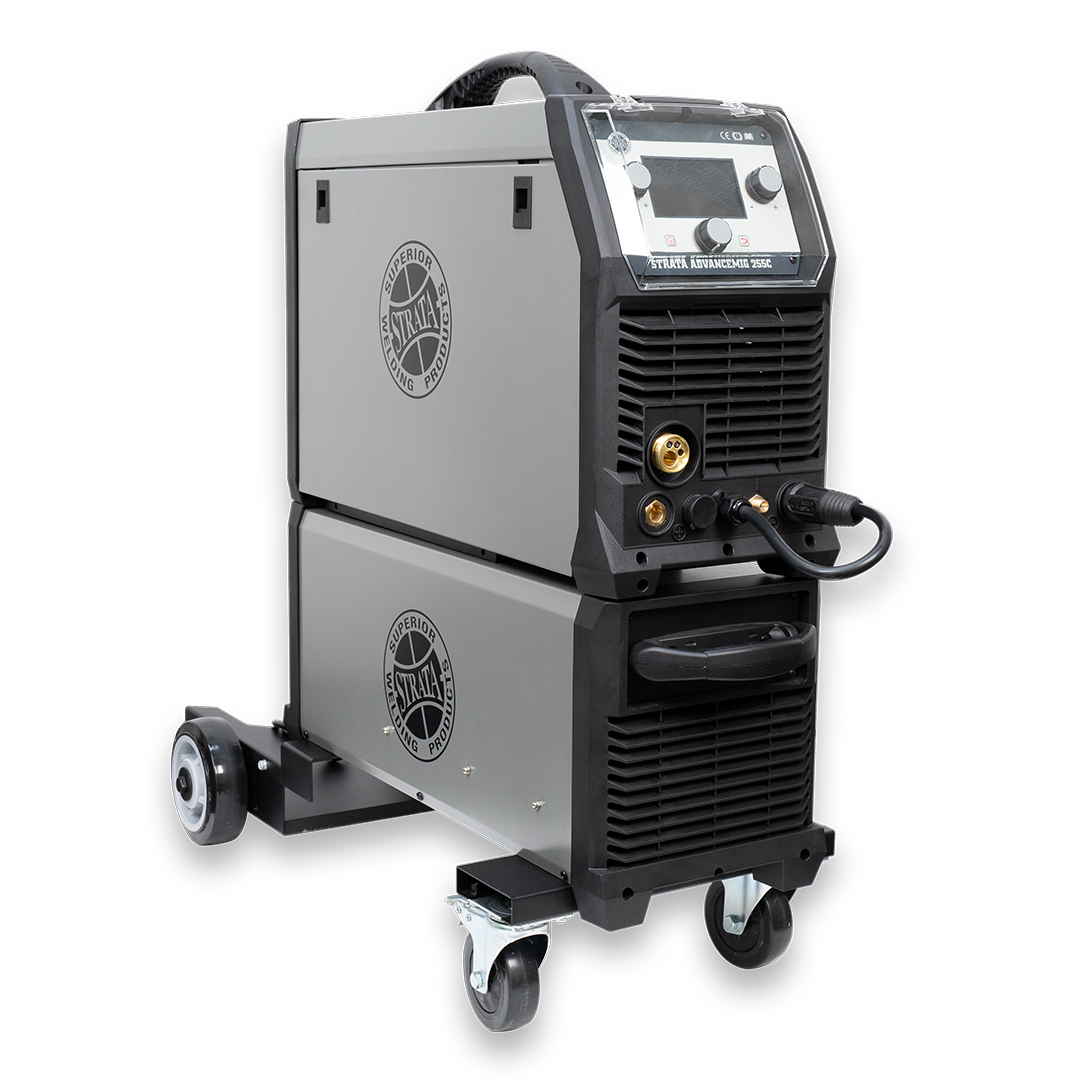

Strata AdvanceMig255C Synergic MIG/MMA/TIG Welder & Trolley Package

Free Shipping
Strata /
SKU: 33721

Strata AdvanceMig255C Synergic MIG/MMA/TIG Welder & Trolley Package C/W Compact Mig Welding Trolley, Arc/Earth Leads, MB25 Mig Torch, 2 Stage Flowmeter, Argon Gas Regulator, Gas Hose & Mig Drive Rollers

$ 2,795 .00 Excl GST
$ 3,214.25 Incl GST

or 4 interest-free payments of $803.56 with

afterpay-icon afterpay-icon
Overview

Product Overview

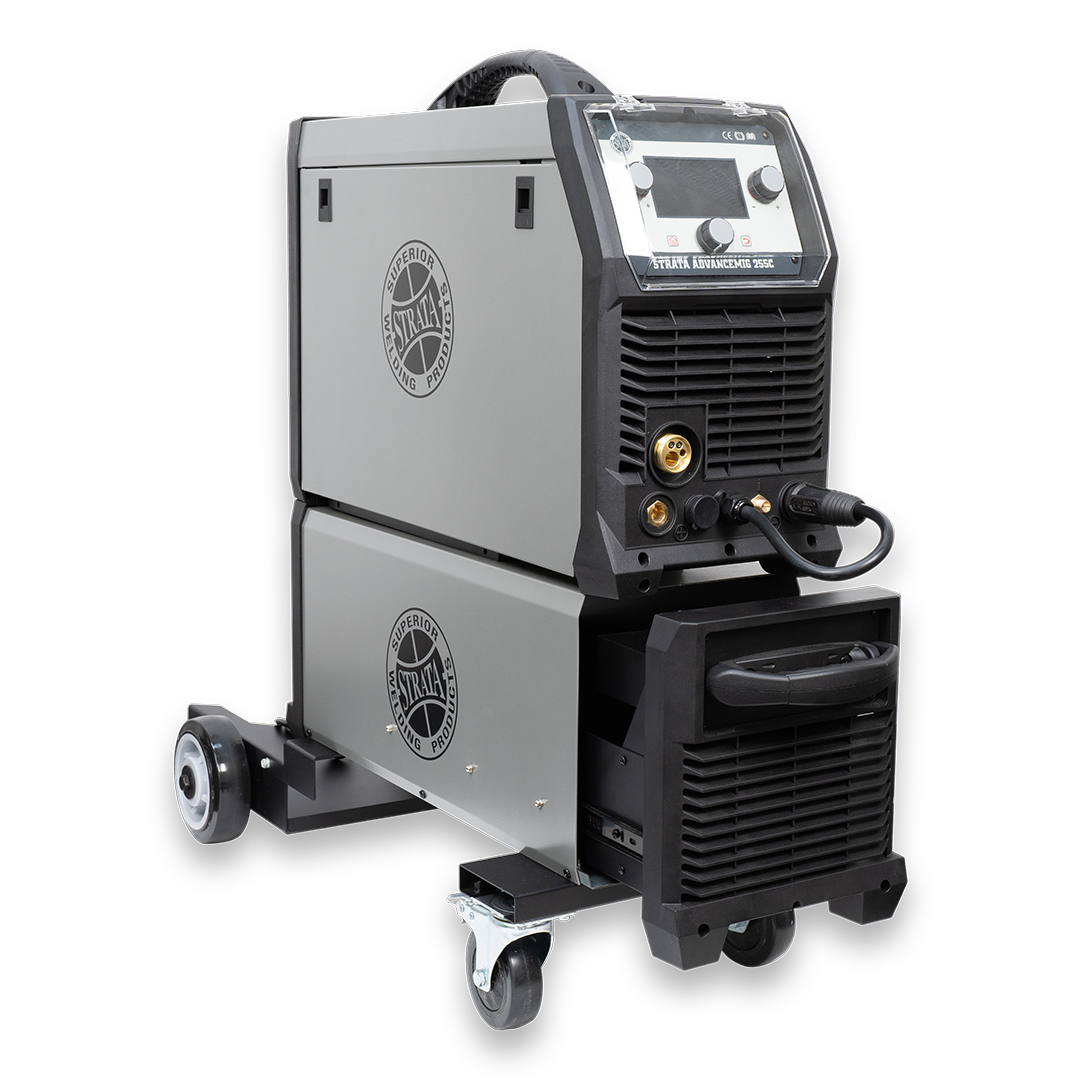

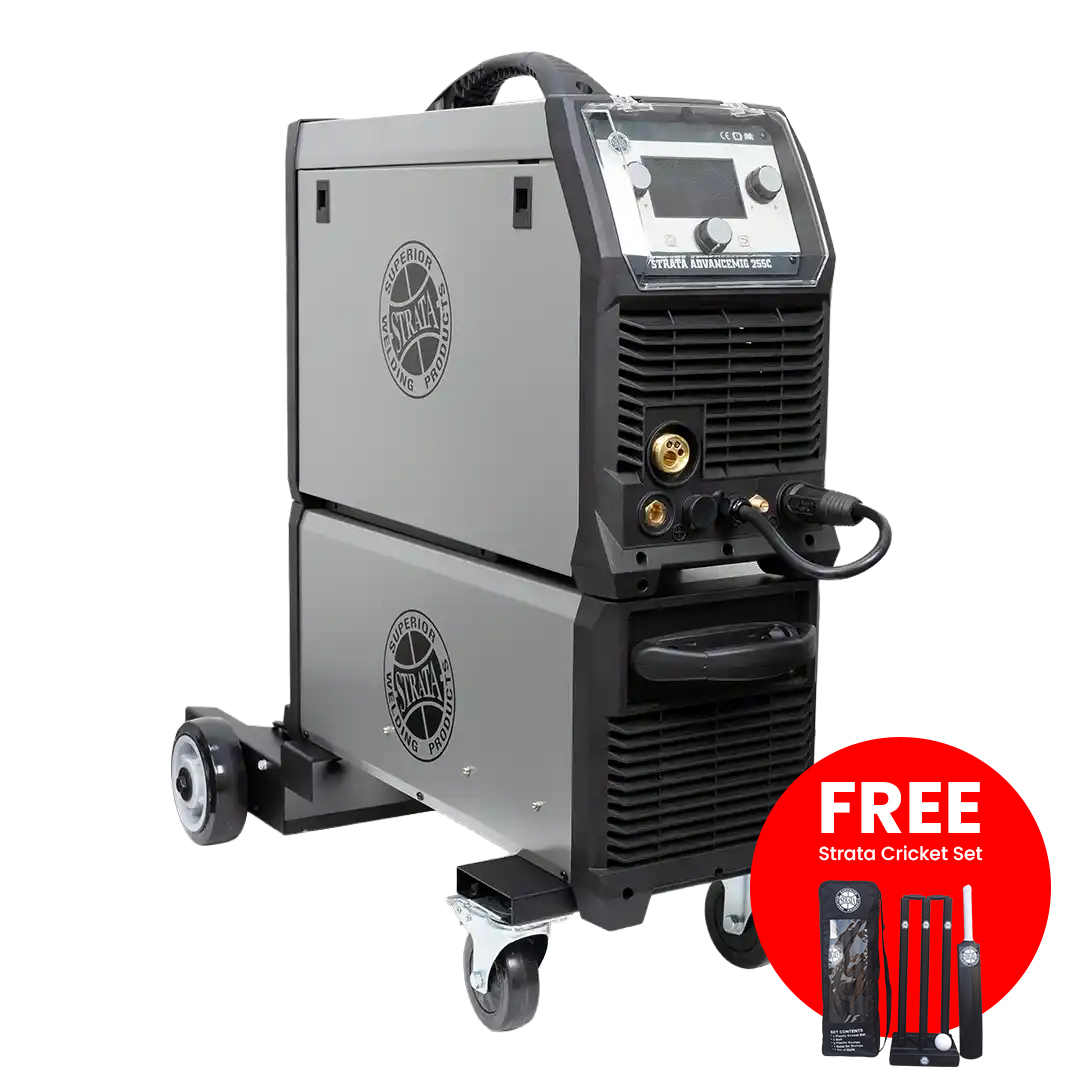

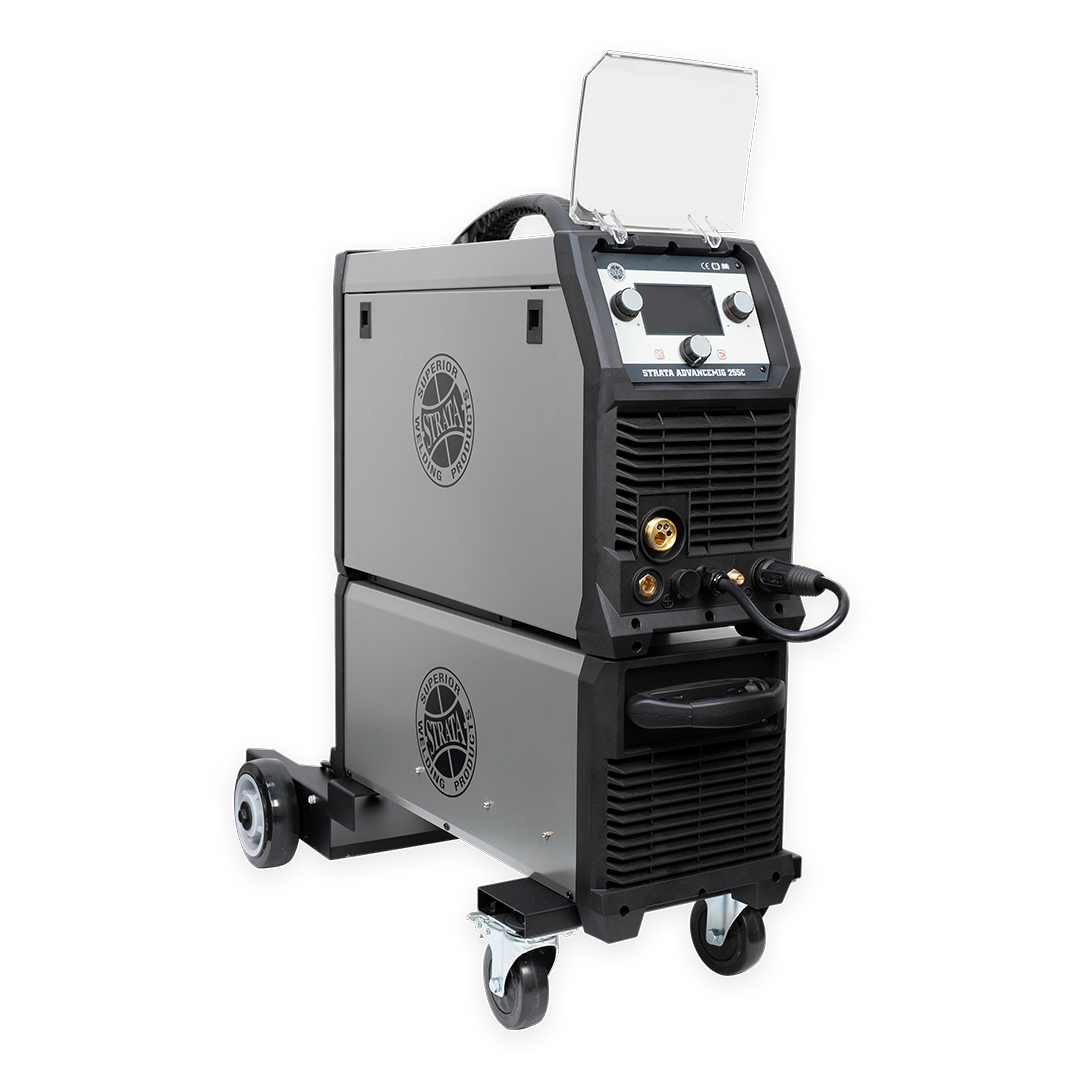

Strata AdvanceMig255C Synergic MIG/MMA/TIG Welder & Trolley Package

With IGBT and PFC technology the ADVANCEMIG 255C is a multi-process welder suited to a range of jobs and a must have for any industrial professional. High quality over specified electronics, extreme stress testing up to 440V and IP23 protection mean this machine is built to withstand the harshest of environments found in the NZ workplace.

Key Features

  • Digital microprocessor control system with superior & dynamic arc characteristics
  • Multi voltage input - will operate with wide range of input voltage, can even be used with long extension leads

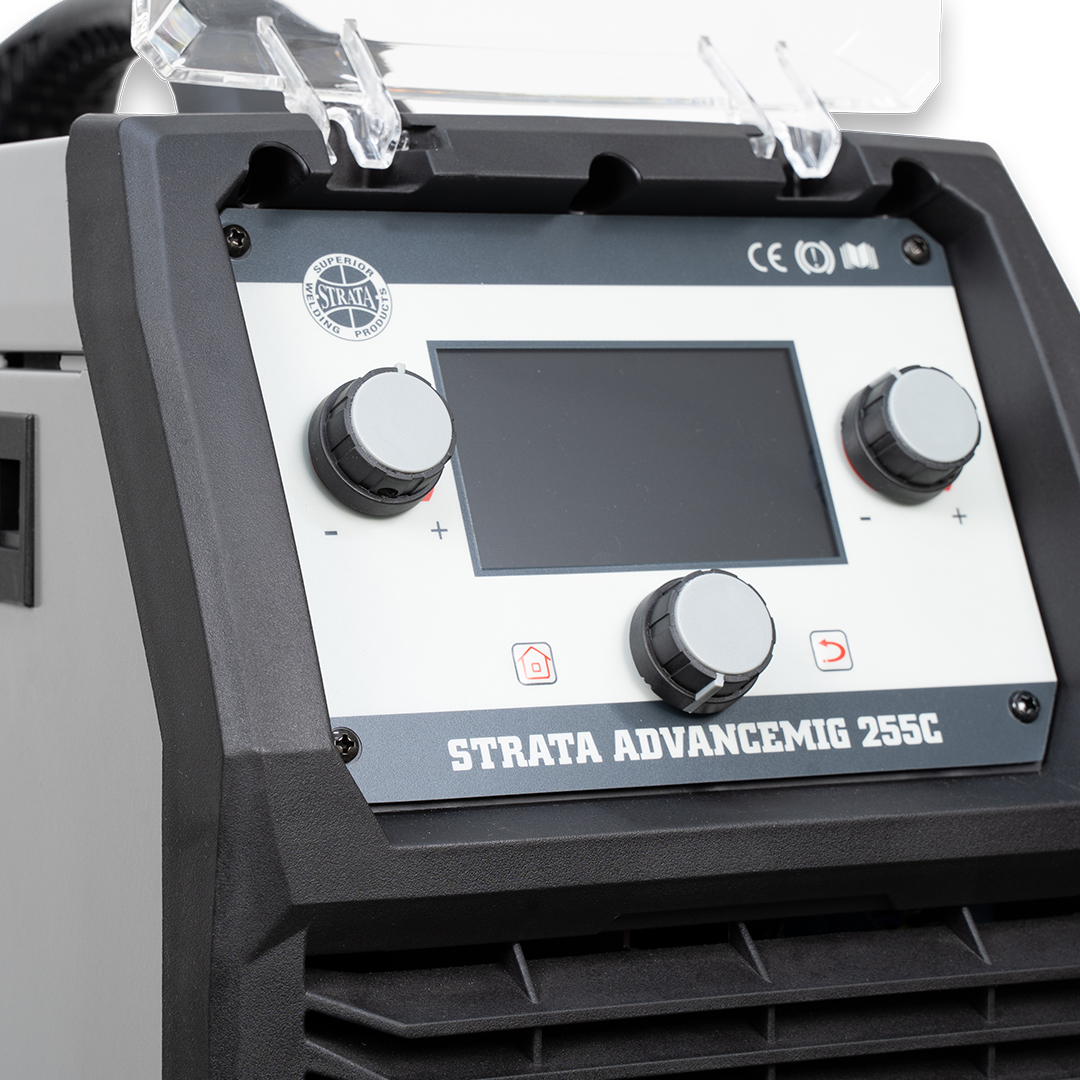

  • Smart full colour LCD display for a clear and intuitive display of all welding and setting parameters
  • Synergic MIG operation with parameter save/recall, an intuitive, simple setting of controls for consistent welding results
  • Lift TIG operation with down slope and remote current control ability (optional torch available)

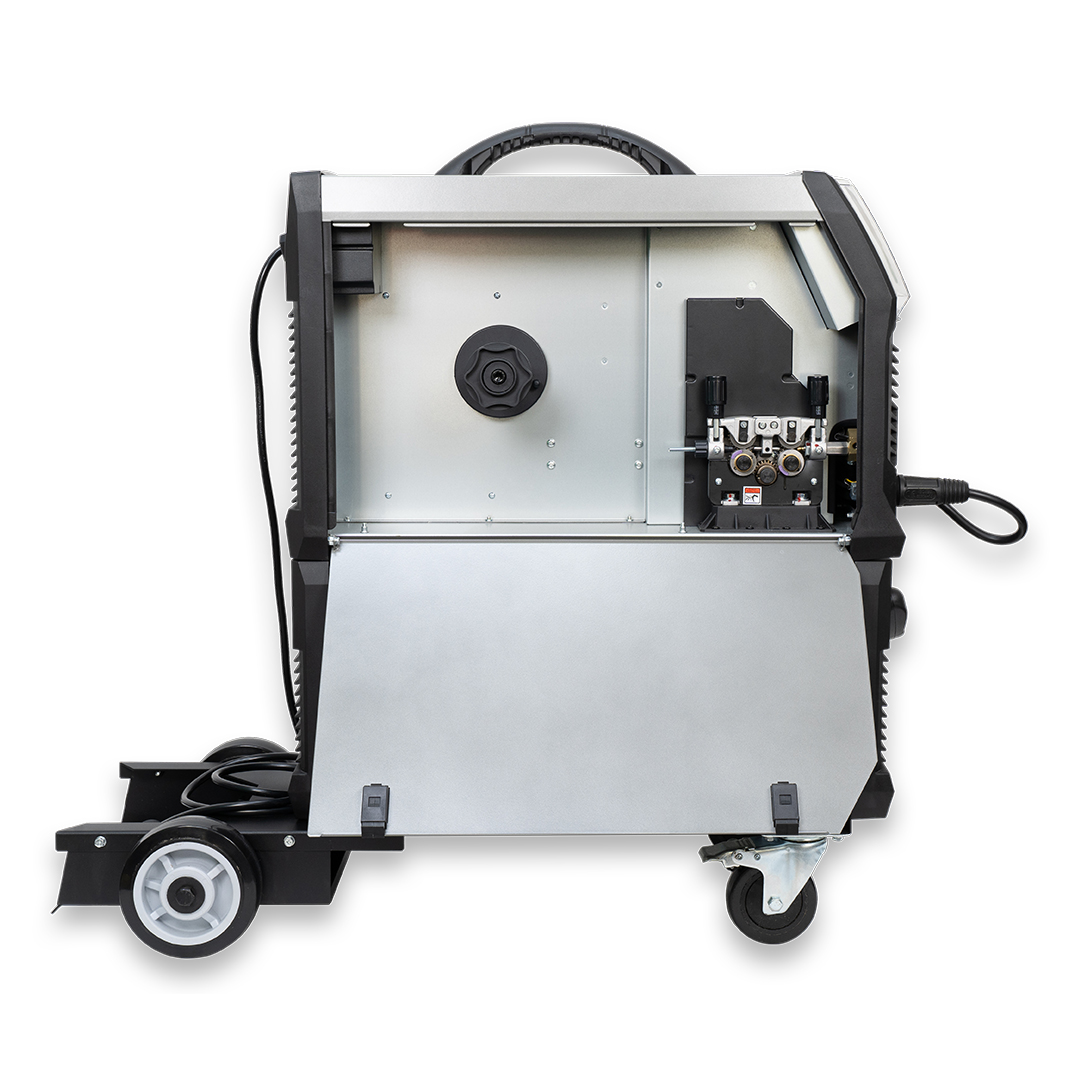

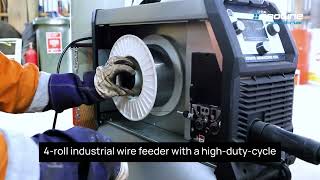

  • 4 Roll geared metal wire feeder unit provides a powerful and smooth wire feed
  • MIG waveform (inductance) gives good control of the arc for smooth welding results
  • Lightweight & compact design ideal for portable applications
  • Intelligent protection system with temperature, voltage and current sensors for increased reliability & safety
  • Designed to work with generator power supply with protection from power surges.

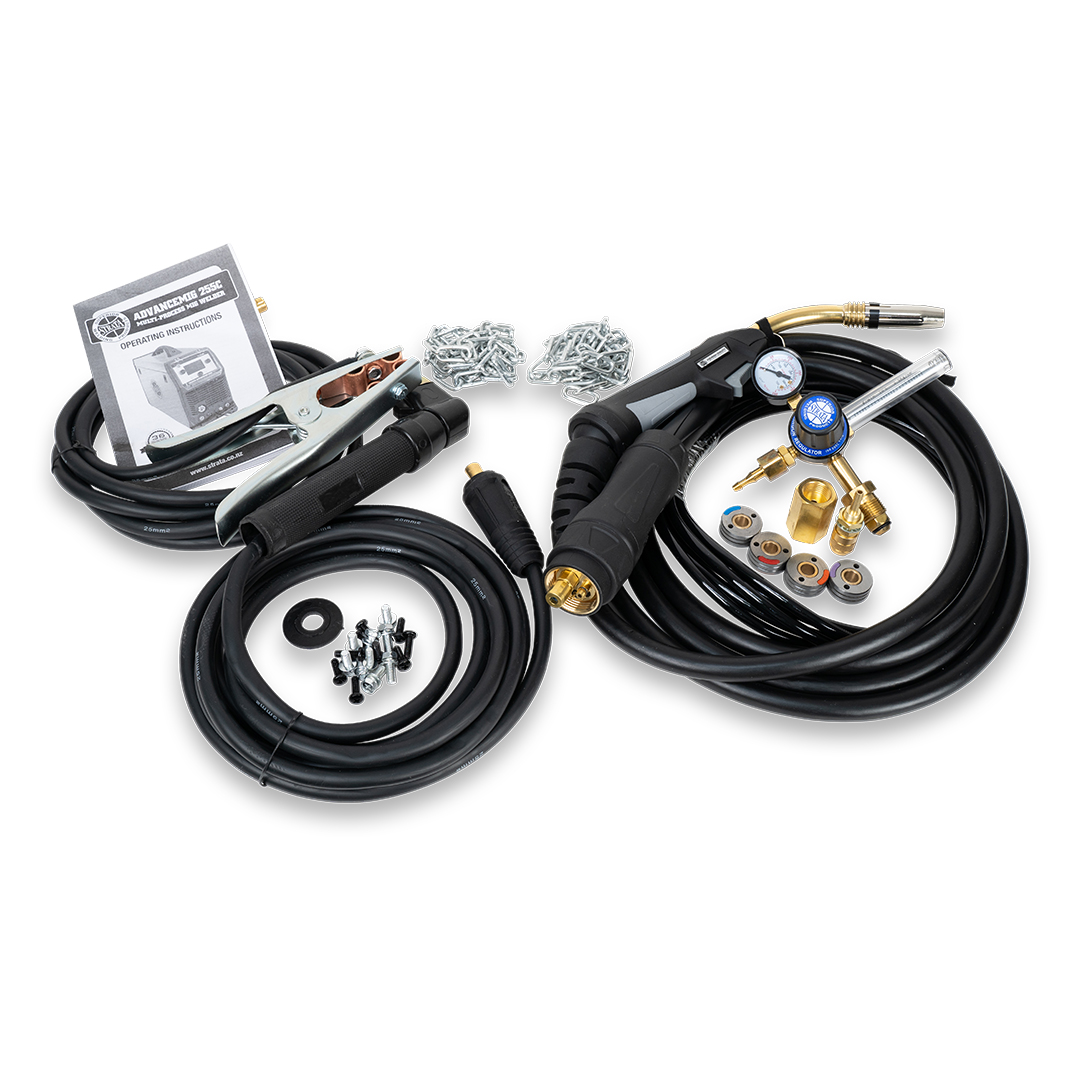

Contents

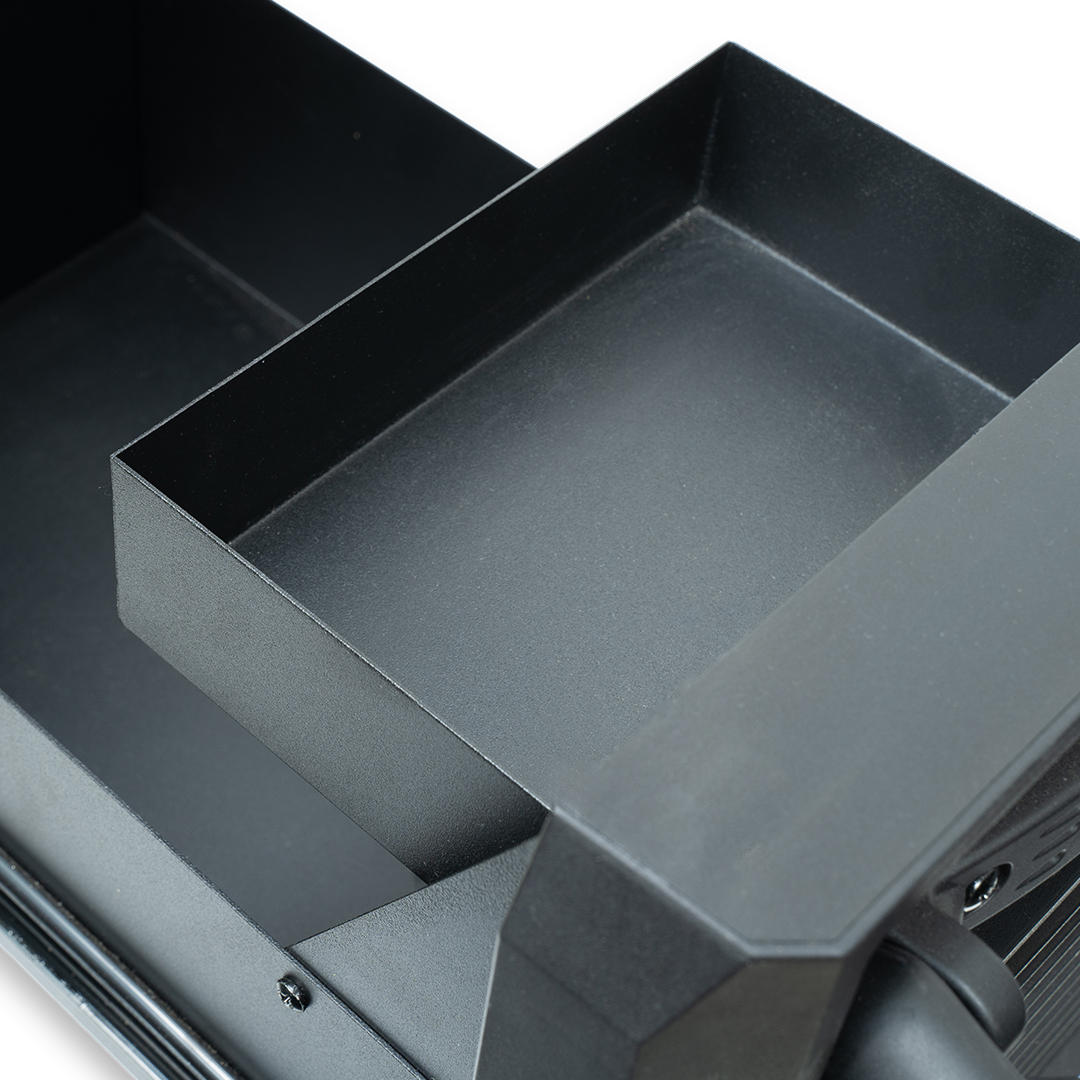

  • Compact Mig Welding Trolley
  • 3M Earth Lead with Heavy Duty clamp
  • 4M Arc Lead with Heavy Duty Twist Lock Electrode Holder
  • 4M MB25 Mig Torch
  • 2 Stage Flowmeter
  • Argon Gas Regulator
  • Adaptor
  • 4M Gas Hose
  • Gas Inlet Quick Connector
  • Hose Clamps
  • 2x V groove drive roller 0.6 - 0.8mm
  • 2x V groove drive roller 0.9 - 1.0mm
  • 2x Knurled drive roller 0.8 - 0.9mm
Overview

Specifications

Dimensions / 680x230x445mm
Weight / 25kg
Input Power Supply / 230V AC 15A 50/60Hz
Input Power Tolerance / 90V-275V AC
Maximum Input Current / 41A
Generator Capacity / 10kVA
MIG Output Voltage / 10V - 30V
MIG Output Current / 25A - 250A
MIG Duty Cycle / 250A@16%, 195A@60%, 150A@100%
MIG Drive Rollers / 0.6/0.8/0.9/1.0mm V Groove, Knurled 0.8/0.9/1.0mm, U Groove 0.8/1.0mm
Spool Size / D200/D300 5kg/15kg
MMA Current Output / 10A - 250A
MMA O/C Voltage / 65V
MMA Duty Cycle / 250A@13% 180A@60% 140A@100%
Insulation Class / IP23
Standards / EN60974-1:2012
MMA Rod Size / 1.6 - 5.0mm
Warranty / 36 months* with product registration
Power Efficiency / 80%
Power Factor / 0.99
