XTP2000ACDC Strata 200A Tig

XTP2000AC/DC - Strata 200A AC/DC TIG Pulse / ARC Inverter Welder Package.\r\nIncludes 8M V-Amp Tig Torch, Arc/Earth Leads, Gas Regulator & 24 Month Trade Warranty.

SKU: 201364

Please give us a brief description of your intended application (we may have a better solution.)

Overview
Specifications
Reviews
Contact Us
Downloads

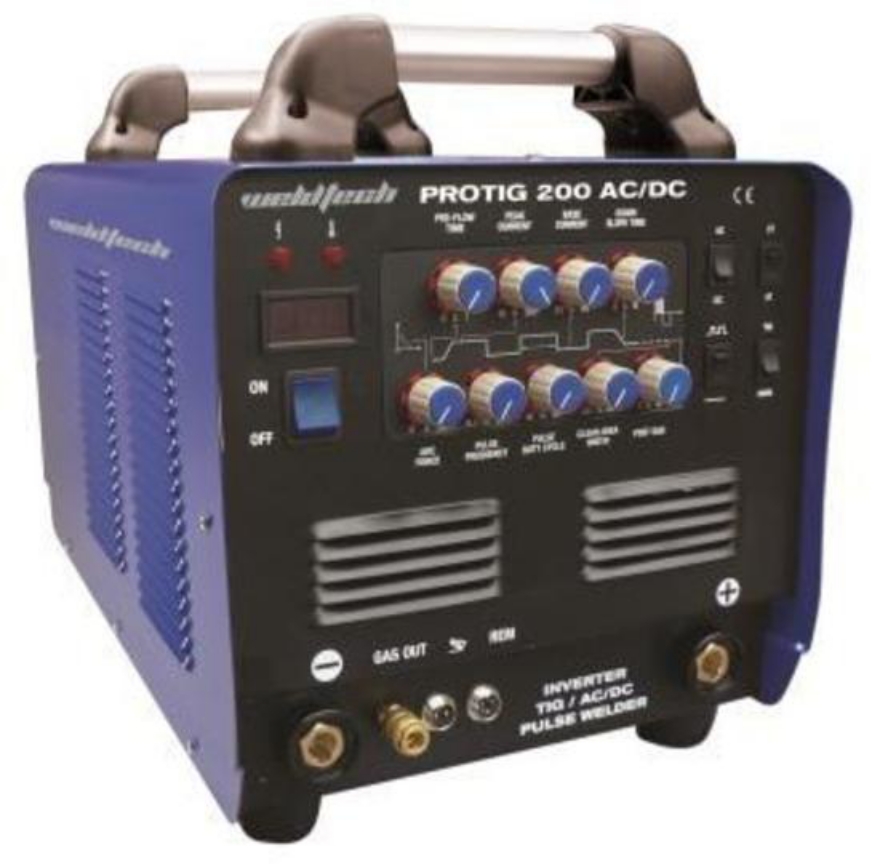

The PROTIG 200 AC/DC offers a solid 200A MMA (ARC welding ability), is designed specifically for industry and incorporates the latest in tig welding technology.

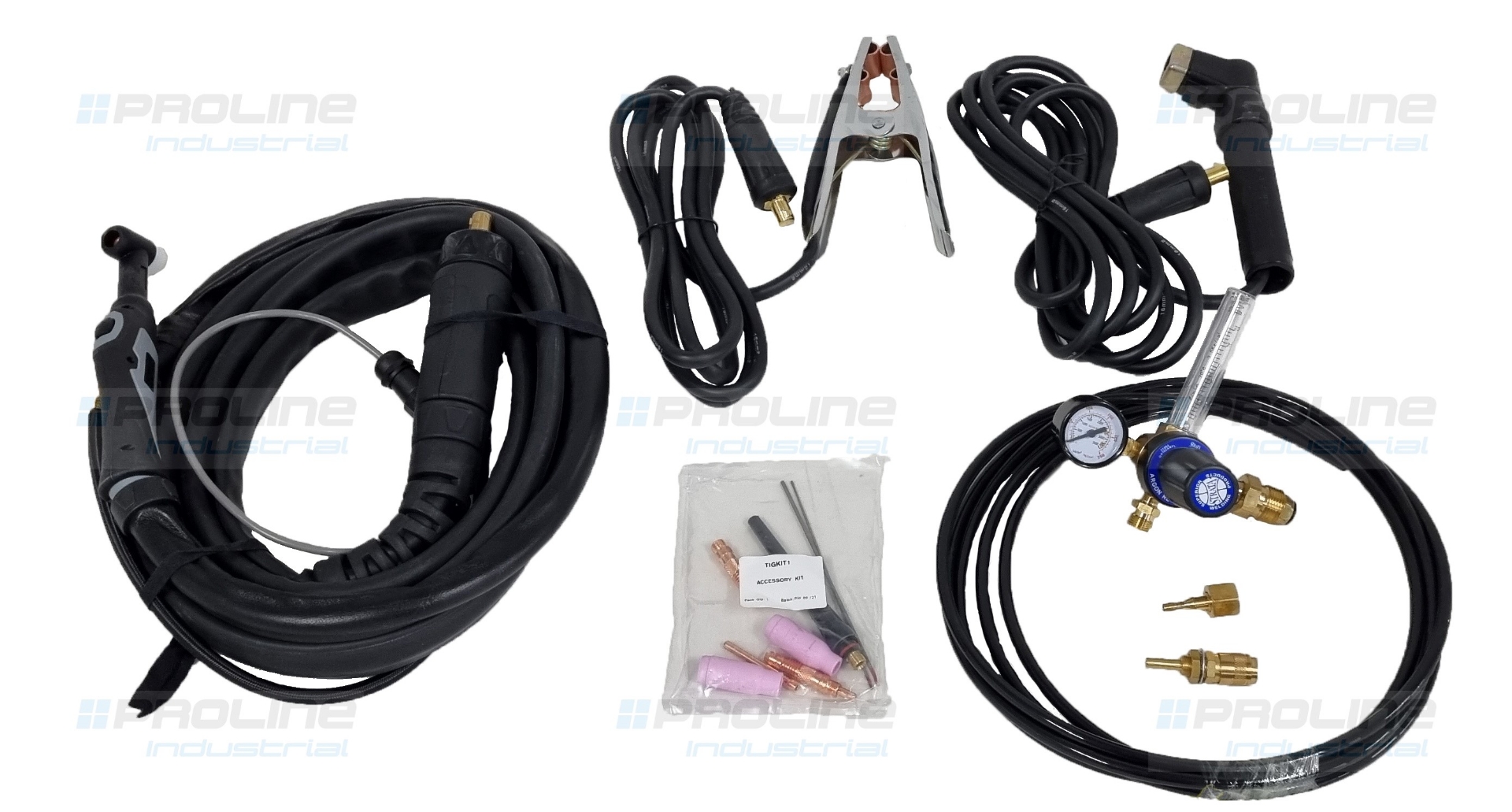

Includes: 8M Torch, Arc/Earth Lead Set, Flow Regulator & 24 Month Warranty.
Foot Pedal Control is an optional extra, please contact our team for pricing on this.

The HF Inverter technology means you have more advantages, smaller footprint, lighter weight and a much higher power efficiency than traditional transformer TIG welders.

Products specifications

Input Power Voltage Freq.	220 +/- 15% 50/60Hz Single phase
Rated Input Power Capacity	3.9(KVA)
No Load Voltage	56
Output Current Range	20 - 200
Rated output voltage	17.4
Duty Cycle	0.4
Insulation Class	F
Weight	20kg)
Dimensions	493 x 330 x 320
Max Weld Thickness	10mm
Rod Diameter	1.6 - 4mm
Postflow Time	2 - 10

Write your own review

Product can be reviewed only after purchasing it
Only registered users can write reviews

Download Instruction Manual

Download Technical Data Sheet

Download Spare Parts List

Download Safety Data Sheet

The HF Inverter technology means you have more advantages, smaller footprint, lighter weight and a much higher power efficiency than traditional transformer TIG welders.

Products specifications

Input Power Voltage Freq.	220 +/- 15% 50/60Hz Single phase
Rated Input Power Capacity	3.9(KVA)
No Load Voltage	56
Output Current Range	20 - 200
Rated output voltage	17.4
Duty Cycle	0.4
Insulation Class	F
Weight	20kg)
Dimensions	493 x 330 x 320
Max Weld Thickness	10mm
Rod Diameter	1.6 - 4mm
Postflow Time	2 - 10
