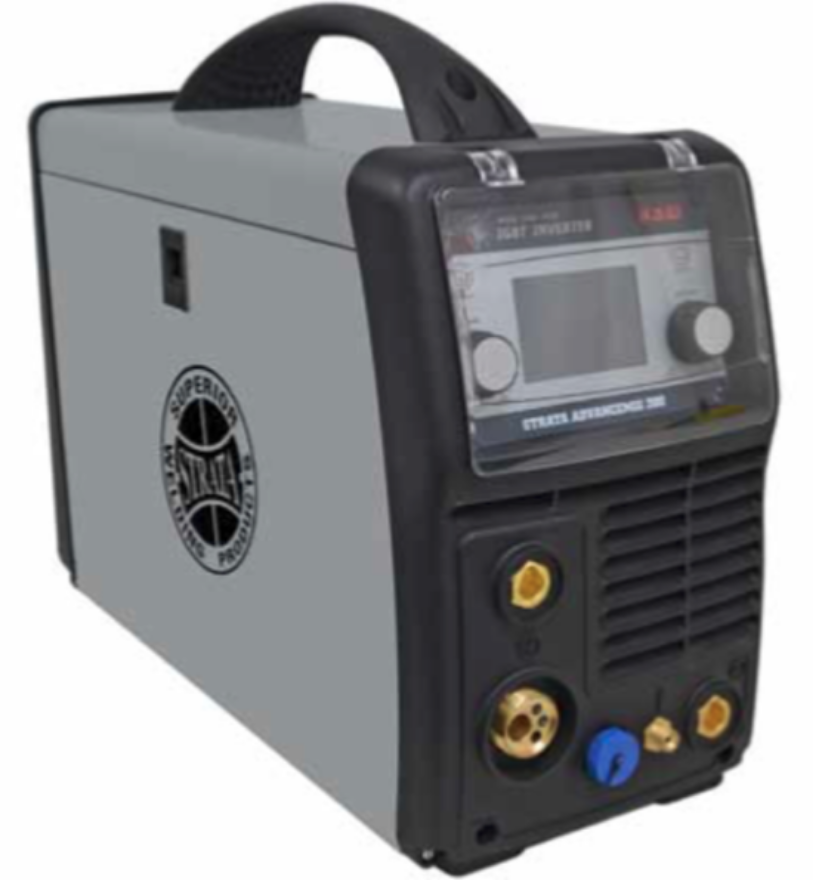

    Strata AdvanceMig200 200A Digital Synergic Inverter

    $2,300.40 excl GST
    $2,645.46 Incl GST
    Strata AdvanceMig200 200A Digital Synergic Inverter MIG/MMA/TIG Welder PFC MV
    SKU: 17382
    Please give us a brief description of your intended application (we may have a better solution.)

    STRATA ADVANCEMIG 200

    200A Digital Synergic Inverter MIG/MMA/TIG Welder PFC MV
    The ultimate single phase synergic MIG welder with full LCD colour screen. Easy set up and operation on an incredible wide range of materials. Lift TIG, spool gun ready and multi voltage capable (operates on an extension cord) are just some of the features the ADVANCEMIG 200 boasts. A must have for todays industrial professional.
    • Professional aluminium chassis wire feeder for smooth and consistent wire feed
    • Active PFC technology for increased duty cycle and energy efficiency
    • Multi voltage input, can even be used with long extension lead
    • Synergic mig operation for optimum welding results every time
    • Remote control spool gun connection for effective results welding with soft wires such as aluminium. Suitable for mig brazing with bronze wires
    • Lift TIG operation with down slope, post gas and remote current control ability
    • Reversable polarity MIG welding operation suitable for gas & gasless MIG welding
    • Voltage reduction device (VRD) for safety
    • Mig waveform (inductance) control for great arc control and smooth welding results
    • Wire inching and gas purge control
    • Safe & simple to set up
    • Adjustable arc force, hot start & automatic anti stick control
    • Full Colour LCD Display
    • High quality & over specified electronic components
    • Durable & reliable Intelligent protection system
    • Temperature, voltage and current sensors for increased reliability & safety.

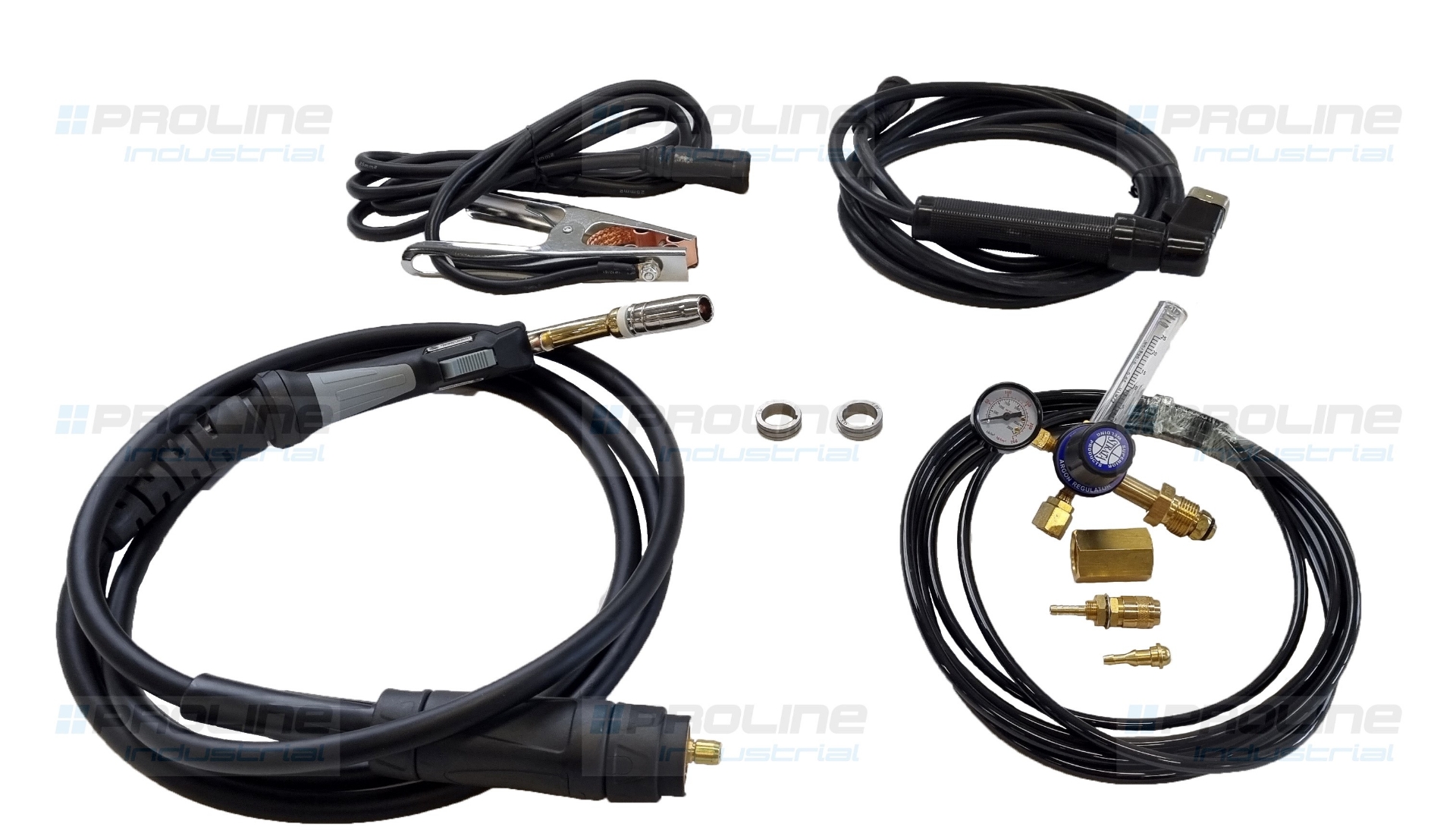

    Accessories/ Contents
    • 3m Earth Lead with heavy duty earth clamp, 4m MMA
      lead with heavy duty twist lock electrode holder, Parweld
      PRO2400-40ER MIG Torch, NZ/Australia Argon Gas
      Regulator, NZ/ Australia Argon Regualtor/CO2 Cylinder
      Adaptor, 4m Gas Hose, Gas Inlet Quick Connector, Gas
      Hose Clamp x2, Wire Drive Roller 0.6/0.8mm ‘v’ groove
      x2, Wire Drive Roller 0.9/1.0mm ‘v’ groove x2, Wire Drive
      Roller 0.8/0.9mm flux cored x2

    Products specifications
    Dimensions511 x 213 x 400mm
    Weight12kg
    Input Power Supply230V AC 15A 50/60Hz
    Input Power Supply Tolerance90-275V
    Maximum Output Current28A
    Generator Capacity6.6KVA
    Insulation ClassIP23
    StandardsEN60974-1:2012
    WarrantyCommercial 12 month extend to 36 months
    Power Efficiency0.85
    Power Factor0.99

    STRATA ADVANCEMIG 200

    200A Digital Synergic Inverter MIG/MMA/TIG Welder PFC MV
    The ultimate single phase synergic MIG welder with full LCD colour screen. Easy set up and operation on an incredible wide range of materials. Lift TIG, spool gun ready and multi voltage capable (operates on an extension cord) are just some of the features the ADVANCEMIG 200 boasts. A must have for todays industrial professional.
    • Professional aluminium chassis wire feeder for smooth and consistent wire feed
    • Active PFC technology for increased duty cycle and energy efficiency
    • Multi voltage input, can even be used with long extension lead
    • Synergic mig operation for optimum welding results every time
    • Remote control spool gun connection for effective results welding with soft wires such as aluminium. Suitable for mig brazing with bronze wires
    • Lift TIG operation with down slope, post gas and remote current control ability
    • Reversable polarity MIG welding operation suitable for gas & gasless MIG welding
    • Voltage reduction device (VRD) for safety
    • Mig waveform (inductance) control for great arc control and smooth welding results
    • Wire inching and gas purge control
    • Safe & simple to set up
    • Adjustable arc force, hot start & automatic anti stick control
    • Full Colour LCD Display
    • High quality & over specified electronic components
    • Durable & reliable Intelligent protection system
    • Temperature, voltage and current sensors for increased reliability & safety.
    Accessories/ Contents
    • 3m Earth Lead with heavy duty earth clamp, 4m MMA
      lead with heavy duty twist lock electrode holder, Parweld
      PRO2400-40ER MIG Torch, NZ/Australia Argon Gas
      Regulator, NZ/ Australia Argon Regualtor/CO2 Cylinder
      Adaptor, 4m Gas Hose, Gas Inlet Quick Connector, Gas
      Hose Clamp x2, Wire Drive Roller 0.6/0.8mm ‘v’ groove
      x2, Wire Drive Roller 0.9/1.0mm ‘v’ groove x2, Wire Drive
      Roller 0.8/0.9mm flux cored x2

    Products specifications
    Dimensions511 x 213 x 400mm
    Weight12kg
    Input Power Supply230V AC 15A 50/60Hz
    Input Power Supply Tolerance90-275V
    Maximum Output Current28A
    Generator Capacity6.6KVA
    Insulation ClassIP23
    StandardsEN60974-1:2012
    WarrantyCommercial 12 month extend to 36 months
    Power Efficiency0.85
    Power Factor0.99
