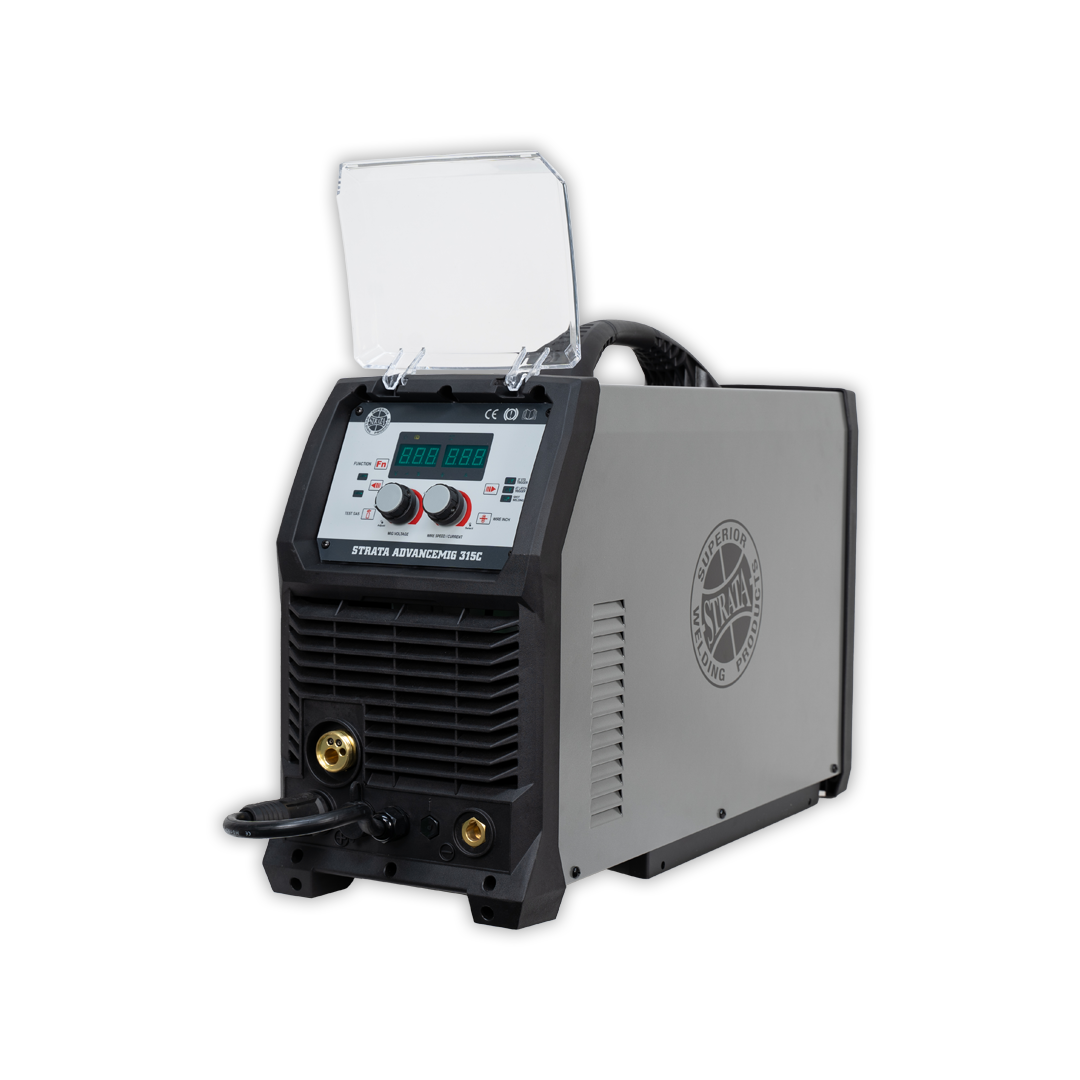

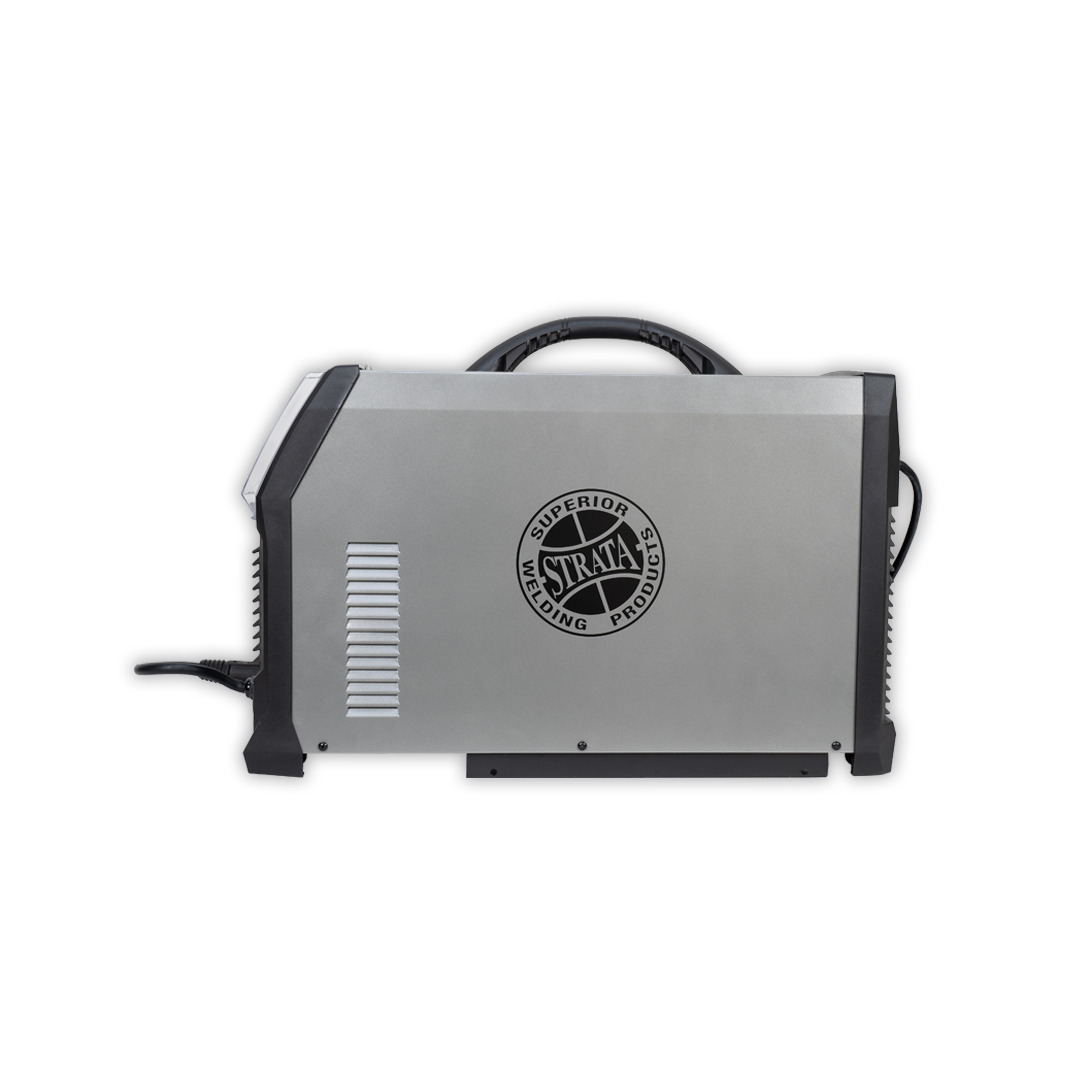

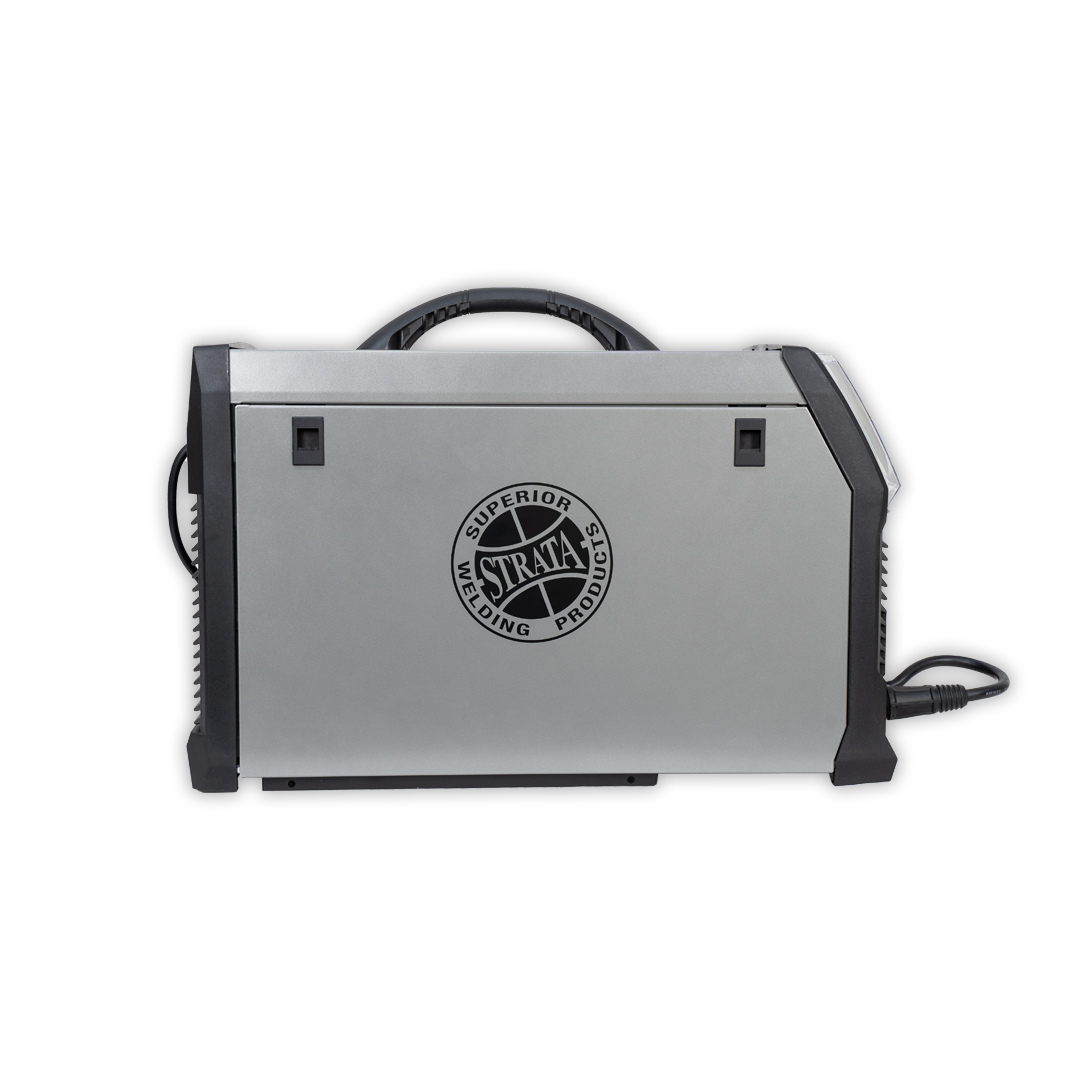

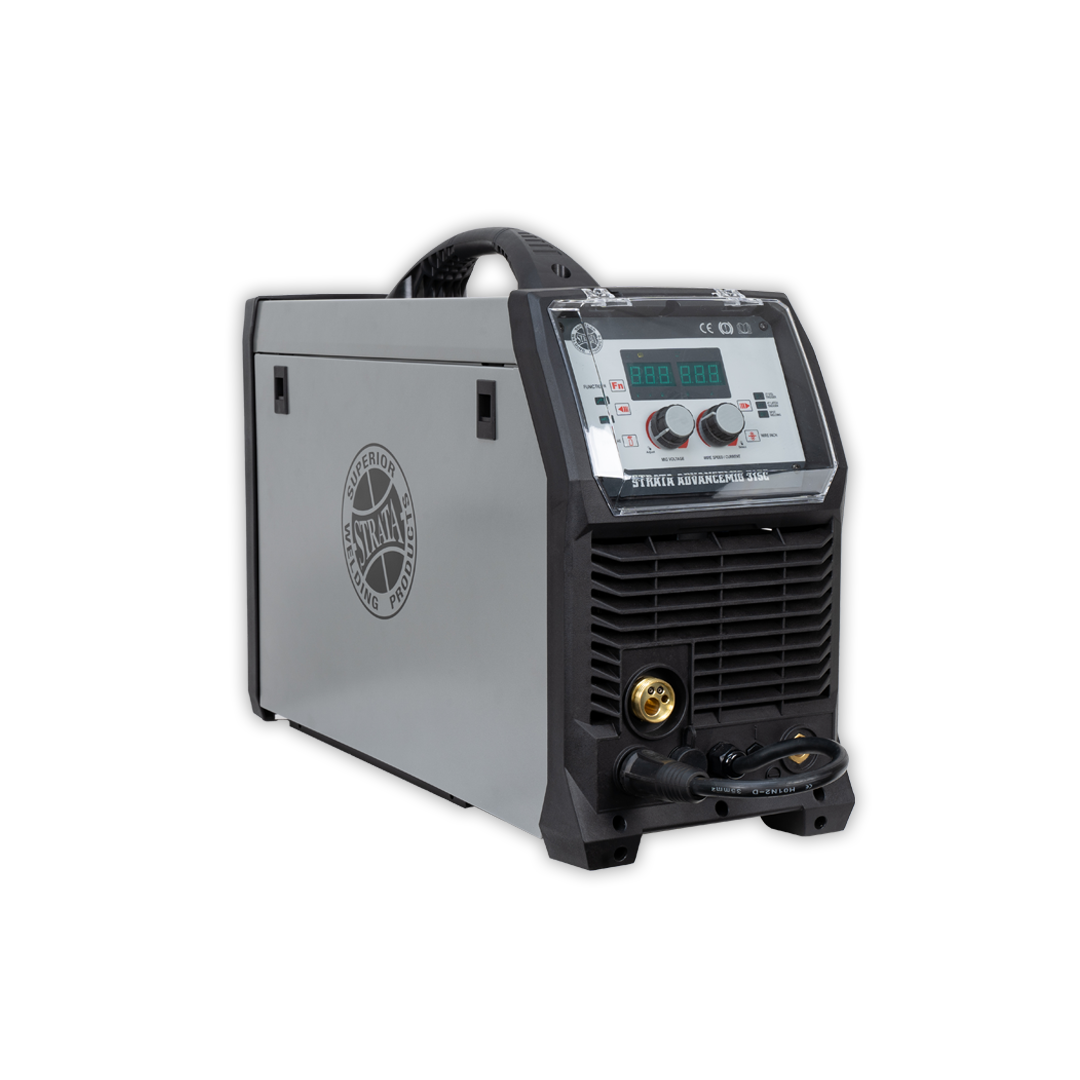

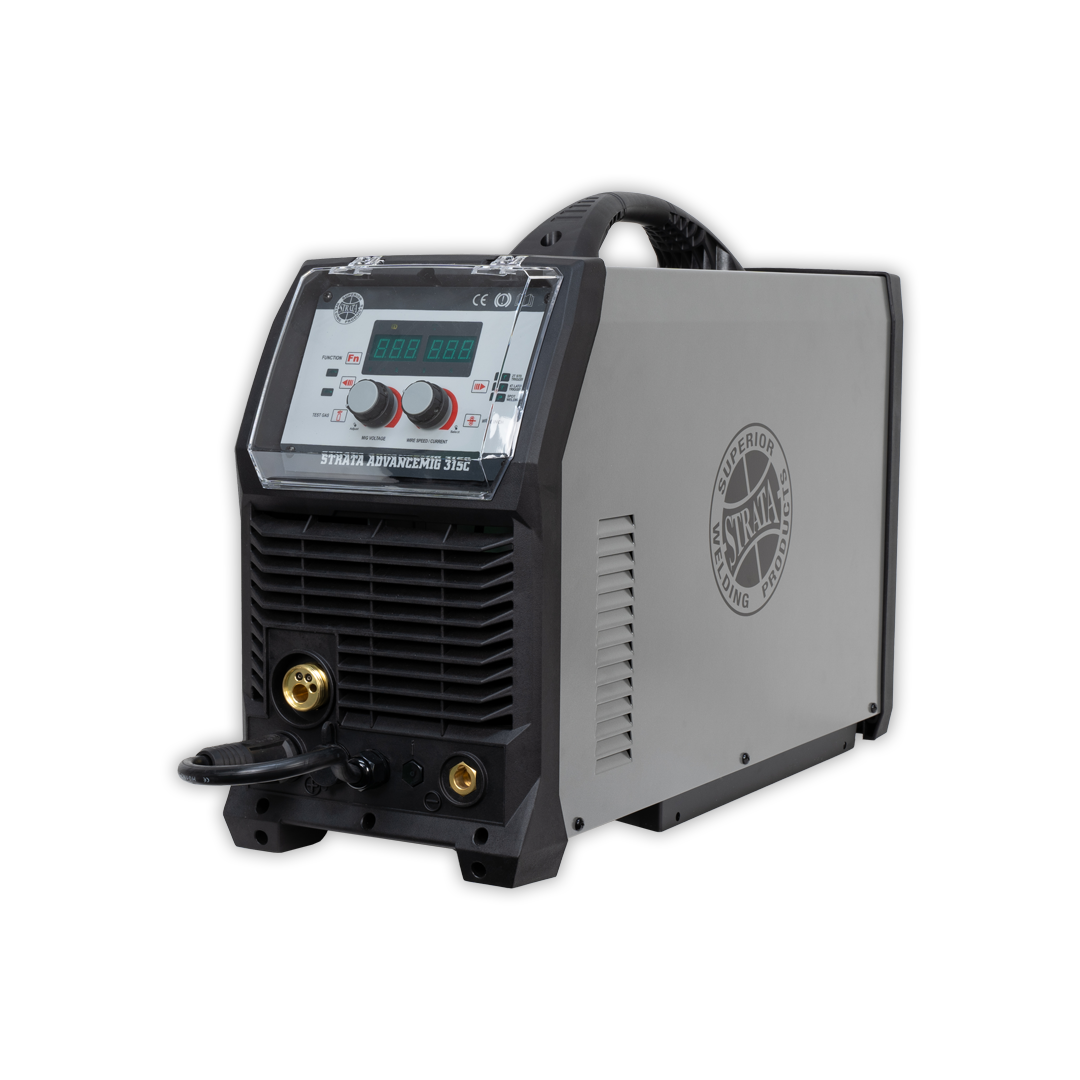

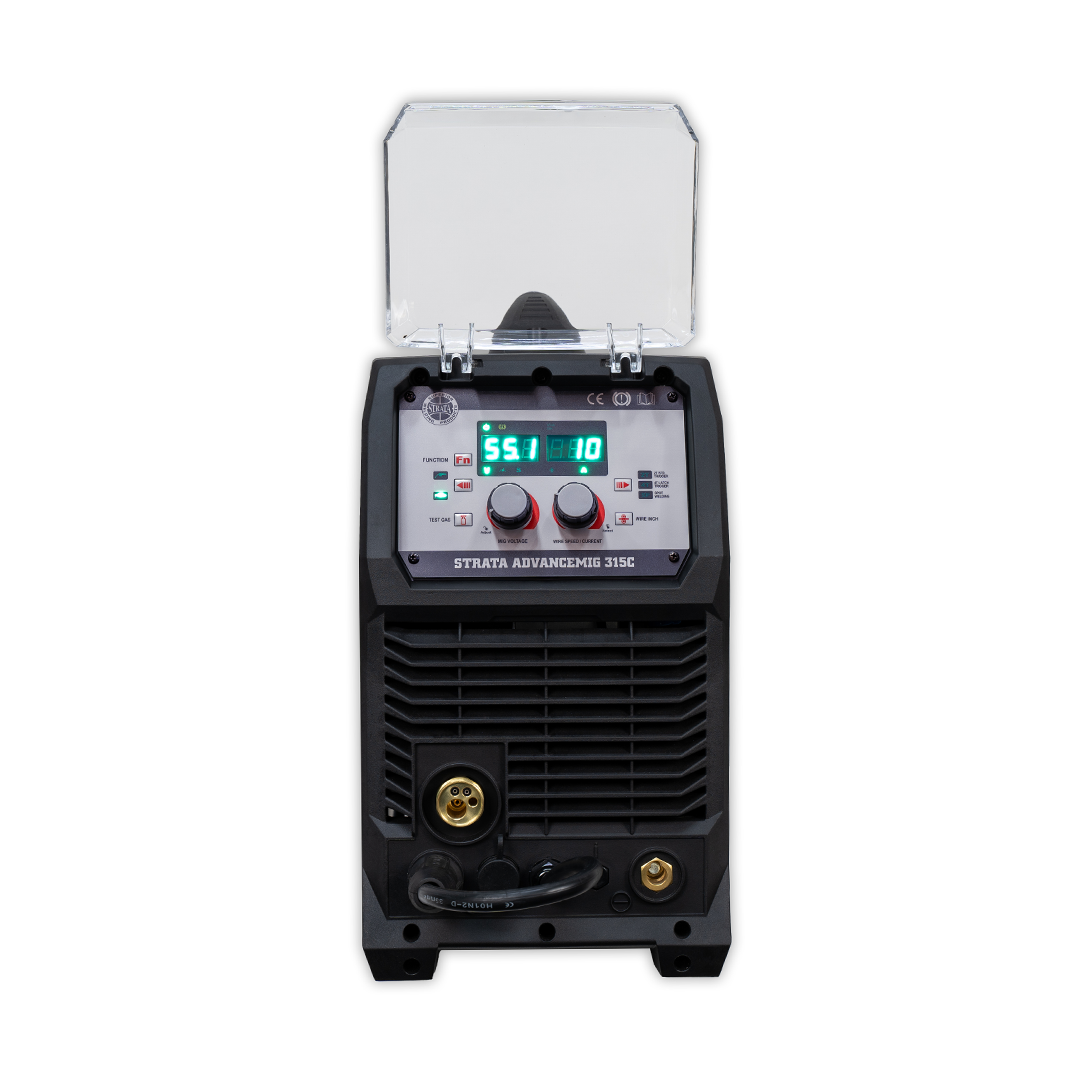

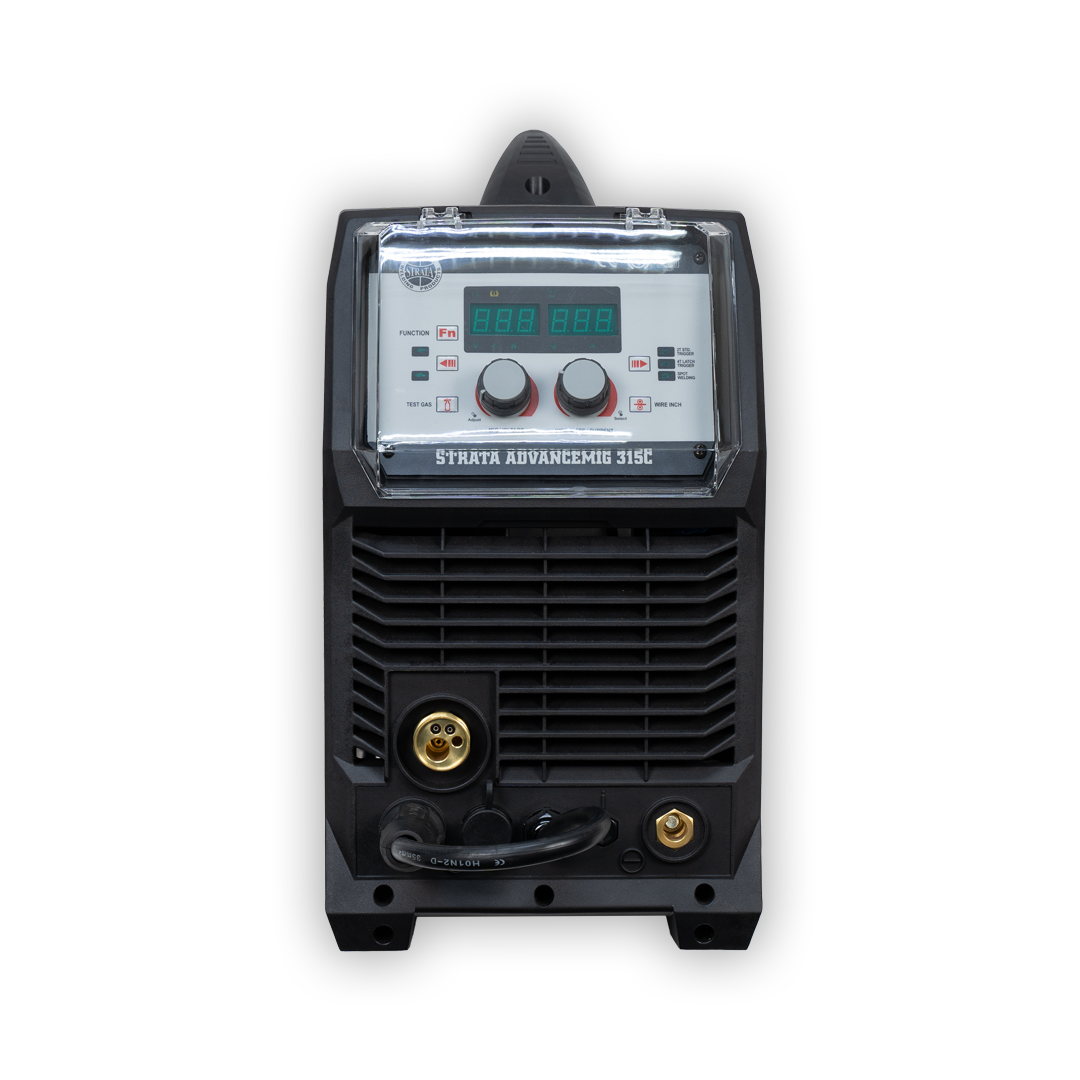

    Advance mig 315C 315A Compact Mig Pkg

    Strata AdvanceMig315 315A Compact Inverter MIG/MMA Welder. C/W Mig Torch, Arc/Earth Leads & Gas Regulator.
    SKU: 205369
    Please give us a brief description of your intended application (we may have a better solution.)
    This 3-phase, multi-process welding machine offers the latest in IGBT inverter technology in a compact package making it ideal for a wide range of jobs. Built tough with intelligent protection system to withstand the harshest of environments in the NZ workplace. A must have for todays industrial professional.
    • IGBT Module inverter technology for smooth & stable welding output, increased reliability and high duty cycle

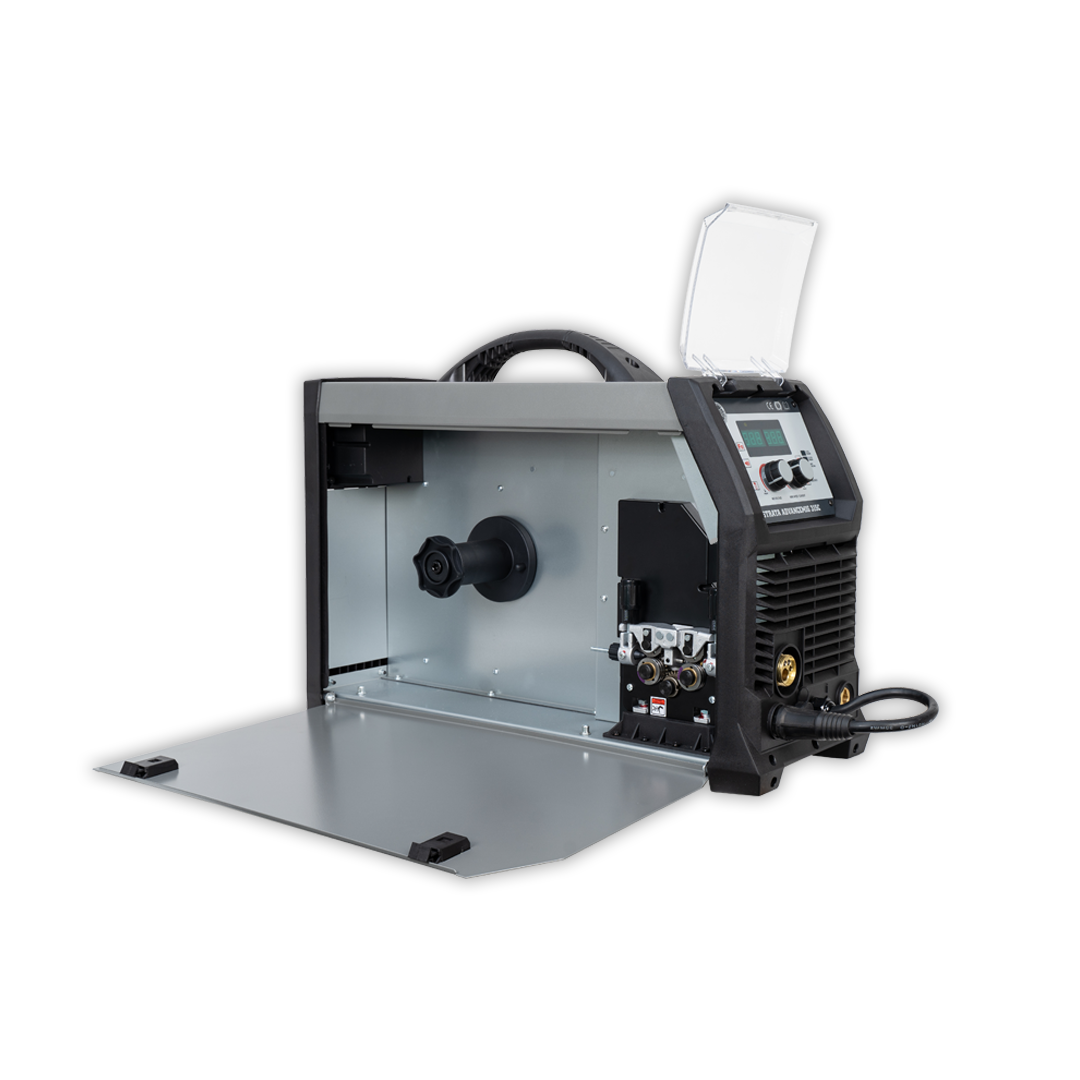

    • 4-Roll geared metal wire feed unit provides a powerful and smooth wirefeed.
    • Digital microprocessor control system with superior & dynamic arc characteristics
    • Remote control spool gun connection gives effective results welding soft wires such as aluminium
    • Lightweight and compact design - ideal for portable applications.
    • MIG waveform (inductance) gives good control of the arc for smooth welding results
    • Industrial IP23 casing with front panel protection, resits damage, moisture and corrosion.
    • Great control MIG welding with adjustable pre-flow, post flow, burn back and soft start settings
    • Extreme stress tested in production up to 550V ensuring rugged reliablity
    • 2T/4T trigger operation with crater control settings

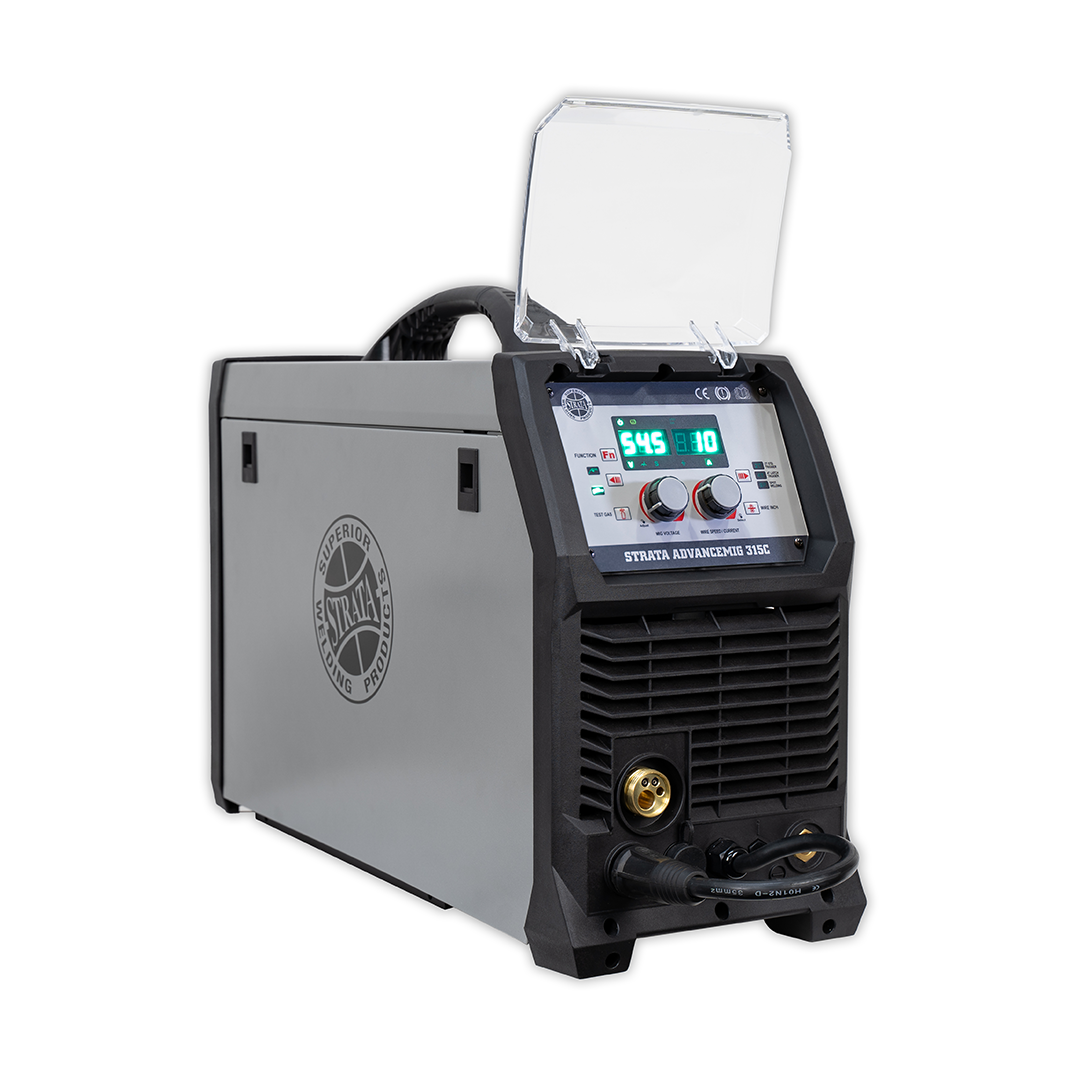

    • Dual digital display meters for accurate pre-setting and feedback of welding parameters and output
    • Intelligent protection system with temperature, voltage and current sensors for increased reliability & safety
    • Designed to work with generator power supply with protection from power surges.
    • Reversible polarity MIG welding operation - suitable for gas & gasless welding.

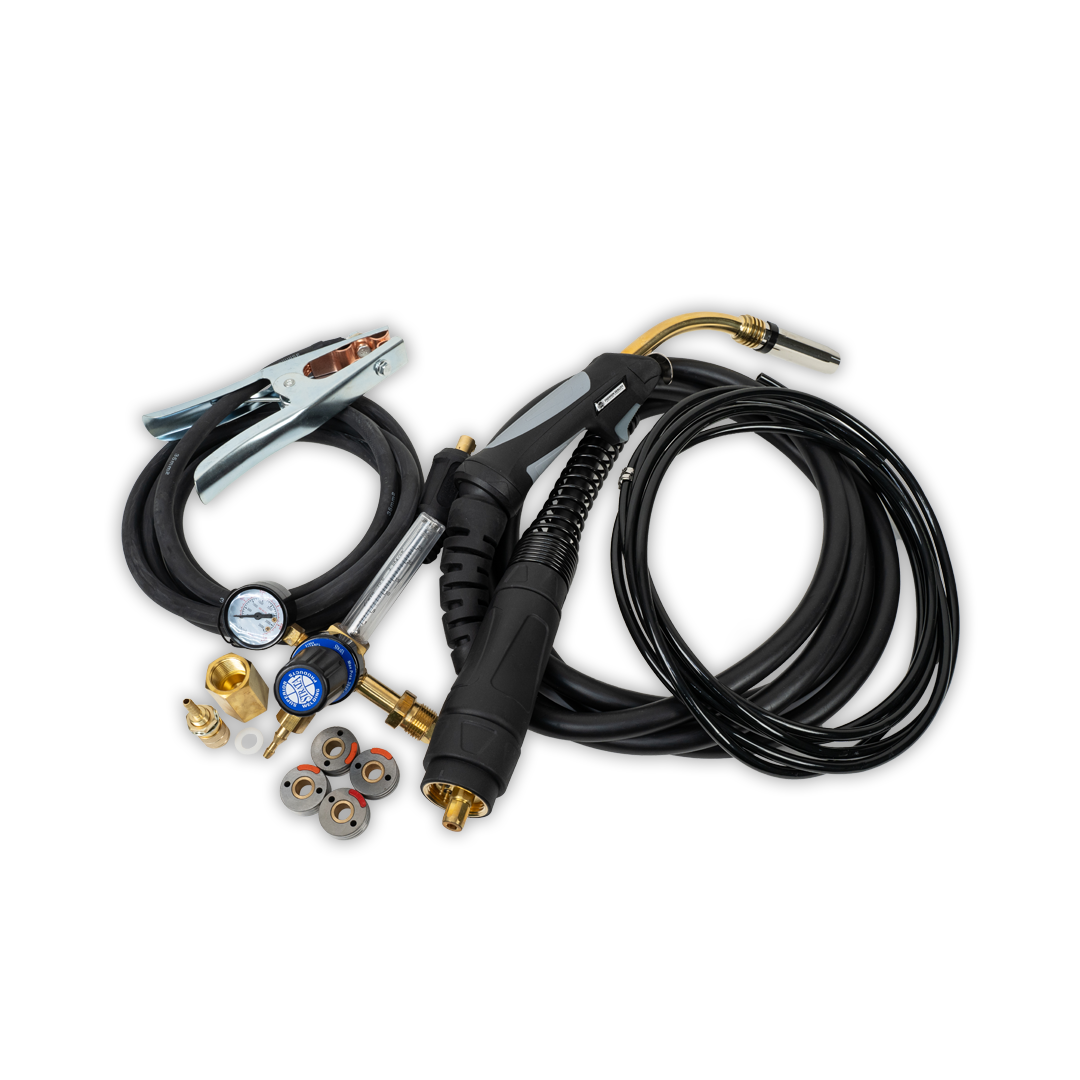

    Accessories/ Contents
    • 3m Earth Lead with heavy duty earth clamp, 4m MMA
    • lead with heavy duty twist lock electrode holder, Parweld
    • PRO2400-40ER MIG Torch, NZ/Australia Argon Gas
    • Regulator, NZ/ Australia Argon Regualtor/CO2 Cylinder
    • Adaptor, 4m Gas Hose, Gas Inlet Quick Connector, Gas
    • Hose Clamp x2, Wire Drive Roller 0.6/0.8mm ‘v’ groove
    • x2, Wire Drive Roller 0.9/1.0mm ‘v’ groove x2, Wire Drive
    • Roller 0.8/0.9mm flux cored x2
    Products specifications
    Dimensions680x240x450mm
    Weight26kg
    Input Power Supply400V AC 32A 3 PHASE 50/60Hz
    Input Power Supply Tolerance±20%
    Maximum Input Current20A
    Generator Capacity17KVA
    MIG Output Voltage14.8 - 30V
    MIG Output Current15A - 315A
    MIG Duty Cycle315A @40% 200A @100%
    MIG Drive Rollers AvailableV Groove 0.6/0.8/0.9/1.0/1.2mm Knurled: 0.8/0.9/1.0/1.2mm U Groove: 0.8/1.0/1.2mm
    MIG Wire Spool SizeD200/D300 5kg/15kg
    Wire Feeding Speed2.4 - 18m/min
    MMA Current Output10A - 315A
    MMA O/C Voltage70V
    MMA Duty Cycle315A@35% 195A@100%
    Insulation ClassIP23
    StandardsEN60974-1:2012
    MMA Rod Size2.4 - 6.0mm
    WarrantyCommercial 12 month extends to 36 months with product registration
    Power Efficiency0.85
    Power Factor0.7
