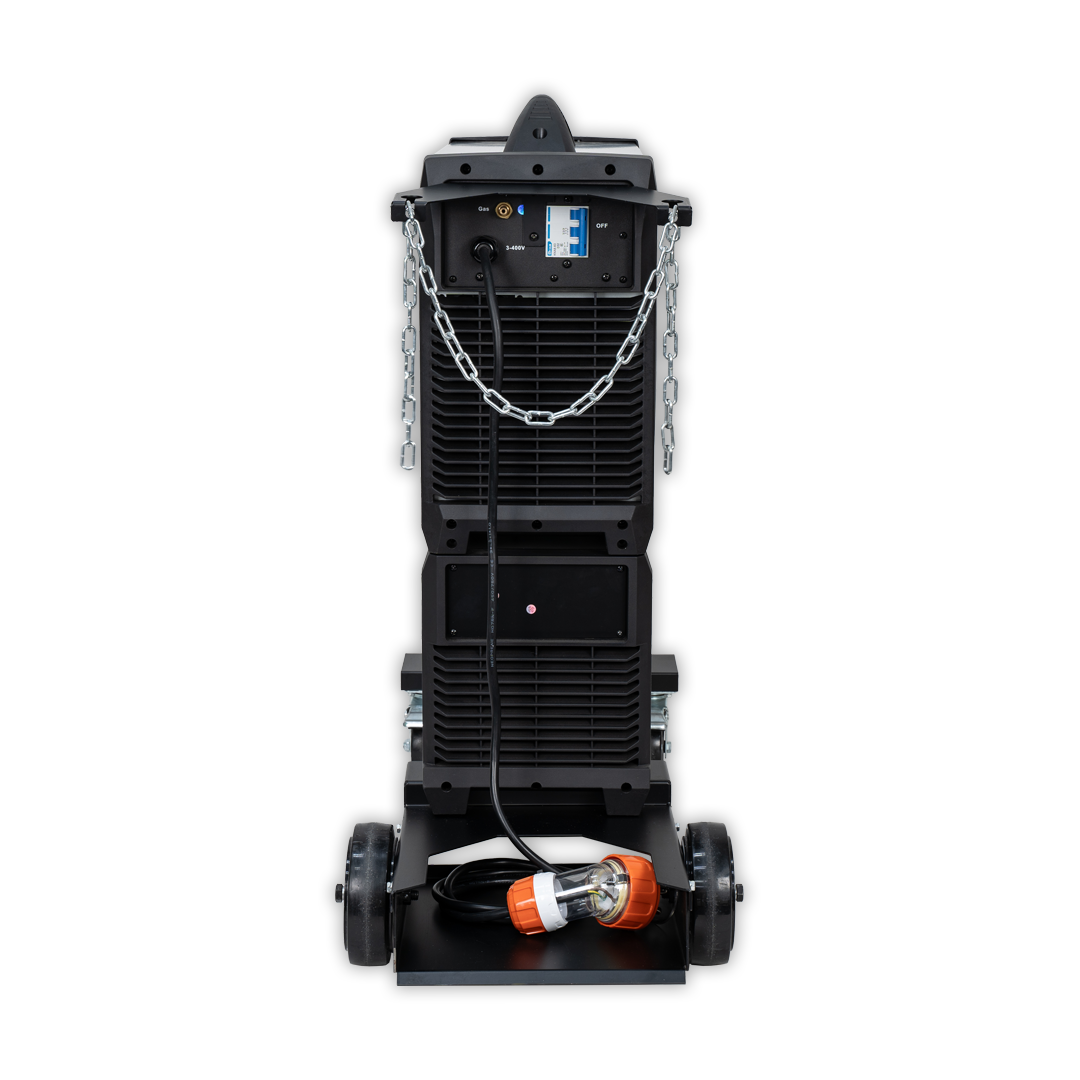

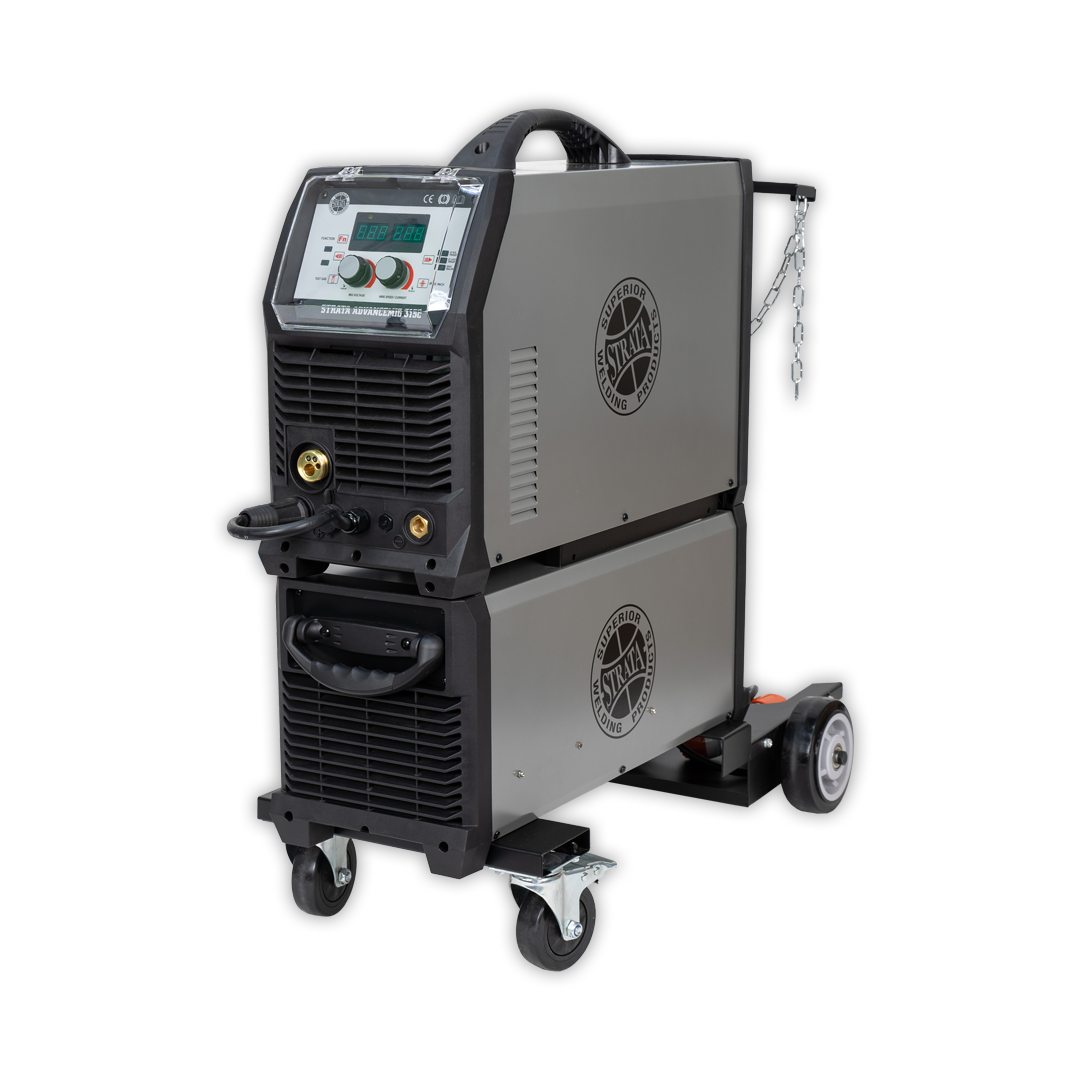

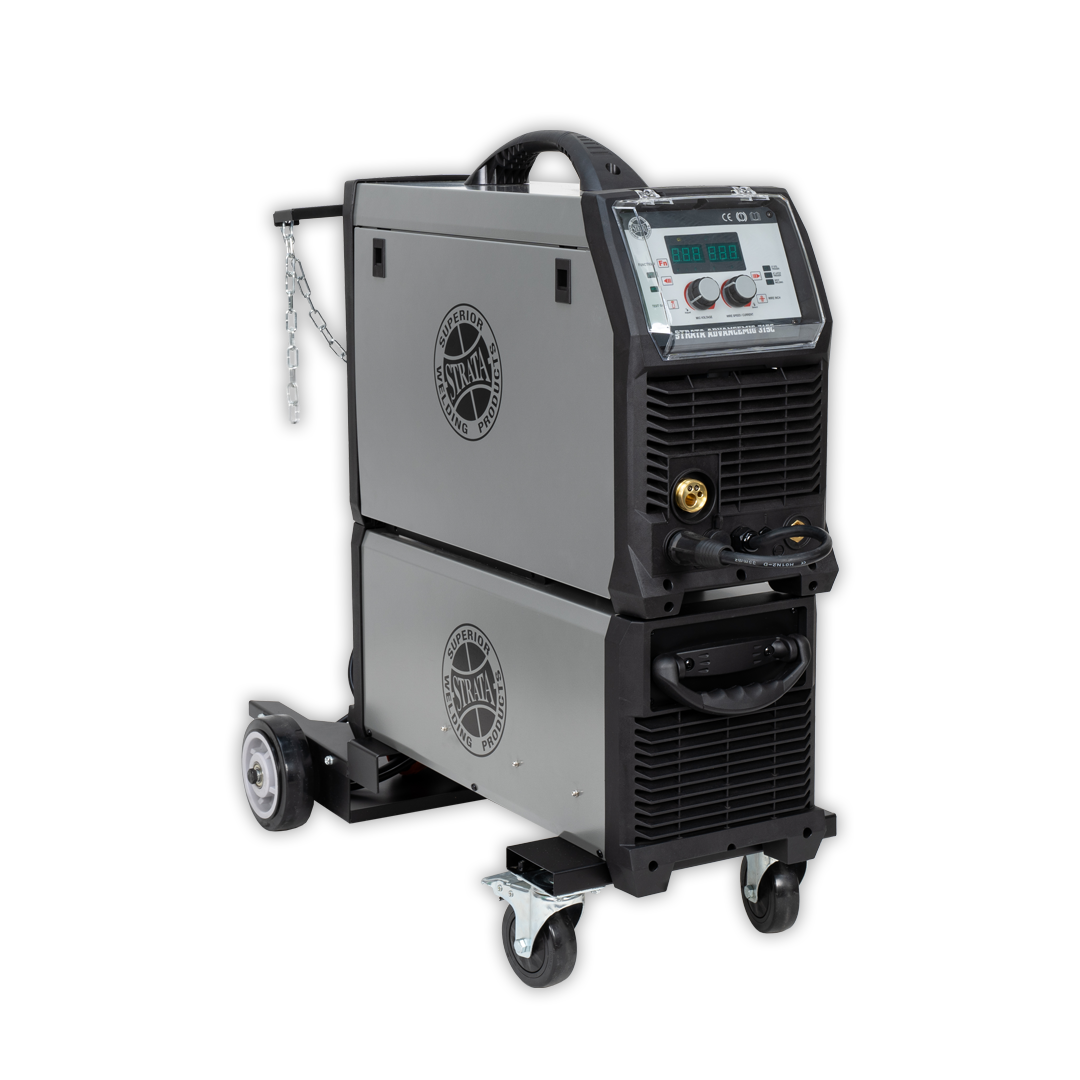

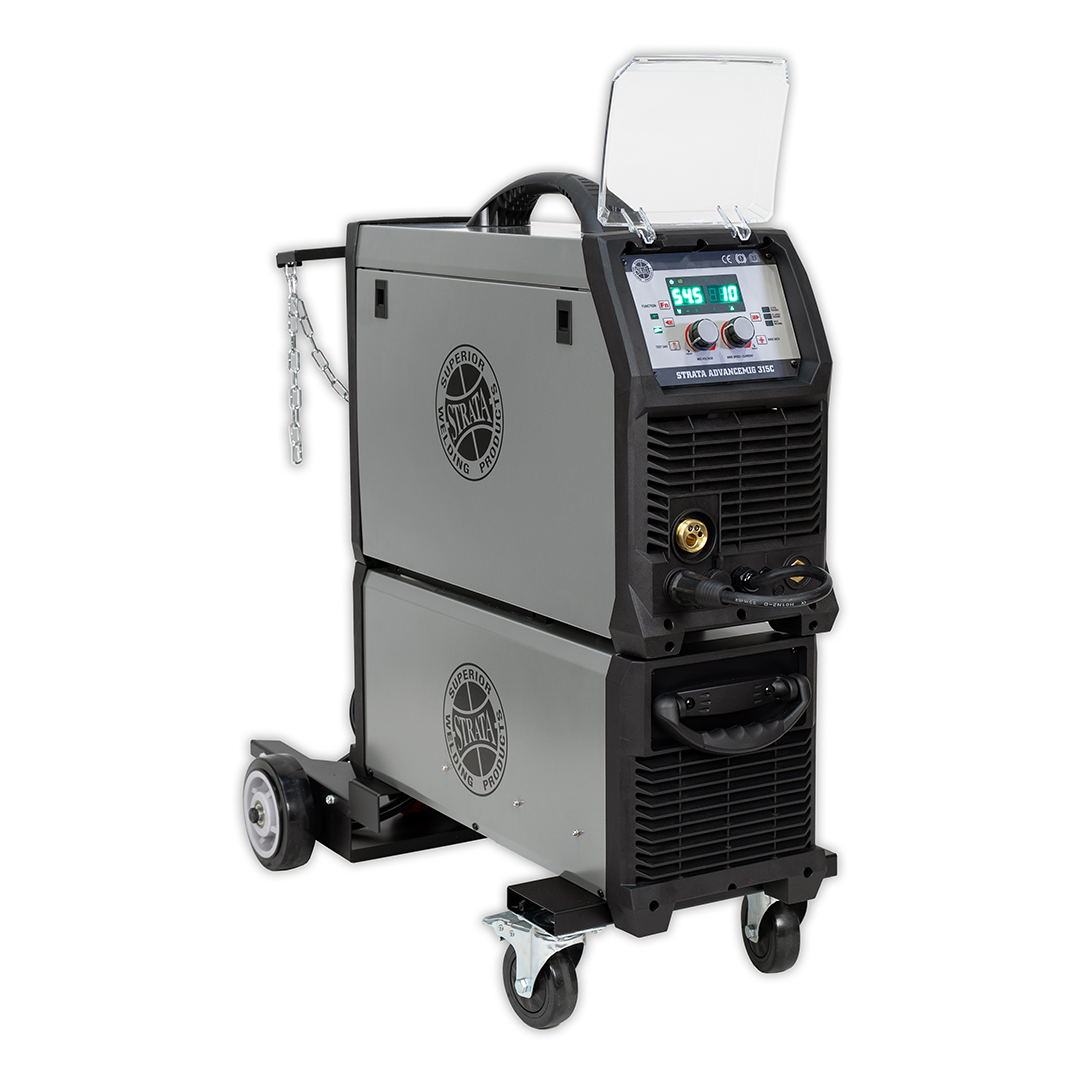

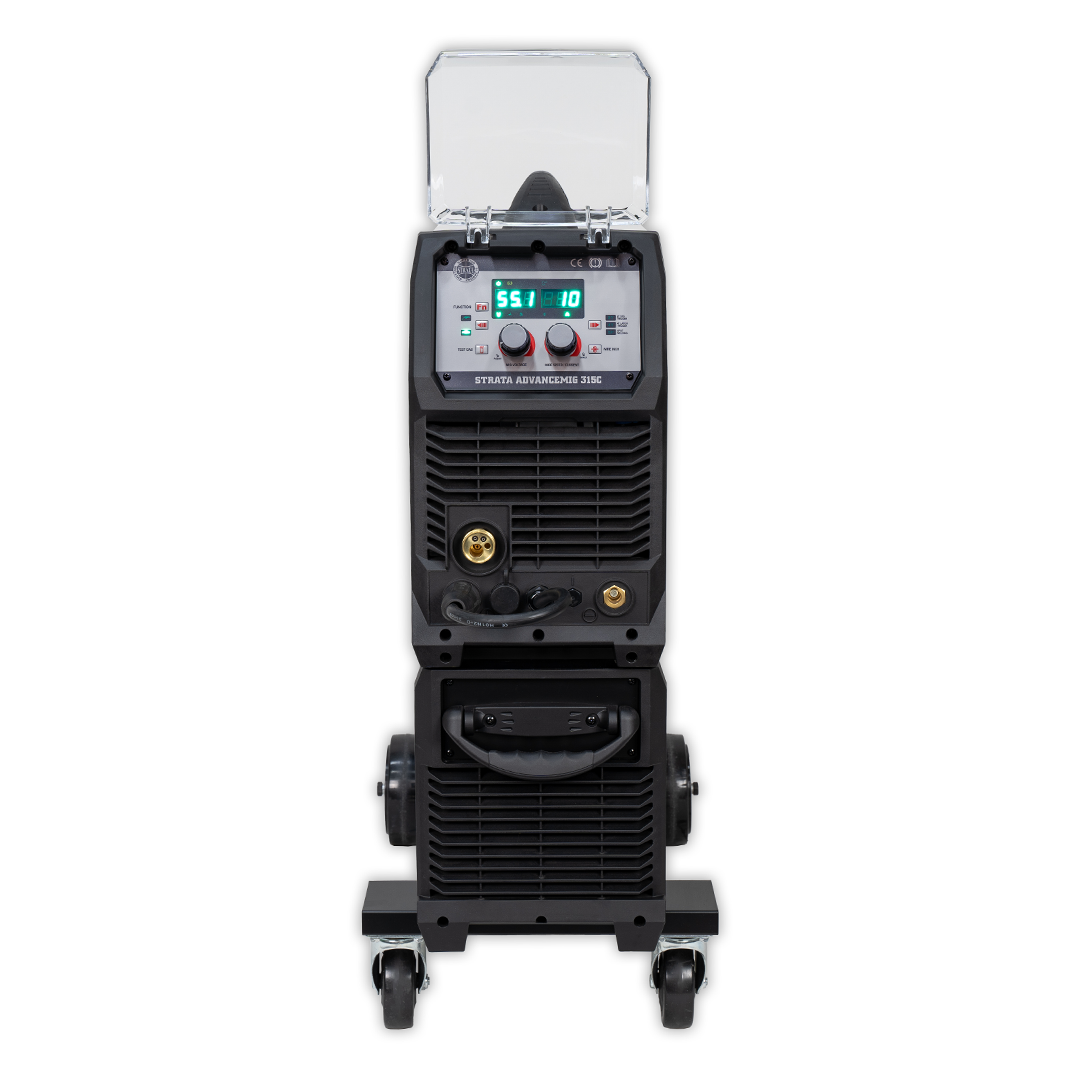

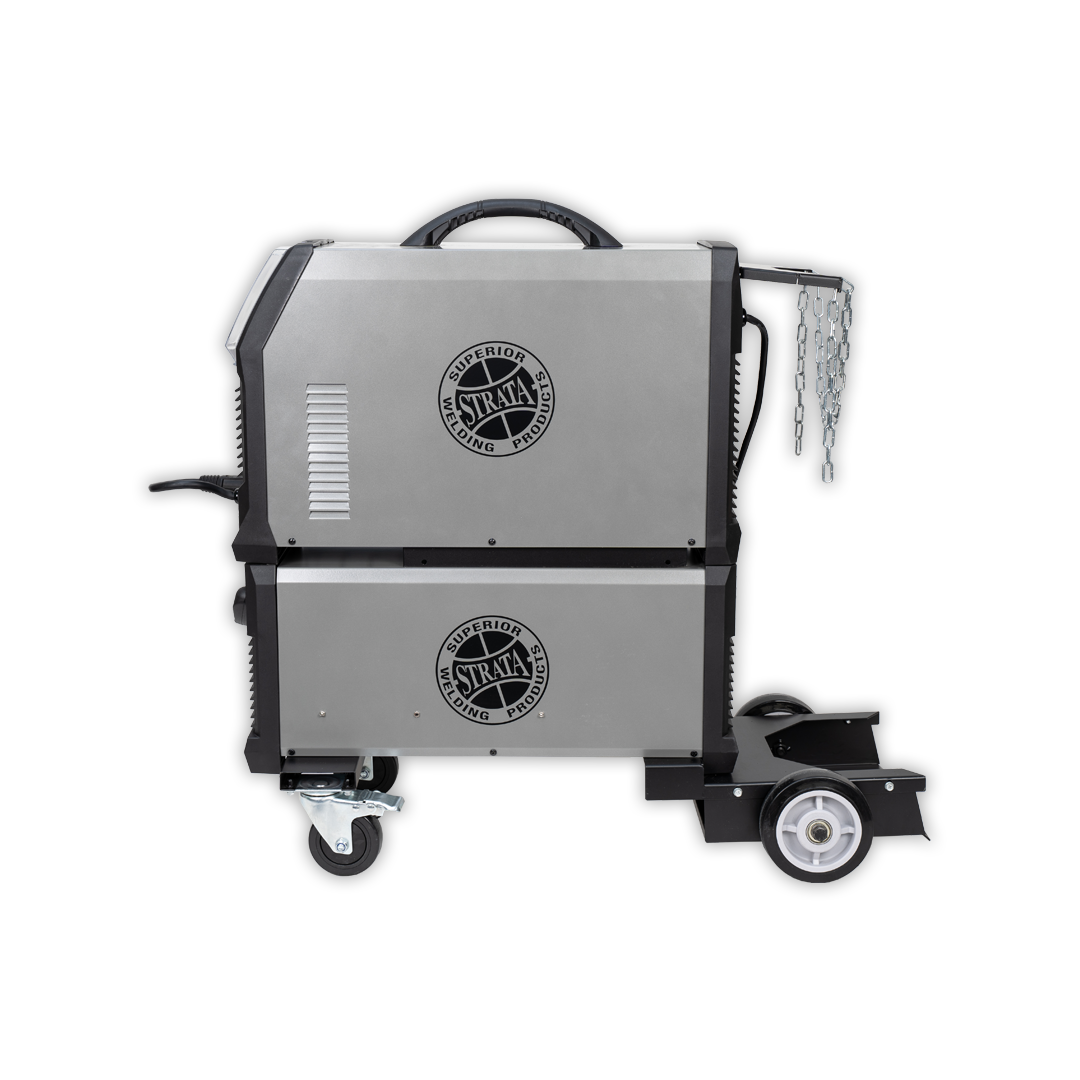

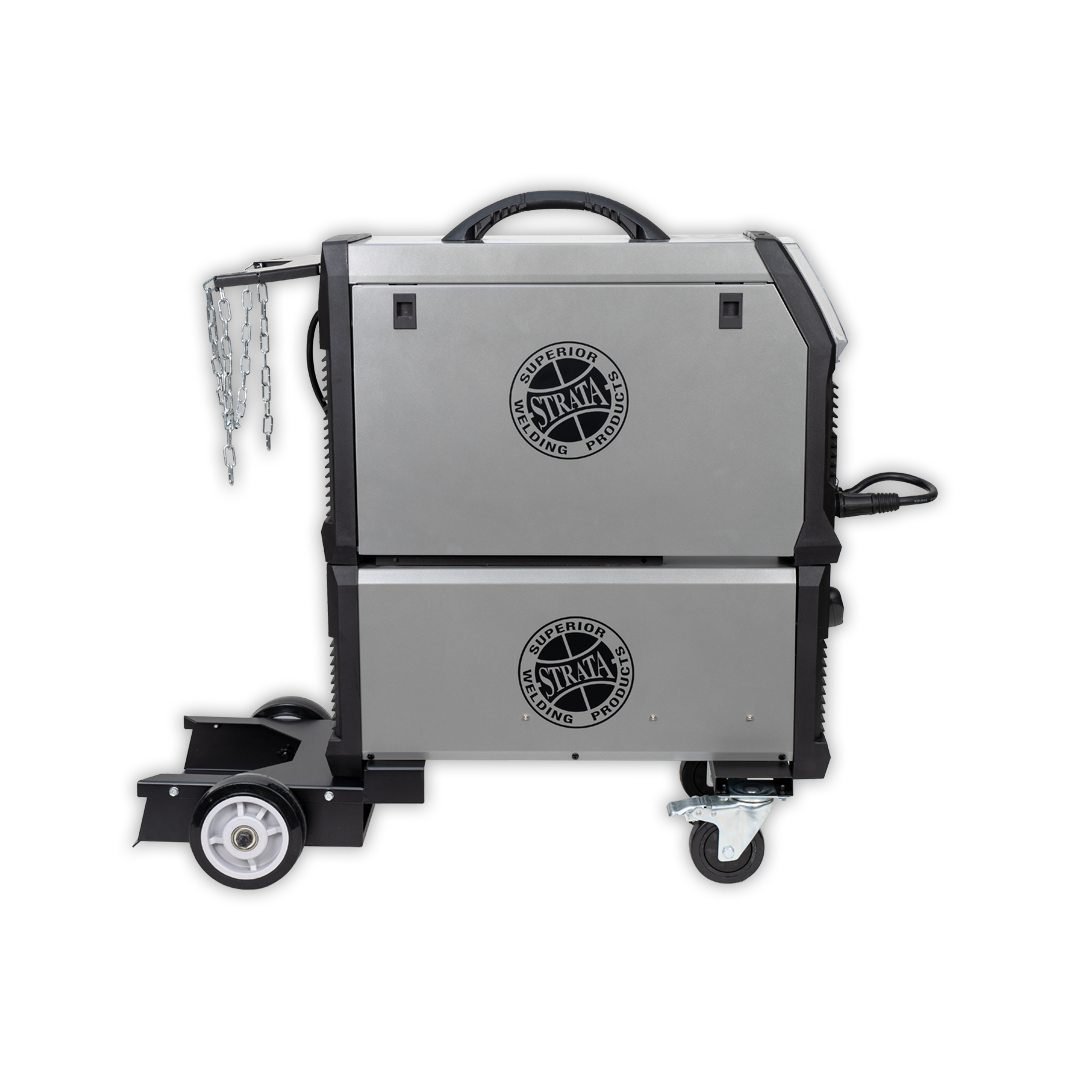

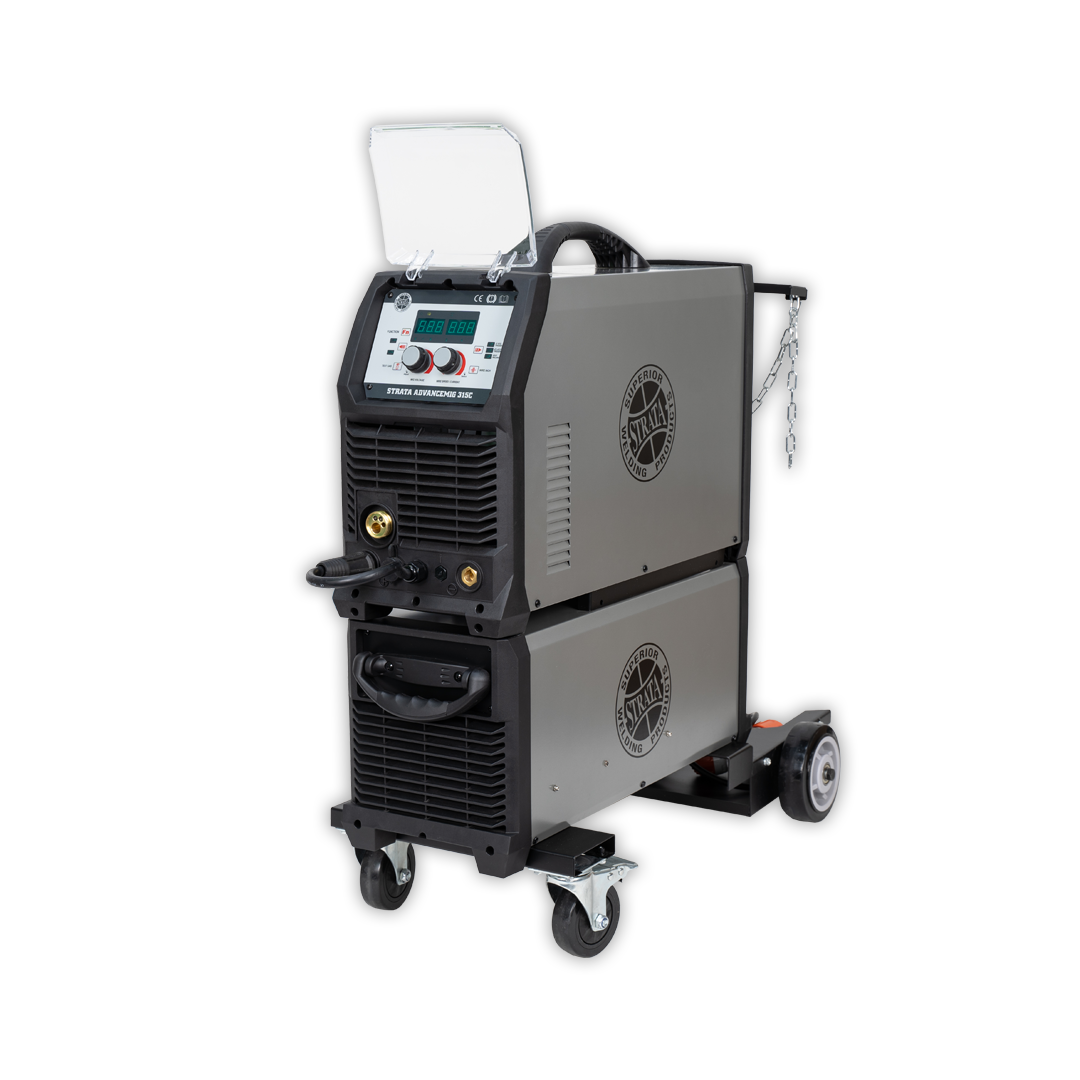

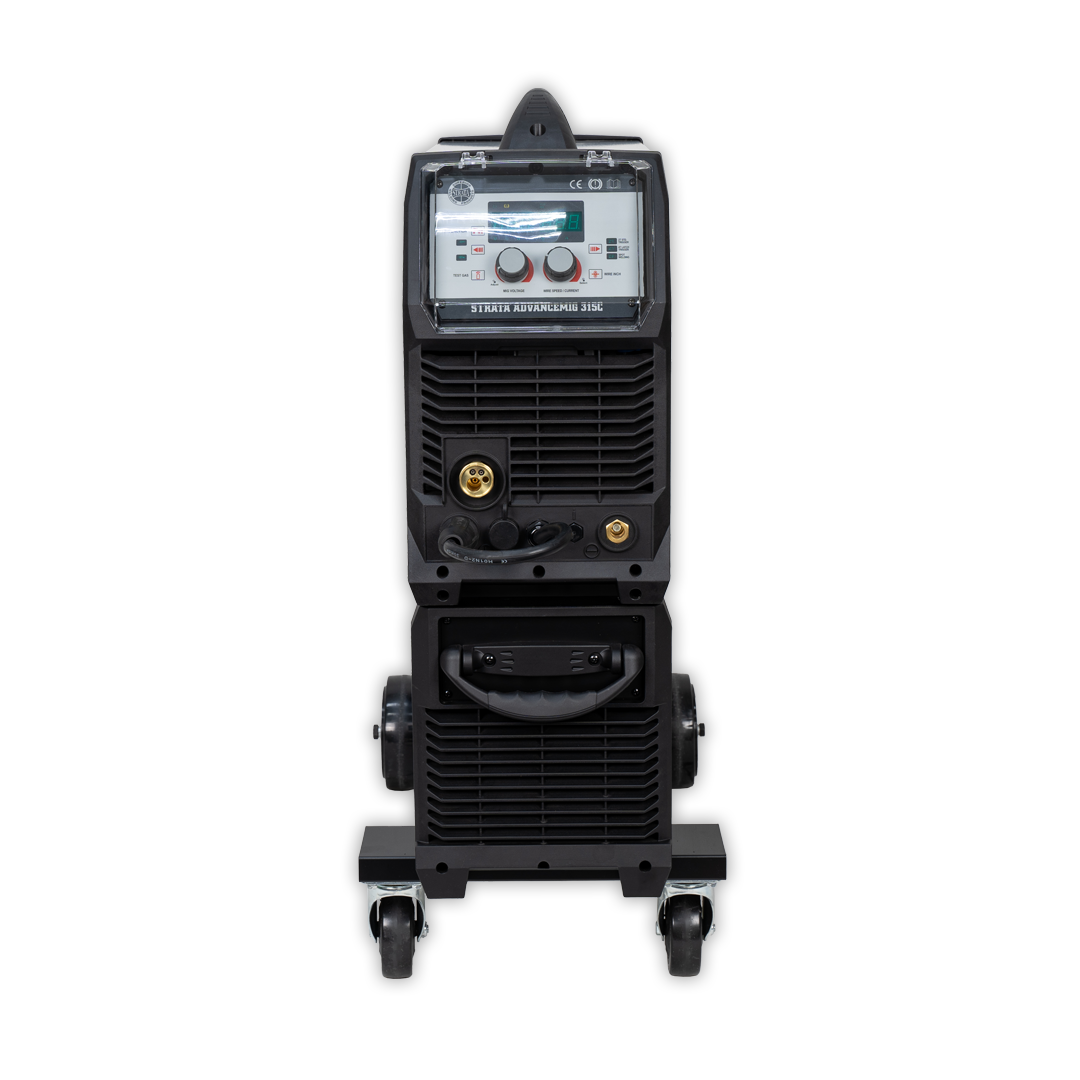

Strata AdvanceMig315C 315A MIG/MMA Welder & Trolley Package

Be the first to review this product
Free Shipping
Strata /
SKU: 33918

Strata AdvanceMig315C 315A MIG/MMA Welder & Trolley Package C/W Compact Mig Welding Trolley, Earth/Arc Leads, 4M Mig Torch, Argon Gas Regulator, Adaptor, Gas Hose & Mig Drive Rollers

$ 2,995 .00 Excl GST
$ 3,444.25 Incl GST
Overview

Product Overview

Strata AdvanceMig315C 315A MIG/MMA Welder & Trolley Package

This 3-phase, multi-process welding machine offers the latest in IGBT inverter technology in a compact package making it ideal for a wide range of jobs. Built tough with intelligent protection system to withstand the harshest of environments in the NZ workplace. A must have for todays industrial professional.

Key Features
  • IGBT Module inverter technology for smooth & stable welding output, increased reliability and high duty cycle
  • 4-Roll geared metal wire feed unit provides a powerful and smooth wirefeed.
  • Digital microprocessor control system with superior & dynamic arc characteristics
  • Remote control spool gun connection gives effective results welding soft wires such as aluminium
  • Lightweight and compact design - ideal for portable applications.
  • MIG waveform (inductance) gives good control of the arc for smooth welding results
  • Industrial IP23 casing with front panel protection, resits damage, moisture and corrosion.
  • Great control MIG welding with adjustable pre-flow, post flow, burn back and soft start settings
  • Extreme stress tested in production up to 550V ensuring rugged reliablity
  • 2T/4T trigger operation with crater control settings
  • Dual digital display meters for accurate pre-setting and feedback of welding parameters and output
  • Intelligent protection system with temperature, voltage and current sensors for increased reliability & safety
  • Designed to work with generator power supply with protection from power surges.
  • Reversible polarity MIG welding operation - suitable for gas & gasless welding.

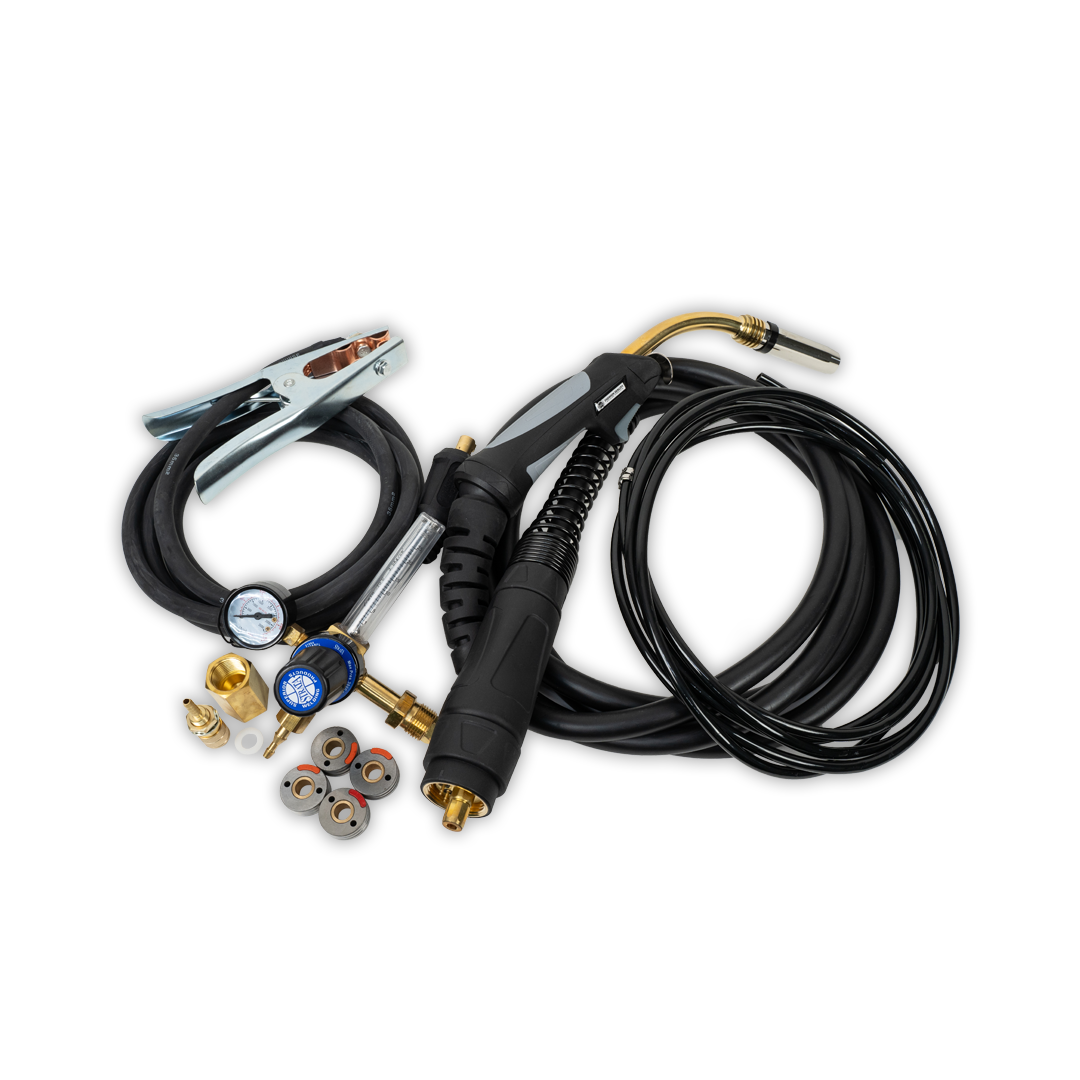

Contents

  • Compact Mig Welding Trolley
  • 3M Earth Lead with Heavy Duty Earth Clamp
  • 4M Arc Lead with Heavy Duty Twist Lock Electrode Holder
  • 4M Mig Torch
  • Argon Gas Regulator
  • Adaptor
  • 4M Gas Hose
  • Gas Inlet Quick Connector
  • Gas Hose Clamp
  • 2x V groove drive roller 0.6 - 0.8mm
  • 2x V groove drive roller 0.9 - 1.0mm
  • 2x Knurled drive roller 0.8 - 0.9mm
Resources

Downloads

Overview

Specifications

Dimensions / 680x240x450mm
Weight / 26kg
Input Power Supply / 400V AC 32A 3 PHASE 50/60Hz
Input Power Supply Tolerance / ±20%
Maximum Input Current / 20A
Generator Capacity / 17KVA
MIG Output Voltage / 14.8 - 30V
MIG Output Current / 15A - 315A
MIG Duty Cycle / 315A @40% 200A @100%
MIG Drive Rollers Available / V Groove 0.6/0.8/0.9/1.0/1.2mm Knurled: 0.8/0.9/1.0/1.2mm U Groove: 0.8/1.0/1.2mm
MIG Wire Spool Size / D200/D300 5kg/15kg
Wire Feeding Speed / 2.4 - 18m/min
MMA Current Output / 10A - 315A
MMA O/C Voltage / 70V
MMA Duty Cycle / 315A@35% 195A@100%
Insulation Class / IP23
Standards / EN60974-1:2012
MMA Rod Size / 2.4 - 6.0mm
Warranty (Months) / 48 Months
Power Efficiency / 0.85
Power Factor / 0.7
