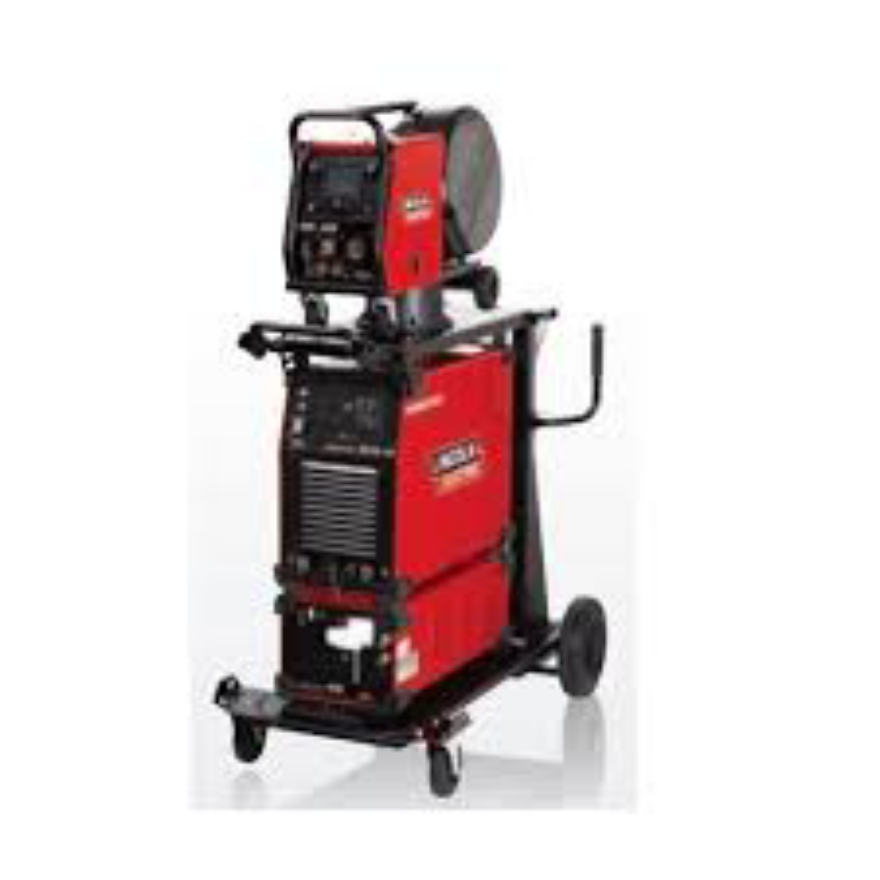

    Lincoln Speedtec 405SP PulsMig

    K14117-2 - Lincoln Speedtec?« 405SP Pulse Welder. Mig/Stick/Tig 20-400A, 400A @ 80%, 3 Year Warranty\r\nIncludes: Input cable 5m, Work return lead.
    SKU: 204239
    Please give us a brief description of your intended application (we may have a better solution.)

    The Speedtec® range is the solution for Industrial Multi-process applications. With modular and compact design this welding set is easy to move around site. Transport is trouble free thanks to the lower weight of this new design. With the latest high frequency inverter technology, the arc is precisely controlled, many times faster than conventional analogue power sources. The electrical characteristics of the welding power can be changed by software in real time updates. A wide range of synergic programs are available as standard allowing simple yet precise control of welding parameters for the best results every time. The Speedtec® machines utilise the very latest power source technology for efficiency and lower energy consumption. Their advanced Inverter technology will save both time as well as energy. Driven by Lincoln Electric’s Green Initiative, we aim to reduce the costs to you as well as the environment. Thesewelding sets are available as 400A rated at 80% or 500A rated at 50% duty cycle (at 40°C). With the PF-46 wire feed unit the welding set can support the MIG processes with synergic programs for Steel, Stainless Steel, Aluminium and Flux cored wires. Lift TIG and Stick functions are available as standard.

    Products specifications
    Item NumberK14117-2
    Primary Voltage (50-60Hz)400V/3Ph
    Rated Output400A/34V/80%
    Fuse Type rG or Circuit Breaker Type Z32A
    Weight (kg)50
    Protection class5 IP23
    Dimension(H X W X D)535 x 300 x 635
    Current range20-400A
    Write your own review
    • Product can be reviewed only after purchasing it
    • Only registered users can write reviews
    *
    *
    • Bad
    • Excellent

    The Speedtec® range is the solution for Industrial Multi-process applications. With modular and compact design this welding set is easy to move around site. Transport is trouble free thanks to the lower weight of this new design. With the latest high frequency inverter technology, the arc is precisely controlled, many times faster than conventional analogue power sources. The electrical characteristics of the welding power can be changed by software in real time updates. A wide range of synergic programs are available as standard allowing simple yet precise control of welding parameters for the best results every time. The Speedtec® machines utilise the very latest power source technology for efficiency and lower energy consumption. Their advanced Inverter technology will save both time as well as energy. Driven by Lincoln Electric’s Green Initiative, we aim to reduce the costs to you as well as the environment. Thesewelding sets are available as 400A rated at 80% or 500A rated at 50% duty cycle (at 40°C). With the PF-46 wire feed unit the welding set can support the MIG processes with synergic programs for Steel, Stainless Steel, Aluminium and Flux cored wires. Lift TIG and Stick functions are available as standard.

    Products specifications
    Item NumberK14117-2
    Primary Voltage (50-60Hz)400V/3Ph
    Rated Output400A/34V/80%
    Fuse Type rG or Circuit Breaker Type Z32A
    Weight (kg)50
    Protection class5 IP23
    Dimension(H X W X D)535 x 300 x 635
    Current range20-400A
