    Mosa CS230 Welder Generator

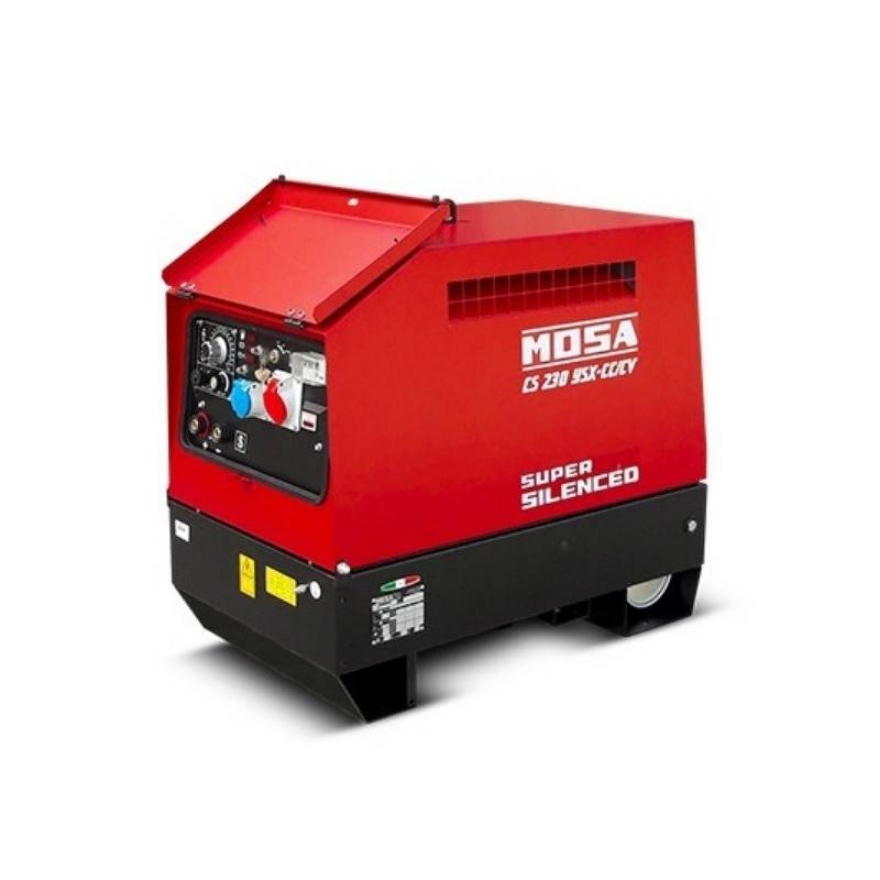

    Mosa CS230 Silenced Diesel Welder Generator
    SKU: 203499
    Please give us a brief description of your intended application (we may have a better solution.)

    The CS 230 YSX CC/CV is brand new (March 2016) to the Mosa line up.  A Diesel Engine driven welder, the CS 230 YSX is powered by a quality and reliable, 4 Stroke YANMAR L 100 N Engine with a Three-phase asyncronous alternator.  Offering three-phase generation of 6 kVA  and single-phase generation of 5 kVA.  This Diesel welder generator is capable of a maximum welding current of 210 Amps at 60% Duty Cycle (MMA) and 180 Amps at 100% Duty Cycle (TIG).  The Yanmar engine delivers both welding and generator power whilst super silent, thanks to its compact canopy design specifically designed to minimise sound emissions.

    The engine driven Mosa welder CS 230 YSX is a Constant Current (CC), Constant Voltage (CV) professional machine with electronic control of the welding current.  CC and CV welding output modes are selectable:

    • In Constant Current (CC) Mode, it is possible to choose between a characteristic with adjustable arc force, suitable for MMA and TIG welding (With Scratch Start).
    • In Constant Voltage (CV) mode it is possible to MIG weld using the optional WF4 Mosa Wire Feed Unit.  Capable of Wire welding both Solid and Flux Cored wires.

    The CS 230 YSX CC/CV is able to weld rutile, basic and cellulose electrodes of any kind, up to 4mm and takes full advantage of the engines power output using MOSAs signature “Power Optimizer” technology.  With the ” Power Optimizer ” it is possible to ensure stable and optimal operation in all the welding conditions, exploiting the full power of the engine.  This is a specific control technique aimed at preventing the engine overload when working near to its power limit.

    A superior weld quality and a stable arc when welding is delivered using the integrated Chopper System (High Frequency 30kHz).

    The Yanmar L 100 N engine and asychronous alternator delivers a welding output or a three phase and single phase generator output of up to 6kVA.  Central to the success of Mosa Welder Generators is this Mosa asynchronous welding alternator.  This brushless alternator designed and manufactured in house by Mosa, offers excellent welding characteristics and simultaneous AC auxiliary power and requires no maintenance as there are no brushes to wear and the solid rotor has no windings.

    Also available is an optional remote welding control allowing welding current adjustment up to 20 metres from the welder.

    Suitable for a wide range of uses including mobile welding, site fabrication, maintenance and pipe welding.

    In accordance with CE regulation

    Products specifications
    Current range, continuous20 ÷ 210A
    Duty Cycle210A 60% – 180A 100%
    Open circuit voltage65 V
    Dry weight230 kg
    Measured acoustic power LwA (pressure LpA)91 dB(A)(66 dB(A) @ 7m)
    Guaranteed acoustic power LwA (pressure LpA)92 dB(A)(67 dB(A) @ 7m)
    Dimension1020x645x930 mm
    Write your own review
    • Product can be reviewed only after purchasing it
    • Only registered users can write reviews
    *
    *
    • Bad
    • Excellent

    The CS 230 YSX CC/CV is brand new (March 2016) to the Mosa line up.  A Diesel Engine driven welder, the CS 230 YSX is powered by a quality and reliable, 4 Stroke YANMAR L 100 N Engine with a Three-phase asyncronous alternator.  Offering three-phase generation of 6 kVA  and single-phase generation of 5 kVA.  This Diesel welder generator is capable of a maximum welding current of 210 Amps at 60% Duty Cycle (MMA) and 180 Amps at 100% Duty Cycle (TIG).  The Yanmar engine delivers both welding and generator power whilst super silent, thanks to its compact canopy design specifically designed to minimise sound emissions.

    The engine driven Mosa welder CS 230 YSX is a Constant Current (CC), Constant Voltage (CV) professional machine with electronic control of the welding current.  CC and CV welding output modes are selectable:

    • In Constant Current (CC) Mode, it is possible to choose between a characteristic with adjustable arc force, suitable for MMA and TIG welding (With Scratch Start).
    • In Constant Voltage (CV) mode it is possible to MIG weld using the optional WF4 Mosa Wire Feed Unit.  Capable of Wire welding both Solid and Flux Cored wires.

    The CS 230 YSX CC/CV is able to weld rutile, basic and cellulose electrodes of any kind, up to 4mm and takes full advantage of the engines power output using MOSAs signature “Power Optimizer” technology.  With the ” Power Optimizer ” it is possible to ensure stable and optimal operation in all the welding conditions, exploiting the full power of the engine.  This is a specific control technique aimed at preventing the engine overload when working near to its power limit.

    A superior weld quality and a stable arc when welding is delivered using the integrated Chopper System (High Frequency 30kHz).

    The Yanmar L 100 N engine and asychronous alternator delivers a welding output or a three phase and single phase generator output of up to 6kVA.  Central to the success of Mosa Welder Generators is this Mosa asynchronous welding alternator.  This brushless alternator designed and manufactured in house by Mosa, offers excellent welding characteristics and simultaneous AC auxiliary power and requires no maintenance as there are no brushes to wear and the solid rotor has no windings.

    Also available is an optional remote welding control allowing welding current adjustment up to 20 metres from the welder.

    Suitable for a wide range of uses including mobile welding, site fabrication, maintenance and pipe welding.

    In accordance with CE regulation

    Products specifications
    Current range, continuous20 ÷ 210A
    Duty Cycle210A 60% – 180A 100%
    Open circuit voltage65 V
    Dry weight230 kg
    Measured acoustic power LwA (pressure LpA)91 dB(A)(66 dB(A) @ 7m)
    Guaranteed acoustic power LwA (pressure LpA)92 dB(A)(67 dB(A) @ 7m)
    Dimension1020x645x930 mm
