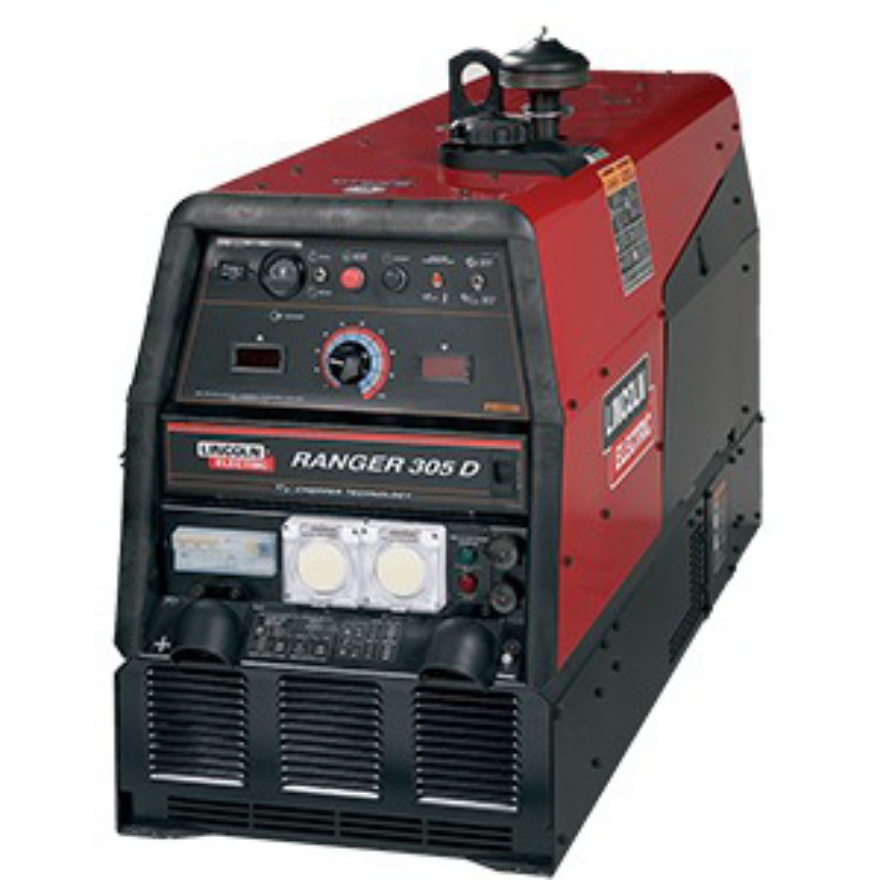

Lincoln Ranger 305D Engine Driven Welder

Brand: Lincoln
SKU: 203408
Please give us a brief description of your intended application (we may have a better solution.)
Call Us- 0800 699 353

Product Overview

The Lincoln Ranger 305D Engine Driven Welder is a portable, multi-process powerhouse. Featuring Lincoln's CT Chopper Technology, delivering excellent arc welding characteristics whether stick (conventional or pipe mode), TIG and MIG welding (including FCAW) or Arc Gouging. Deliverying 7.5KW auxillary power (240V), this is the welding equipment of choice out in the field.

Key Features:

- Kubota D722 liquid-cooled diesel engine

- Enclosed and sound reduced case

- Multi-process CC/CV output

- Excellent DC welding characteristics

- Pipe mode for cellouse elctrodes

- Single, full range output control dial

- Dual digital output meters for presetting weld amps or voltage

- 3 year warranty

Specifications

Products specifications
Rated Output305A/29V/100%
Output Range20-305A 40-300A Pipe 20-250A DC TIG 14-29V CV
Generator Output7200 watts continuous
Type of engineKubota® D722 (Diesel)
HPand Speed18.8@2200 RPM
Cylinders3
Noise Level104 dB Sound Power (Lwa) 80.6 dBA Sound Level at 7m
Dimension(H X W X D)909 mm x 546 mm x 1327 mm

The Lincoln Ranger 305D Engine Driven Welder is a portable, multi-process powerhouse. Featuring Lincoln's CT Chopper Technology, delivering excellent arc welding characteristics whether stick (conventional or pipe mode), TIG and MIG welding (including FCAW) or Arc Gouging. Deliverying 7.5KW auxillary power (240V), this is the welding equipment of choice out in the field.

Key Features:

- Kubota D722 liquid-cooled diesel engine

- Enclosed and sound reduced case

- Multi-process CC/CV output

- Excellent DC welding characteristics

- Pipe mode for cellouse elctrodes

- Single, full range output control dial

- Dual digital output meters for presetting weld amps or voltage

- 3 year warranty

Products specifications
Rated Output305A/29V/100%
Output Range20-305A 40-300A Pipe 20-250A DC TIG 14-29V CV
Generator Output7200 watts continuous
Type of engineKubota® D722 (Diesel)
HPand Speed18.8@2200 RPM
Cylinders3
Noise Level104 dB Sound Power (Lwa) 80.6 dBA Sound Level at 7m
Dimension(H X W X D)909 mm x 546 mm x 1327 mm
