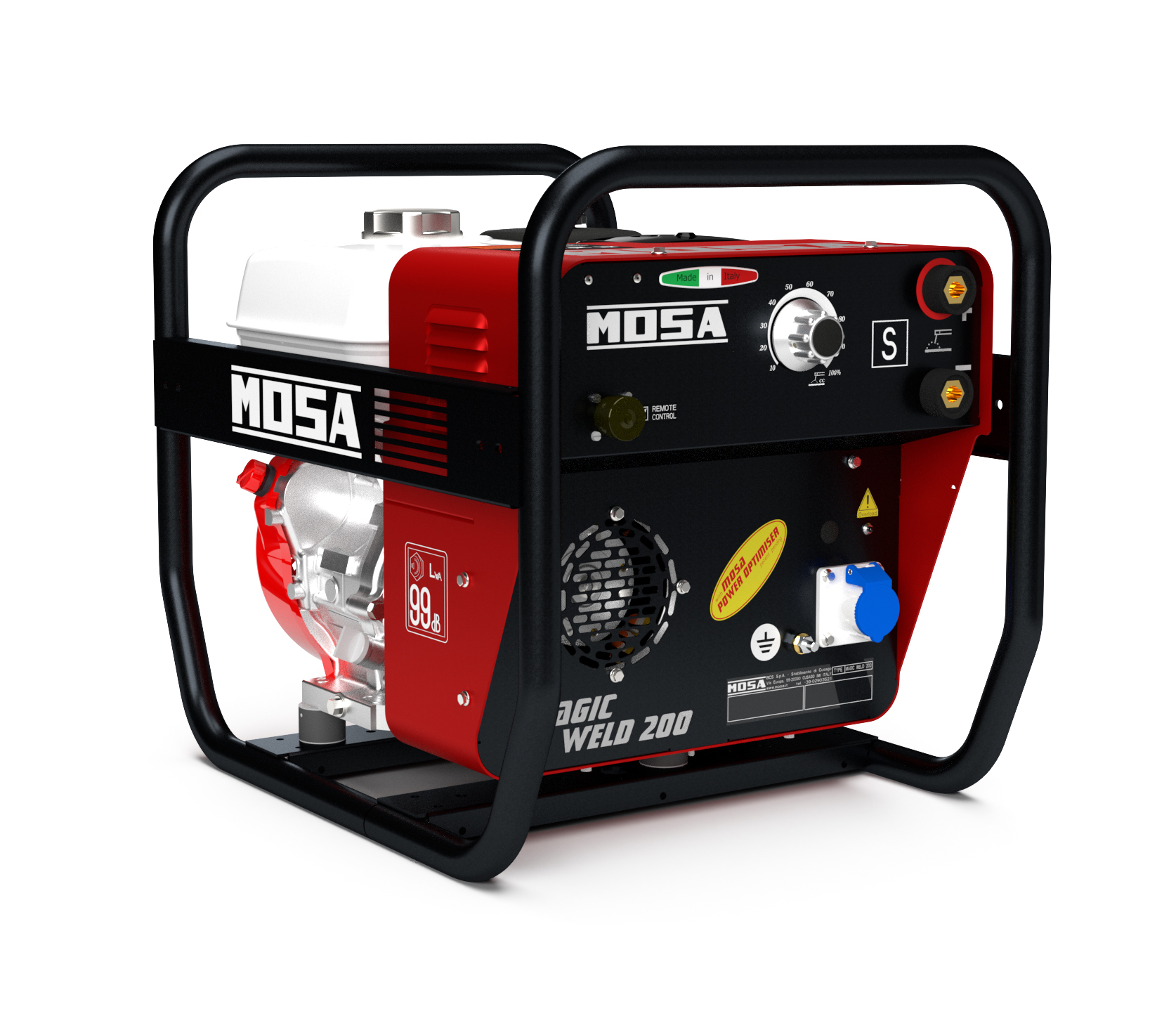

    Mosa Magic Weld 200 Engine Driven Welder

    Petrol Engine driven welder - Honda GX270 Engine - Permanent magnet alternator - Single-phase generation 3kVA - Max welding current: 200A
    SKU: 204612
    Please give us a brief description of your intended application (we may have a better solution.)
    • Engine HONDA GX 270, air cooled, petrol
    • Alternator MOSA (permanent magnet)
    • Silenced
    • Max welding current 200 A
    • Welding process: CC Stick
    • Auxiliary output: CEE socket standard: 1x 16A 230V
    • Schuko socket optional: 1x 16A 230V

    The Magic Weld 200 is a compact welding generator, lightweight and professional, with electronic control of the welding current capable of delivering up to 200 A with a duty cycle of 60%.

    The weight of the whole machine is only 57 kg. Driven by a Honda petrol engine it uses an innovative permanent magnet to supply a welding current of up to 200 A DC,  and it can function simultaneously as a welder and generator.

    The presence of an auto idle economizer introduces the concept of "power on demand", allowing both fuel savings and reduced engine wear.

    The Magic Weld 200 is able to weld any kind of electrode (rutile, basic, cellulose) up to 4 mm and takes full advantage of the engine's power output thanks to a technology developed by MOSA known as "Power Optimizer".

    AC auxiliary power of 2.8 kW/50 Hz 230v or 110v is also available, suitable for powering small tools or lighting. Another professional feature of the Magic Weld 200 is its set-up for connection to a remote control (optional), which allows the operator to control the machine from a distance of up to 20 m.

    Products specifications
    Current range30 - 200 A
    Voltage40-70 V
    Duty Cycle200 A - 60%
    Phase2.2 kVA / 9.6 ASingle
    ModelHONDA GX 270
    Power6 kW (8 HP)
    Speed3600 rpm
    Displacement270 cm
    Fuel Consumption313 g/kWh
    Tank Capacity5.3 l
    Run Time3.3 h
    IP protection degreeIP 23
    Dimension(L x W x H)610x490x520mm
    Weight57 kg
    Noise Level99 LWA (74 dB(A) - 7 m)
    Maximum Output3000W
    Continuous Output2000W
